KA7120

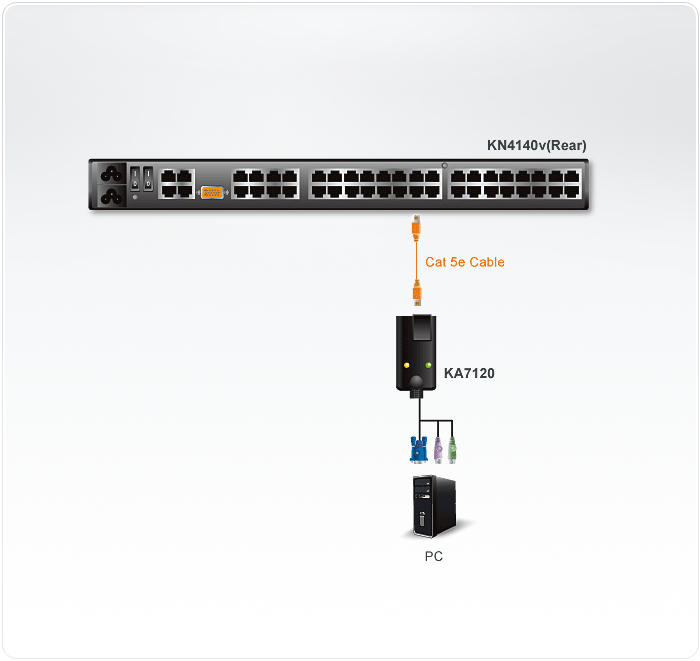

PS/2 PC KVM Adaptor Module for KN2124V,KN2140V,KN4124V,KN4140V, KM0032, KM0532, KM0932 connect between KVM to Severs via Cat5e/Cat6 cable (STP/FTP) up to 50meters, OS support Windows, Linux

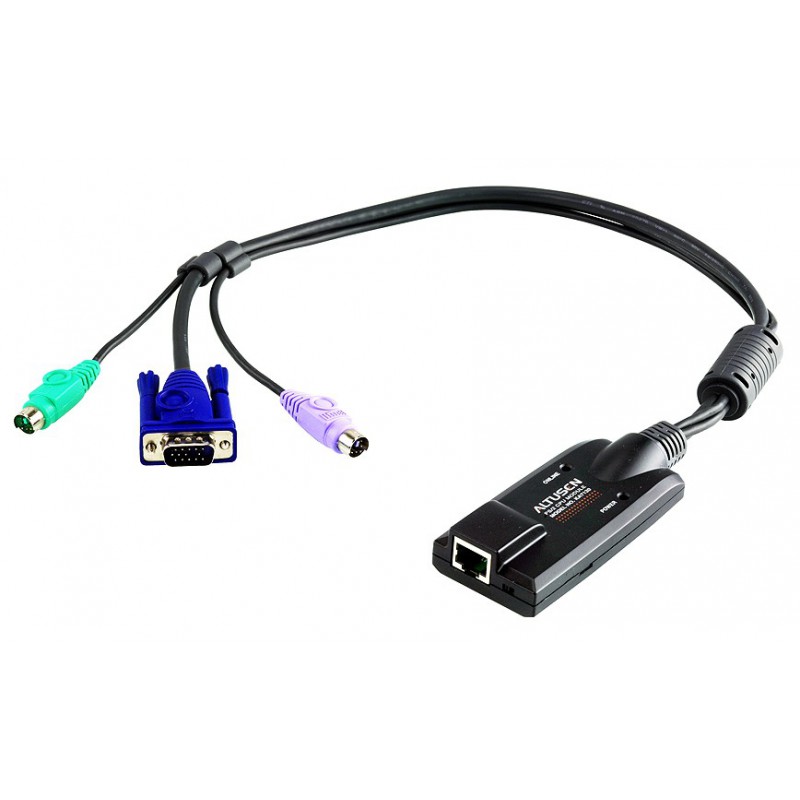

The KA7120 PS/2 KVM Adapter Cable connects the KVM switch to the video and PS/2 mouse and keyboard ports of the target computer. With its small form factor and light weight design, it represents the next generation of PS/2 KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.
Connectors | |
Link | 1 x RJ-45 Female |
Computer | 2 x 6-pin Mini-DIN Male 1 x HDB-15 Male |
LEDs | |
Online | 1 (Green) |
Power | 1 (Orange) |
Environmental | |
Operating Temperature | 0-50°C |
Storage Temperature | -20–60°C |
Physical Properties | |
Housing | Plastic |
Weight | 0.15 kg ( 0.33 lb ) |
Dimensions (L x W x H) | 9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
