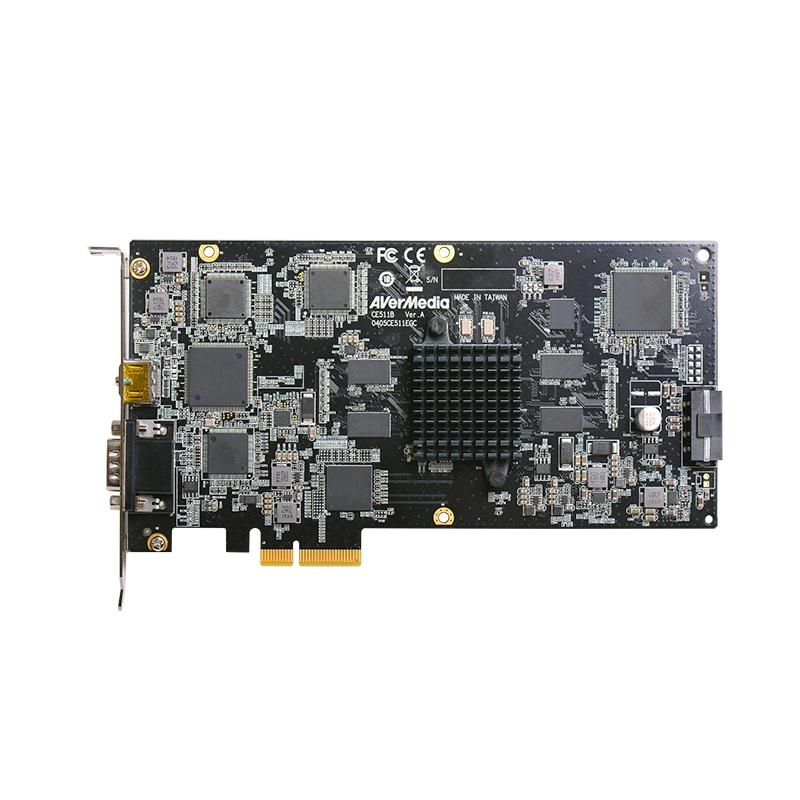

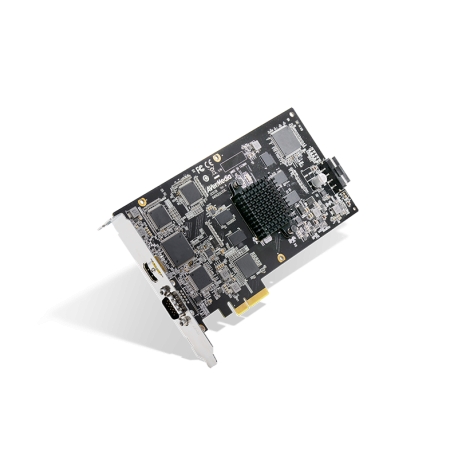

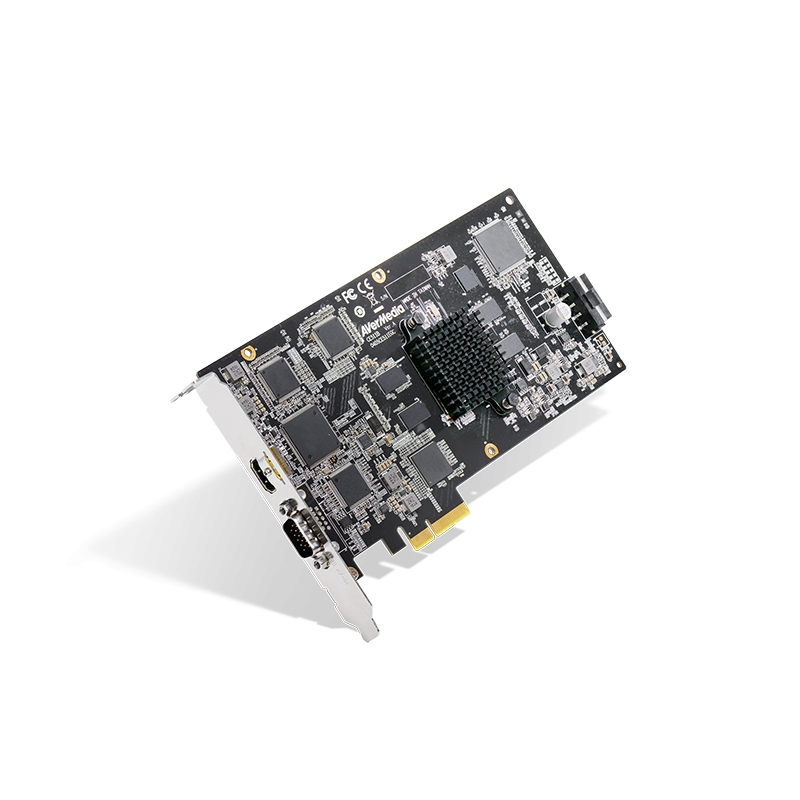

4K HDMI 2.0 Hybrid PCIe Frame Grabber
CE511-MN
4K HDMI 2.0 Hybrid PCIe Frame Grabber, 3840 x 2160p, 60 fps video streams, Support HDMI/Component/Composite/S-Video with L/R audio input
4K HDMI 2.0 Hybrid PCIe Frame Grabber
- 3840 x 2160p, 60 fps video streams
- HDMI/Component/Composite/S-Video with L/R audio
- PCIe Gen 2 x4
- Windows DirectShow compatible
- Specifically designed SDK
- Application: video conferencing, inspection, digital signage
- NewTek™ NDI integration
Features

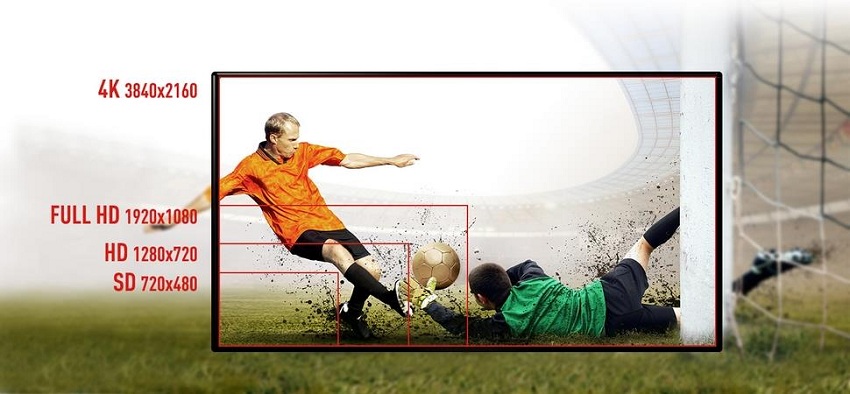

Real-time 4K video capturing
4K is becoming a more popular video standard. At 4 times larger than FHD resolution, 4K video contains more then 8 million pixels to provide a more true-to-life viewing experience. This new revolution in resolution will bring new video quality capturing requirements; thus, the CE511-MN 4K capture card is designed to transmit astounding 4K lossless video data through its PCIe Gen2 x4 data bus. With a 3840 x 2160 ultra high video resolution, the CE511-MN can record even the smallest of details.

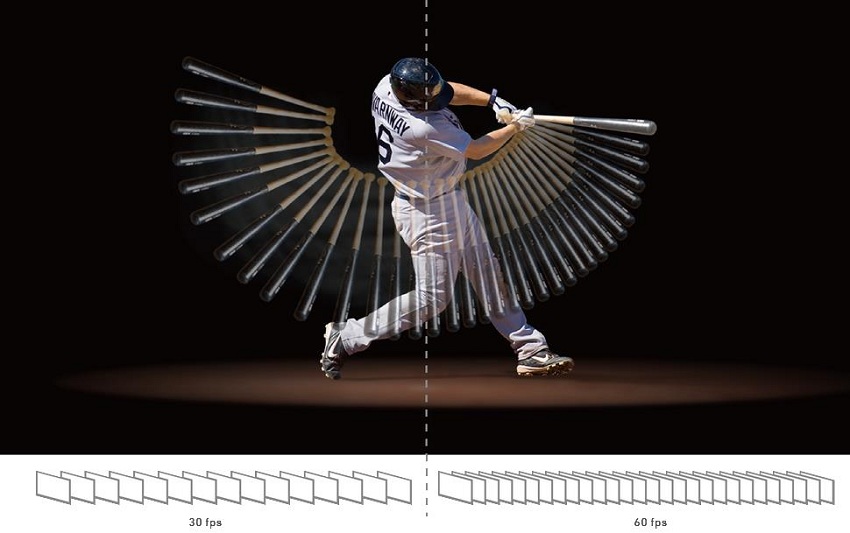

Remarkable 60 frames per second
The most common consumer recording devices today support higher recording frame rates as do more professional recording devices, such as those used for medical imaging and industrial surveillance. At 60 frames per second, you can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, providing a more lifelike and smooth video playback experience.

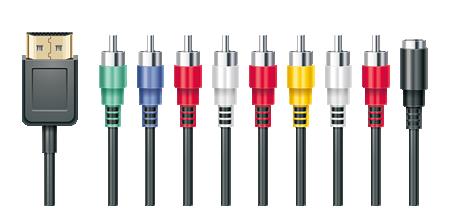

Multiple video input interfaces
The CE511-MN is equipped with video interfaces for legacy analog connections (Component, Composite, S-Video) and the highest quality HDMI 2.0. This means that the CE511-MN is compatible with most video devices so you can capture anything you’d like with only one card.

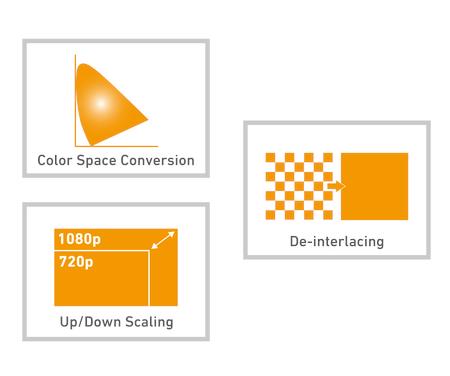

Hardware scaling, de-interlacing, and color space conversion
AVerMedia hardware-based video engine technology implements the most useful video processing functions, including scaling, de-interlacing, and color space conversion. This can significantly help you reduce the computing burden on software and hardware, which allows you to focus on other important parts of your application.
Video-processing software support. Highly compatible
- AVerMedia SDK: industrial customers can develop vertical applications flexibly and efficiently by using a specifically designed SDK, with features such as device control, media capture, A/V processing, and more. Learn more about AVerMedia SDK.
- NewTek™ NDI integration: NDI (Network Device Interface) can help build an efficient live video production IP workflow infrastructure over an Ethernet network. With AVerMedia NDI-ready products, users can produce, integrate, and manage multiple 4K streams on-the-fly.
Specification
| Host Interface | PCIe Gen2 x4 |
| Audio Interface | L/R |
| Audio Format | PCM |
| Audio Sampling Rate | 32KHz, 44.1KHz, 48KHz |
| Connector Type | 1. HDMI |
| 2. DB15 | |
| Input Interface | HDMI |
| Component | |
| Composite | |
| S-Video | |
| Video Format | YUV 4:2:2 |
| Color Depth | 8-bit |
| Max. Input Resolution | 3840 x 2160 60fps |
| Max. Recording Resolution | 3840 x 2160 60fps |
| Input Video Resolution (* It's progressive signal if there is no 'i'.) |
Composite/S-Video: NTSC(720x480@60i)/PAL(720x576@50i) Component: 720x480@60i, 720x576@50i, 1280x720@50/60p, 1920x1080@50/60i HDMI: 640x480, 702x576, 720x400, 720x480, 720x576, 800x600, 1024x768, 1152x864, 1152x900, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1400x1050, 1440x480, 1440x576, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200,3840x2160 HDMI Notes: There are two options for frame rate： (1) Default frame rate 50 or 60 fps (2) Frame rate, range 5~60. |
| Capture Video format (* Capture format won't be interlaced.) |
Composite/S-Video: 720x480, 720x576 Component: 720x480, 720x576, 1280x720, 1920x1080 HDMI: 640x480, 720x400, 720x480, 720x576, 800x600, 1024x768, 1152x864, 1152x900, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1366x768, 1400x1050, 1440x480, 1440x576, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200, 3840x2160 Notes: There are two options for frame rate： (1) Default frame rate 50 or 60 fps (2) Frame rate, range 5~60. Customazible resolution service: (horizontal pixel < 3840, vertical line < 2160). Output width must be divisibled by 4. |
| Channel No. | 2Ch (1 Ch HDMI 2.0 + 1 Ch Multiple Interfaces) |
| Encoding mode | Software Encoding |
| Multi-Channel Support | Yes |
| Supported OS | Windows 7/8.1/10 (32/64 bits)* |
| Form Factor | PCIe Gen2 x 4 High Profile |
| Dimension (L x W) | 200 x 110 mm |
| Power Consumption | 12W |
| Power Requirements | Molex 4 pin peripheral power connector |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temp | -20°C ~ 40°C |
| Safety Certification | CCC / FCC / CE |
