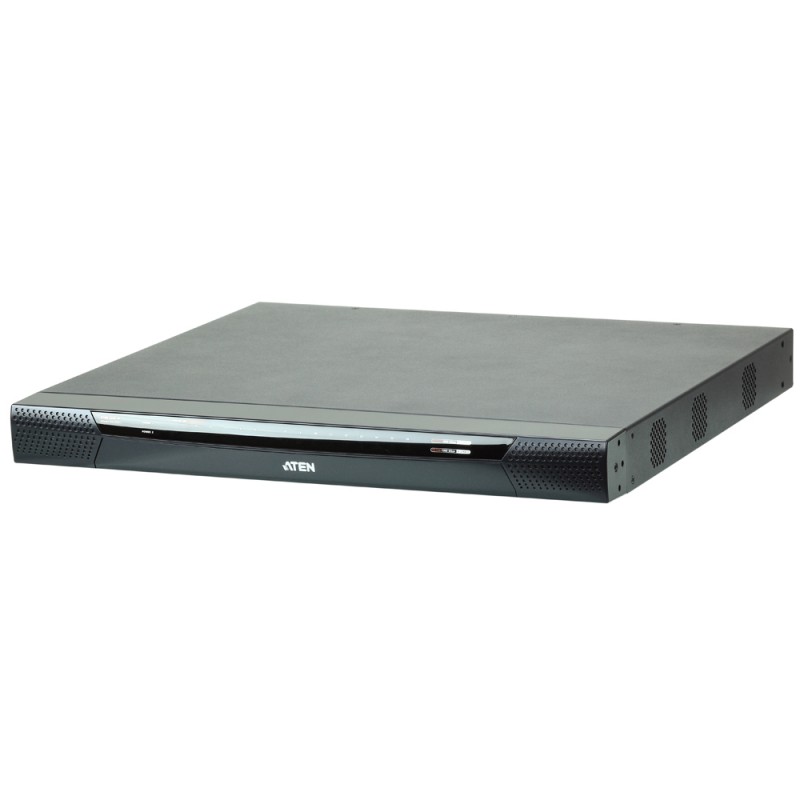

1-Local / 4-Remote access 16-Port KVM over IP Switch with Dual Power/LAN
KN4116VA
KVM over IP switches 4th Gen คุณภาพของวิดีโอแบบ HD 1920 x 1200 มาตรฐานความปลอดภัย FIPS 140-2 Level 1 และ มีระบบ Virtual Media ที่เร็วขึ้นสองเท่า !!!
* รองรับการ Remote ควบคุมเซิร์ฟเวอร์ด้วย iPad คลิกทีนี่
รับประกัน 3 ปีเต็ม
ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN4116VA features superior video quality (HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOSlevel troubleshooting when the network is down.
New KN Series Exclusive:
• High grade security – supports FIPS 140-2 level 1 security standards
• Extreme virtual media speed – 2 x faster virtual media transmission speed
• Advanced FPGA graphics processor – with an HD resolutions of 1920 x 1200
With dual on-board NICs and dual power supplies, the KN series are built for reliability, to ensure 24/7 availability of remote access to all servers.
KN series devices can be integrated into the CC2000 Management Software. The CC2000 puts administrators in complete control of remote data centers and branch offices no matter where they are in the world – allowing IT administrators to remotely monitor and control all devices on a network, including blade servers and virtual machines.
To help you manage and control an entire data center, ATEN KVM over IP switches support blade servers and chassis. With powerful features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches’ user interface.
Additional exclusive features of ATEN KVM over IP switches include: a Message Board, Panel Array Mode™, Mouse DynaSync™ and the Adapter ID.
ATEN KVM over IP switches save you time and money by allowing administrators to manage their data centers from practically anywhere – minimizing travel and MTTR (Mean Time to Repair) costs, ensuring the highest availability for data center services possible.
Features
- New KN Series Exclusive
- High grade security – supports FIPS 140-2 level 1 security standards
- Extreme virtual media speed – 2 x faster virtual media transmission speed
- Advanced FPGA graphics processor – with an HD resolution of 1920 x 1200
- Simultaneously share one local console and four independent connections to the attached servers
- Hardware
- High port density – RJ-45 connectors and Cat 5e/6 cable for up to 16 ports
- Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation
- Four separate buses for remote KVM over IP access
- Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
- Blade server support
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides USB keyboard and mouse support
- Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
- Audio enabled
- Dual Power Supply
- High video resolution – up to 1920 x 1200 @ 60Hz with 24-bit color depth at the switch’s local console and on remote session displays
- Monitor and control up up to 16 computers on a single level, or control up to 256 computers in a cascade*
* Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A - Management
- Up to 64 user accounts – up to 32 users simultaneously share the control
- Green IT-Fan speed varies according to temperature
- Event logging and Windows-based Log Server support
- Critical system event notification via SMTP email; SNMP trap and Syslog support
- Customizable events notification
- Firmware upgradeable
- Out-of-Band Access-Modem dial-in/dial out/dial back support
- Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ATEN Altusen CC2000 Management Software
- Power Association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
- IPv6 capable
- Ease-to-Use Interface
- ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
- Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
- Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
- Full-screen or sizable and scalable Virtual Remote Desktop
- Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
- Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
- Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports SSL 128-bit data encryption and RSA 2048-bit certificates to secure users log in from browser
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
- Support for IP/MAC Filter
- Configurable user and group permissions for server access and control
- Automated CSR creation utility and third party CA certificate authentication
- Virtual Media
- Virtual media enables file applications, OS patching, software installation and diagnostic testing
- Works with USB enabled servers in operating system and BIOS level
- Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
- Virtual Remote Desktop
- Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen video display or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync-automatically synchronizes the local and remote mouse movements
- Exit Macros support
- On-screen keyboard with multilanguage support
- BIOS-level access for trouble shooting
KVM Adapter Module
KA7120 สำหรับเซิร์ฟเวอร์แบบ PS/2 เช่น Windows/Linux
KA7170 สำหรับเซิร์ฟเวอร์แบบ USB (รองรับทั้ง Windows, Linux, Mac, Sun)
KA7130 สำหรับเซิร์ฟเวอร์แบบ Sun Lagacy system (พอร์ต display แบบ 13w3)
KA7140 สำหรับเซิร์ฟเวอร์ หรือ อุปกรณ์ แบบ Serial RS232
KA7166 สำหรับเซิร์ฟเวอร์แบบ DVI และ USB สำหรับ Smart Card/CAC รองรับ PC, Mac, Sun
KA7168 สำหรับเซิร์ฟเวอร์แบบ HDMI และ USB สำหรับ Smart Card/CAC รองรับ PC, Mac, Sun
KA7169 สำหรับเซิร์ฟเวอร์แบบ DisplayPort และ USB สำหรับ Smart Card/CAC รองรับ PC, Mac, Sun
KA7175 สำหรับเซิร์ฟเวอร์แบบ USB (Virtual Media)
KA7176 สำหรับเซิร์ฟเวอร์แบบ USB (Virtual Media with Audio)
KA7177 สำหรับเซิร์ฟเวอร์แบบ USB (Virtual Media with Smart Card Reader)
KA7178 แบบ Dual Output สำหรับใช้กับ 2 KVM over IP ที่ต้องการควบคุมเซิร์ฟเวอร์เครื่องเดียวกัน
Diagram
Specifications
| Computer Connections | |
| Direct | 16 |
| Maximum | 256 (via Cascade KVM Switches) |
| Console Connections | |
| Local | 1 |
| Remote | 4 |
| Port Selection | Pushbuttons, Hotkeys, GUI |
| Connectors | |

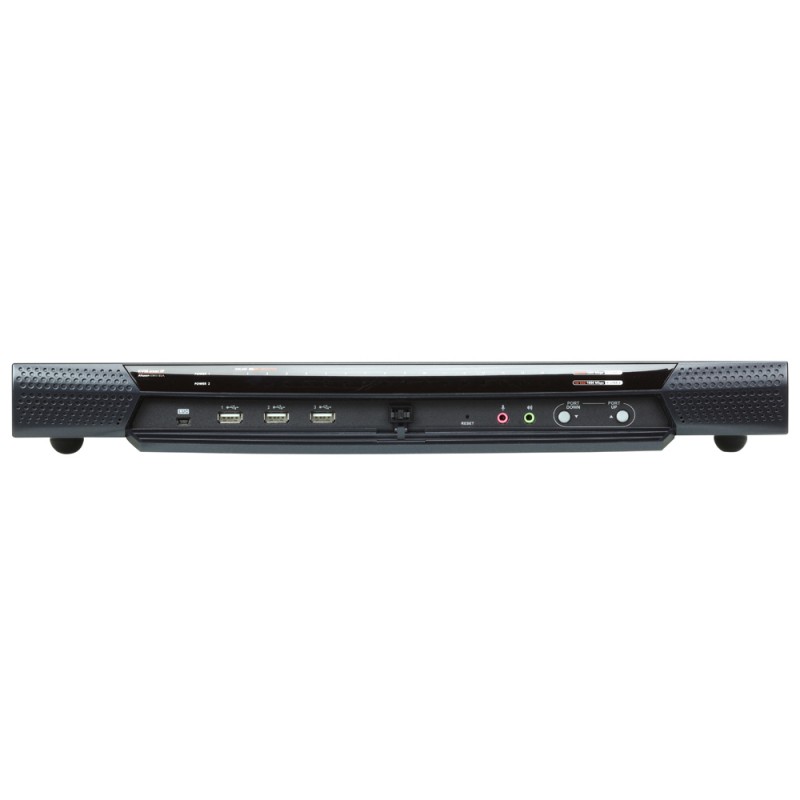

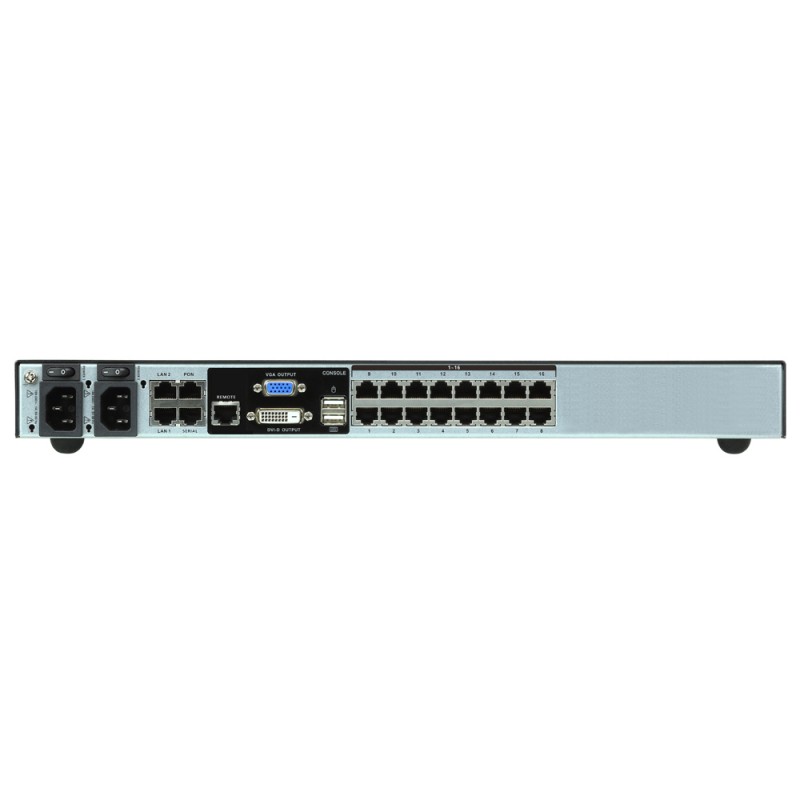

| Console Ports | 2 x USB Female (Black) 1 x DVI-D Female (White) 1 x VGA HDB-15 (Blue) 1 x RJ-45 Female (Black) |
| KVM Ports | 16 x RJ-45 Female (Black) |
| USB Port | 3 x USB Female (Black) |
| Audio | 2 x Audio Jack Female (Pink; Green) |
| Laptop USB Console (LUC) Port | 1 x Mini-USB Female (Black) |
| PON | 1 x RJ-45 Female (Black) |
| Serial | 1 x RJ-45 Female (Black) |
| LAN Ports | 2 x RJ-45 Female (Black) |
| Power | 2 x IEC 60320/C14 |
| Switches | |
| Power | 2 x Rocker Switches |
| Port Selection | 2 x Pushbuttons |
| Reset | 1 x Semi-recessed Pushbutton |
| LEDs | |
| Online / Selected | 16 (Green/Orange) |
| Power | 2 (Blue) |
| Link 10 / 100 / 1000 Mbps | 2 (Red/Orange/Green) |
| Emulation | |
| Keyboard / Mouse | PS/2; USB |
| Video | |
| Local | 1920 x 1200 @ 60Hz |
| Remote | 1920 x 1200 @ 60Hz |
| Maximum Input Power Rating | 100–240V~ ; 50-60Hz; 1A |
| Power Consumption | |
| Single Power | 110V/49.06W; 220V/50.49W |
| Dual Power | 110V/24.93W; 220V/25.8W (per input) |
| Scan Interval | 1 – 255 Sec |
| Environmental | |
| Operating Temperature | 0 - 40˚C |
| Storage Temperature | -20 - 60˚C |
| Humidity | 0 - 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 5.60 kg ( 12.33 lb ) |
| Dimensions (L x W x H) | 43.36 x 41.21 x 4.40 cm (17.07 x 16.22 x 1.73 in.) |
- * The specification and pictures are subject to change without notice.
- * All trademarks and logos are the properties of their respective holders.
Package Contents
- 1x KN4116VA KVM over IP Switch
- 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
- 2x Power Cords
- 1x Mounting Kit
- 2x Lok-U-Plugs
- 1x Lok-U-Plug Installation Tool
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
ตาราง KVM Adapter module รุ่นที่ใช้ร่วมกันได้
