DVI Full HD LCD Console
CL6700MW

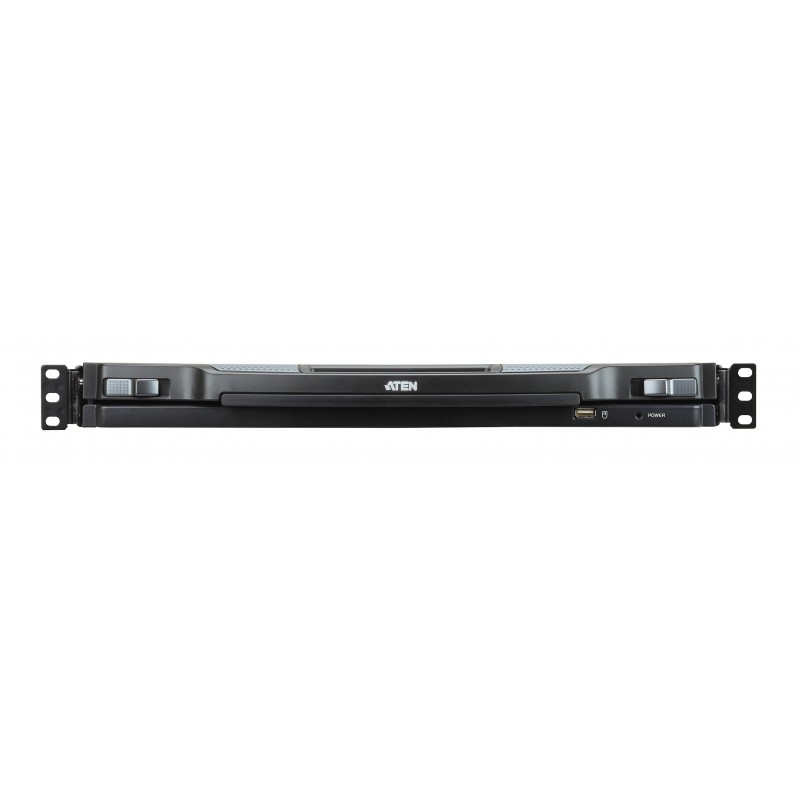

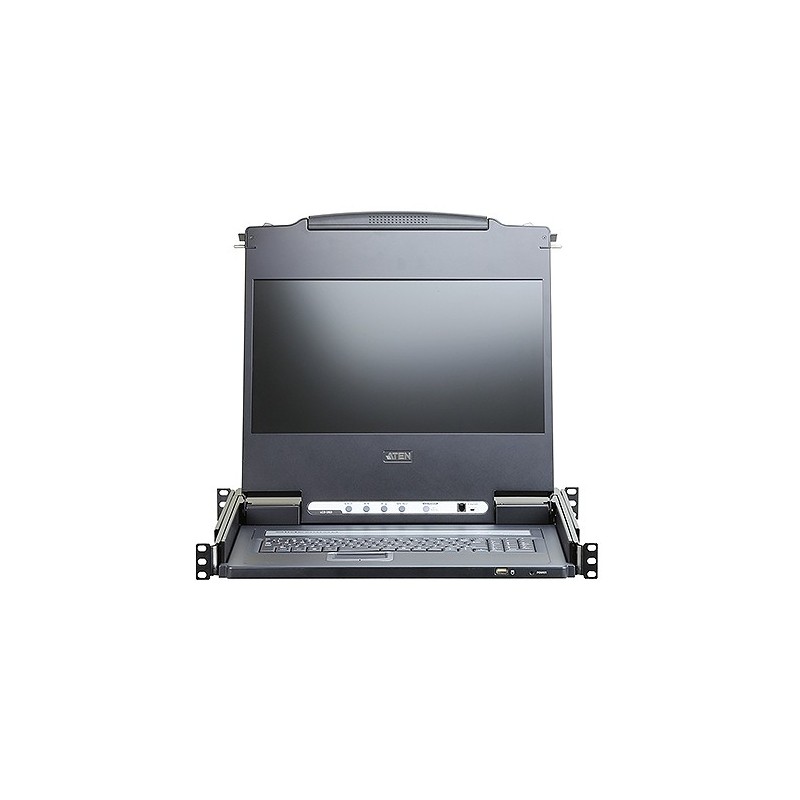

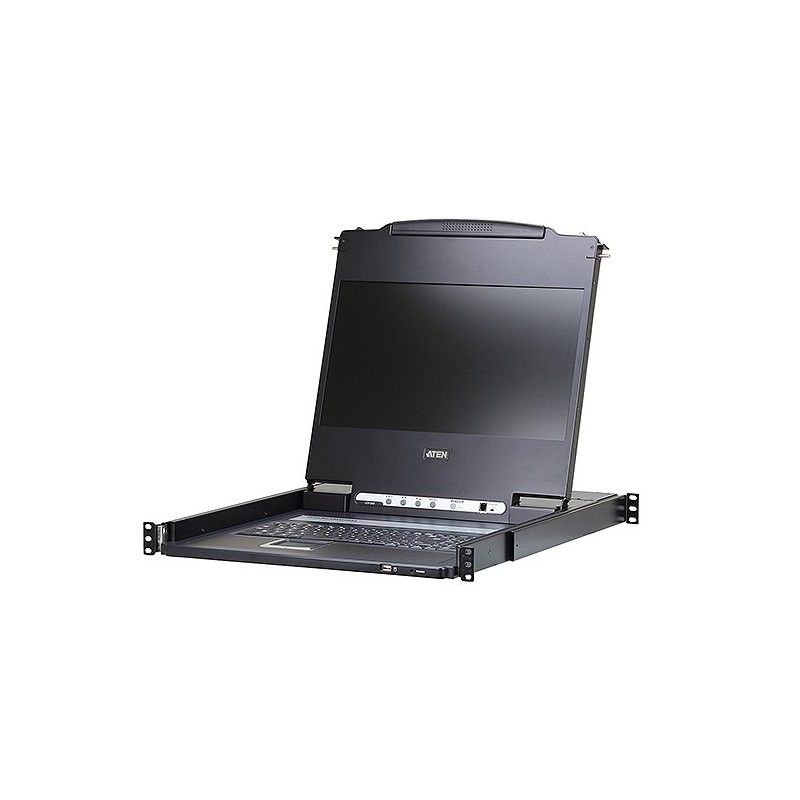

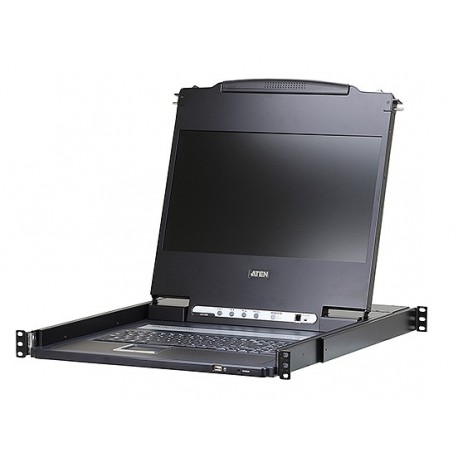

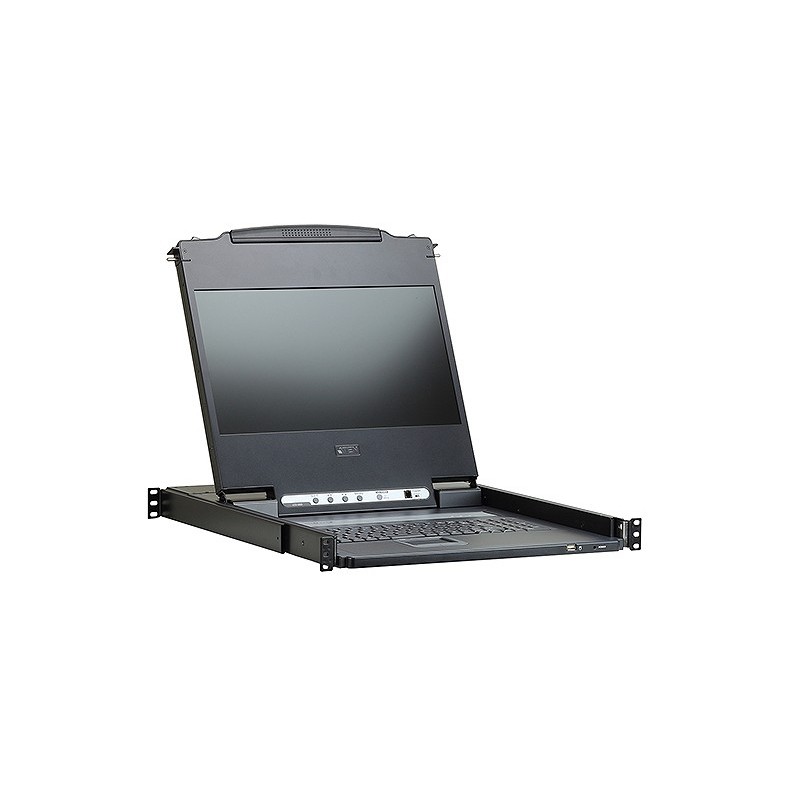

DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing.
รับประกัน 3 ปีเต็ม
The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.

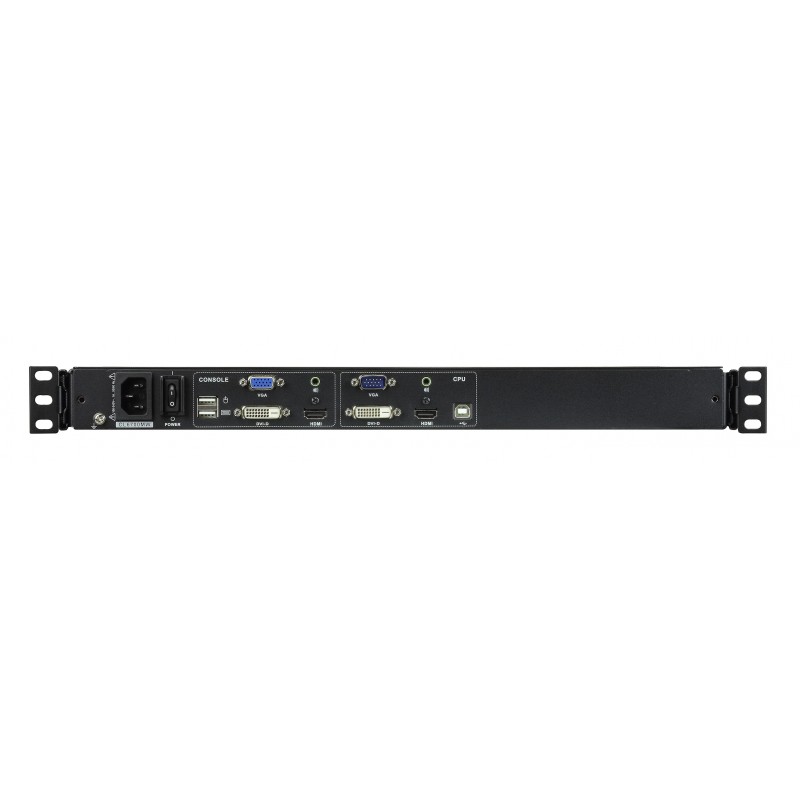

The CL6700MW features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.
Features
- Integrated KVM console with a 17.3’’ Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
- Supports an external console with USB / DVI / VGA / HDMI connectors
- Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
- Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
- Audio support for connecting speakers
- Standard 105-key keyboard; Sun keyboard emulation
- Multiplatform support – Windows, Linux, Mac, and Sun
- Adjustable depth to fi t within the rack
- Firmware upgradeable
- Console lock – enables the console drawer to remain securely locked away in position when not in use
- DDC emulation – video settings of attached computers are automatically adjusted for optimal output to the monitor
- Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek
Standard Installation Rack Mount Kit
| Rack Mount Kit | ความลึกของตู้ Rack |
| Short (Standard - มาพร้อม package) | 52 - 85 cm |
| 2X-010G (Long - อุปกรณ์เสริม ไม่รวมใน package) | 70 - 105 cm |
Easy Installation Rack Mount Kit
ช่วยให้ติดตั้งได้ด้วยคนเพียงคนเดียว
| Easy Installation Rack Mount Kit |
ความลึกของตู้ Rack |
| 2X-011G (Short - อุปกรณ์เสริม ไม่รวมใน package) | 57 - 70 cm |
| 2X-012G (Long - อุปกรณ์เสริม ไม่รวมใน package) | 68 - 105 cm |
Diagram
Specification
| Computer Connections | 1 | ||
| Console Selection | Hotkey | ||
| Connectors | External Console Ports | Keyboard | 1 x USB Type A Female |
| Mouse | 1 x USB Type A Female | ||
| Monitor | 1 x DVI-D Female (White) 1 x HDB-15 (VGA) Female (Blue) 1 x HDMI Female (Black) |
||
| Speaker | 1 x Mini Stereo Jack Female (Green) | ||
| KVM Ports | Keyboard / Mouse | 1 x USB Type B Female (White) | |
| Monitor | 1 x DVI-D Female (White) 1 x SPHD-15 (VGA) Male (Blue) 1 x HDMI Female (Black) |
||
| Speaker | 1 x Mini Stereo Jack Female (Green) | ||
| External Mouse / Peripheral | 1 x USB Type A Female (Black) | ||
| Firmware Upgrade | 1 x RJ-11 Female (Black) | ||
| Power | 1 x 3-prong AC Socket | ||
| Switches | Reset | 1 x Semi-recessed Pushbutton | |
| Power | 1 x Rocker | ||
| F/W Upgrade | 1 x Slide | ||
| LCD Power | 1 x Pushbutton | ||
| LCD Adjustment | 4 x Pushbutton | ||
| LEDs | Power | 1 (Green) | |
| Lock | Num | 1 (Green) | |
| Caps | 1 (Green) | ||
| Scroll | 1 (Green) | ||
| Emulation | Keyboard / Mouse |
USB | |
| Video | 1920 x 1080 @ 60Hz, DDC2B | ||
| I/P Rating | 100–240VAC; 50–60Hz; 1A | ||
| Power Consumption | 120V,19.4W / 230V,19.4W | ||
| Environment | Operating Temp. |
0-40°C |
|
| Storage Temp. | -20-60°C | ||
| Humidity | 0 - 80% RH, Non-condensing | ||
| Physical Properties |
Housing | Metal | |
| Weight | 11.38 kg | ||
| Dimensions (L x W x H) |
58.92 x 48.00 x 4.40 cm | ||
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
Package Content
- 1x CL6700MW DVI Full HD LCD Console with Standard Rack Mount Kit
- 1x Custom USB DVI KVM Cable Set
- 1x Power Cord
- 1x Firmware Upgrade Cable
- 1x User Instructions
