8 Port Dual Rail Cat 5 LCD KVM
KL1508AM
The KL1508AM 8 Port Cat 5 High-Density Dual Rail 17" KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console.
รับประกัน 3 ปีเต็ม

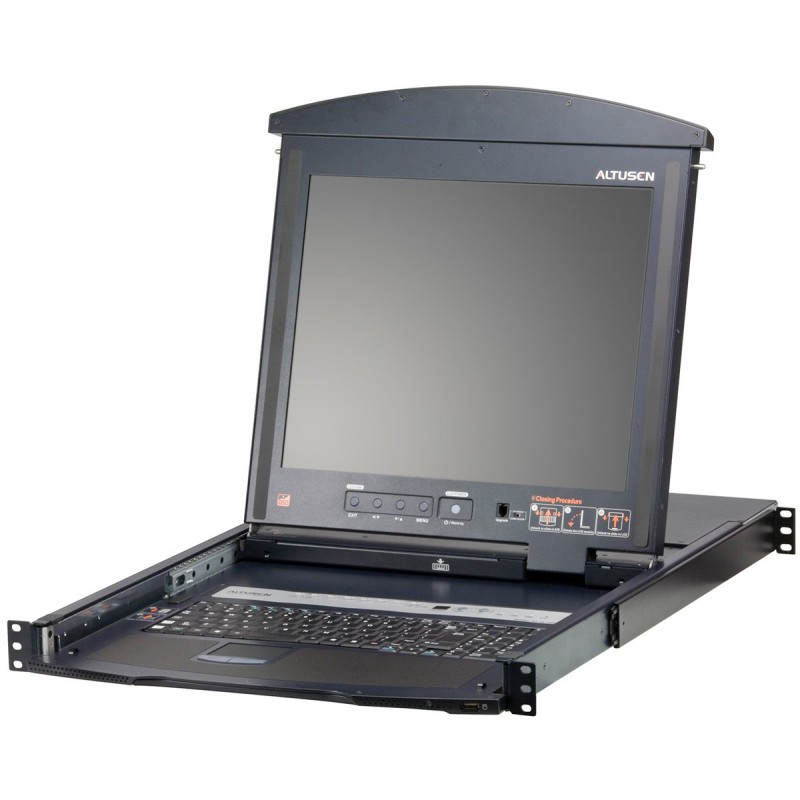

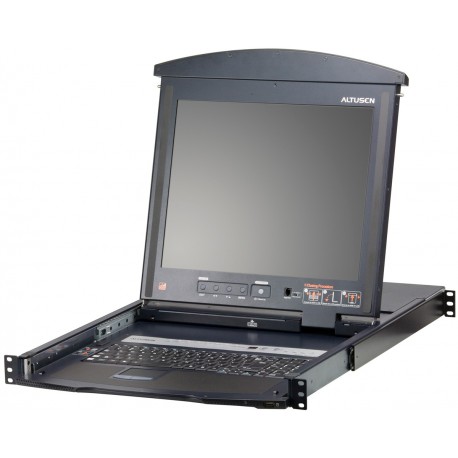

ALTUSEN KL1508AM LCD KVM Switch features independently retractable, dual slide 17" LCD monitor and keyboard with built-in touchpad. The KL1508AM KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console.
For increased reliability and efficiency, RJ-45 connectors and Cat 5e/6 cable are used to link to the computers. Utilizing KVM Adapter Cables for the final linkup, the KL1508AM permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.
For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Other advances found with these switches includes enhanced video quality – extending the distance to the servers to up to 50 m* at a resolution of 1280 x 1024.
A KL1508AM installation provides one of the best and most economical solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KL1508AM KVM switch.
คุณสมบัติ
- Integrated KVM console with 17" LCD monitor in a Dual Rail housing
- A single console controls up to 8 (KL1508AM) computers
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- KVM adapter cables* desinged with automatic convension to allow flexible interface combination (PS/2, USB, Sun and serial) to control all computer types
- OSD tree structure makes finding and managing computers easy
- Conveniently located station and port selectors with LED displays to quickly switch to target computers
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
- Extra console port—manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
- Supports external USB mouse
- Dual Rail—LCD monitor slides independently of the keyboard/touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock—enables the console drawer to remain securely locked away in position when not in use
- Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
- Daisy chain up to 31 additional KVM switches to control up to 512 computers
- Auto Scan mode enables continuous monitoring of user-selected computers
- Multiplatform support: PC, Mac, Sun and Serial
- Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters*
- Configure port access rights for users on a port - by - port basis
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
- Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
- LCD power button helps save energy and prolong displays’ life
- Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
- Adapter ID
- Firmware Upgradeable
**KVM Adapter Module (CPU โมดูล) อุปกรณ์ประกอบ ที่ต้องใช้ร่วมกัน ตามประเภทของเซิร์ฟเวอร์ (ไม่ รวมใน package)
DUAL-RAIL
ช่วยให้สามารถดึงเฉพาะจอแสดงผลออกมาใช้งานได้ (ไม่ต้องดึงพร้อมคียบอร์ด) จึงปิดตู้ Rack ได้ โดยไม่ต้องพับเก็บหน้าจอ เหมาะสำหรับตู้ Rack ที่เป็นประตูใส admin สามารถ monitor server ได้แม้ ตู้ rack ปิดอยู่
Standard Installation Rack Mount Kit
| Rack Mount Kit | ความลึกของตู้ Rack |
| Short (Standard - มาพร้อม package) | 42 - 77 cm |
| 2X-010G (Long - อุปกรณ์เสริม ไม่รวมใน package) | 68 - 105 cm |
Easy Installation Rack Mount Kit
ช่วยให้ติดตั้งได้ด้วยคนเพียงคนเดียว
| Easy Installation Rack Mount Kit |
ความลึกของตู้ Rack |
| 2X-011G (Short - อุปกรณ์เสริม ไม่รวมใน package) | 57 - 70 cm |
| 2X-012G (Long - อุปกรณ์เสริม ไม่รวมใน package) | 68 - 105 cm |
ผังการต่อ
ข้อมูลจำเพาะ
| Function | KL1508AM | ||
| Computer Connections | Direct | 8 | |
| Max | 256 (via Daisy Chain) | ||
| Port Selection | OSD (On Screen Diaplay); Hotkeys Pushbuttons | ||

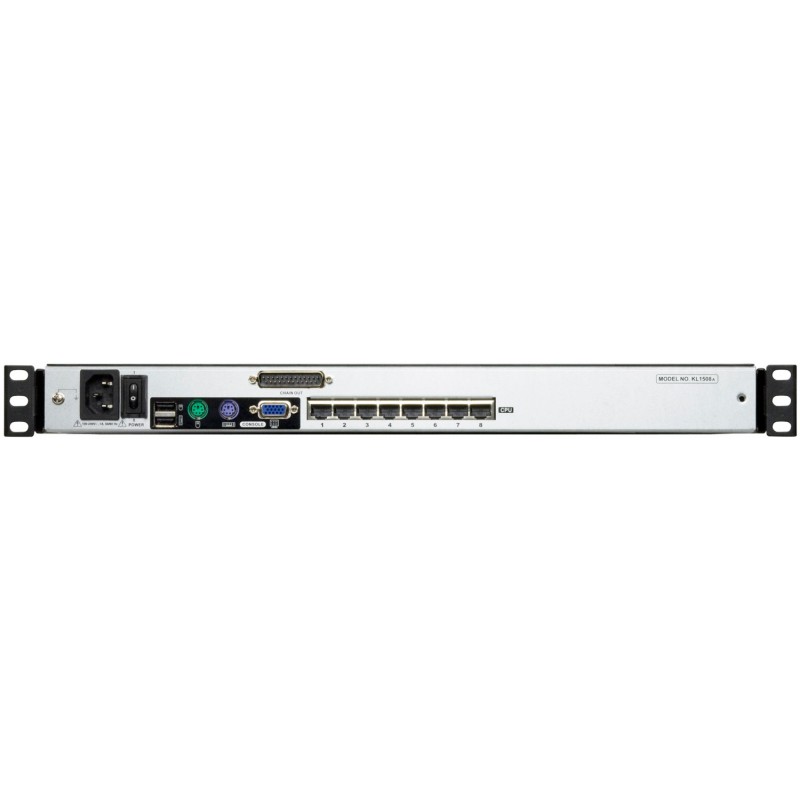

| Connectors | Console | Keyboard |
1 x 6-pin Mini-DIN Female (Purple); |
| Video | 1 x HDB-15 Female (Blue) | ||
| Mouse | 1 x 6-pin Mini-DIN Female (Green); 1 x USB Type A Female (White) |
||
| KVM Ports | 8 x RJ-45 Female (Black) | ||
| Daisy Chain | Chain Out | 1 x DB-25 Male (Black) | |
| F/W Upgrade | 1 x RJ-11 Male (Black) | ||
| Power | 1 x 3-Prong AC socket | ||
| External Mouse | 1 x USB Type A (Female) | ||
| Switches | Port Selectio | 8 x Pushbutton | |
| KVM Reset | 1 x Semi-recessed Pushbutton | ||
| F/W Upgrade | 1 x Slide | ||
| Power | 1 x Rocker | ||
| LCD Power | 1 x Pushbutton | ||
| LCM Adjustment | 4 x Pushbutton | ||
| Station | 2 x Pushbutton | ||
| LEDs | Port | On Line | 8 (Green) |
| Selected | 8 (Orange) | ||
| Power | 1 (Blue) | ||
| Station ID | 1 x 2 Digit 7-segment (Orange) | ||
| Lock | 1 x Num Lock (Green) | ||
| 1 x Caps Lock (Green) | |||
| 1 x Scroll Lock (Green) | |||
| LCD Power | 1 (Orange) | ||
| Emulation | Keyboard / Mouse | PS/2; USB (PC, Mac, Sun); Serial | |
| Video | 1280 x 1024 @ 75Hz | ||
| Scan Interval | 1–255 sec. | ||
| VP Rating | 100-240 VAC; 50/60 Hz; 1A | ||
|
Power Consumption |
17" LCD | 100V 26.2W / 230V 27.4W | |
| Environment | Operating Temp. | 0 – 40 | |
| Storage Temp. | -20–60 | ||
| Humidity | 0–80% RH, Non-condensing | ||
|
Physical Properties |
Housing | Metal | |
| Weight | 17" LCD | 16.84 kg | |
|
Dimensions (L x W x H) |
17" LCD | 70.90 x 48.20 x 4.40 cm | |
อุปกรณ์ในกล่อง
- 1x KL1508AM 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 2x L Brackets
- 1x User Instructions
