US3312
2-Port USB-C DisplayPort Cable KVM Switch with Remote Port Selector is a control unit that allows access to two computers from a single USB-C and DisplayPort console (keyboard, video and mouse) support resolution 4096 x 2160 @ 60 Hz (4:4:4) and OS Support Windows, Linux and Mac M1/M2
หมายเหตุ ช่อง USB-C ของ Laptop / PC ต้องรองรับ DP Alt mode จึงจะสามารถแสดงผลออกจอภาพได้ กรุณาตรวจสอบจากสัญลักษณ์ DP หรือ Thunderbolt ข้างพอร์ต USB-C หรือดูได้จากคู่มือของ Laptop นั้น ๆ
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

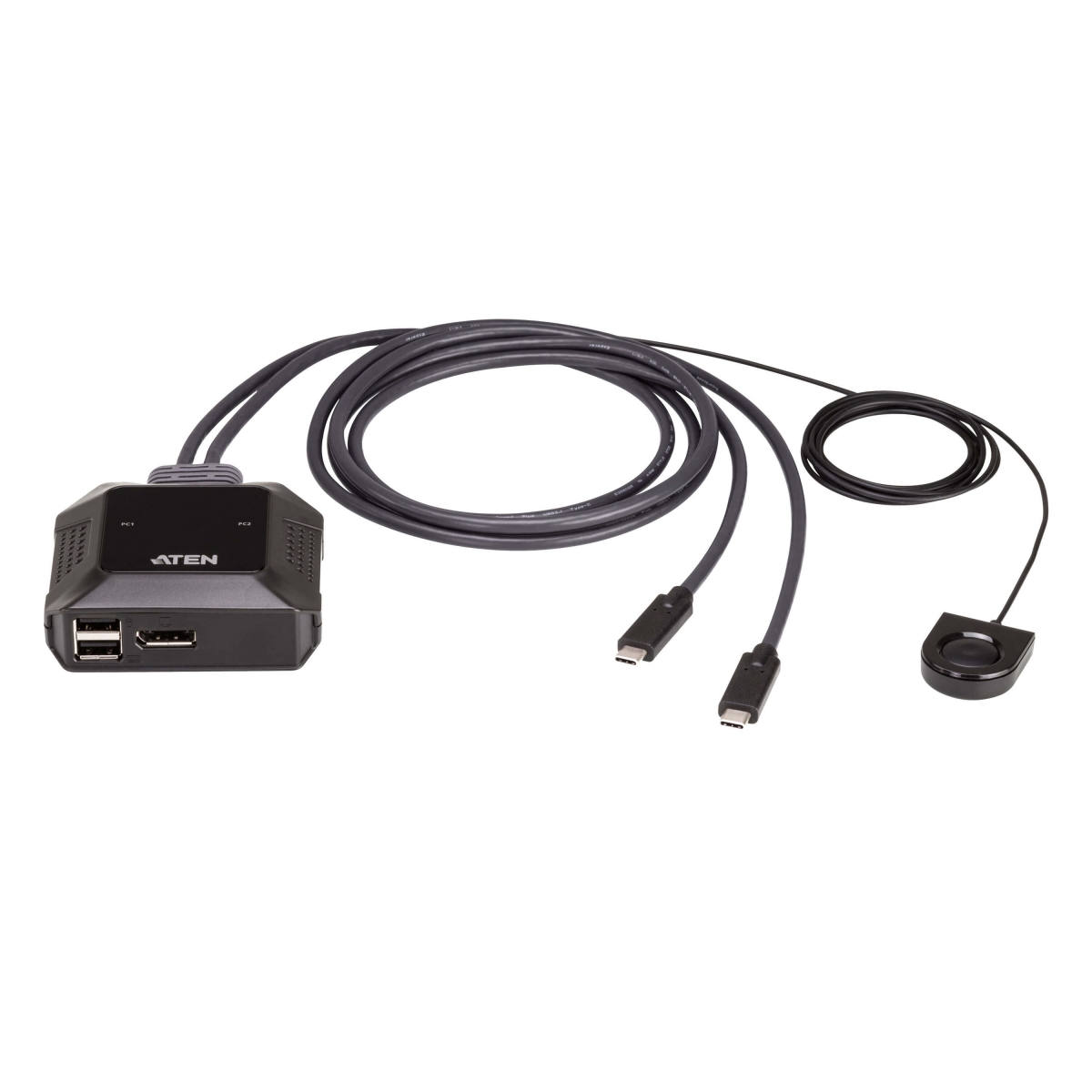

2-Port USB-C 4K DisplayPort KVM Switch with Remote Port Selector
2-Port USB-C DisplayPort Cable KVM Switch with Remote Port Selector is a control unit that allows access to two computers from a single USB-C and DisplayPort console (keyboard, video and mouse) support resolution 4096 x 2160 @ 60 Hz (4:4:4) and OS Support Windows, Linux and Mac M1/M2
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
The compact US3312 is ideal for meeting hybrid work challenges head on by revamping your workspace with the power of a cable KVM switch and the mobility of USB-C connectivity. Streamline the most complex workflows by simply pushing a button to quickly switch in 3 seconds between your tasks on two USB-C mobile devices, such as a laptop, tablet, MacBook, iPad, and even Mac mini, from a DisplayPort and USB console. The US3312 magically de-clutters your desktop workspace for a neat and space-efficient new look, and brings in vivid 4K viewing quality to enhance your work performance.

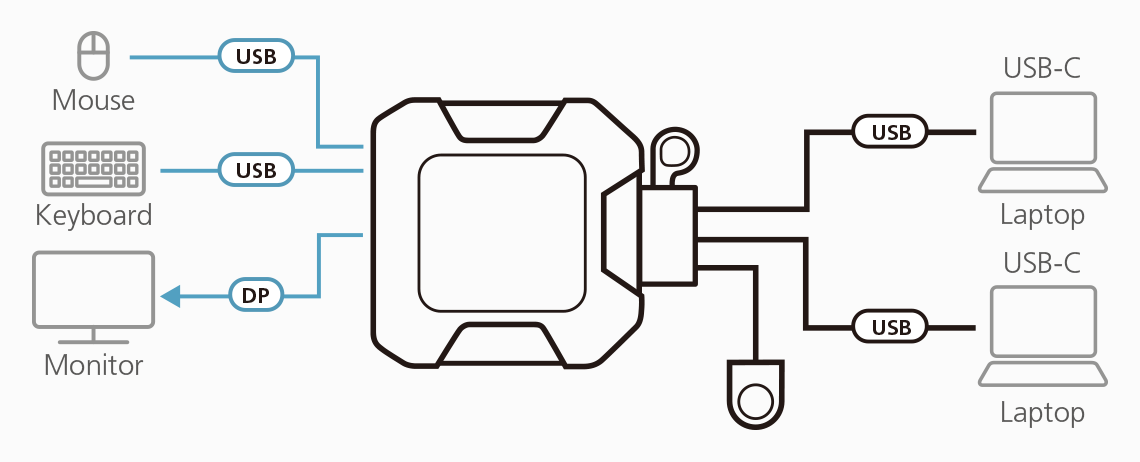

The compact US3312 enables plug-n-play USB-C connection to two mobile devices, such as a laptop, Mac mini, and a tablet without going through a docking station, which is a useful, budget-friendly option to expand your desktop workspace in a neat and tidy way. You can even hook US3312 under a desk for a cable-free and clean desktop.
The US3312 empowers your desktop operations with visual enhancement thanks to 4K DCI compliance.

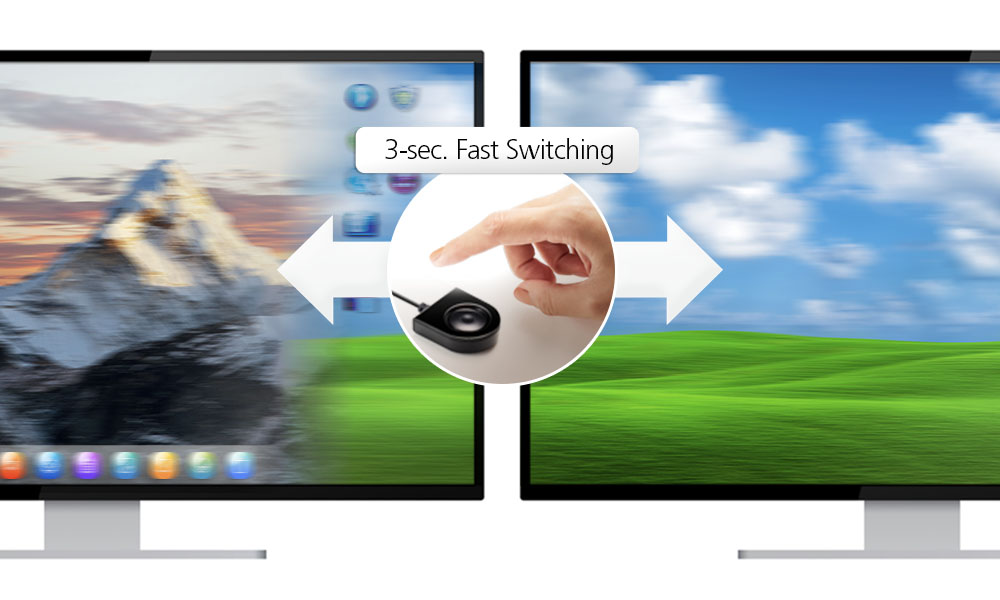

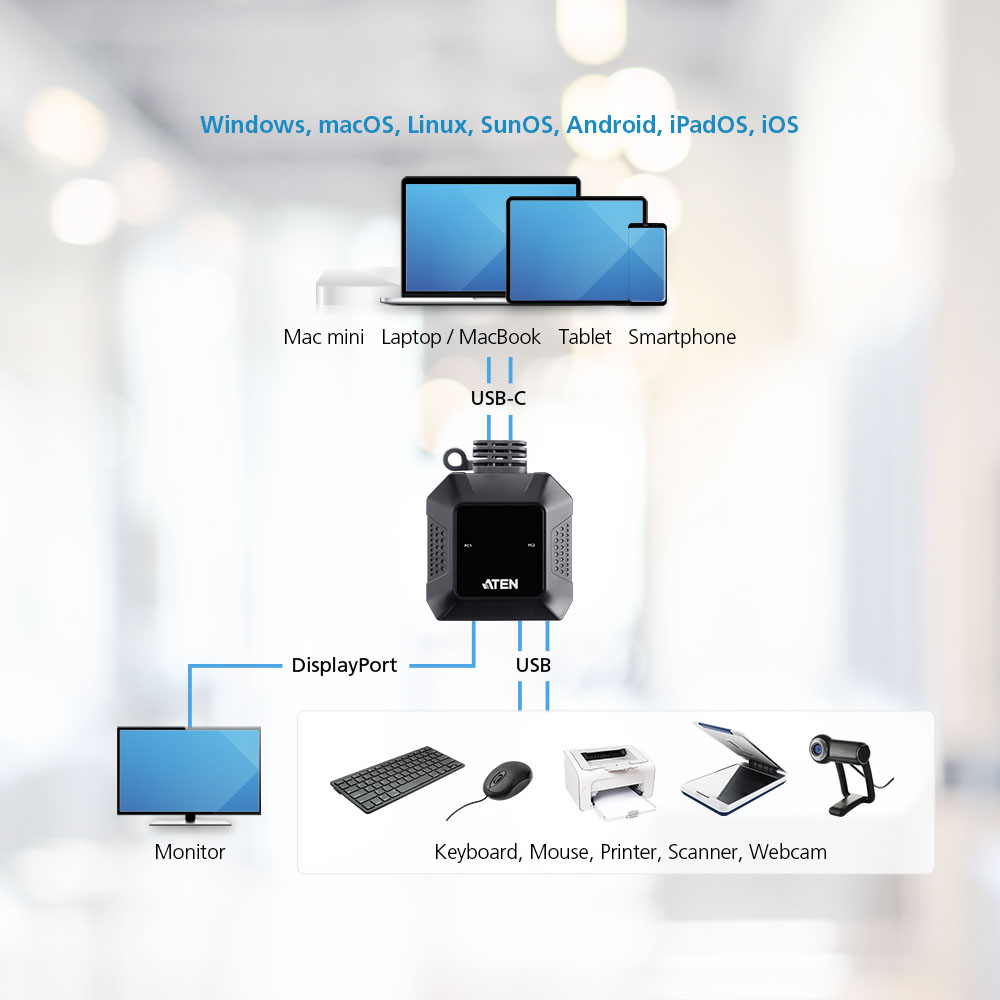

The US3312 enables the integration of different computer systems (Windows, MacOS M1/M2, and Linux) that are accessible over just one KVM console. With exclusive ATEN technology, switching between two systems takes just three seconds, making your workflow more efficient than ever before.
The console USB ports can be used for plug-n-play connection to compatible USB2.0 peripheral devices for data-intensive desktop work requirements

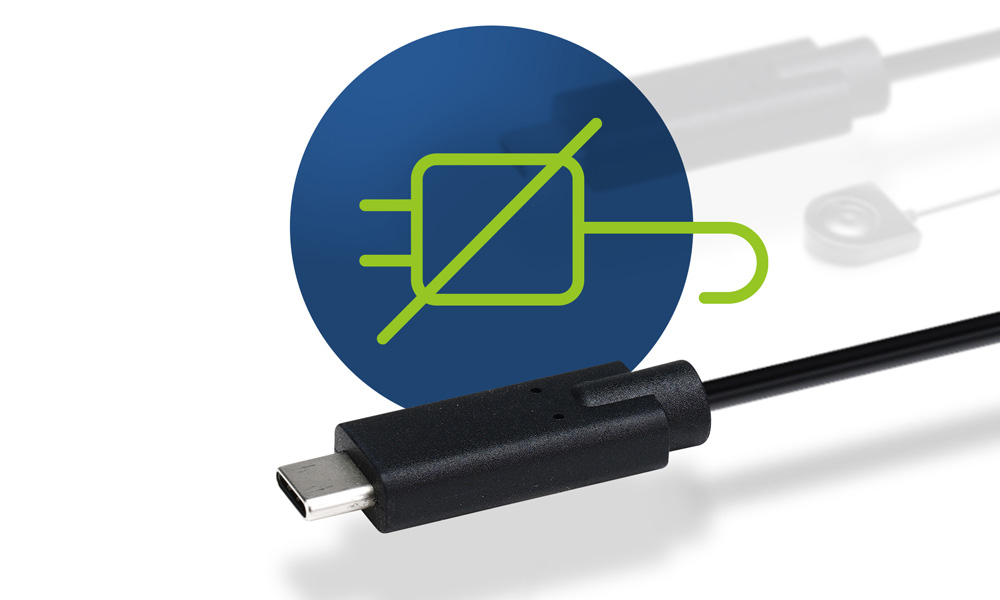

The US3312 supports USB hot-plugging and is bus powered by connected KVM sources via USB ports.
The US3312 cable KVM Switch is perfectly suited to time-critical and multitasking operations in the following scenarios:
Computer Connections | 2 |
Port Selection | Remote Port Selector |
Connectors | |
Console Ports | 1 x DisplayPort Female 2 x USB Type A Female |
KVM (Computer) Ports | CPU1: 1 x USB Type C Male CPU2: 1 x USB Type C Male |
LEDs | |
KVM Port (On Line /Selected) | 2 (White) |
Cable Length | |
KVM | 2 x 1.2 m |
Remote Port Selector | 1.8 m |
Emulation | |
Keyboard / Mouse | N/A |
Video | 4096 x 2160 @ 60Hz |
Power Consumption | DC5V:0.74W:8BTU |
Environmental | |
Operating Temperature | 0 - 50°C |
Storage Temperature | -20 - 60°C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | |
Housing | Plastic |
Weight | 0.19 kg ( 0.42 lb ) |
Dimensions (L x W x H) | 8.34 x 8.42 x 2.99 cm (3.28 x 3.31 x 1.18 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
