CS1922ATC
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

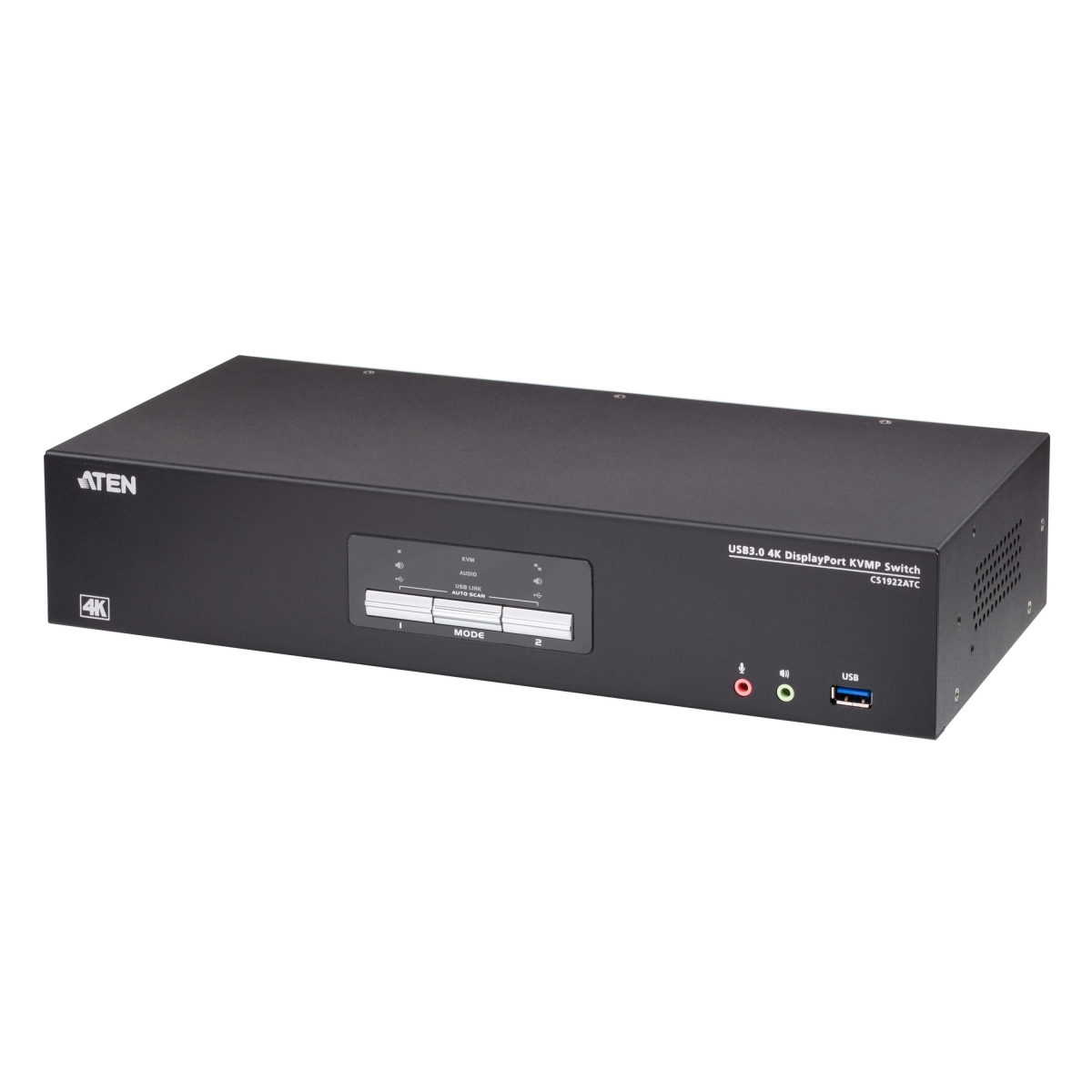

2-Port USB 3.0 4K DisplayPort KVMP™ Switch for ATC
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
Computer Connections | 2 |
Port Selection | Hotkeys, Pushbutton, Mouse, RS232 commands, Remote Port Selector |
Connectors | |
Console Ports | 2 x USB Type A Female (Black) 1 x DisplayPort Female (Black) 2 x 3.5mm Stereo Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Stereo Jack Female (Pink; 1 x front, 1 x rear) 1 x DB-9 Male |
KVM (Computer) Ports | 2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) 2 x DB-9 Female |
Power | 2 x DC Jack |
USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel) |
Remote Port Selector | 1 x RJ-11 Female |
Firmware Upgrade | 1 x micro USB Female |
Switches | |
Selected | 3 x Pushbutton |
LEDs | |
USB Link | 2 (Green) |
Audio | 2 (Green) |
KVM | 2 (Orange) |
Emulation | |
Keyboard / Mouse | USB |
Video | Up to 4096 x 2160 @ 60Hz |
Power Consumption | DC12V:16.09W:134BTU |
Environmental | |
Operating Temperature | 0-50°C |
Storage Temperature | -20-60°C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | |
Housing | Metal |
Weight | 1.86 kg ( 4.1 lb ) |
Dimensions (L x W x H) | 33.50 x 16.10 x 6.55 cm (13.19 x 6.34 x 2.58 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
