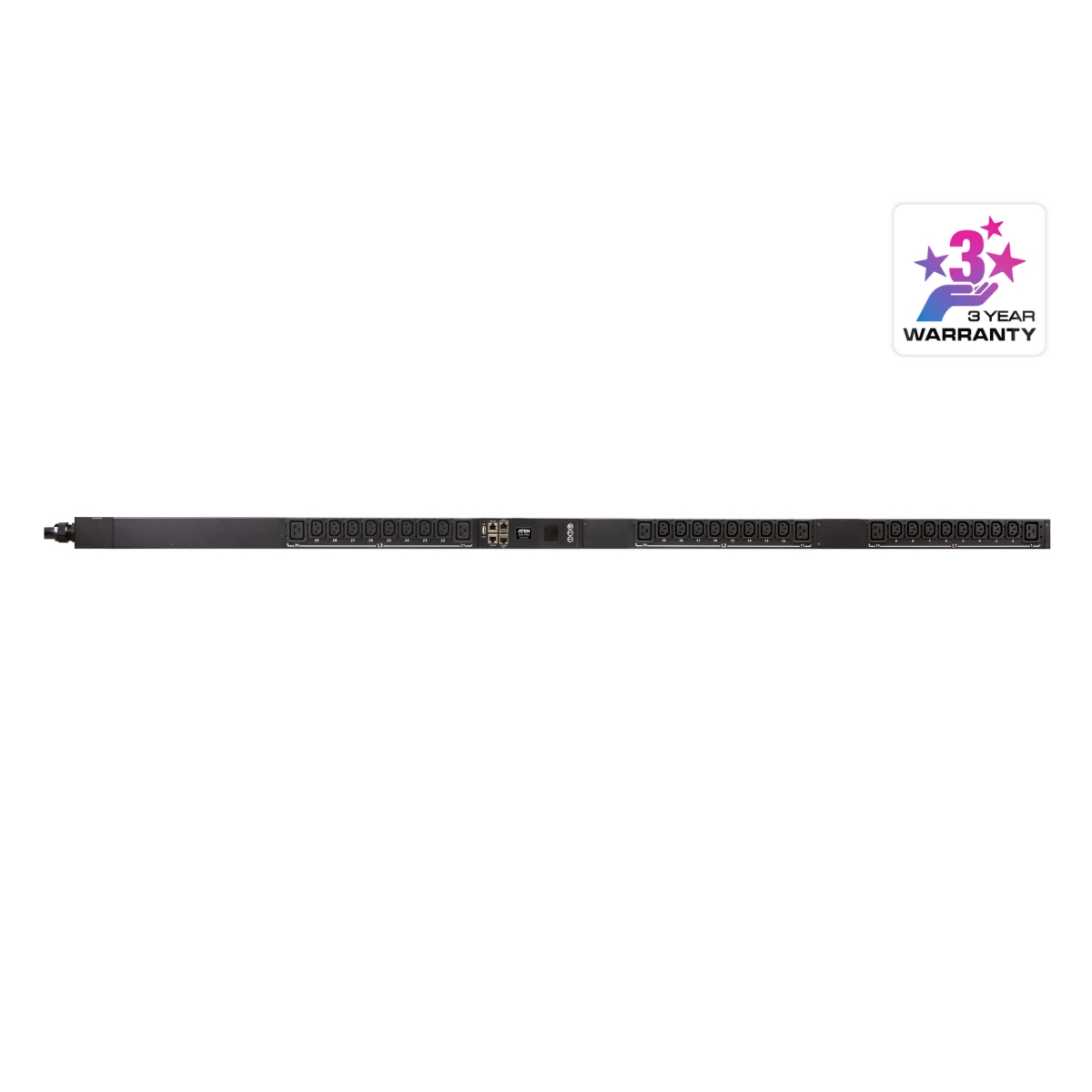

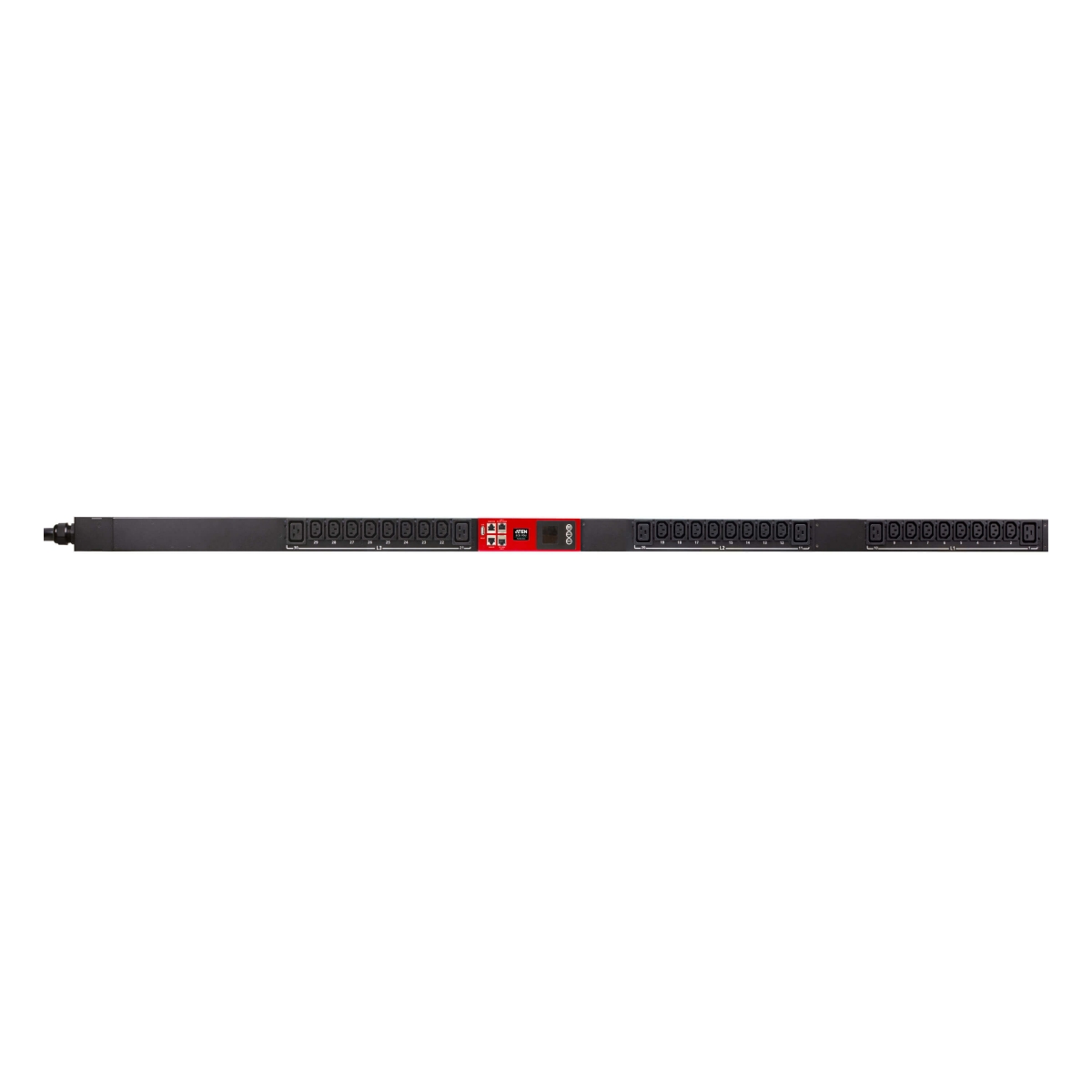

32A 30-Outlet 3-Phase Switched eco PDU [BANK LEVEL MONITORING]
PG96330G
- PDU ไฟ 3 เฟส (3-Phase PDU) ที่มี 30 Outlet (C13 x 24, C19 x 6)
- ใช้ ARM Cortex-A8 CPU ควบคุมได้ยืดหยุ่นผ่านพอร์ต LAN / COM / USB
- ต่อ sensor วัดอุณหภูมิ ความชื้น และการตรวจสอบค่าต่าง ๆ ได้จาก LCD display บนตัว PDU
- ต่อพ่วงกันได้สูงสุด 64 unit
- รีเลย์ประหยัดพลังงานช่วยให้ผู้ปฏิบัติงานสามารถควบคุมกระแสไฟจำนวนมากเพื่อลดการใช้พลังงาน
- เฝ้าดู หรือ วัดการใช้พลังงานได้ระดับ PDU/Bank
รับประกัน 3 ปีเต็ม
![32A 30-Outlet 3-Phase Switched eco PDU [BANK LEVEL MONITORING]](https://www.mc.co.th/eshop/12867-home_default/32a-30-outlet-3-phase-switched-eco-pdu-bank-level-monitoring-.jpg)
Spec sheet
When maintaining operating uptime in a data center or server room, sustainable energy efficiency can make all the difference. The implementation of effective power management often involves improvements at both the hardware and software level. As the trend for 3-phase power grows due to its efficiency to generate, transfer, and distribute electricity, ATEN is introducing its latest PG series of PDUs, available in IEC socket configuration, that are designed with 0U rack housing to accommodate the increasing demand for power to high-density IT equipment in server rooms and data centers. Each PG96230 PDU, utilizing an ARM-Cortex A8 processor, is equipped with 30 port outlets capable of running at higher voltages, powers up all connected equipment in less than 10 seconds once plugged in, and delivers the most accurate kWh energy usage data (+/-1%) for better power consumption habits, baselines, and initiative tracking. With energy saving in mind, the PG96230 is purposed to enable lower energy consumption for best practice in a network infrastructure, while promoting up to 70.65 kg (131.4 kw equivalent of power consumption) of reduced CO2 emission, reduced electricity expenses, and lower carbon taxes to pay each year.
Energy-Saving Relay
Thanks to the built-in energy-saving relays – a subtype of electromagnetic switch – controlling a large amount of current flow becomes easy, which results in annual saving of 131.4 kW power consumption per 30-outlet PDU unit, compared with models without energy-saving relays. In addition, power distribution will remain functional and uninterrupted even when a failure occurs, enabling superior uptime to optimize system reliability.
Secure Locking Enhancement
The outlets can be protected with a secure lock to prevent power cords from becoming unplugged due to vibration or human errors.

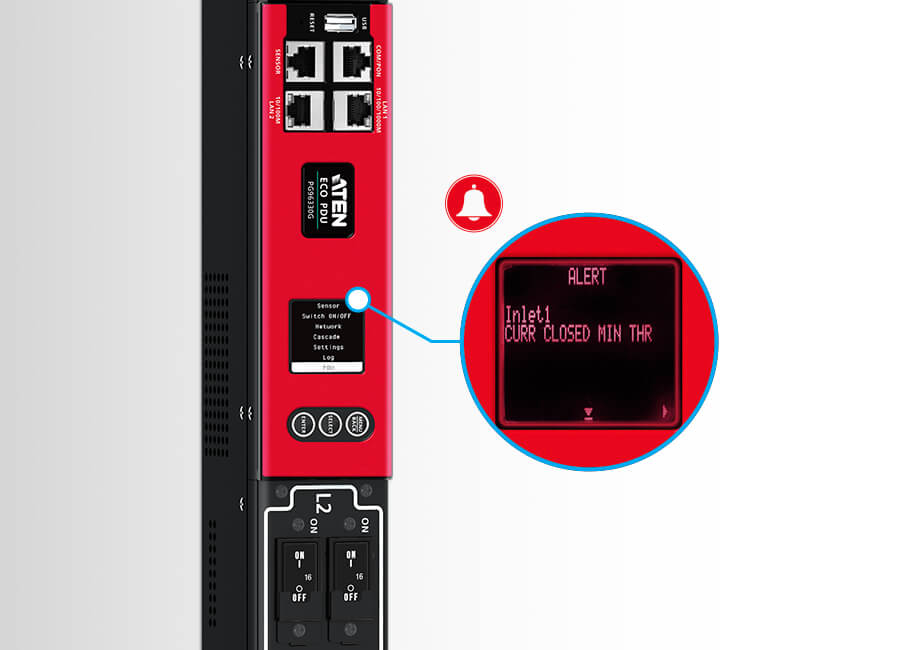

Real-time Alerts via LCD Display
The illuminated LCD display can display warnings to alert users of unusual power states.

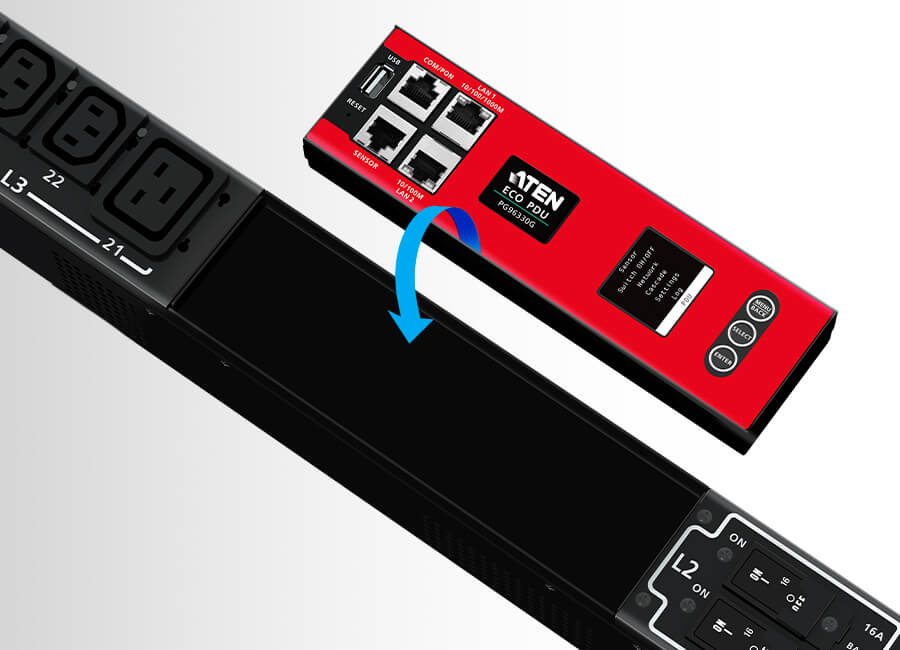

Hot-Swappable Function
The LCD console panel is hot-swappable and can be removed, replaced, or repaired without powering down a mission-critical connected load.

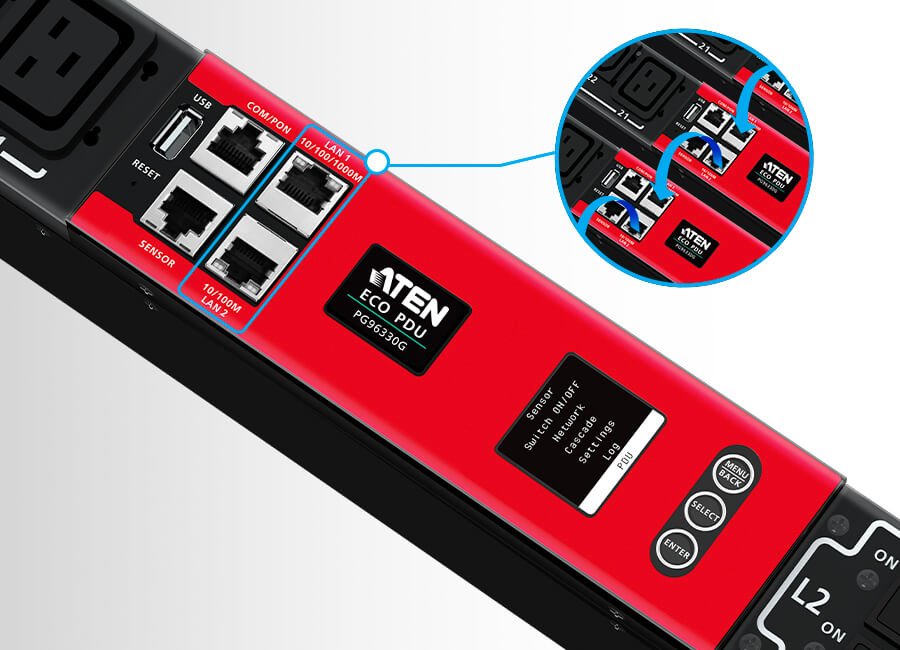

Dual LAN Ports for Scalable Network Setup
The PG96330 is equipped with dual LAN ports (e.g. Internet and Intranet) supporting up to 1G Ethernet connection, and can be cascaded to connect up to 64 PDUs, saving expense on installing extra network switches to incorporate network connections while sparing more rack space to accommodate more IT equipment in an expandable network.

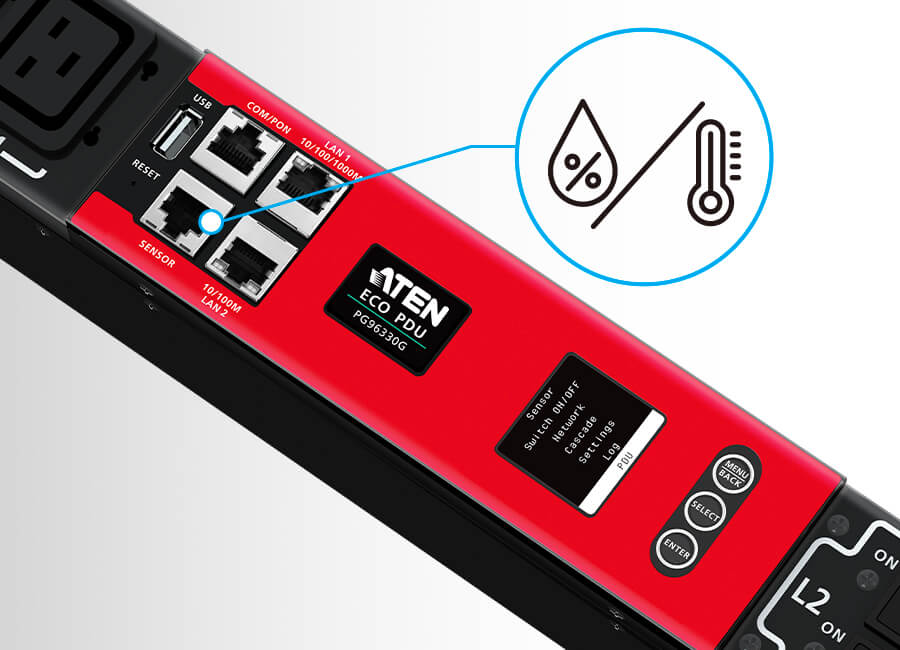

Environment Sensors
The Sensor port enables RJ-45 connectivity to connect or daisy-chain up to 8 environment sensors for monitoring and management of temperature, humidity, airflow, differential air pressure, and leaks, featuring alerts for potential threats.

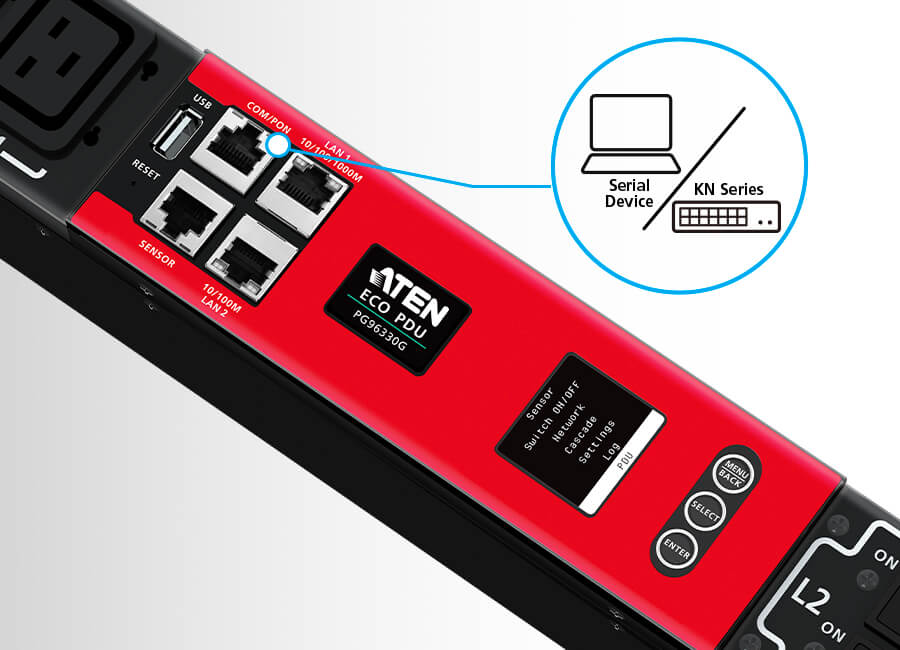

Flexible On-Site Network Operation
For quick operation, connecting a serial device to the PDU with its COM port provides another means to undertake communication via CLI commands. In addition, the same port is also functional as a PON port, available for Ethernet connection to a KN series KVM over IP Switch to centralize power management of up to 16 daisy-chained PDUs.
Note: This feature is to be included in a future firmware release.

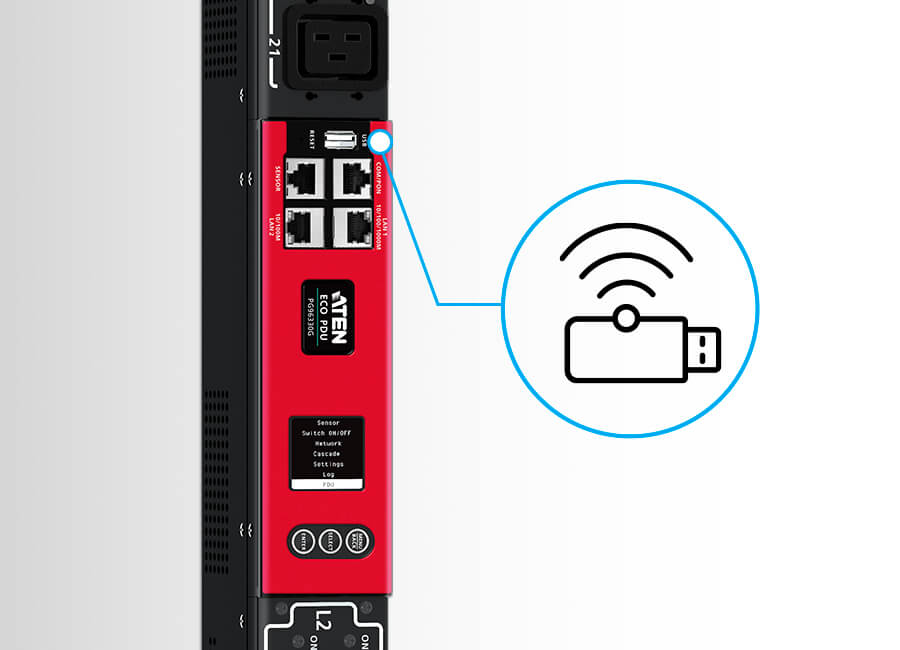

Networkable via WiFi
The PG96330 can be networked via connection to a USB WiFi dongle to perform DCIM, firmware upgrade, log export, quick configuration, and more.
Adjustable Power Cord for Flexible In-Rack Installation
The PG96330 comes with an adjustable power cord built in to the unit capable of 90-degree rotation to allow flexible in-rack installation, resulting in better cable organization
DCIM Monitoring
Integrated with ATEN’s eco DC – a PC- and web-based tool for optimized Data Center Infrastructure Management (DCIM) – power distribution, energy, and environmental data from PDUs and connected devices can be monitored via a friendly web GUI for smart power management.

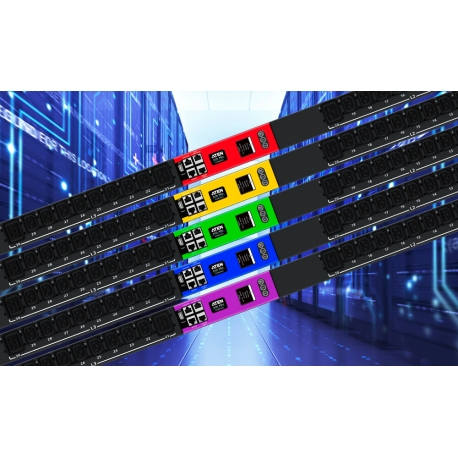

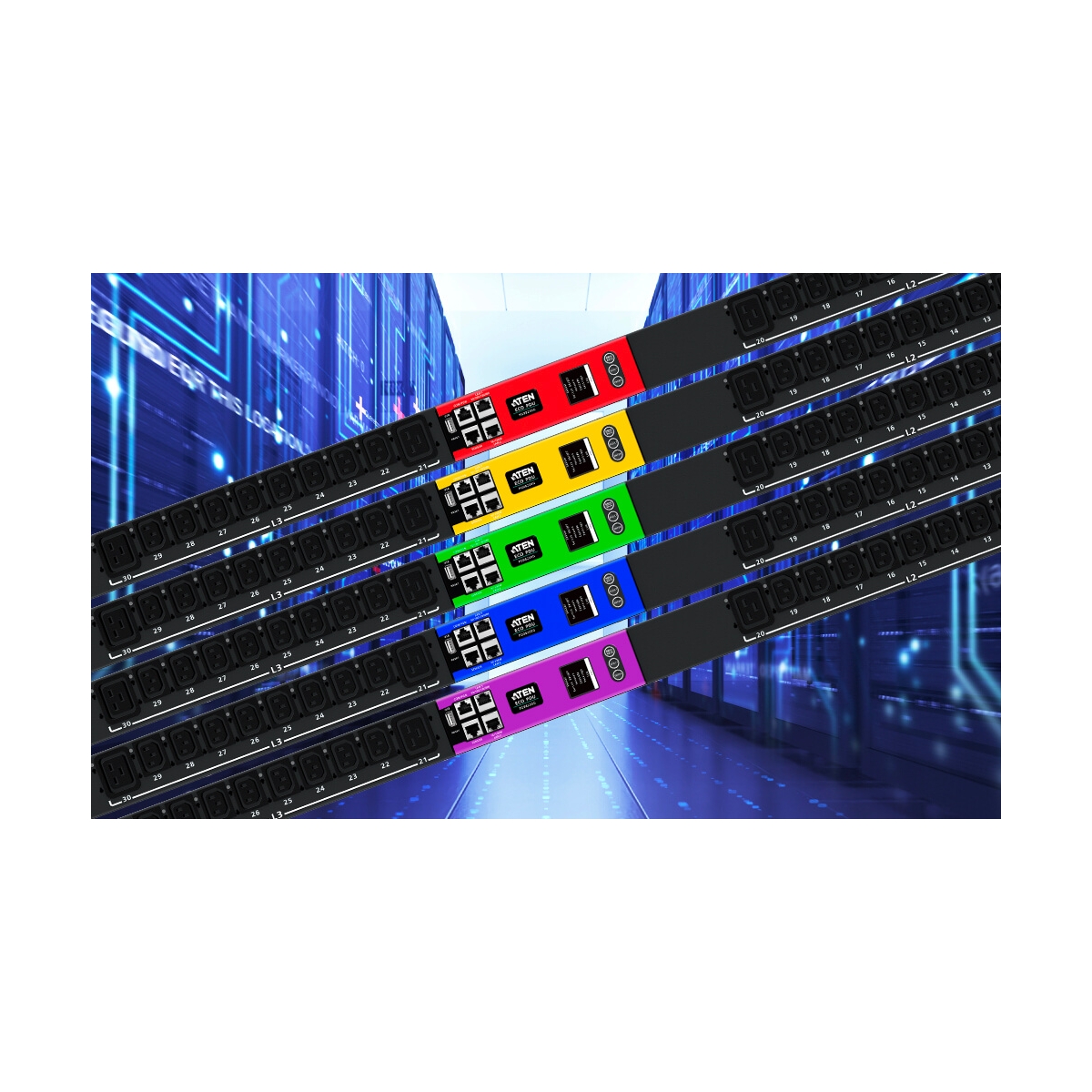

Colored Panel for Smarter Power Monitoring
The PG series PDUs feature a LCD console panel in default red and can be re-colored with options of yellow, purple, blue, and green through optional purchase of colored stickers. These color codes make it easier to differentiate between power feed settings and also speed up troubleshooting in case of unexpected failures.
Applications
The PG series 3-Phase PDUs are perfectly suited to server rack installation requiring energy-efficient power distribution to high-density IT equipment in a server room or data center.
Features
- Each PG PDU comes with 6 x IEC 60320 C19 and 24 x IEC 60320 C13 outlets in a 0U rack enclosure
- ARM Cortex-A8 processor for flexible control methods via LAN / COM / USB / environment sensor ports and enhanced monitoring via LCD console
- Advantageous hardware / network specification
– 1 Gbps and 100 Mbps Ethernet ports
– Auto Ping & Reboot
– Remote Management Protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, SNMP V1&V2&V3, Telnet, Modbus (over TCP/IP), Wi-Fi, 802.11 a/b/g/n network protocols, IPv6, and SMS
– Alerts / Alarms: receives alarms via SNMP, SMTP, SMS1, and syslog
– Scripting: JSON-RPC (Remote Procedure Call) protocol and Python scripting to control specified PDU unit (e.g. Switch On / Off) 1
– Security: 2-level account / password login access, and IP / MAC filter, TLS 1.2, SMTP / SMTPS protocols
– Authentication: LDAP, RADIUS, TACACS+ - Expandable installation
– Allows for connecting up to 64 PDU units with cascading
– Allows for PON port connection to an ATEN's KN series KVM over IP switch for centralized management of up to 16 cascaded PDUs2 - Energy-efficient relays allow operators to control large amounts of current flow for lower energy consumption
- Precise kWh metering (+/-1% ) for better power consumption habits, baselines, and initiative tracking
- Environment sensor port enables RJ-45 connectivity to connect or daisy-chain up to 8 environment sensors for monitoring and management of temperature, humidity, airflow, differential air pressure, and leaks3
- Real-time LCD alert sends warnings to alert users of unusual power state
- An adjustable power cord is built in to the unit capable of 90-degree rotation to allow flexible in-rack installation, resulting in better cable organization
- Rotatable LCD Screen – capable of 180-degree rotation, delivering flexible in-rack installation
- Secure locking enhancement prevents power cords from becoming unplugged due to vibration or human error
- Supports ATEN’s eco DC (Energy & DCIM Management Web GUI) for monitoring power distribution, energy, and environmental data from PDUs and connected devices
Note:
1. To be included in a future firmware release.
2. To be included in a future firmware release.
3. Please contact the local sales representative for further information on the environment sensor.
Diagram
Specifications
| Functio | PG96330G |
| Electrical | |
| Nominal Input Voltage | 400/230V 3PH (Star) |
| Maximum Input Current | 32A Max |
| Input Frequency | 50-60 Hz |
| Input Connection | IEC 309 16/20A Red 3P+N+PE |
| Input Power | 22170VA(Max) |
| Outlet Type | (6) IEC 320 C19, (24) IEC 320 C13 |
| Nominal Output Voltage | 230 VAC |
| Maximum Output Current (Outlet) | C13:10A(Max), C19:16A(Max), |
| Breakers | 6xUL489(1P)-16A |
| Metering | Bank level Current, Voltage , PF and KWh Monitoring |
| Outlet Switching | Yes |
| Environment Sensor Ports | Yes |
| Metering Accuracy | 1% |
| Physical Properties | |
| Dimensions (L x W x H) | 179.00 x 5.60 x 6.80 cm (70.47 x 2.2 x 2.68 in.) |
| Weight | 8.43 kg ( 18.57 lb ) |
| Power Cord Length | 3m |
| Environmental | |
| Temperature (Operating / Storage) | 0 – 60℃ / -20 – 60℃ |
| Humidity (Operating & Storage) | 0 – 80% RH, Non-Condensing |
| Compliance | |
| EMC Verification | CE, EMC |
| Safety Verification | CE |
| Warranty | 3 years |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
- 1 x Power Distribution Unit
- 1 x rack mount kit
- 1 x RJ-45 to DB-9 cable
- 1 x full-panel colored sticker
- 1 x user instructions
