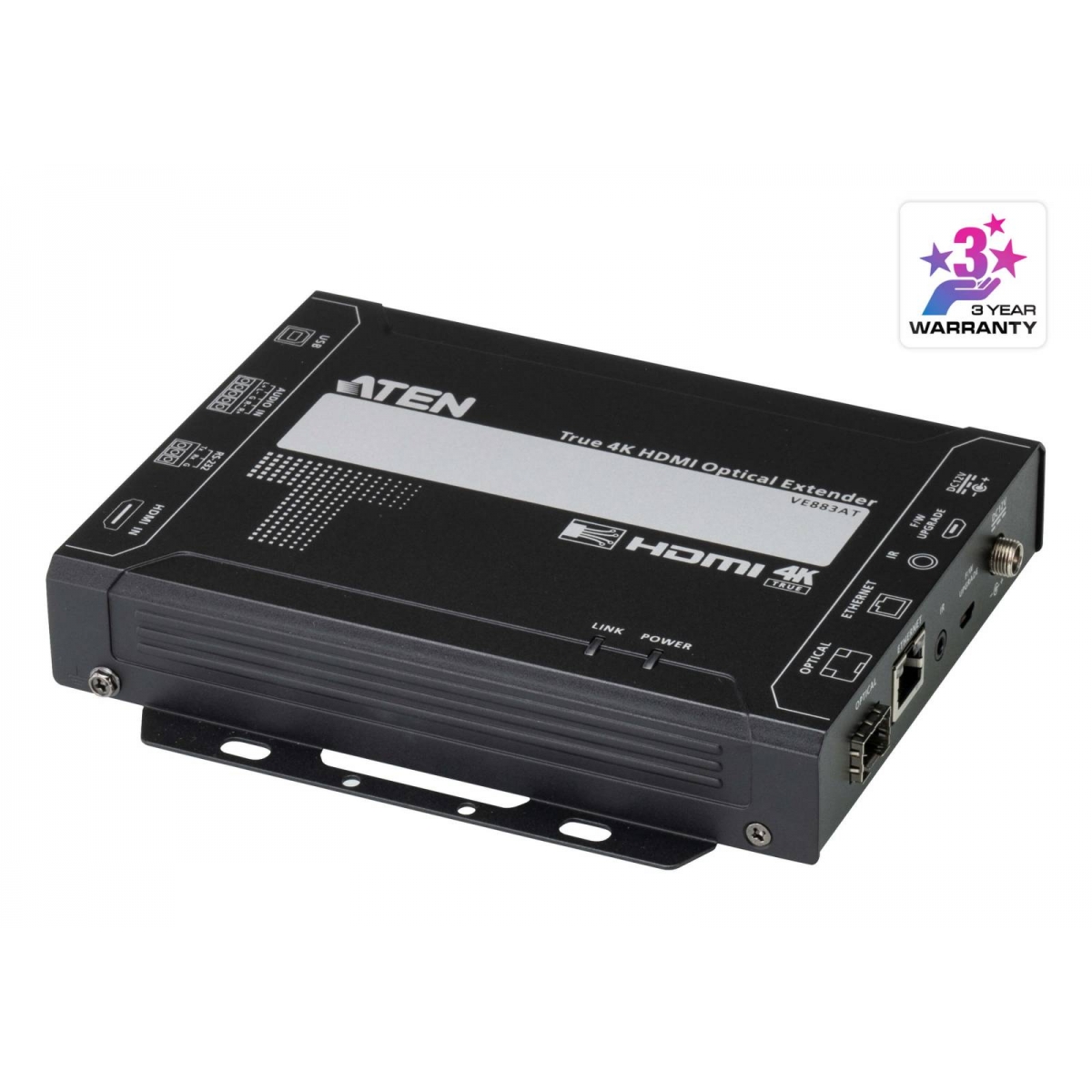

300m True 4K HDMI Optical Transmitter
VE883ATK1
- ขยายสัญญาณ HDMI, USB, RS232, Audio, LAN และ IR ผ่านสาย Fiber Optic ได้ไกลสูงสุด 300 ม.
- รองรับ 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
- รองรับ USB2.0 ความเร็ว 25MB/s
- เลือกส่ง หรือรับสัญญาณ IR ได้ 2 ทาง (ทางใดทางหนึ่ง)
ต้องใช้ร่วมกับ VE883ARK1
รับประกัน 3 ปีเต็ม
Spec SheetThe VE883AT is a True 4K HDMI Optical transmitter that extends up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) HDMI, audio, USB 2.0, IR, RS-232, and Gigabit Ethernet signals across 300 m (VE883ATK1) or 10 km (VE883ATK2) over a single duplex fiber optic cable losslessly. While helping avoid bulky cable setup, fiber optic cables are electrically isolated, thus they are immune to RFI and EMI. With ATEN’s exclusive FarSmooth technology, the VE883AT prevents lagging and freezing by matching the output rates to the input rates and ensures that the video display is stable, smooth and identical to the source, particularly in long-distance extension applications where uninterrupted video streams are required.

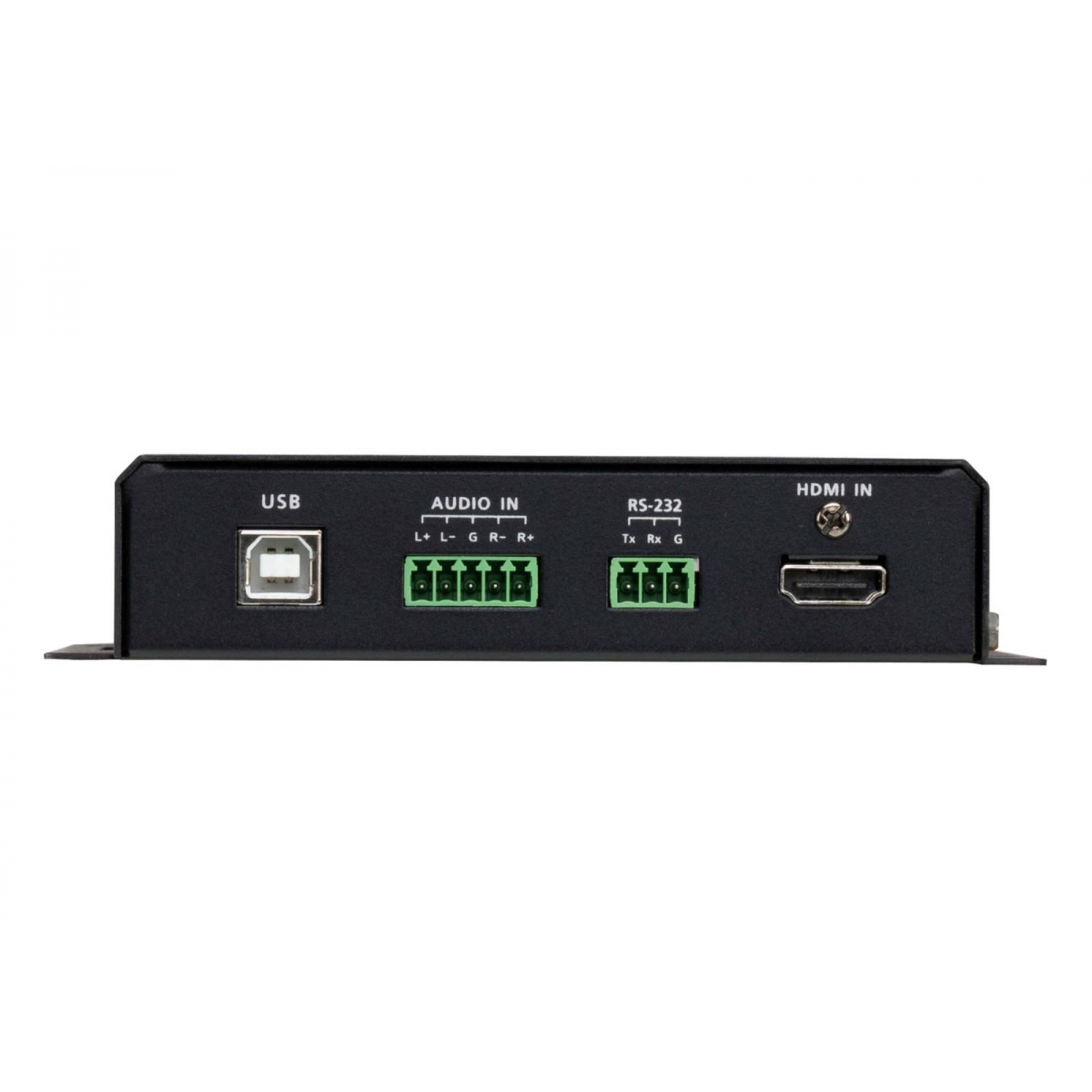

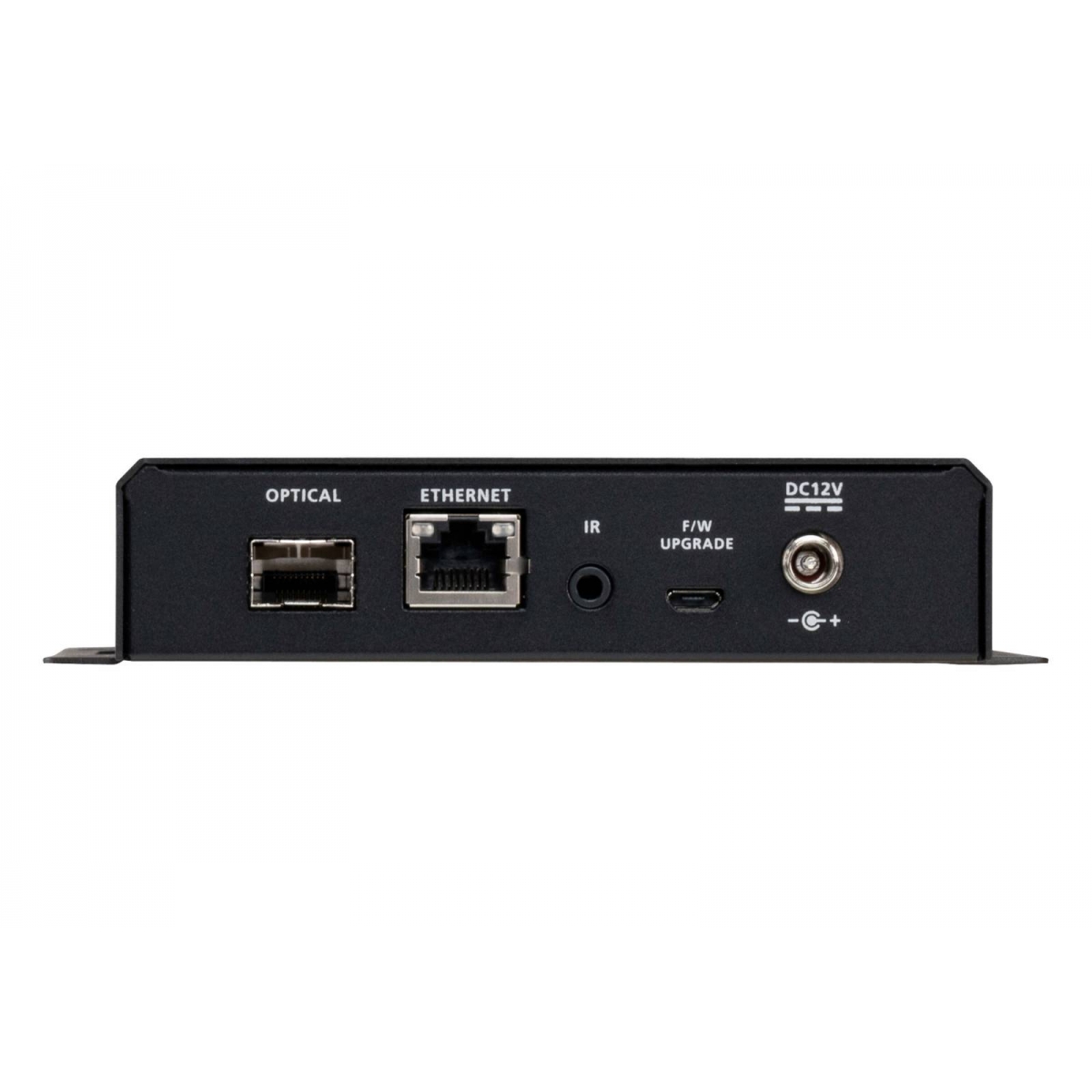

The VE883AT comes with interfaces of HDMI output, analog audio output, USB 2.0, IR, RS-232, and Gigabit Ethernet. For point-to-point extension, pluggable SFP+ modules are included to serve the purpose of optical connection. Plus, the VE883AT is compatible with ATEN’s VM7584 Optical Input Board installed in ATEN’s modular matrix switches to broaden applications. It is suitable for installations where True 4K video transmission across a long distance and electrical isolation are essential, such as control rooms, factories, and hospitals.
Note: VE883A / VE883AT / VE883AR is not backward compatible with VE883 / VE883T / VE883R.
Features
- Extends HDMI video, audio, IR, RS-232 control, and Ethernet signals over a duplex fiber optic cable across up to 10 km*
- Lossless transmission of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) signals
- HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
- ATEN’s exclusive FarSmooth technology – prevents lagging and freezing by matching the output rates to the input rates and ensures the 4K@60Hz video display to be stable, smooth and identical to the source through 10 Gbps bandwidth
- Supports transparent USB 2.0 signals for expanded connectivity with USB peripherals at a maximum transfer rate of 25MB/s
- Bi-directional IR signal transmission – IR transmission is processed one direction at a time, ranged from 30 kHz to 56 kHz
- Features RS-232 serial port for connecting peripherals such as touch screens, and barcode scanners
- Supports batch upgrades using Firmware Upgrade Utility
- Built-in 8 kV / 15 kV ESD protection
- Plug-and-play
- Hot-pluggable
- Rack-mountable
Note:
• The maximum transmission distance may vary depending on the fiber type, bandwidth, connector splicing, losses, model, chromatic dispersion, environmental factor, and kinks.
• For long distance transmissions, ATEN recommends using SFP+ modules to allow compatibility with single or multi mode fibers. Depending on the chosen package (VE883AK1 or VE883AK2), different SFP+ modules are supplied:
• VE883AK1: 10 Gbps/300m SFP+ Duplex Multi Mode Transceiver
• VE883AK2: 10 Gbps/10 km SFP+ Duplex Single Mode Transceiver
• ATEN recommends using Single Mode fibers that conform to IEC 11801 (OS1, OS1a, OS2), and Multi Mode fibers that conform to IEC 11801 (OM3, OM4) specifications.
• The Device is class 1 laser product. It meets the safety regulations of IEC/EN 60825-1, 21 CFR 1040.10, and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
Diagram
Specification
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | Up to 5 m |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 594 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP 2.2/2.3 Compatible |
| Max. Resolution | 4096x2160@60Hz (4:4:4) / 3840x2160@60Hz (4:4:4) |
| Max. Distance | 1 x SFP Module (*Note) VE883AK1: 4Kx2K/60Hz 4:4:4 up to 300m (MM, OM3, Black) VE883AK2: 4Kx2K/60Hz 4:4:4 up to 10km (SM, Blue) |
| Audio | |
| Input | 1 x Terminal Block, 5 pole (Green) |
| Output | N/A |
| Connectors | |
| Unit To Unit | 1 x bi-directional SFP (LC) |
| Firmware Upgrade | 1 x Micro USB (Type B) Female (Black) |
| Power | 1 x DC Jack with locking |
| Fiber Optics | |
| Data Rate | 10.3 Gbps |
| Wavelength | VE883AK1: 850 nm VE883AK2: 1310 nm |
| Fiber Type | VE883AK1: Multimode(MM), OM3, LC Duplex Type VE883AK2: Singlemode(SM), LC Duplex Type |
| Control | |
| USB Channel | 1 x USB Type B Female (White) |
| RS-232 Channel | 1 x Terminal Block, 3 pole (Green) |
| IR Channel | 1 x Mini Stereo Jack Female (Black); 30K~56 KHz full range transmission |
| Ethernet Channel | 1 x GbE (RJ-45 Female) |
| LEDs | |
| Power | 1 (Green) |
| Link | 1 (Orange) |
| Video Output | N/A |
| Power Consumption | DC12V:7.01W:54BTU |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.67 kg ( 1.48 lb ) |
| Dimensions (L x W x H) with bracket | 16.94 x 14.69 x 3.00 cm (6.67 x 5.78 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 16.60 x 12.49 x 2.90 cm (6.54 x 4.92 x 1.14 in.) |
| Note | 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications; Use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. |
| Input Resolutions | 640x480 @ 60/67/72/75 Hz | 480p 60 Hz (4:3)/(16:9) |
| 720x400 @ 70 Hz | 720p 60 Hz | |
| 800x600 @ 56/60/72/75 Hz | 1080i 60 Hz | |
| 1024x768 @ 60/70/75 Hz | 640x480 60Hz (4:3) | |
| 1280x800 @ 60 Hz | 576p 50 Hz (4:3)/(16:9) | |
| 1280x1024 @ 60/75 Hz | 720p 50 Hz | |
| 1400x1050 @ 60 Hz | 1080i 50 Hz | |
| 1440x900 @ 60 Hz | 1080p 24/25/30/50 Hz | |
| 1600x1200 @ 60 Hz | 3840x2160p 24/25/30/50/60 Hz | |
| 1680x1050 @ 60 Hz | 4096x2160p 24/25/30/50/60 Hz | |
| 1920x1080 @ 60/120/144/240 Hz | 3840x2160p 50 Hz 4:2:0/60 Hz 4:2:0 | |
| 1920x1200 @ 60 Hz / 60 Hz (Reduced Blanking) | 4096x2160p 50 Hz 4:2:0/60 Hz 4:2:0 | |
| 1080p 60 Hz |
Package Content
- 1x VE883ATK1 True 4K HDMI Optical Transmitter
- 1x power adapter and power cord
- 1x 3-pole terminal block
- 1x 5-pole terminal block
- 1x IR receiver
- 1x IR emitter
- 1x USB Type-B to USB Type-A cable
- 1x HDMI LockPro
- 1x SFP module
- 1x user instructions
