HM42Q
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

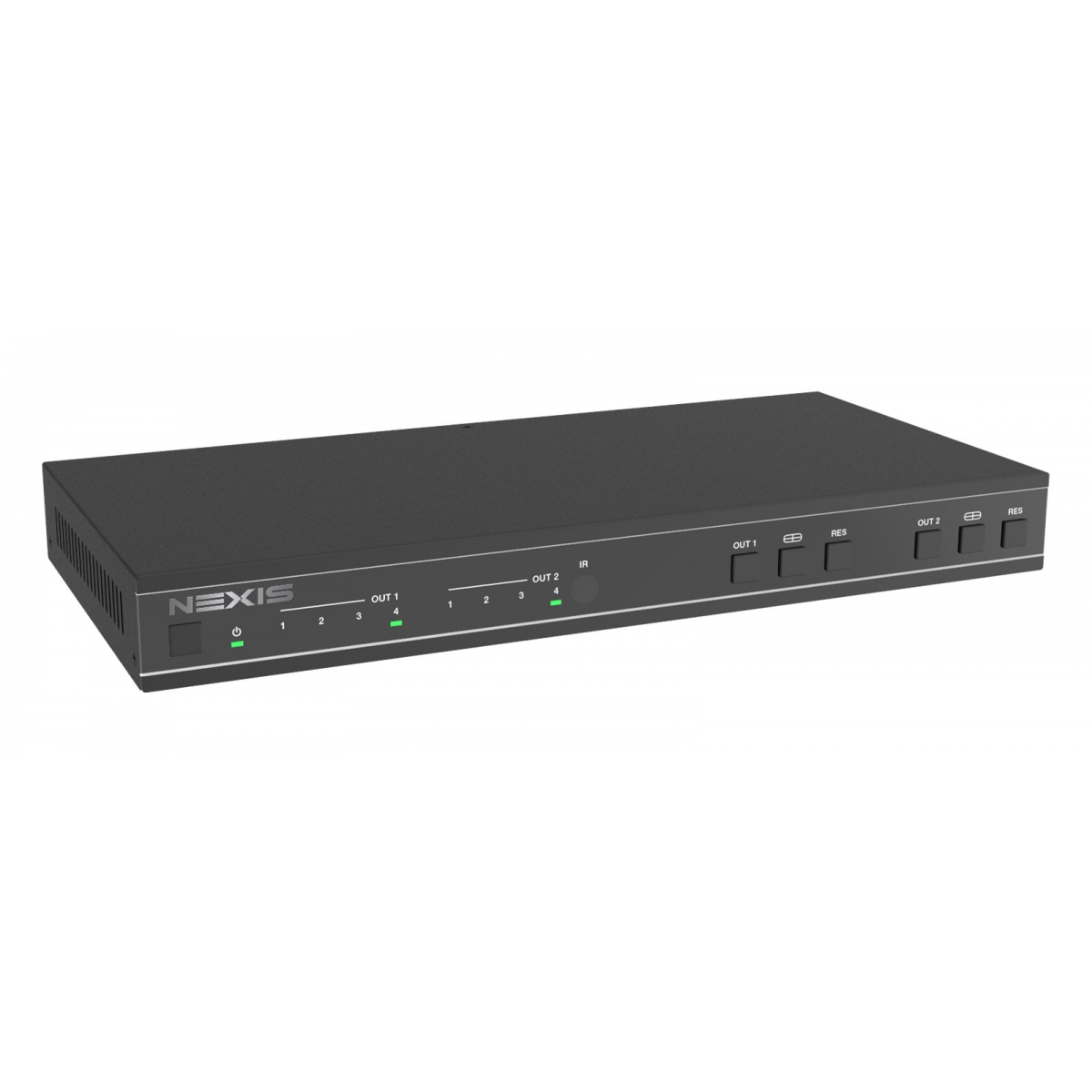

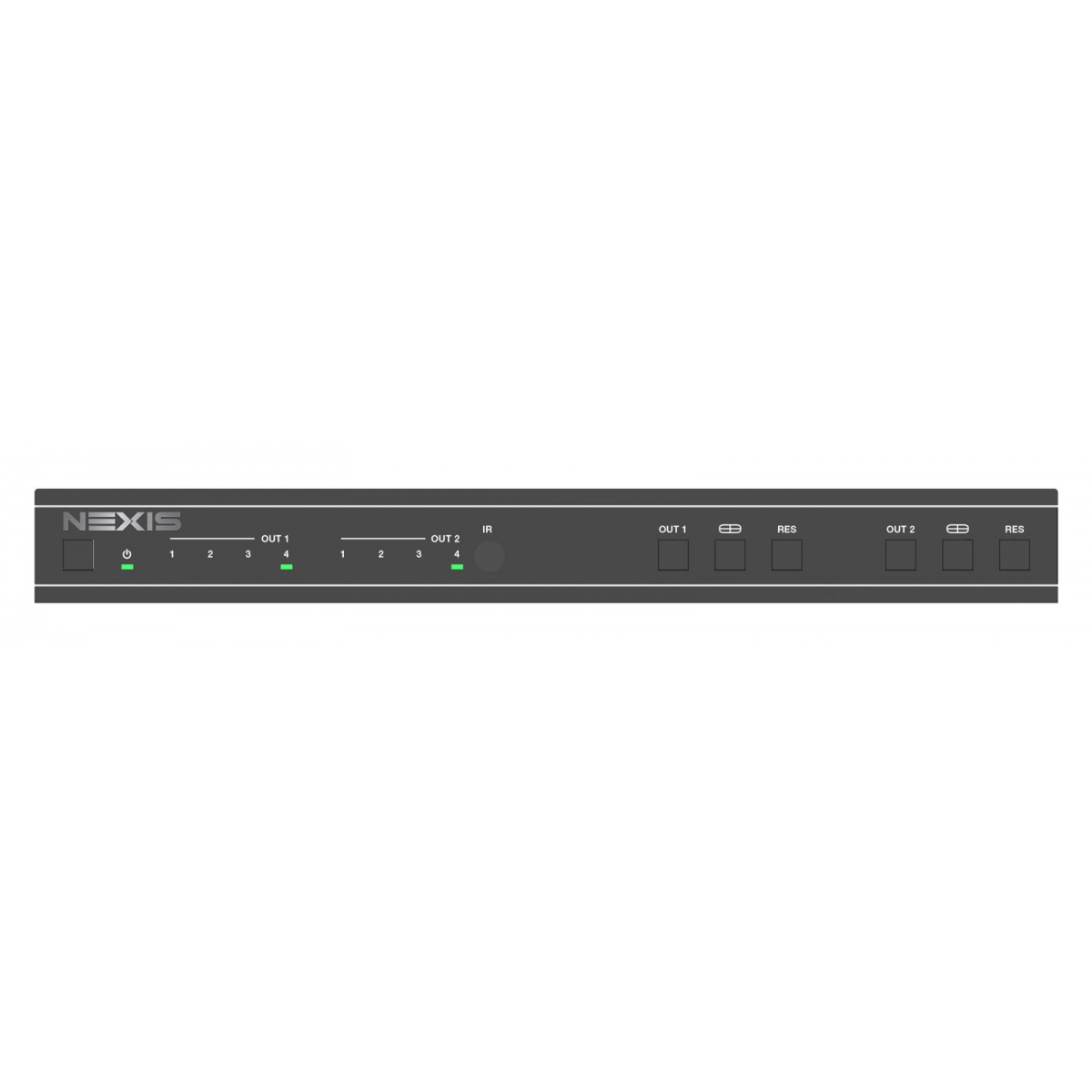

4K60 4 In 2 Out Multiviewer Seamless Matrix Switch with Audio De-Embed
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
Technical |
|
HDMI Compliance |
HDMI 2.0b |
HDCP Compliance |
HDCP 2.2, HDCP 1.x |
Video Bandwidth |
18 Gbps |
Video Resolution |
Up to 4K2K@60 4:4:4 |
IR Level |
5Vp-p |
IR Frequency |
38KHz |
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
Color Depth |
8-bit,10-bit, 12-bit |
Audio Format |
HDMI audio: Analog audio [3.5mm L/R]: |
ESD Protection |
Human-body Model:±8kV (Air-gap discharge),±4kV (Contact discharge) |

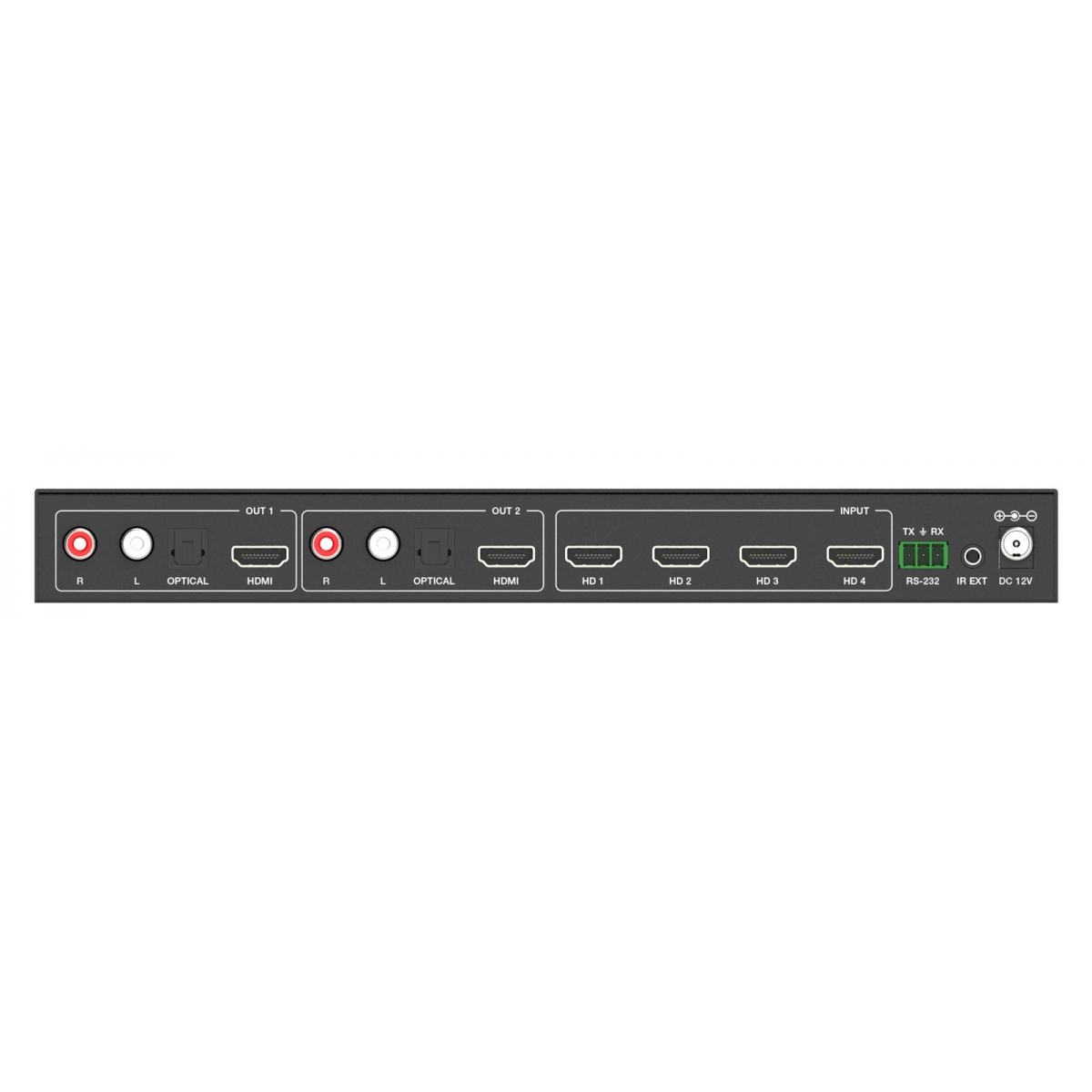

Connection |
|
Input ports |
4 x HDMI IN [Type A, 19-pin female] |
Output ports |
2 x HDMI OUT [Type A, 19-pin female] |
Control ports |
1 x RS-232 [3pin-3.81mm phoenix connector] |
Mechanical |
|
Housing |
Metal Enclosure |
Color |
Black |
Dimensions |
270mm [W] x 130mm [D] x 30mm [H] |
Weight |
906g |
Power Supply |
Input: AC 100 - 240V 50/60Hz |
Power Consumption |
15.72W (Max) |
Operating Temperature |
0°C~40°C/32°F~104°F |
Storage Temperature |
-20°C~60°C/-4°F~140°F |
Relative Humidity |
20~90%RH(non-condensing) |
