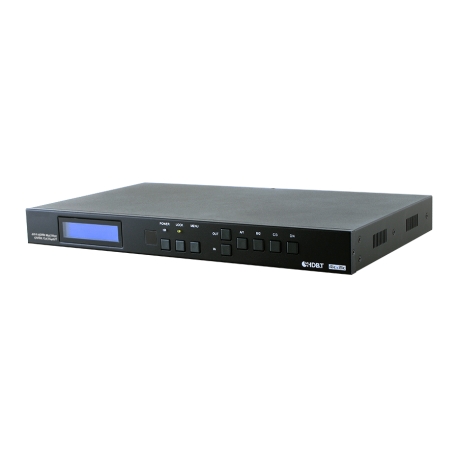

4K UHD 4×4 HDMI over HDBaseT Matrix with LAN Serving
MU844
The 4 by 4 HDMI 4K UHD over CAT5e/6/7 Matrix supports the transmission of video (resolutions up to 4K2K and Full HD), multichannel digital audio and control via IR, RS-232, Telnet or Web GUI from four high definition sources to four HDBaseT™ outputs over a single CAT5e/6/7 cable (up to 100m at 1080p and 70m at 4K2K) for each output, support EDID
รับประกัน 1 ปีเต็ม
ManualThe 4 by 4 HDMI 4K UHD over CAT5e/6/7 Matrix supports the transmission of video (resolutions up to 4K2K and Full HD), multichannel digital audio and control via IR, RS-232, Telnet or Web GUI from four high definition sources to four HDBaseT™ outputs over a single CAT5e/6/7 cable (up to 100m at 1080p and 70m at 4K2K) for each output. It supports passthrough of high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Cable (PoC) function can power compatible Receivers, providing greater flexibility in installations.
Features
- HDMI, HDCP1.1 and DVI compliant
- Supports HDMI 3D features for compatible sources and displays
- Supports resolutions from VGA to WUXGA and 4K2K @50/60 (YUV 420) dependent upon the output display’s resolution capabilities
- Supports distances up to 100 meters at 1080p and 70 meters at 4K2K through CAT5e/6/7 cables
- Supports HDMI input/output cable lengths up to 10 meters at 1080p (8-bit/12-bit resolution) or 5 meters at 4K2K resolution
- Supports bi-directional IR from the input and output locations

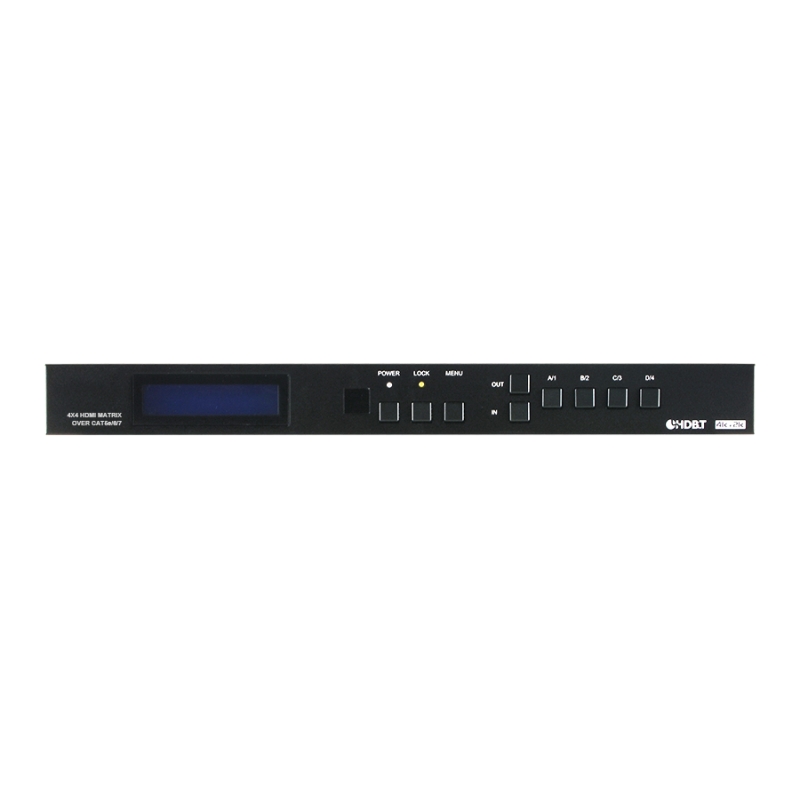

- Supports control of the matrix via RS-232, remote control, on-panel control and IP Control (Telnet/Web GUI)
- 1U size design
- Supports external and internal EDID settings
- Supports passthrough of LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Supports LAN serving to compatible HDBaseT receivers
- Supports Power-over-Cable (PoC) to compatible HDBaseT receivers

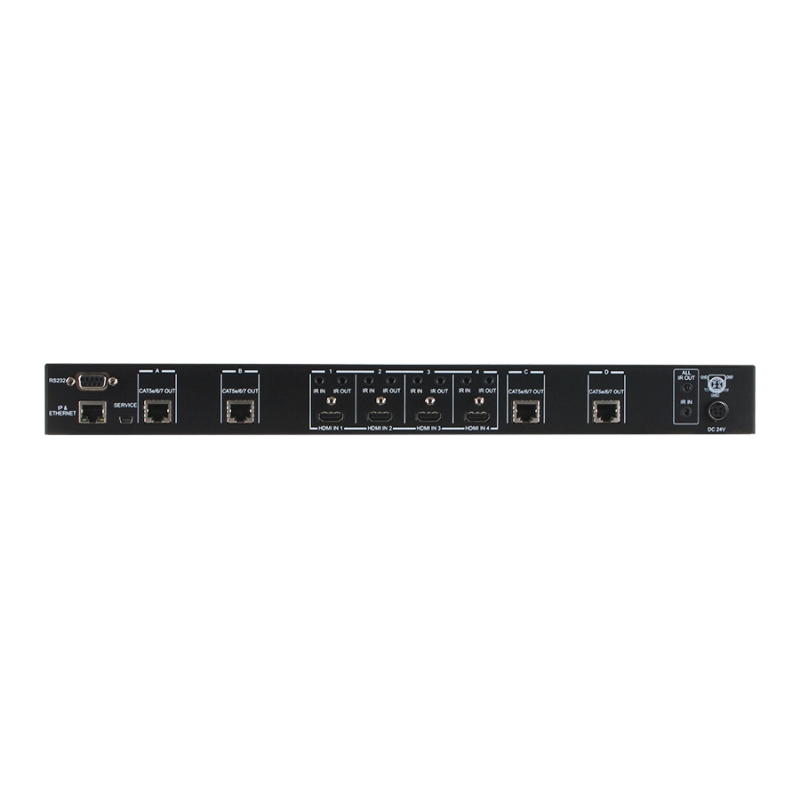

| Inputs | 4x HDMI [4x Uncompressed AV and Data] 4x 3.5mm Stereo Mini-jack [4x Infrared Receiver] 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Receiver] 1x 9-pin D-sub [1x RS-232 Data] 1x RJ45 [1x IP Control / LAN Serving] 1x USB Mini-B [1x SERVICE Propriety Data] |
| Outputs | 4x RJ45 [4x HDMI & Propriety Data] 4x 3.5mm Stereo Mini-jack [4x Infrared Emitter] 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Emitter] |
| PSU: | 24V/3.75A |
| Dimensions | 436mm [W] x 255mm [D] x 48mm [H] |
| Net Weight | 3234g |

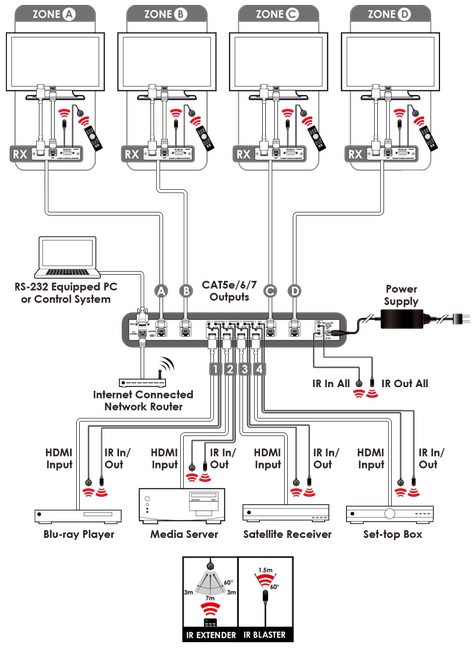

Diagram
