HMT0404U
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

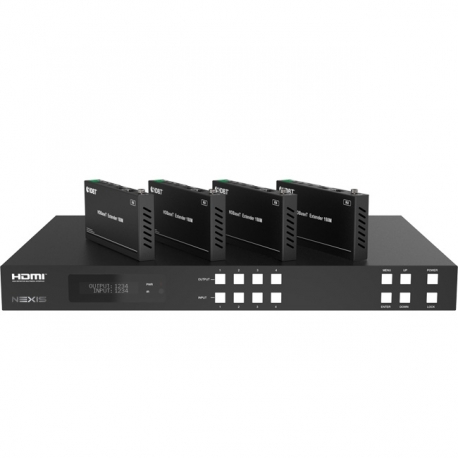

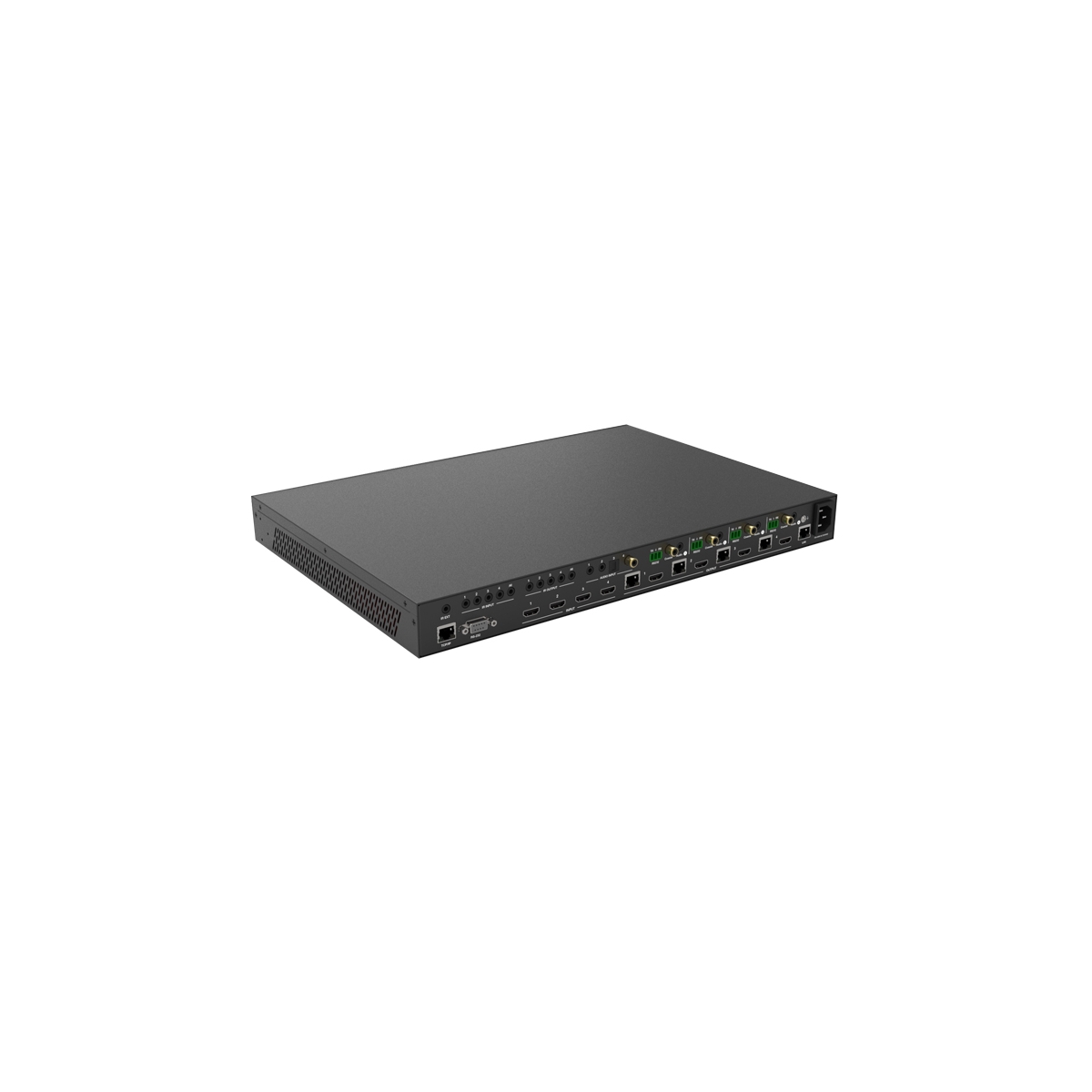

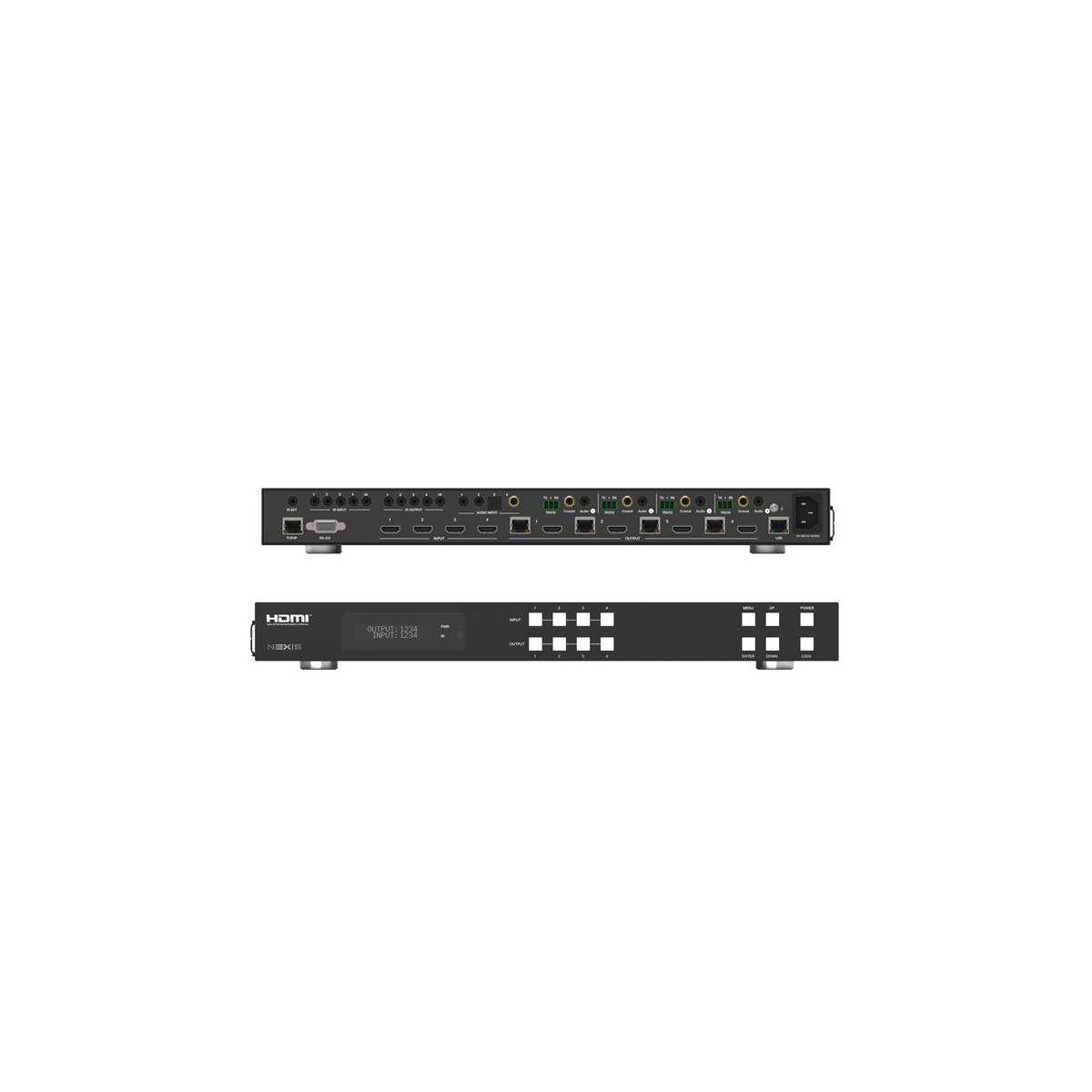

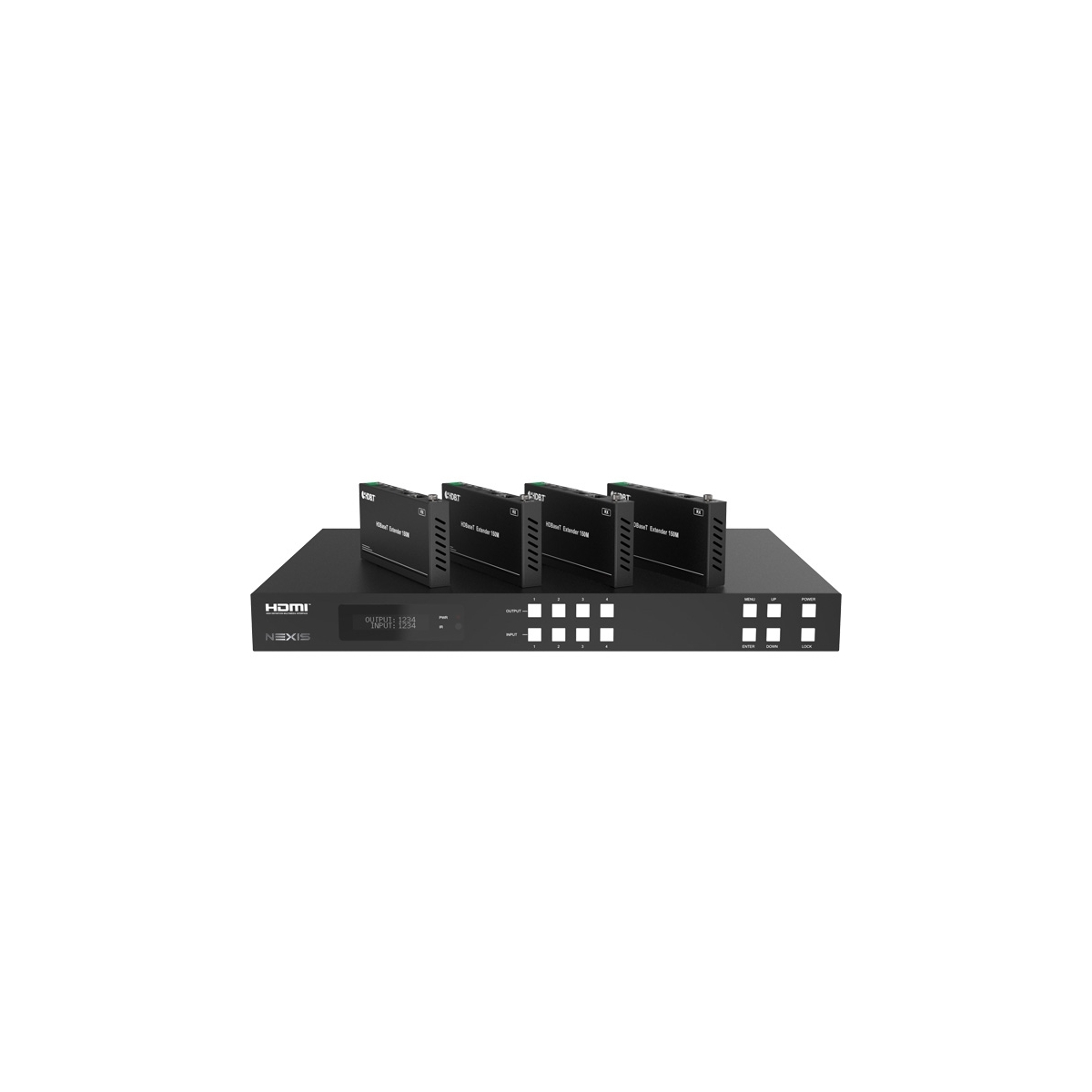

18Gbps 4 by 4 HDBaseT (100M) Matrix with ARC Function
HDMI Matrix 4 in 4 out รองรับ HDBastT ขยายสัญญาณภาพ 4K@60Hz ระยะไกล 100 เมตร มาพร้อม ARC Functionผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
Technical | |
HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
Video Bandwidth | 18Gbps |
Video Resolution | Up to 4K2K@50/60Hz (4:4:4) |
Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
Color Depth | 12-bit (4K), 16-bit (1080P) |
HDMI Audio Formats (Pass-through) |
PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
Coax Audio Formats | PCM 2.0, Dolby Digital / Plus, DTS |
L/R Audio Formats | PCM2.0 |
HDR formats | 4:4:4,4:2:2,4:2:0(10,12bit deep color) HDR10,HDR10+,Dolby Vision, HLG |
Infrared | 20KHz ~ 60KHz |
ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
Connection | |
Matrix | |
Input Ports | 4×INPUT [HDMI Type A, 19-pin female] 6×IR INPUT [3.5mm Stereo Mini-jack] 2×Stereo Audio [3.5mm Stereo Mini-jack B] 1×SPDIF(OPTICAL) 1×SPDIF(COAX) |
Output Ports | 4×HDMI OUTPUT [HDMI Type A, 19-pin female] 4×HDBaseT port [RJ45] 5×IR OUTPUT [3.5mm Stereo Mini-jack] 4×RS-232 [3-pin Phoenix connector] 4×SPDIF(COAX) 4×Stereo Audio[3.5mm Stereo Mini-jack] 1×LAN [RJ45] |
Control Ports | 1×TCP/IP [RJ45] 1×RS-232 [D-Sub 9] |
HDBaseT Receiver | |
Input Ports | 1×HDBaseT IN [ RJ45] 1×IR IN [3.5mm Stereo Mini-jack] |
Output Ports | 1×HDMI OUT [HDMI Type A, 19-pin female] 1×IR OUT [3.5mm Stereo Mini-jack] |
Control Ports | 1×SERVICE [Micro USB, Update port] 1×RS-232 [Phoenix jack] 2×LAN [RJ45] |
Mechanical | |
Housing | Metal Enclosure |
Color | Black |
Dimensions | TX: 440mm (W)×274mm (D)×45mm (H) RX: 163mm (W)×90.3mm (D)×18mm (H) |
Weight | TX: 3977g, RX: 392g |
Power Supply | AC 100 - 240V 50/60Hz |
Power Consumption | 70W (Max) |
Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
Relative Humidity | 20~90% RH (non-condensing) |
Resolution / Distance | 4K60 - Meters |
CAT 5e/6/7 | 100M |
Resolution / Cable length |
4K60 - 5 Meters / 4K30 - 10 Meters / 1080P60 - 15 Meters |
The use of “Premium High Speed HDMI” cable is highly recommended. |
