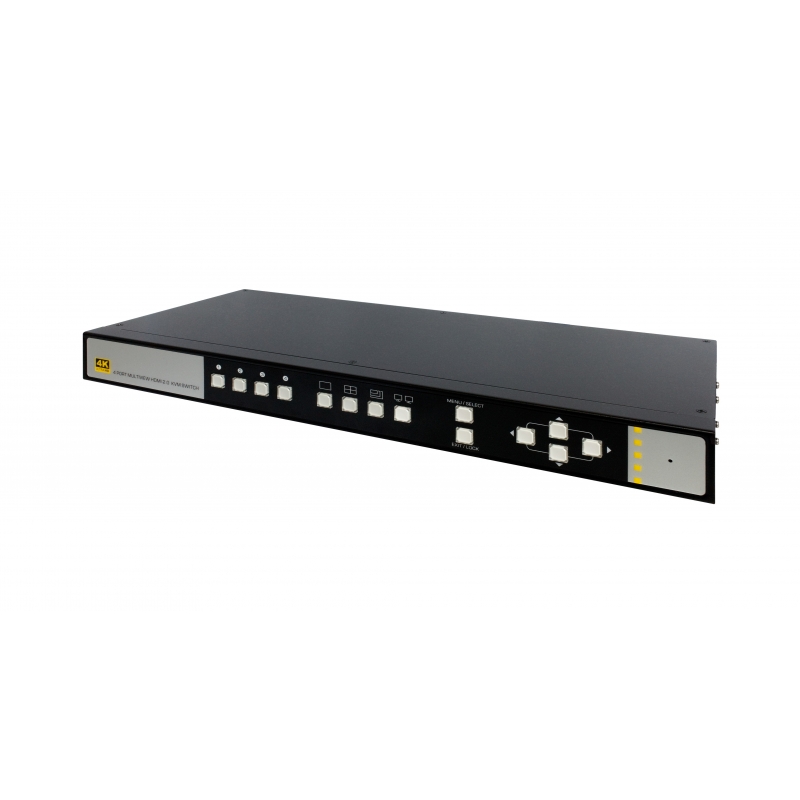

KVM Switch 4-Port 4K Quad-View HDMI 2.0 and USB Seamless
KH914Q

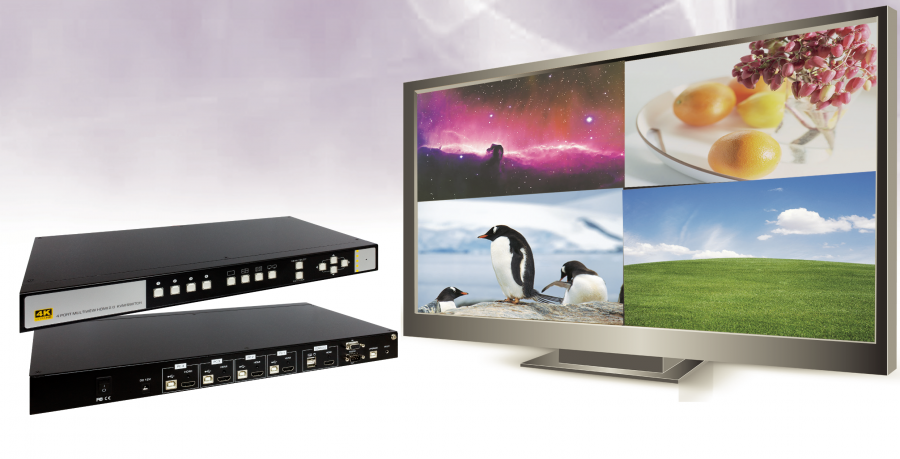

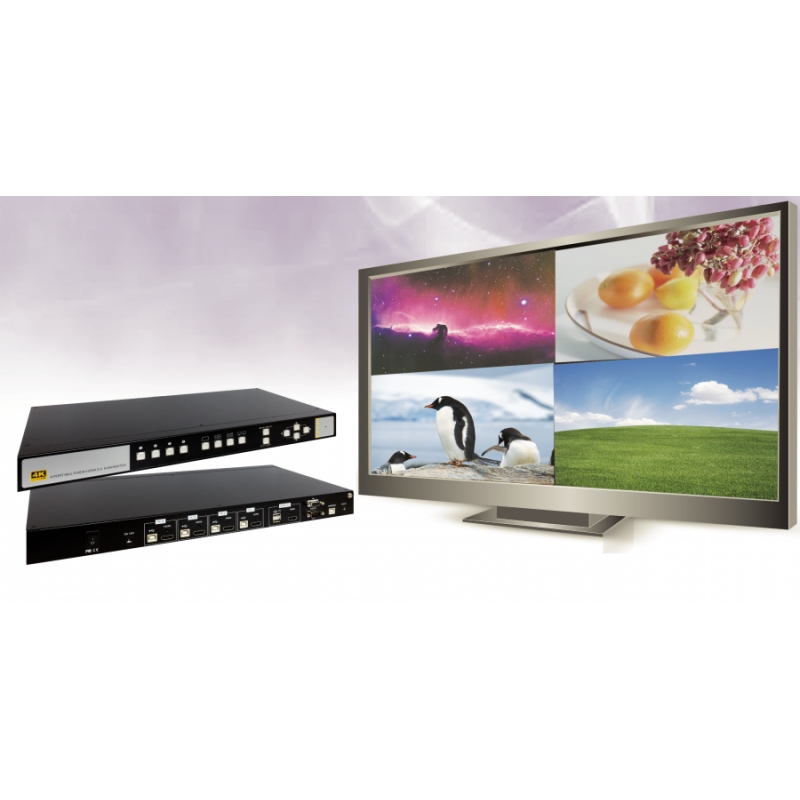

4K Multi-View KVM Switch provides you with a variable and with up to 4K very high-resolution simultaneous display of images and the operation of 4 computers
The 4K Multi-View KVM Switch provides you with a variable and with up to 4K very high-resolution simultaneous display of images and the operation of 4 computers. And in addition, the ease of use is extremely high, as you can use the keyboard and buttons on the switch without any interruption between display modes and the computers can change. Especially outstanding is that you simply use the mouse "delay-free" in the image of the computer you want to operate. The switching is then already completely automatic, without delay and unnoticed by the user.
Features
- KVM switching by direct mouse transfer in the MultiView image
- Seamless switching between input channels and combined images on the "one" output monitor
- Supports HDMI® signals with "Deep Color" and HDCP 1.4 / 2.2.
- Supports input resolutions up to 4k @ 60Hz (up to 1080p per source), 4: 4: 4 color sampling
- Supports output resolutions up to 4K @ 60Hz, 4: 4: 4 color sampling
- Supports upscaling up to 4K @ 60Hz, 4: 4: 4 color sampling
- Dolby Digital® 5.1, DTS® 5.1 and uncompressed 7.1 linear PCM audio including stereo analog audio input
- Stereo audio output
- Operation via front panel buttons, IR remote control, RS232 and keyboard hotkey
- Firmware can be updated
Specification
| Model | KH914Q |
| Video In | 4 x HDMI Type A socket (lockable) |
| Video Out | 1 x HDMI Type A socket (lockable) |
| RS232 | 1 x DB9 socket |
| IR | 1 x Receiver, 1 x IR Extender (3.5 mm) |
| USB port | 2 x USB Type A |
| LEDs | 4 |
| Grope | 14 x buttons, |
| 1 x 2 position power switch | |
| Video resolution | 4K @ 60 Hz |
| Dimensions (W x D x H) | 438 x 200 x 44 mm |
| mass | 2.1 kg |
| AC adapter | DC 12V |
| casing | metal |
| Operating temperatur | 0 ~ 40 ° C |
| Storage temperature | -20 ~ 60 ° C |
| Environmental conditions | 0 ~ 90% RH, non-condensing |
| Approvals | CE, FCC |
