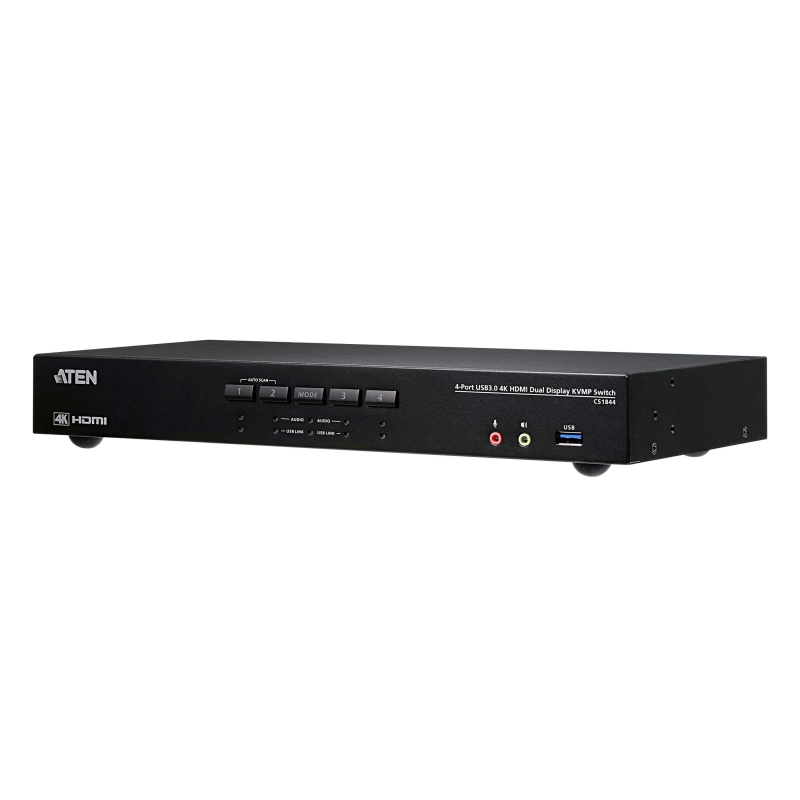

ATEN 4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
CS1844
- KVM Switch สลับใช้งาน PC 4 เครื่อง ที่มี 2 HDMI output
- สลับใช้ 2 จอแบบ Extend monitor และ USB Keyboard/Mouse, ลำโพง, ไมค์ ชุดเดียวกัน
- รองรับความละเอียดสูงสุดถึง 4096x2160@60Hz, 3840x2160@60Hz และ 1920x1080@144Hz, 2560x1440@144Hz
- มี USB 3.1 Gen 1 Hub ในตัว สลับใช้อุปกรณ์ USB ได้
รับประกัน 3 ปีเต็ม
Spec Sheet
The ATEN CS1844 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to four HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users’ needs, the CS1844 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.
In addition, with patented ATEN technology – Video DynaSync™, the CS1844 provides optimized display resolution and accelerates switching between systems. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.
For requirements of more displays to monitor, users can daisy-chain two CS1844 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.
As a feature-rich KVM switch, the CS1844 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.
Features
- One USB keyboard, mouse and two HDMI monitors control four HDMI computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
- Computer selection via pushbuttons, hotkeys, mouse1, remote port selector, and RS-232 commands2
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports console keyboard emulation / bypass feature
- Supports console mouse emulation / bypass feature
- Independent switching of KVM, USB peripheral, and stereo audio focus3
- Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
- HDMI 2.0 compliant; HDCP 2.2 compliant
- Supports HD audio3
- Power on detection
- Firmware upgradable
Note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB-9 cable. Please refer to the CS1842/CS1844 user manual.
3. HD audio through HDMI channel cannot be switched independently.
Diagram
Specification
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, Mouse, RS-232 Commands, Remote Port Selector |

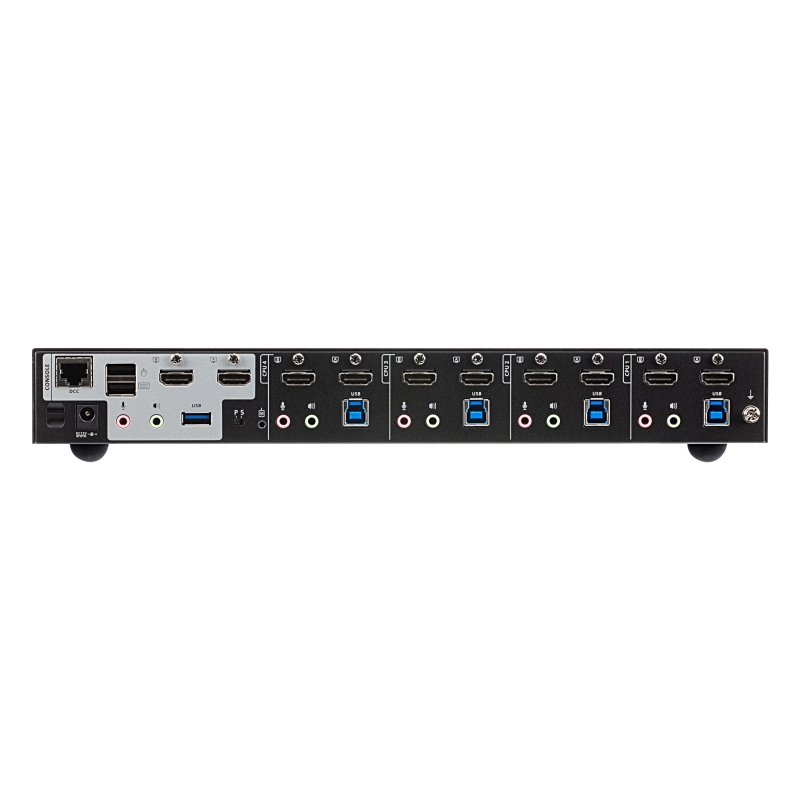

| Connectors | |
| Console Ports | 2 x USB Type A Female |
| 2 x HDMI Female (Black) | |
| 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) | |
| 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) | |
| KVM (Computer) Ports | 4 x USB3.1 Gen1 Type B Female (Blue) |
| 8 x HDMI Female (Black) | |
| 4 x 3.5mm Audio Jack Female (Green) | |
| 4 x 3.5mm Audio Jack Female (Pink) | |
| Daisy Chain Ports | 1 x RJ-45 Female |
| Remote Port Selector | 1 x 2.5mm Audio Jack Female |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear) |
| Switches | |
| Selected | 5 x Pushbutton |
| Station Selection | 1 x Slide Switch |
| LEDs | |
| On Line /Selected | 5 (Orange) |
| USB Link | 5 (Green) |
| Audio | 5 (Green) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 4096 x 2160 @ 60Hz |
| Scan Interval | 1-99 Seconds (Default: 5 sec.) |
| Power Consumption | DC12V:4.42W:63BTU |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 1.57 kg ( 3.46 lb ) |
| Dimensions (L x W x H) | 33.50 x 16.05 x 4.40 cm |
| (13.19 x 6.32 x 1.73 in.) | |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
- 1x CS1844 4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch
- 8x HDMI 2.0 Cables
- 4x USB 3.0 Cables
- 4x Speaker Cables
- 4x Microphone Cables
- 1x Power Adapter
- 1x Remote Port Selector
- 1x User Instructions
