4-Port 10G Optical Input Board (300m)
VM7584K1
4 Port 10G Optical Input board สำหรับ VM1600A, VM3200, VM3250 มีช่องสัญญาณขาเข้า Fiber Optic 4 ช่อง รองรับความละเอียด 4K ใช้งานร่วมกับ VM7584K1/VM8584K1 ได้ที่ 300m ด้วยสาย multi-mode
รับประกัน 3 ปีเต็ม
Spec SheetThe VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 300 m (using VM7584K1). The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
The ATEN VM input/output boards are hot-swappable which gives system integrators great flexibility and efficiency for installation and maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for scalable video-critical applications.
Features
- Compatible with the VM3250 / VM3200 / VM1600A; mix and match with modular I/O boards of any type for optimum flexibility
- Extends audio/video, IR, and RS-232 control signals over long distances via duplex fiber optic cables
- Superior video quality over long-distance transmission – up to 4096 x 2160@60Hz (4:2:0), 300m with VM7584K1 over multimode cables
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
- Consumer Electronics Control (CEC) support
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners*
- Bi-directional IR channel – IR transmission is processed one direction at a time, ranging from 30 kHz to 60 kHz*
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
- Hot-swappable fiber optic module and I/O boards for easy integration and maintenance
*Note: The VM7584 is designed to work with the VE883T video Transmitter. The features are only available when used with the VE883T.

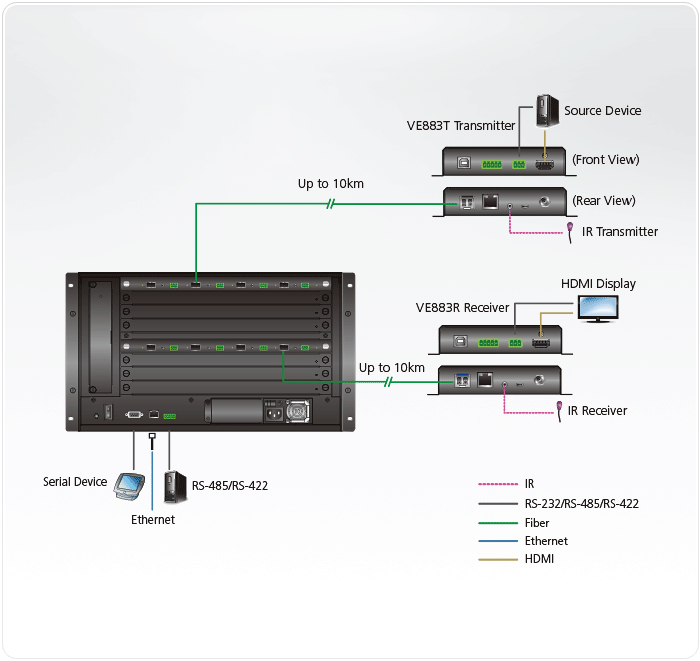

Diagram
Specification
| Fiber Optics | |
| Data Rate | 10.3 Gbps |
| Wavelength | VM7584K1: 850 nm |
| Fiber Type | VM7584K1: Multimode(MM), OM3, LC Duplex Type |
| Video Input | |
| Interfaces | 4 x bi-directional SFP (LC) |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps per lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP 2.2 compatible Consumer Electronics Control (CEC) |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Distance | VM7584K1: up to 300m (MM, OM3, Black) |
| Control | |
| RS-232 Channel | 4 x Captive Screw Connectors, 3 pole |
| IR Channel | 4 x Mini Stereo Jack Female (Black) |
| LEDs | |
| Status | 1 (Green) |
| Link | 4 (Orange) |
| Power Consumption | 10.54W:49BTU |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.57 kg ( 1.26 lb ) |
| Dimensions (L x W x H) | 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.) |
| Carton Lot | 2 pcs |
| Note | 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications; Use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Board is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents

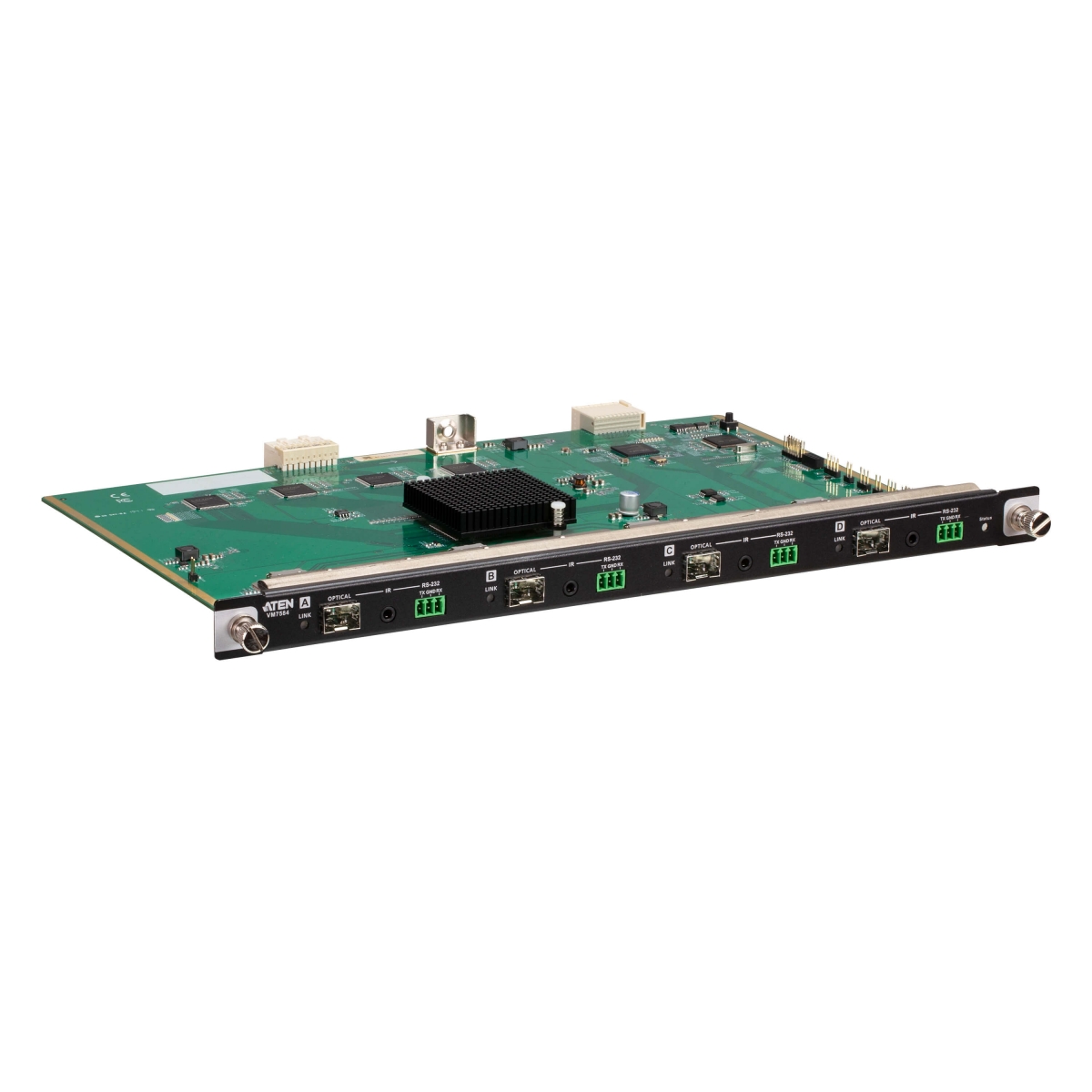

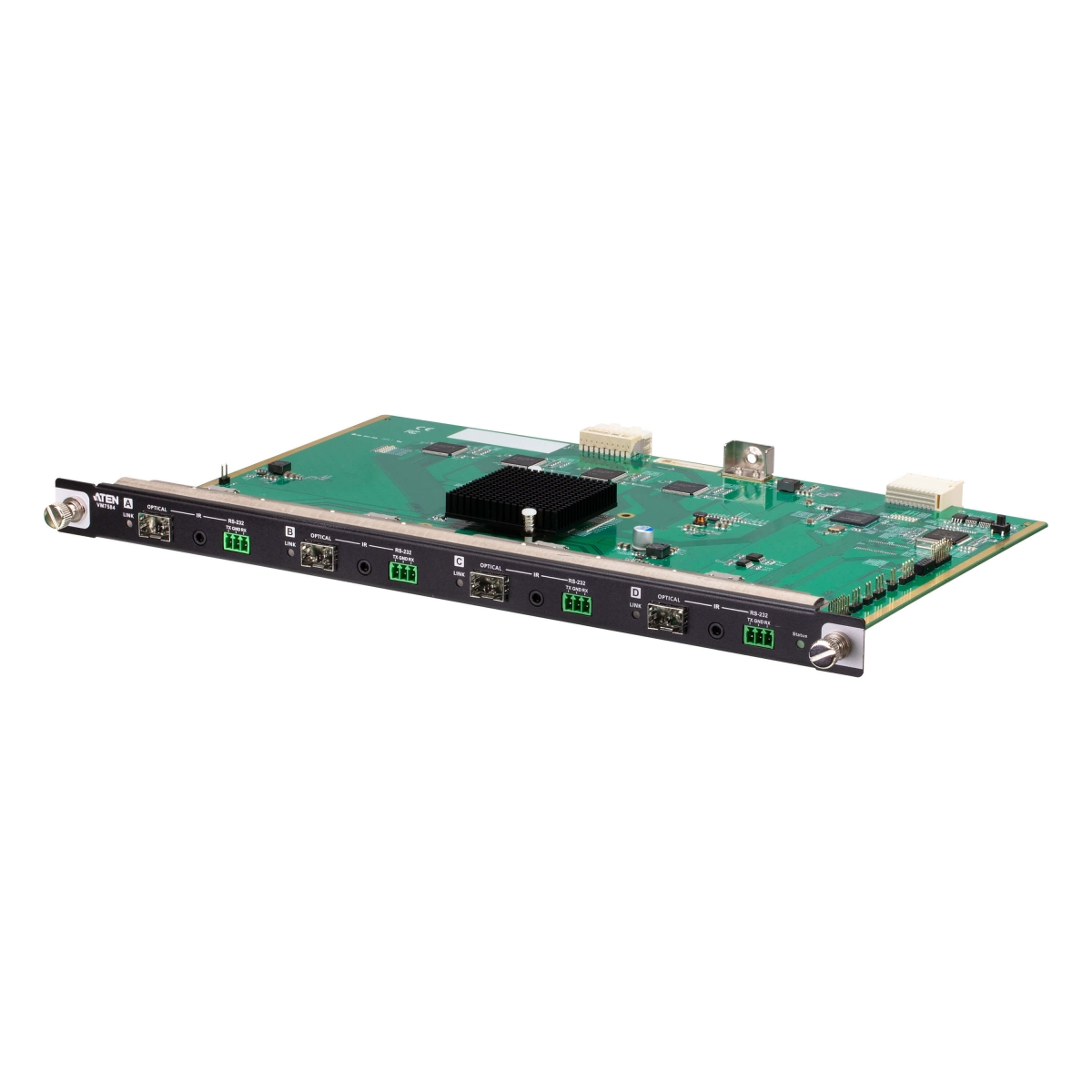

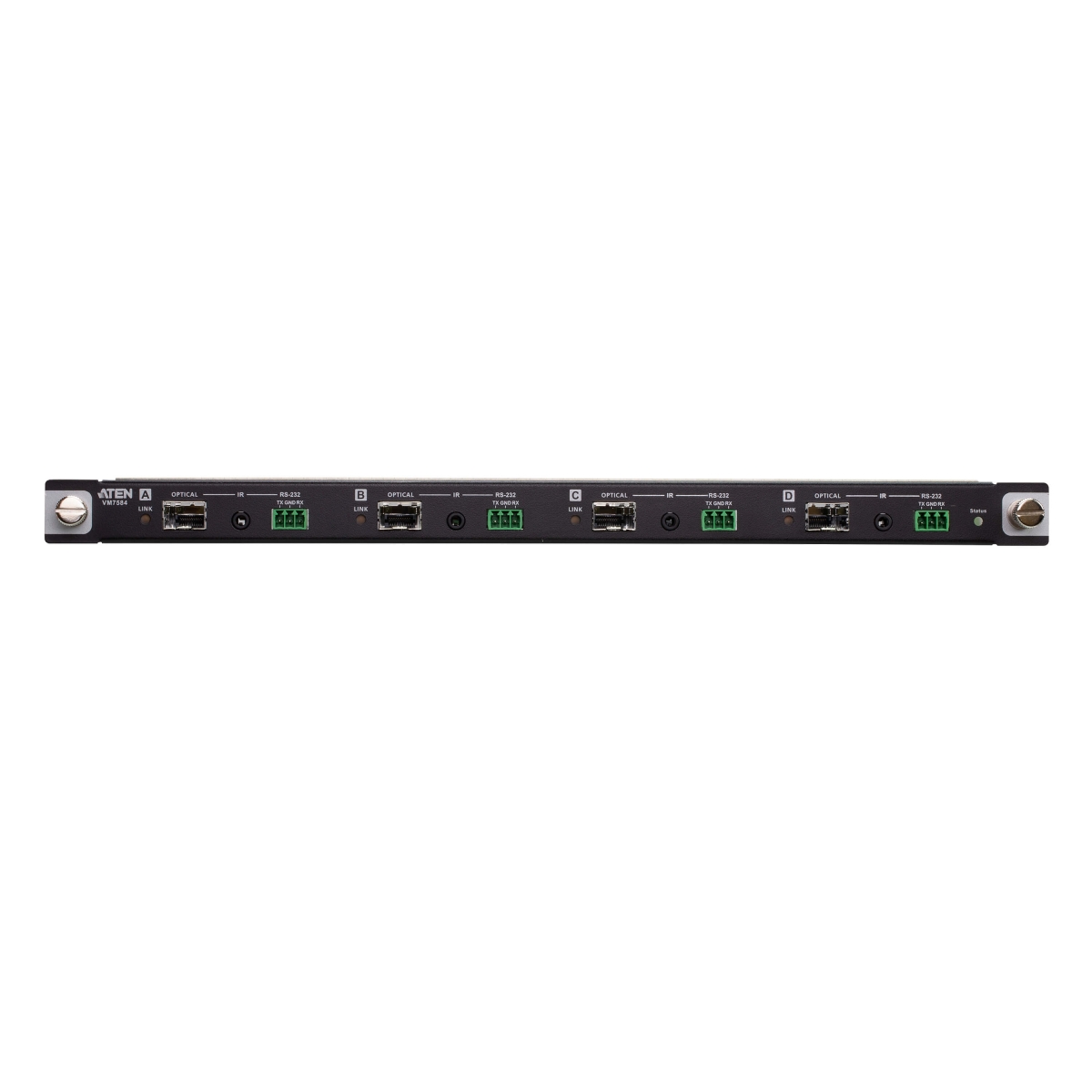

- 1x VM7584K1 4-Port 10G Optical Input Board

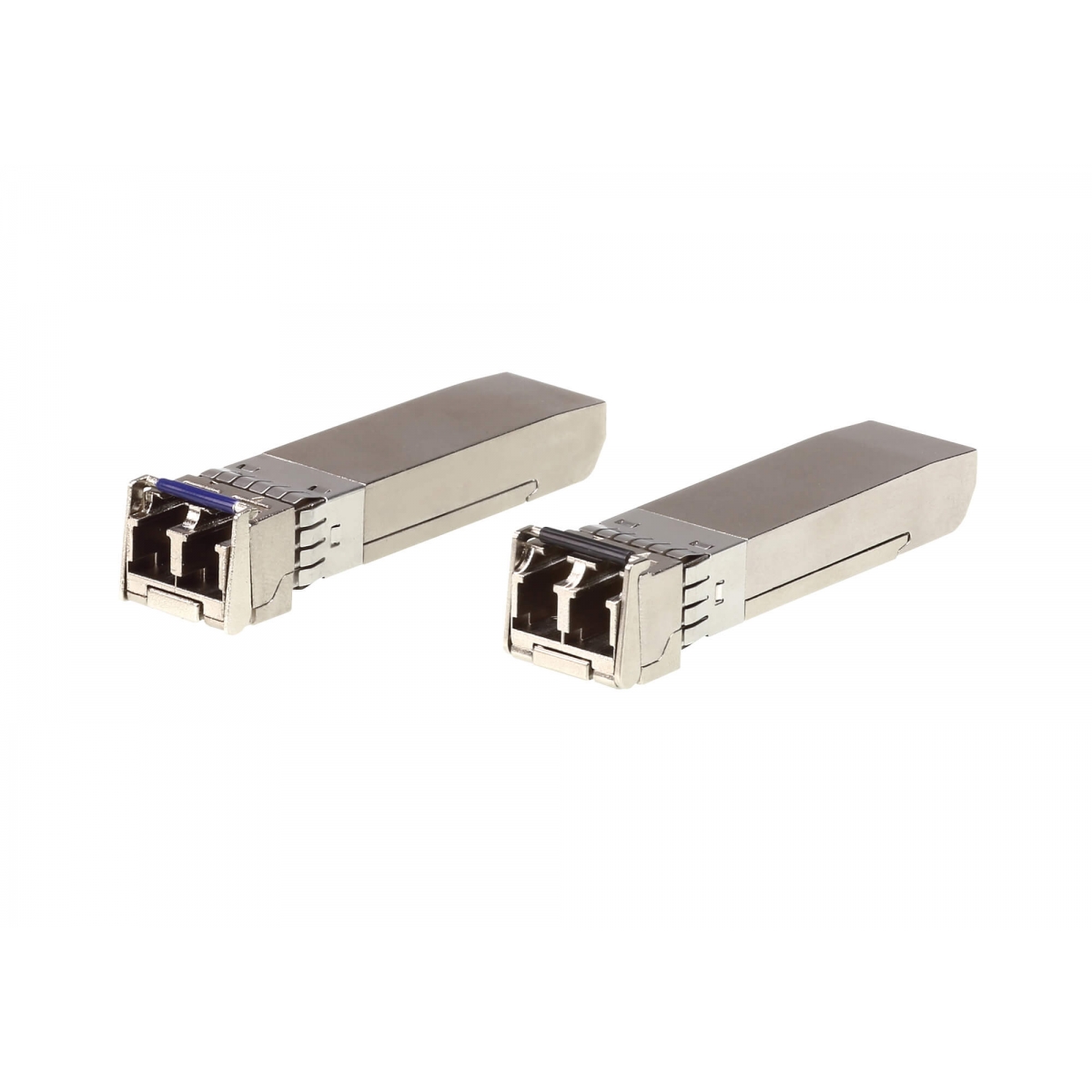

- 4x SFP Modules
- 4x 3-Pole Terminal Blocks
- 1x IR Receiver
- 1x IR Emitter
- 1x User Instructions
