VM7584K2
4 Port 10G Optical Input board สำหรับ VM1600A, VM3200, VM3250 มีช่องสัญญาณขาเข้า Fiber Optic 4 ช่อง รองรับความละเอียด 4K ใช้งานร่วมกับ VM7584K2/VM8584K2 ได้ที่ 10km ด้วยสาย single-mode
รับประกัน 3 ปีเต็ม
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:
4-Port 10G Optical Input Board (10km)
4 Port 10G Optical Input board สำหรับ VM1600A, VM3200, VM3250 มีช่องสัญญาณขาเข้า Fiber Optic 4 ช่อง รองรับความละเอียด 4K ใช้งานร่วมกับ VM7584K2/VM8584K2 ได้ที่ 10km ด้วยสาย single-mode
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก

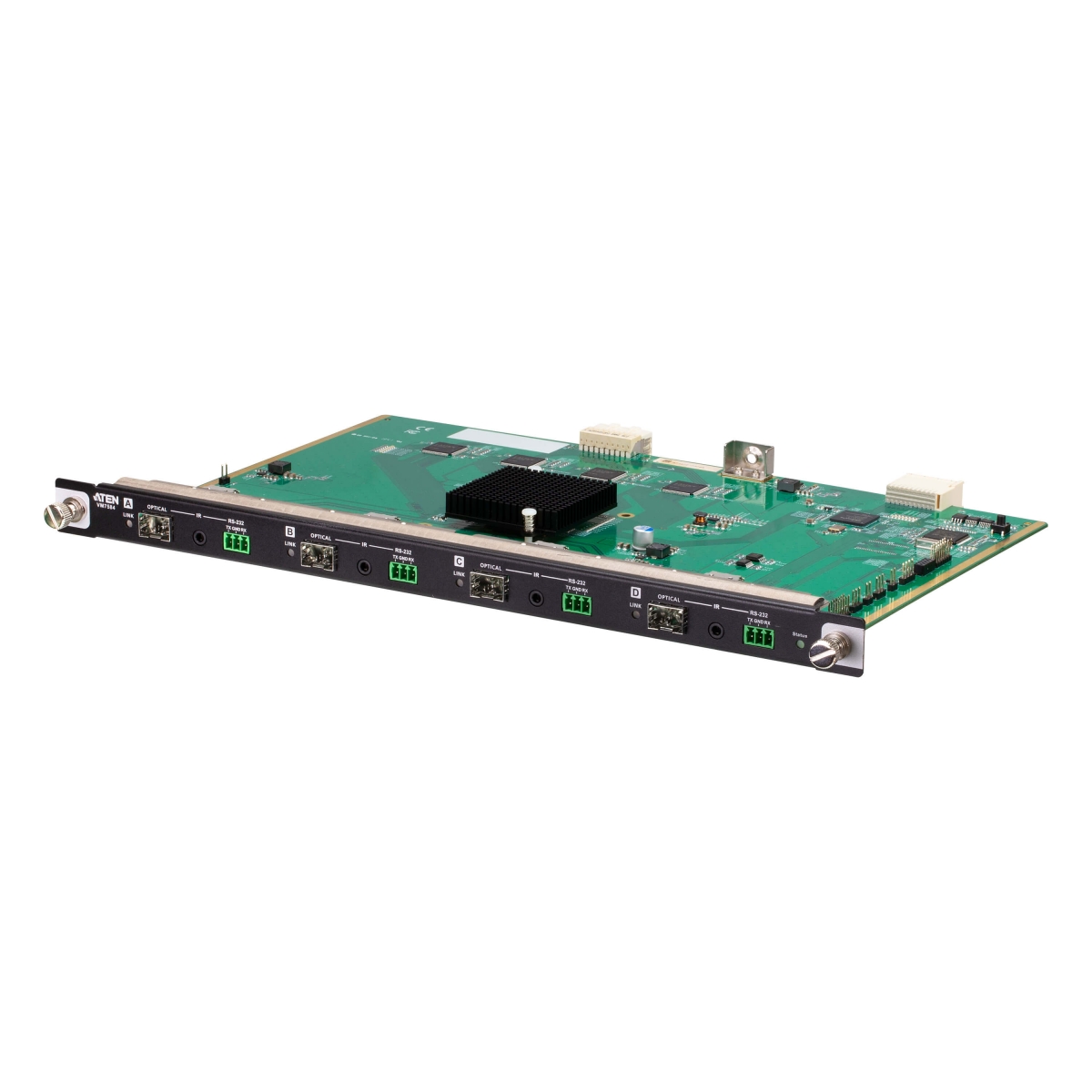

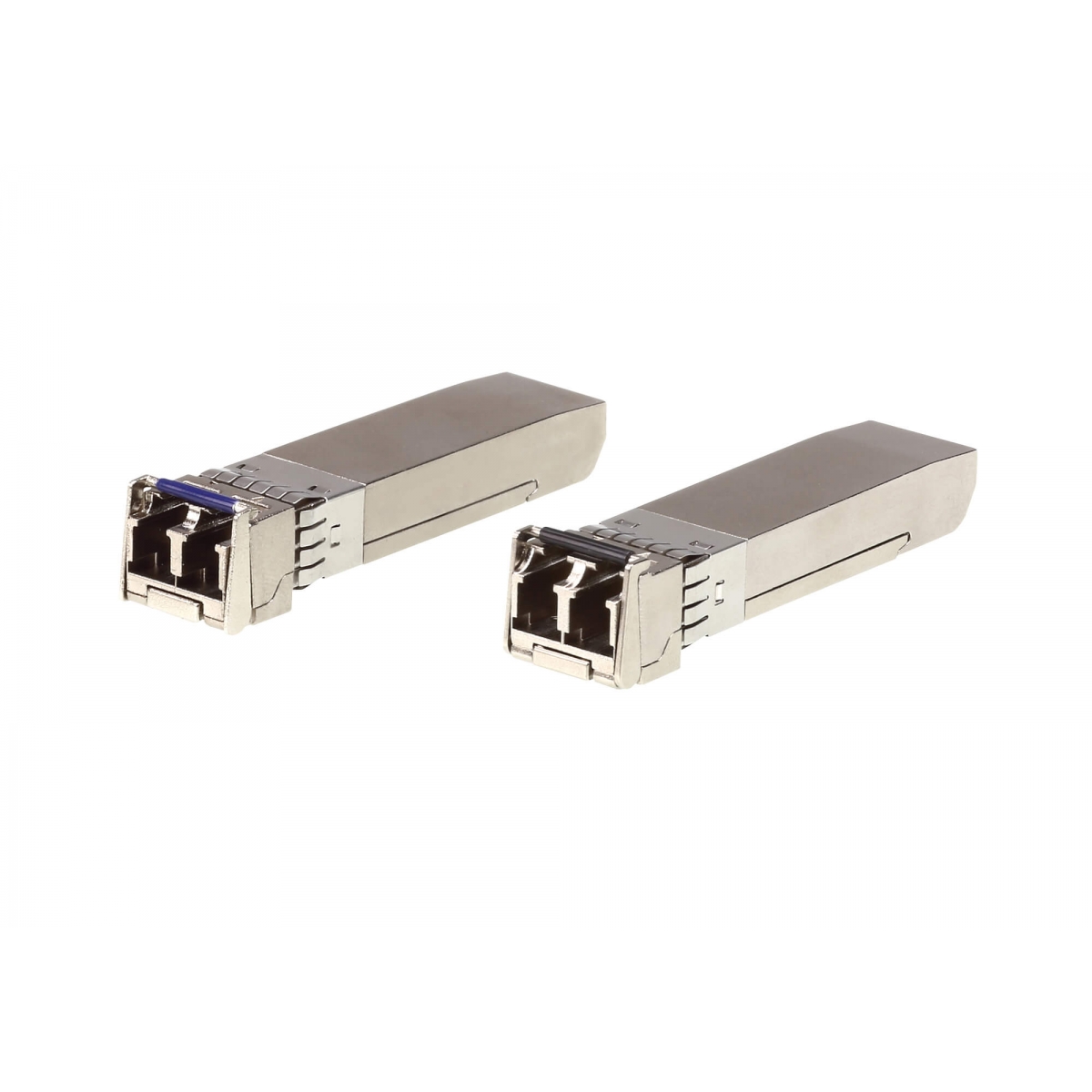

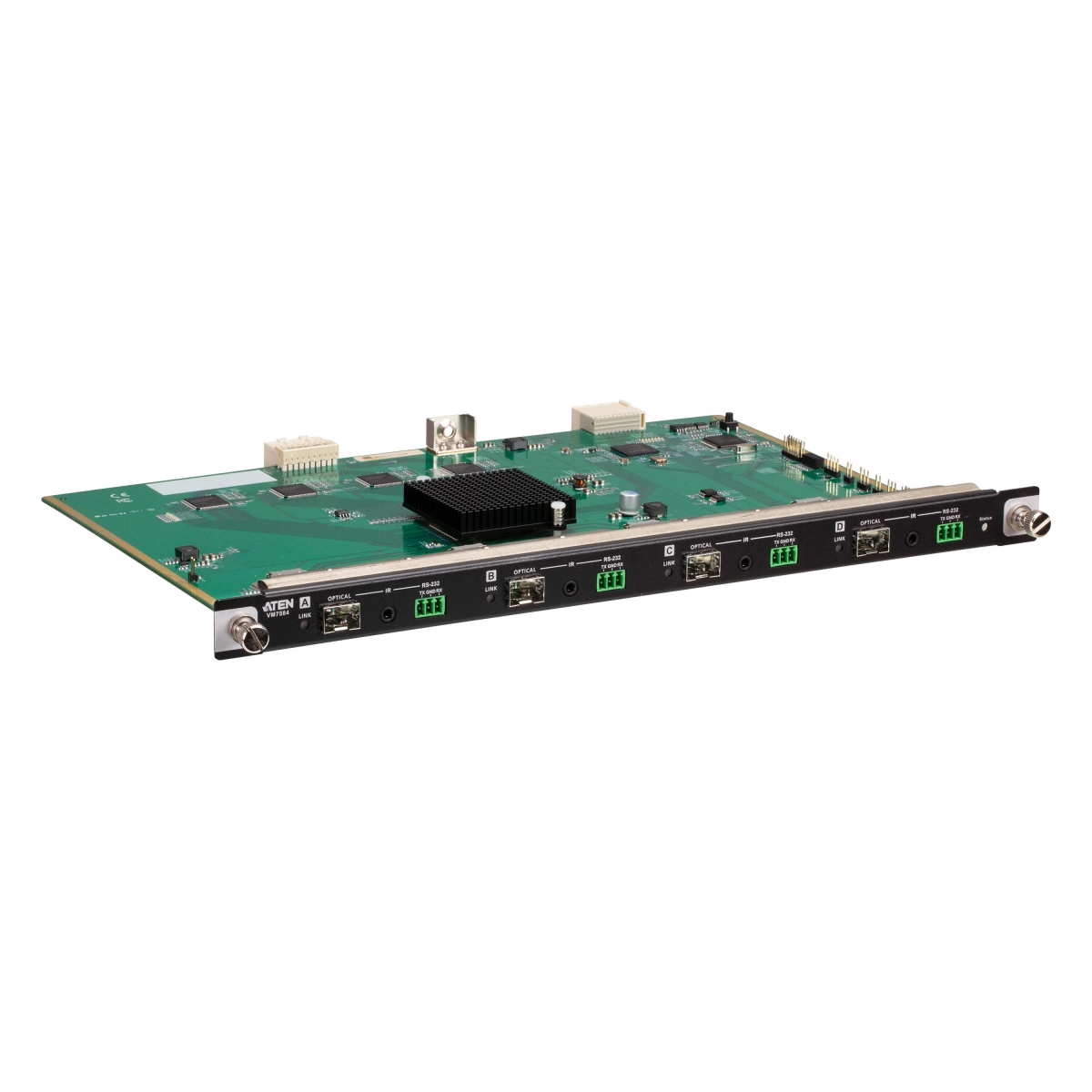

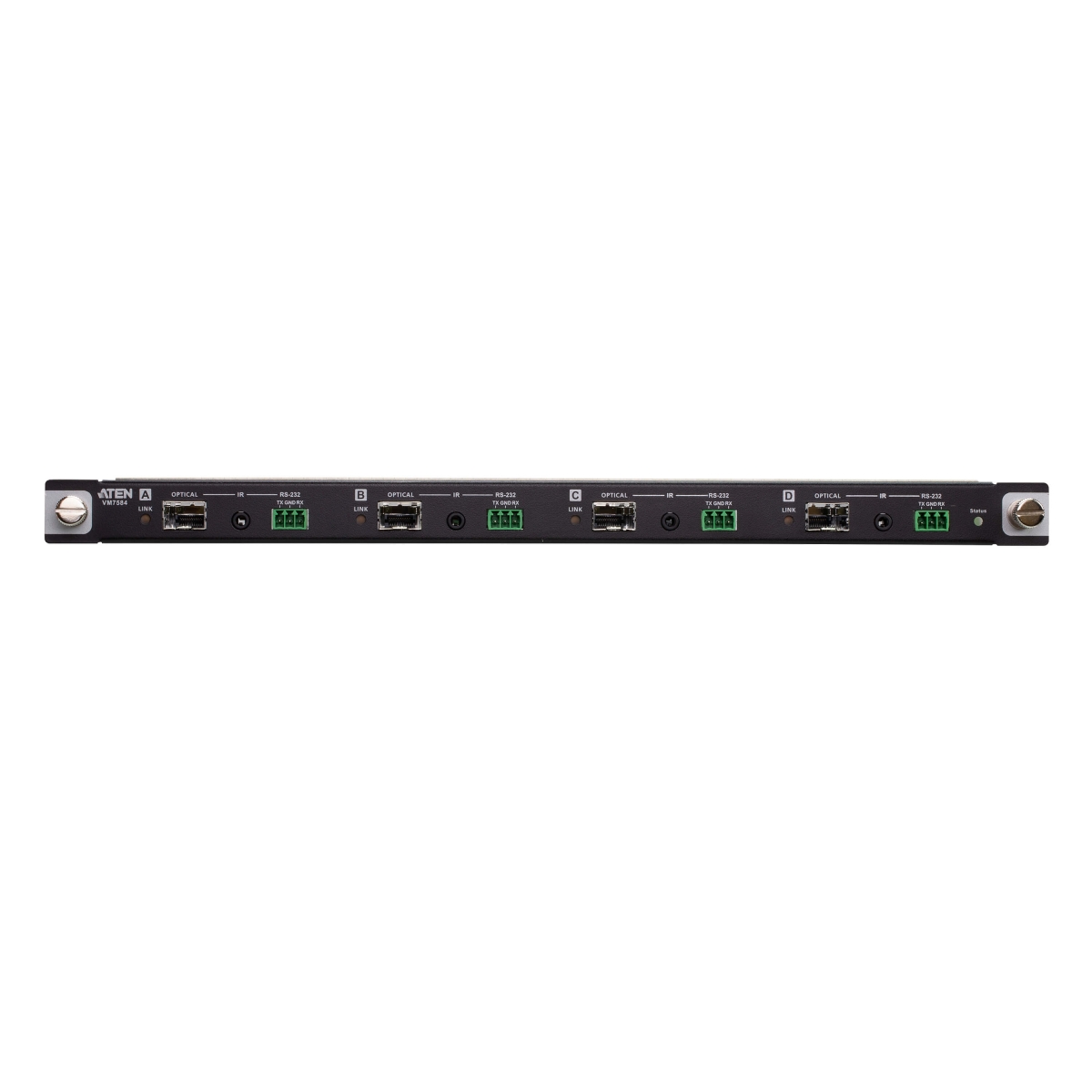

The VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 10 km (using VM7584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
The ATEN VM input/output boards are hot-swappable which gives system integrators great flexibility and efficiency for installation and maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for scalable video-critical applications.
Fiber Optics | |
Data Rate | 10.3 Gbps |
Wavelength | VM7584K2: 1310 nm |
Fiber Type | VM7584K2: Singlemode(SM), LC Duplex Type |
Video Input | |
Interfaces | 4 x bi-directional SFP (LC) |
Video | |
Max. Data Rate | 10.2 Gbps (3.4 Gbps per lane) |
Max. Pixel Clock | 340 MHz |
Compliance | HDMI (3D, Deep Color, 4K) HDCP 2.2 compatible Consumer Electronics Control (CEC) |
Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Max. Distance | VM7584K1: up to 300m (MM, OM3, Black) VM7584K2: up to 10km (SM, Blue) |
Control | |
RS-232 Channel | 4 x Captive Screw Connectors, 3 pole |
IR Channel | 4 x Mini Stereo Jack Female (Black) |
LEDs | |
Status | 1 (Green) |
Link | 4 (Orange) |
Power Consumption | 10.54W:49BTU |
Environmental | |
Operating Temperature | 0–40°C |
Storage Temperature | -20–60°C |
Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | 0.57 kg ( 1.26 lb ) |
Dimensions (L x W x H) | 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.) |
Carton Lot | 2 pcs |
Note | 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications; Use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Board is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
