4K60p HDMI2.0 Capture & Streaming PCI Express x4 with Loop through
YS-1460P
การ์ด Capture PCI Express x4 ที่มี HDMI2.0 Input 1 CH และ HDMI Loop through 1 CH รองรับการบันทึกและสตรีมสูงสุดถึง 4K60p
ข้อมูลจำเพาะ
| Model | YS-4160P |
|---|---|
| Max. FPS | 4096×2160p@60/50fps in → 4096×2160p@60/50fps out |
| Recording Mode | Software Compression, Real-Time Mode |

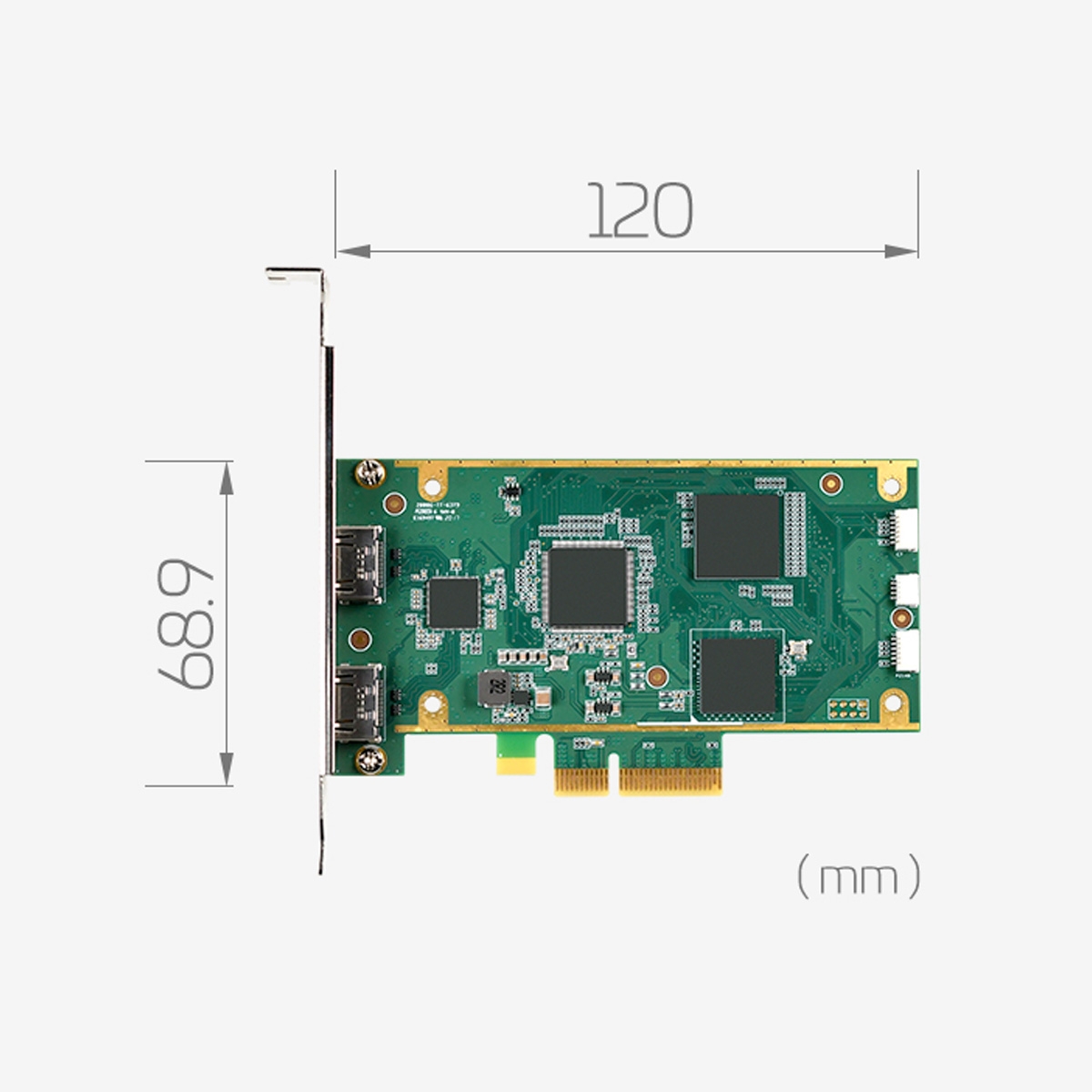

| Dimension | 120×68.9 ( mm ) |
| Interface | PCIe×4( Gen2 ) |
| Video Input | Single-Link HDMI 2.0 |
| Video Output | HDMI 2.0 ( Loop-Through ) |
| Capture/Preview | 4:4:4 8Bit RGB24 4:4:4 8Bit RGB32 4:2:2 8Bit YUY2 4:2:0 8Bit YV12, NV12 4:2:0 10Bit P010 |
| Features | HDR10/HLG HDR Tone Mapping HDMI 1.4B 3D HDMI 2.0 Loop-Through |
| Video RAW Data Resolution | HDMI 2.0 4096×2160@60/50/30/25/24fps 3840×2160@60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps |
| Recording Video Format | H.264 ( Software Compression ) |
| Recording Video Resolution | HDMI 2.0 4096×2160@60/50/30/25/24fps 3840×2160@60/50/30/25/24fps 2560×1440p@144fps 1920×1080p@240/144/120/100fps 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 1280×1024p@60fps 1280×960p@60fps 1024×768p@60fps 800×600p@60fps 640×480p@60fps 720×480p@60fps 720×576p@50fps 720×480i@60fps 720×576i@50fps |
| Video Processing | Video Cropping and Scaling Auto Signal Detection Deinterlace Engine Multi Instances |
| Audio Input | 1×HDMI Embedded Audio |
| Audio Output | 1×HDMI Embedded Audio |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| System Requirement | |
| 3rd Party Software | vMix OBS ZOOM Skype Teams Discord Slack Cisco Webex GoToMeeting ✻ DirectShow/V4L2 Compatable Software Supported |
| OS Support | Windows 7/Windows 8/Windows 8.1/Windows 10 Linux 4.8 or Higher ( 32-bit and 64-bit ) Linux ARM nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX |
