HDMI Extender over CAT6 up to 50M with POC funciton
LE-H50M

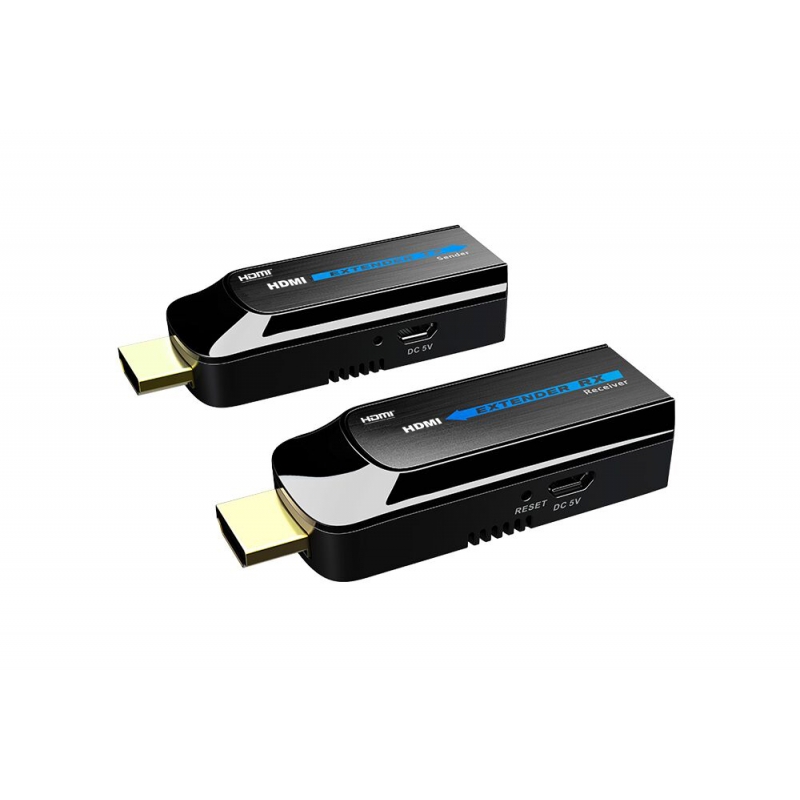

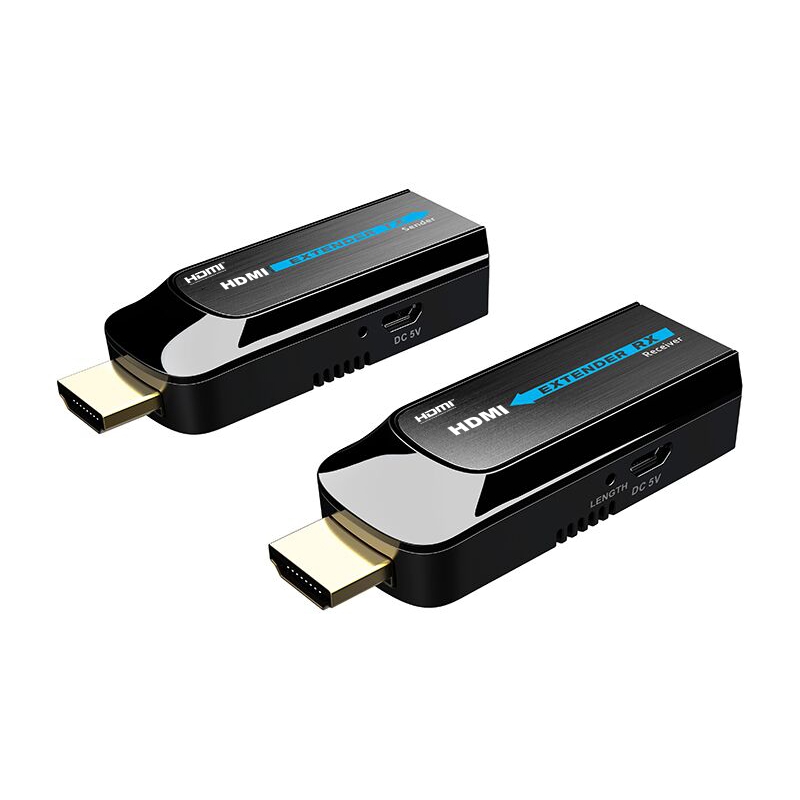

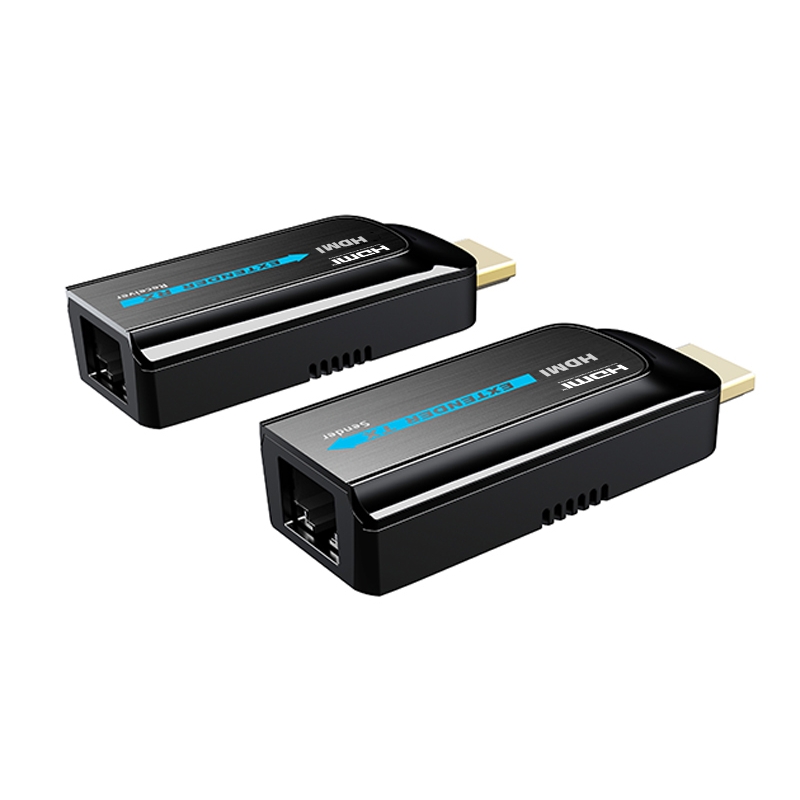

HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 50 meters with zero latency.
ควรใช้สาย CAT6 600MHz ขึ้นไป ไม่รองรับการใช้ร่วมกับสาย CAT5/CAT5e
รับประกัน 1 ปีเต็ม
This HDMI Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair. It allows for transmission and extension uncompressed full HD 1080p@60Hz HDMI signal via CAT6/6A/7 network cable, the transmission distance is up to 50 meters with zero latency. This product is perfect for AV transmission in applications of HD conference system, HD video shooting, HD multimedia education system, home entertainment and signage etc.
Features
- Portable size design
- Support HDMI1.3, compatible with HDCP1.2
- Resolution supported is up to full HD 1080p@60Hz
- Use CAT6/6A/7 for long distance transmission up to 50 meters
- Uncompressed and zero latency
- Micro USB cable for power, support receiver powered from transmission
- Plug and play, without installation
Diagram
