AD004E
รับประกัน 3 ปีเต็ม
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

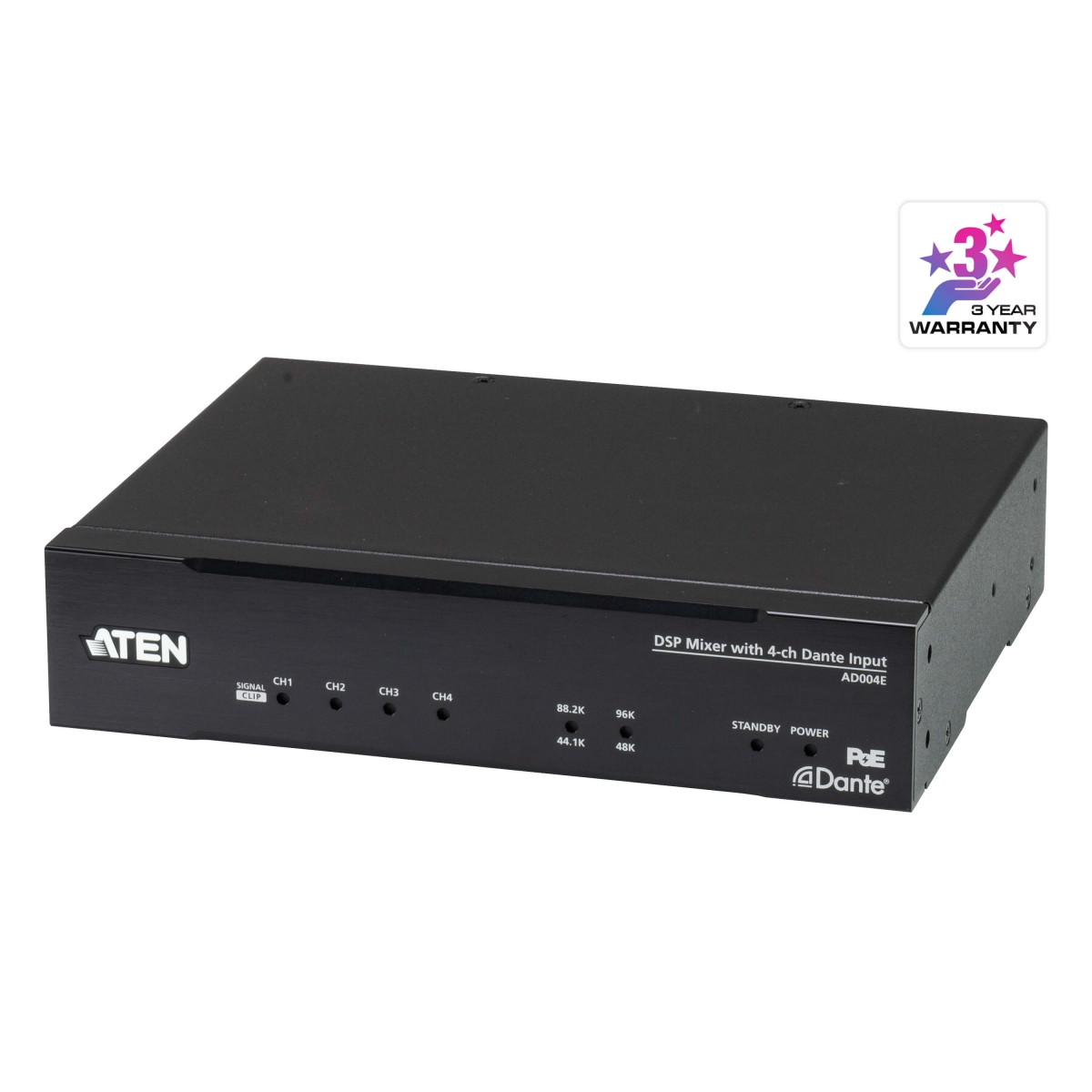

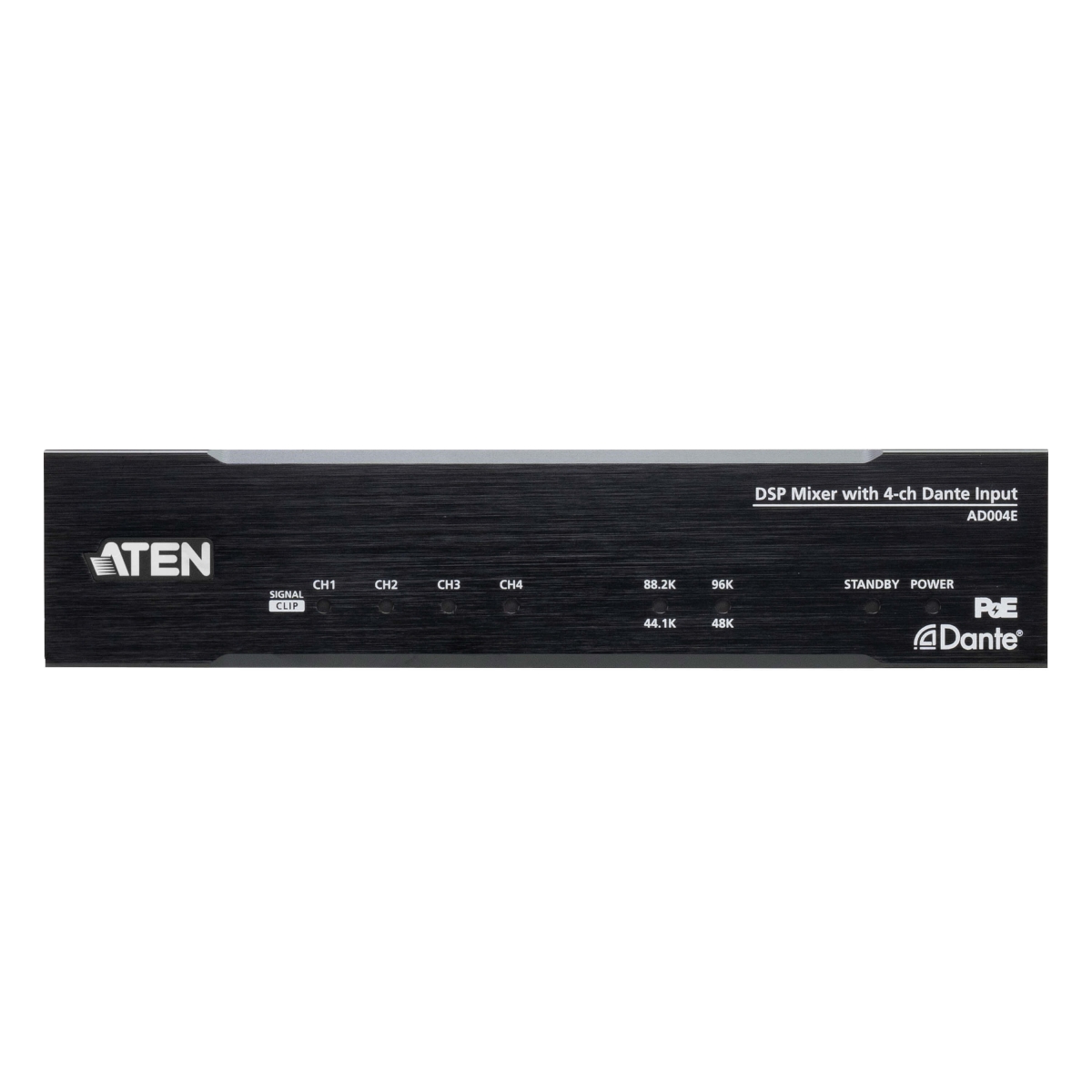

DSP Mixer with 4-ch Dante Input
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก
Line Outputs | |
Maximum output Level | +24dBu, Nominal Input Level: +4dBu |
Impedance | 600Ω |
System Specification | |
Distortion | THD+N: <0.01%, 1kHz, Max. Gain |
Frequency Response | 20~20kHz, +/-0.5dB |
Audio Sampling | 24-bit, 44.1k/48k/88.2k/96kHz |
Crosstalk | <-95dB |
Power | |
Power Consumption | 12VDC, 3.3A |
Power over Ethernet (PoE) | Class 0, IEEE802.3af |
Control | |
RS-232 | Connector: 3-pin, 3.5mm, Terminal Block Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
Ethernet | RJ45 |
Compliance | |
Certification | FCC, CE, UKCA |
Environmental | |
Operating Temperature | 0~40℃ |
Humidity | 0-80% RH, Non-Condensing |
Storage Temperature | -20~60℃ |
Physical Properties | |
Weight | 0.92 kg ( 2.04 lb ) |
Housing | Metal |
Dimensions (L x W x H) | 20.00 x 4.40 x 15.40 cm (7.87 x 1.73 x 6.06 in.) |
Note | External power adapter is sold separately. |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
