6-Channel Audio Delay/Mixer with Level Adjustment
AD-200
AD-200 6-CH Audio mixer and matrix router to 4-CH audio outputs, Delay Adjustment 0 ~ 3000 millisecond delay adjustment

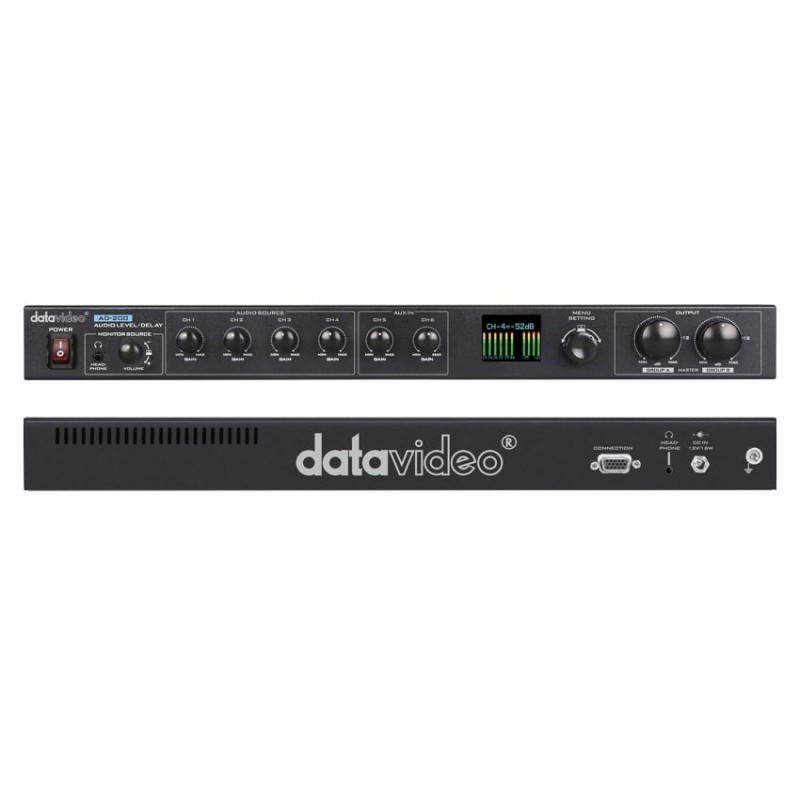

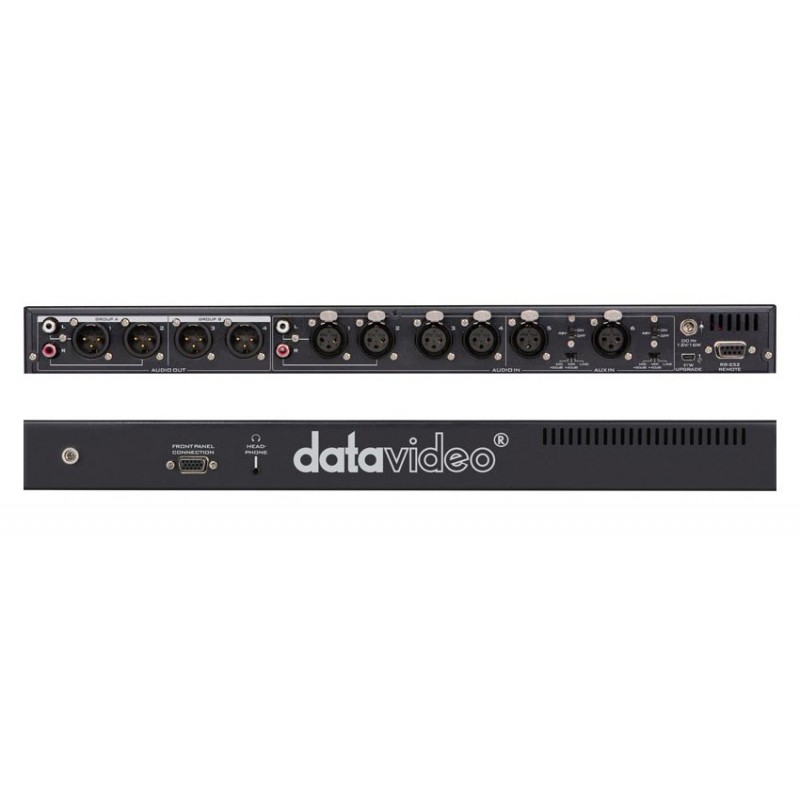

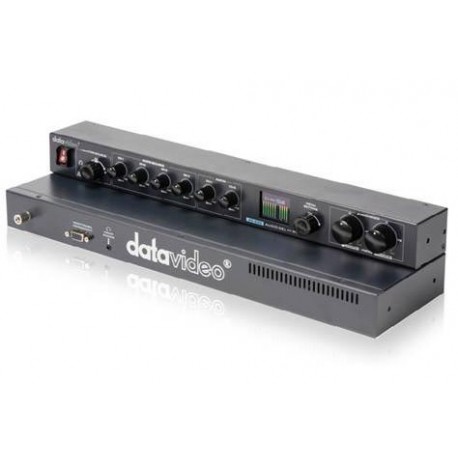

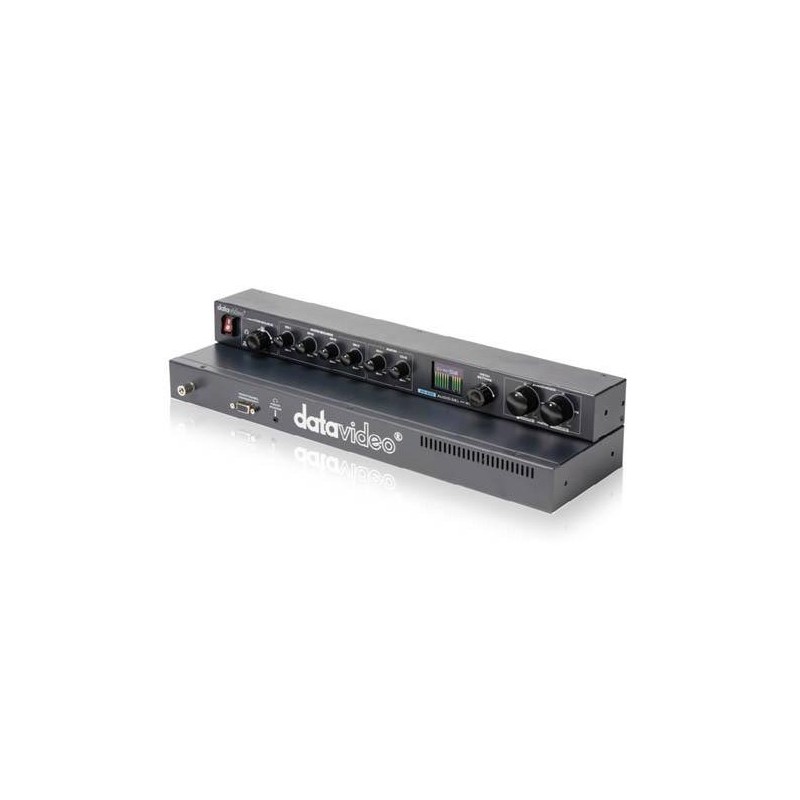

Datavideo AD–200 is an integration of 6-Channel audio delay with a matrix mapping function of 4-Channel outputs Audio Mixer, a combination design with front panel and main unit, 2 separate parts by 1RU rack mount design which can be easily installed to OB Van or customized rack.
Features
- 4-CH balanced audio inputs, 2-CH AUX inputs selectable of Mic/Line level
- 4-CH balanced audio outputs, 2-CH unbalanced-audio outputs
- Support up to 3sec audio delay adjustment for each input channel
- Audio level adjustment of each input
- 6-CH Audio mixer and matrix router to 4-CH audio outputs
Specifications
| Audio Inputs | 4x XLR OR 2x RCA + 2x XLR (Stereo Pair) |
| Audio Outputs | 4x XLR OR 2x RCA + 2x XLR (Stereo Pair) |
| Aux | 2x Audio AUX Inputs |
| Volume Control | Audio Source Level Controls |
| Delay Adjustment | 0 ~ 3000 millisecond delay adjustment |
