2CH Audio Isolation

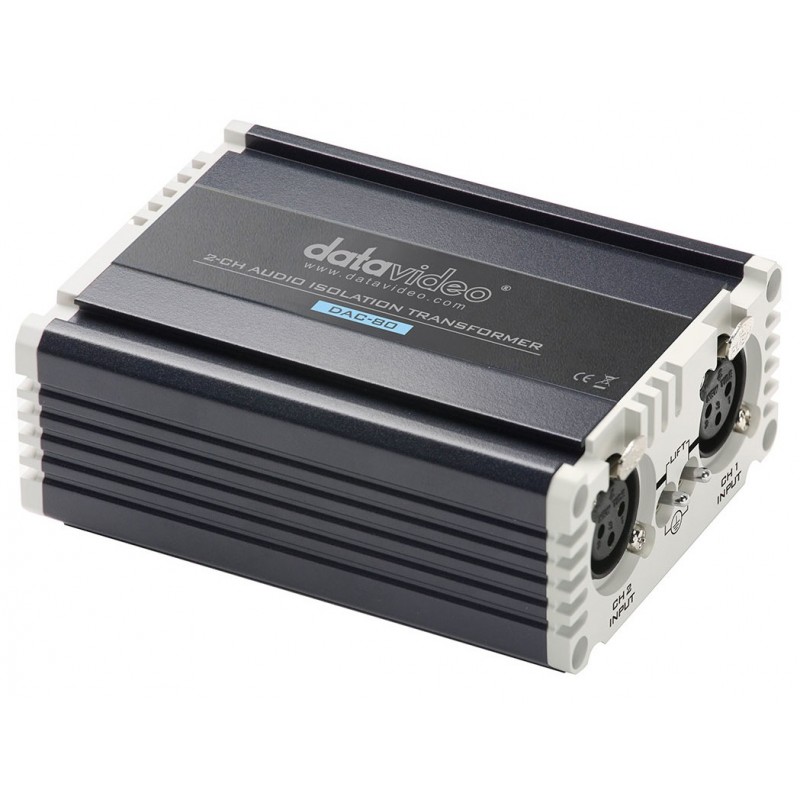

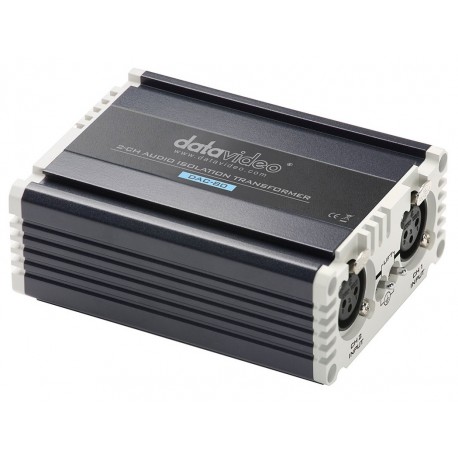

DAC-80
DAC-80 is designed to remove hum and buzz created by ground loops. Inputs: 2x XLR and Outputs: 2x XLR (ch1 and ch2)
DAC-80 is designed to remove hum and buzz created by ground loops. Normal voltage differences in the system grounding points between different pieces of equipment cause small AC power currents to flow in the shield of audio cables. Capacitance between a power transformer’s primary and secondary windings introduce signals to the circuit ground, which will also create small current flows in the cable shield. Either of these problems will create hum in audio signals. DAC-80 breaks the inter-equipment ground path and greatly increases the rejection in the input circuits while remaining transparent to the audio signal.
DAC-80 Key Features
Easy to Use
Simply connect the input and output XLR cables to use the DAC-80.
Eliminate Audio Noise
DAC-80 removes audio noise caused by ground loops.
Eliminate Audio Noise
DAC-80 removes audio noise caused by ground loops.
No Power Needed
Since DAC-80 is a passive device, no power is required for it to function.ion.
Specifications
- Impedance: 600 Ohm +/- 10% (input & output)
- Bandwidth Frequency: 20Hz ~20KHz ±0.3dB
- THD: 1KHz : less than 0.015% @ +4dBu; 20Hz: 0.05% @+4dBu
- Insertion loss : less than 0.5dB
- Turns Ration: 1:1
Connections

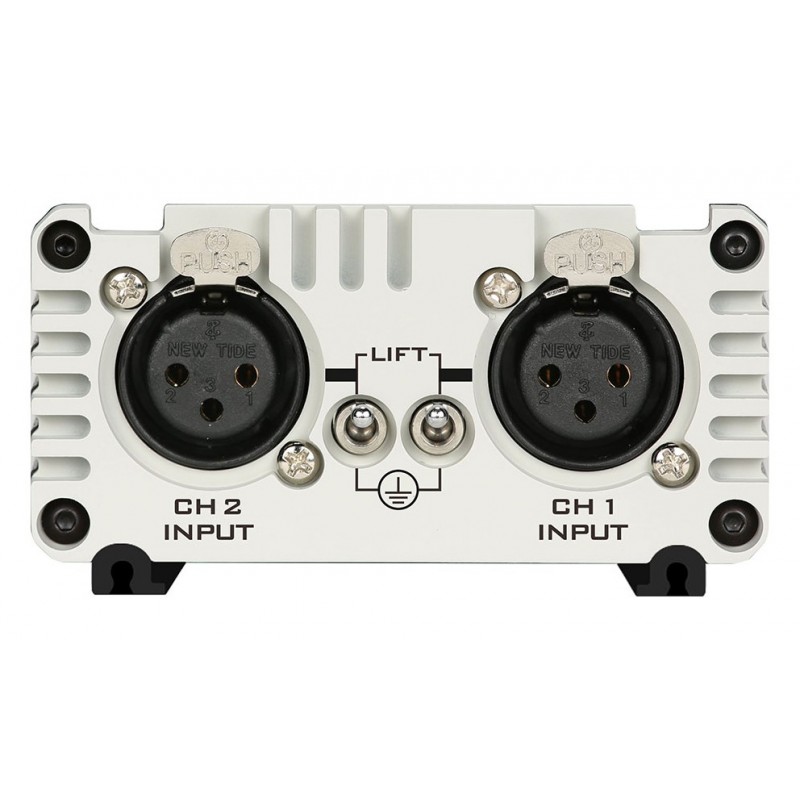

- Inputs: 2x XLR (ch1 and ch2)

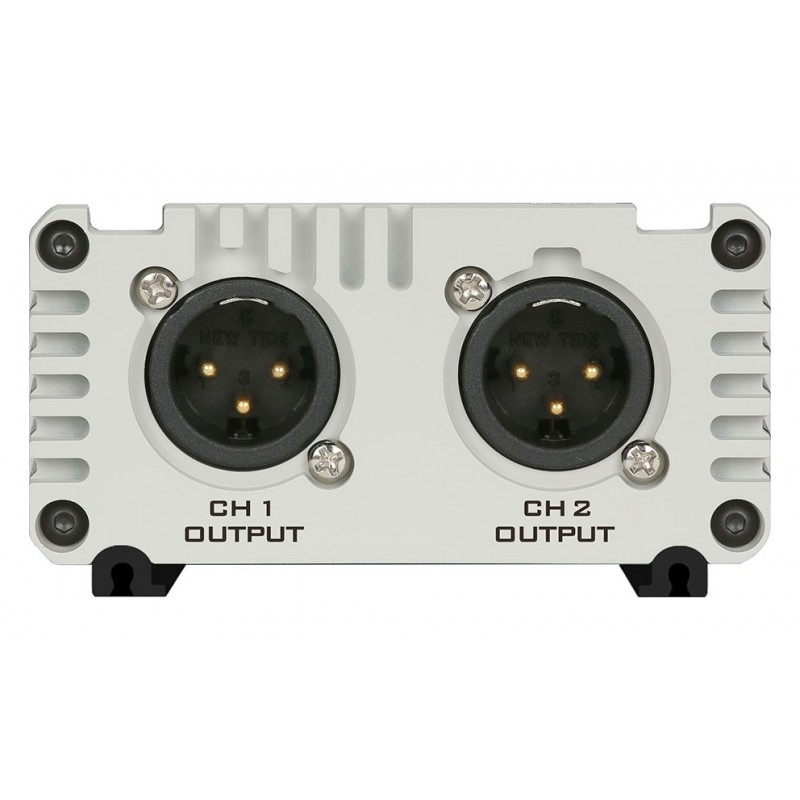

- Outputs: 2x XLR (ch1 and ch2
Dimensions
- 85mm x 45.2mm x 111.5mm (3.35in. x 1.78in. x 4.39in.)
Packages Include
- 1 x DAC-80 Unit
- 1 x Instruction Manual
