Speaker Tracking Station

รุ่น DS-4CU

Taking the meeting experience and efficiency to new heights, AREC DS-4CU, a new and innovative Speaker Tracking Station, is designed to make meeting discussion and meeting recording more productive and smart.

รายละเอียดเพิ่มเติม

ส่งให้เพื่อน

ส่งให้เพื่อน

Speaker Tracking Station

Taking the meeting experience and efficiency to new heights, AREC DS-4CU, a new and innovative Speaker Tracking Station, is designed to make meeting discussion and meeting recording more productive and smart.

ผู้รับ: :

ชื่อเต็มของเพื่อน ^* :

ที่อยู่อีเมลเพื่อนของคุณ ^* :

^* ฟิลด์ที่จำเป็น

หรือ ยกเลิก
พิมพ์

Spec Sheet

Manual

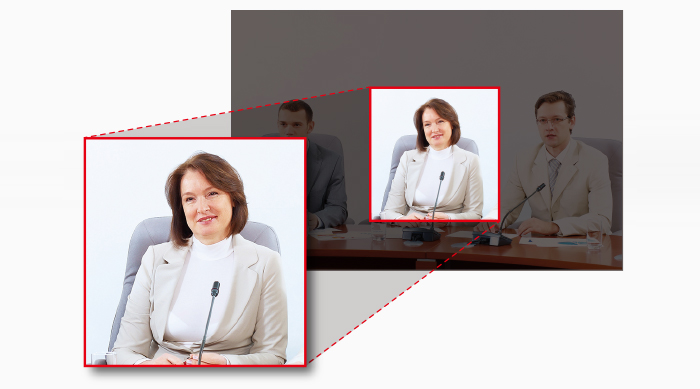

TRACKING AND FOCUS ON THE ACTIVE SPEAKER

Coming with recommended Conference Microphone System and PTZ Cameras, AREC DS-4CU Speaker Tracking Station enables PTZ camera to track and focus the active speaker automatically and precisely when he/her presses the PTT (push-to-talk) button.

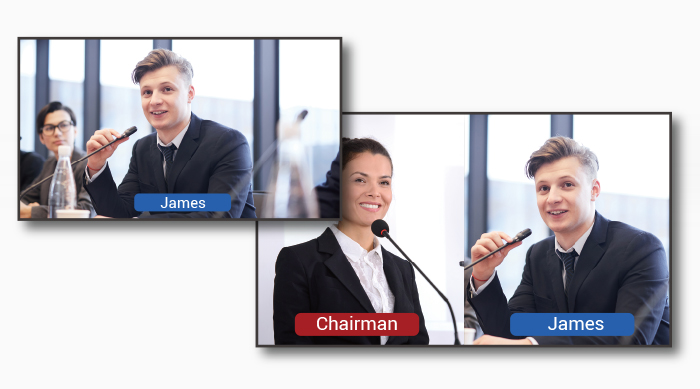

AUTO SWITCHING AND AUTO ADDING A CUSTOMIZED OVERLAY

DS-4CU supports camera switching, adding a customized overlay, and speaker’s output automatically when active speaker’s microphone button has been pressed, enabling all participants can see the close-up view and overlay on the local display. The PTZ Camera goes back to full view when speaker ﬁnishes talking by pressing cancel button. DS-4CU supports users to easily add and select the output layouts and pre-made overlay images depending on your needs.

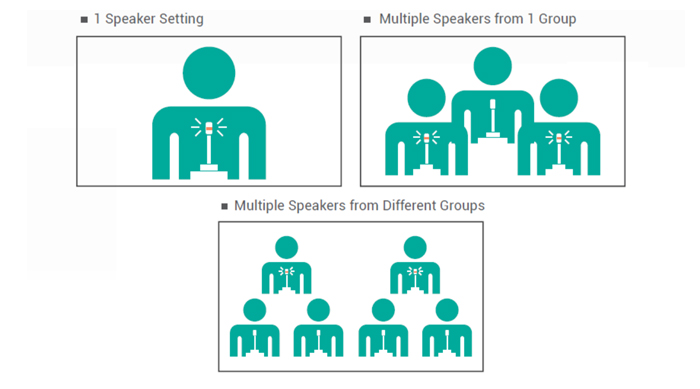

AUTO SWITCH TO THE DESIGNED CONFERENCE VIEW AS MULTI-PARTICIPANTS SPEAK*

AREC DS-4CU Speaker Tracking Station can switch camera to the designated conference view when multiple participants press the microphone buttons and discuss at the same time. It supports multiple settings for flexible use.

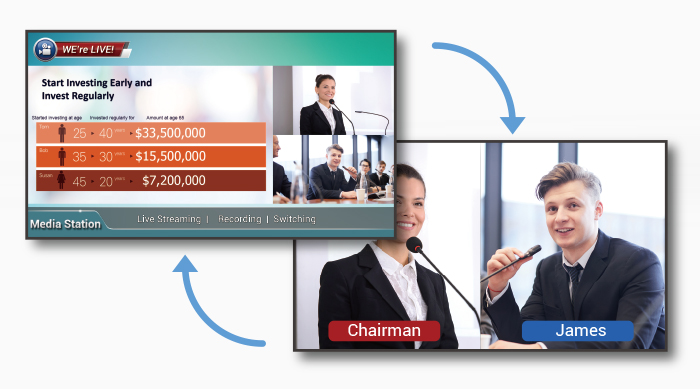

AUTOMATIC CAMERA SWITCHING AND CONFERENCING RECORDING WITH AREC MEDIA STATION

Coming with AREC LS Series Media Station, AREC DS-4CU not only outputs speaker’s sources, but it also switches the recording layout through the command for AREC Media Station control. When the conversation has been called off, AREC Media Station will go back to the original recording layout automatically.

Microphone System compatible list

BRAND	MODEL
BOSCH	CCS 1000 D Digital Discussion System DICENTIS Wireless Conference System DCN-CCU2 Central Control Unit
BXB	BXB FCS-6350 Conference Main Control Unit
HAYACO	WMC-240G Digital Wireless Main Controller
SENNHEISER	ADN CU1 Digital Discussion Central
SHOW	DCS-100M Digital Conference System
SHURE	DDS 5900 Digital Discussion System Shure MXA 310/710/910 Table/Linear/Ceiling Array Microphone Shure MXW Wireless Microphone Systems Shure MXCW Digital Conference Systems
Audio-Technica	ATUC-50CU Digital Discussion System
TELEVIC	Plixus AE-R Audio Engine D-Cerno Digital Discussion System

SPECIFICATIONS

MODEL NAME	AREC DS-4CU
VIDEO INPUTS	Max. 4 channels HDMI / VGA: up to 2 channels Full HD network camera: up to 4 channels
RESOLUTION RANGE (INPUTS)	HDMI : 480i~1080p60 VGA : 480i~1080p60 RTP/ RTMP/ RTSP, Max.: 1080p
VIDEO OUTPUTS	1x HDMI display port: 1080p60 1x VGA display port: 1080p60
OVERLAY IMAGES	Multiple for user-deﬁned
VIDEO OUTPUT LAYOUT	Multiple layouts for pre-deﬁned, including full screen / picture-in-picture / picture-by picture / multi-channel split screen
CAMERA CONTROL	VISCA / PELCO-D / PELCO-P / ONVIF proﬁles/ VISCA over IP
MOUSE DEVICE	Through USB interface connection
EXTERNAL CONTROL	Yes, supports RS-232 port and TCP API command for system integration
OUTPUT SWITCH	Supports automatic output switching according to the setting of push-to-talk buttons with compatible conference microphone system
RECORDING LAYOUT SWITCH	Supports automatic recoding theme switching according to the setting of push-to-talk buttons with compatible conference microphone system and AREC Media Station
ADMIN MANAGEMENT	Built-in web-based admin backstage. Sending control command through TCP API
