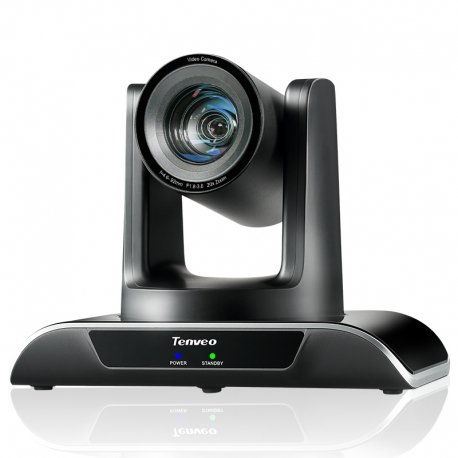

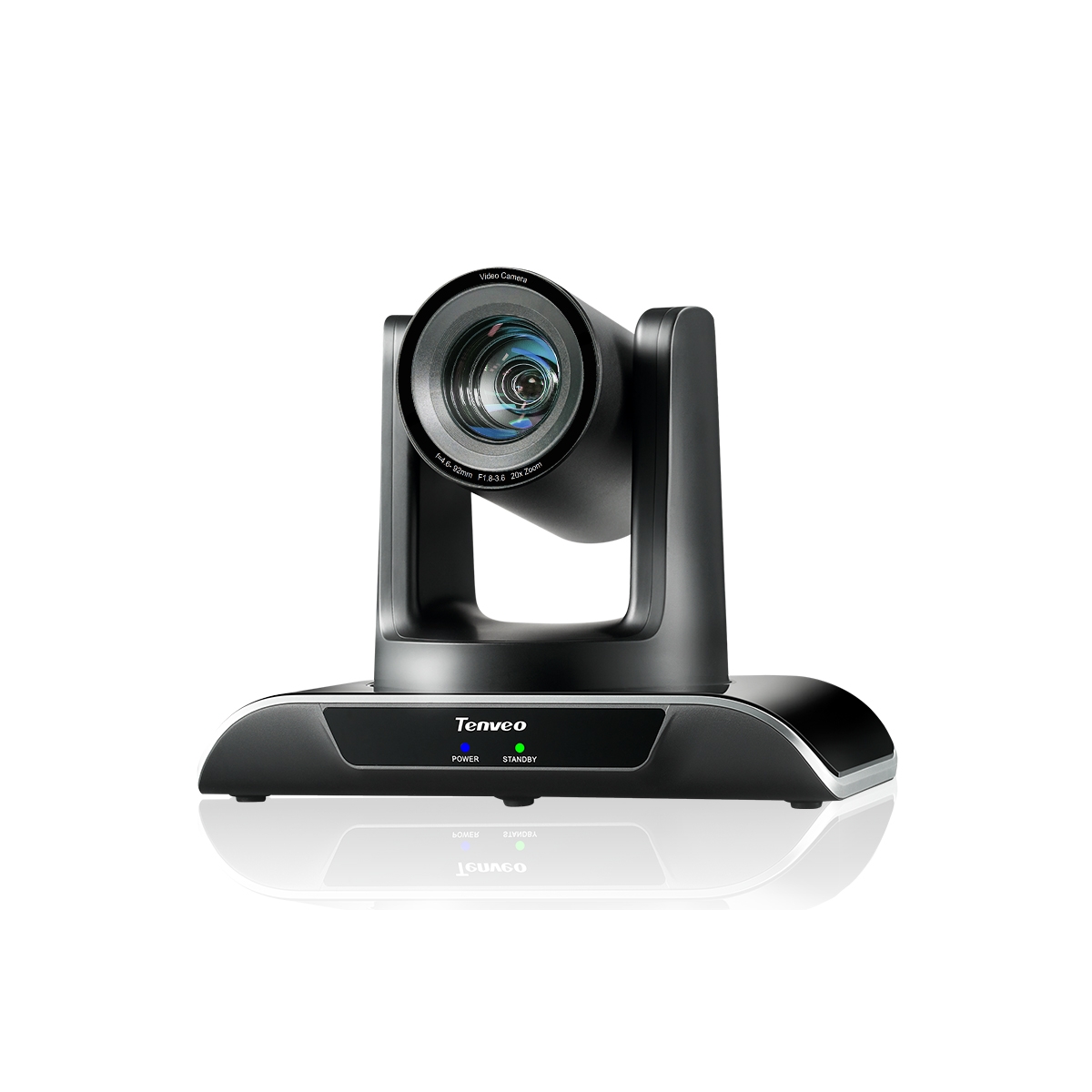

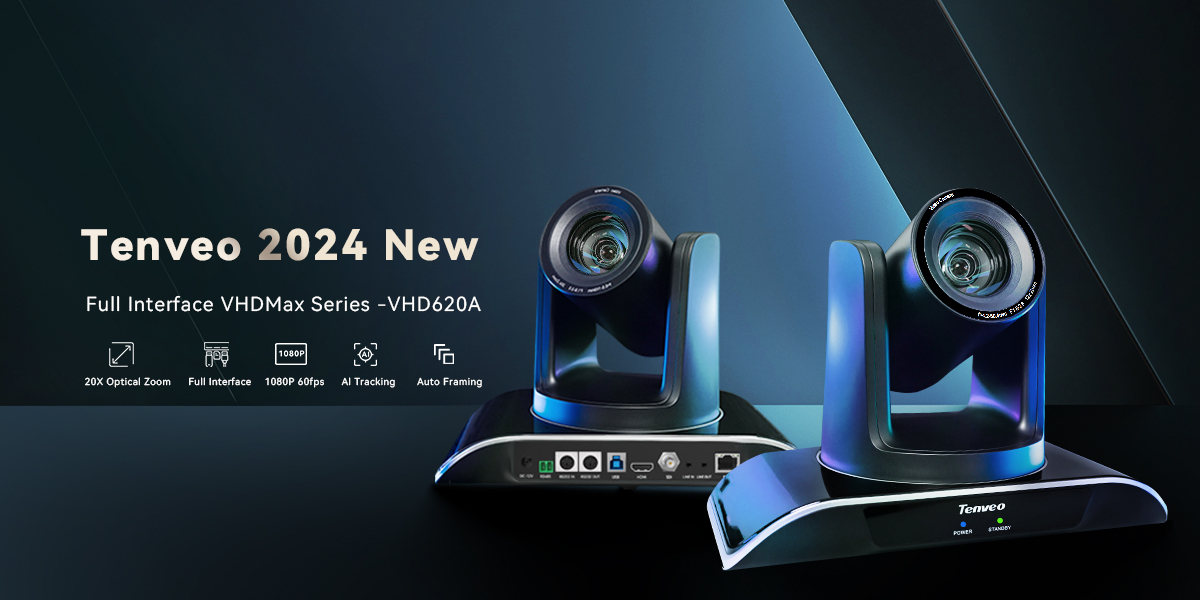

20X Zoom Auto Tracking Video Conference Camera with HDMI USB RJ45 SDI output
TEVO-VHD620A
- รองรับ 20X optical zoom
- มุมมอง 69.5º
- รองรับ Auto-framing และ auto-tracking
- รองรับ 1080P HDMI, SDI, USB3.0, LAN
- 10 Preset ผ่าน IR Remote (max 255 preset)
- RTMP, RTSP, SRT streaming
- Onvif, Visca Over IP, Visca, Pelco D/P
- PoE support
Spec Sheet
20X Optical Zoom HD Camera
Pan: 0 to 340 degree. Tilt: 0 to 120 degree. 20X optical Zoom, 2.07 mega pixel,HD 1080P 60fps video output, allow you to enjoy a nice image.
Easy Preset Setting
The 20x PTZ camera could be controlled to the focused points quickly by the presets in the meetings. It's very efficient for discussion collobaration.
Universal Compatibility
Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.
Easy to Use
Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.

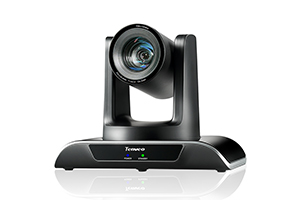

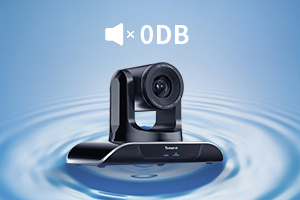

Quiet Rotation
The horizontal 350 ° smooth and stable PTZ rotation is safe without jitter, and the whole process is quiet without noise.
Quick Auto Focus
Advanced AF focusing algorithm is adopted, focusing speed is faster, and professional IQ image debugging enables the zoomed image to be displayed quickly and clearly.
Specifications
| Model | TEVO-VHD620A |
| Sensor | 1/2.8''SONY CMOS |
| Effective pixel | 2.07 mega pixel |
| Video output pixel | 1080p@60/50/30/25fps, 720p@60/50/30/25fps |
| Zoom | 20x optical zoom |
| Lens | f=4.6mm ~ 92mm |
| Aperture | F1.8 ~ F3.6 |
| Horizontal angle | 62.3° ~ 3.46° |

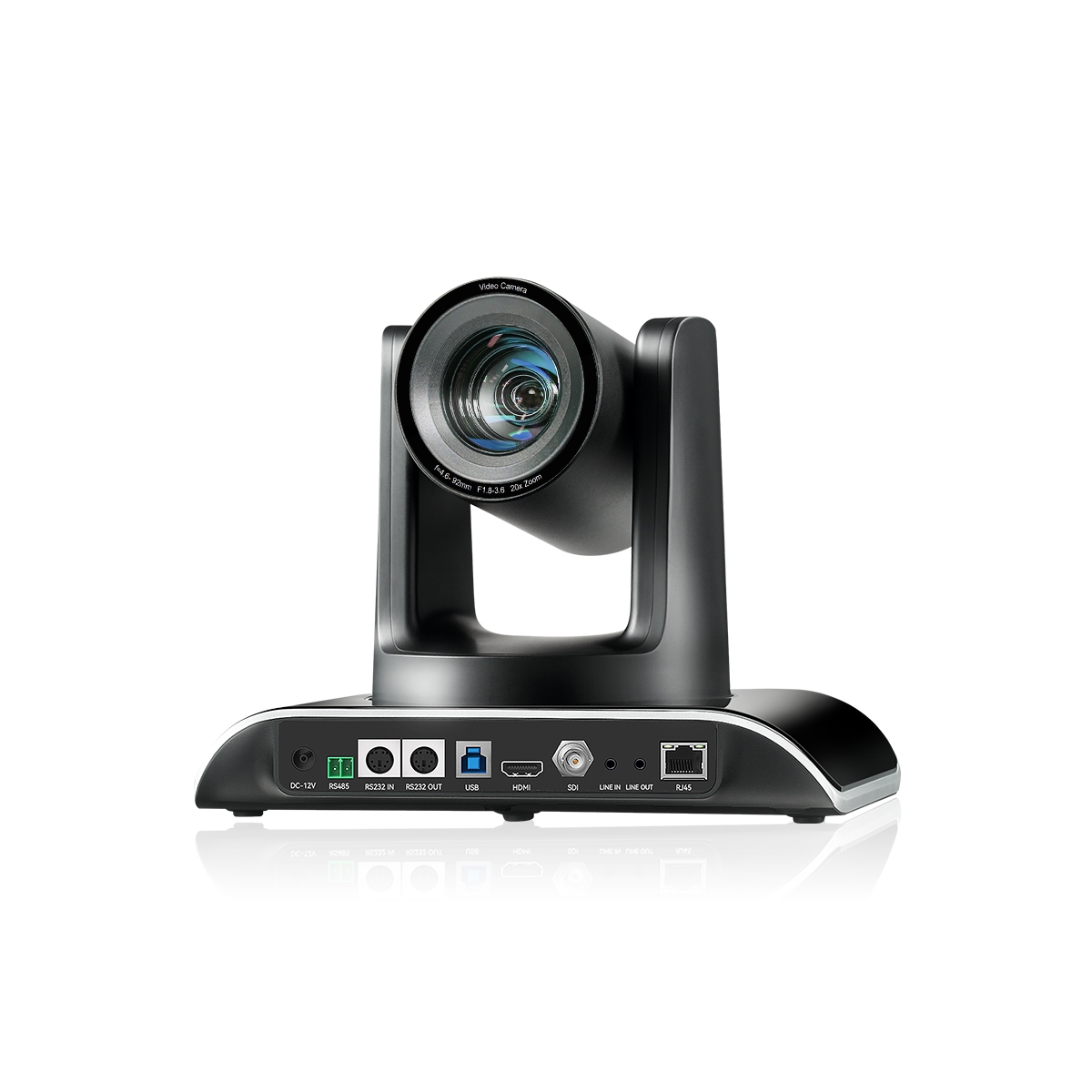

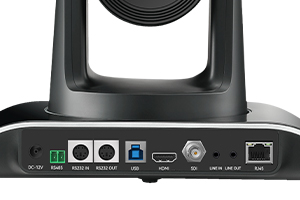

| Video output | USB 3.0, HDMI, RJ45, SDI |
| Video resolution | 1080P (1920 *1080) |
| Siginal standard | NTSC/PAL |
| Preset position | 64 |
| Control temernal | RS-232,RS485 |
| Shutter | 1/30s～1/10000s, auto |
| Baud Rate | 38400/9600bps |
| Control protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
| USB protocol | UVC1.1 |
| Minimal Illumination | 0.1Lux |
| SNR | ≥50dB |
| Video encoding format | H.264, MJPEG, YUV |
| Horizontal Rotation | 350°（±175°）0.1°/s～100°/s |
| Vertical Rotation | 90°（±45°）0.1°/s～80°s |
| Power supply | DC 12V/2A |
| Power comsumption | 12W |

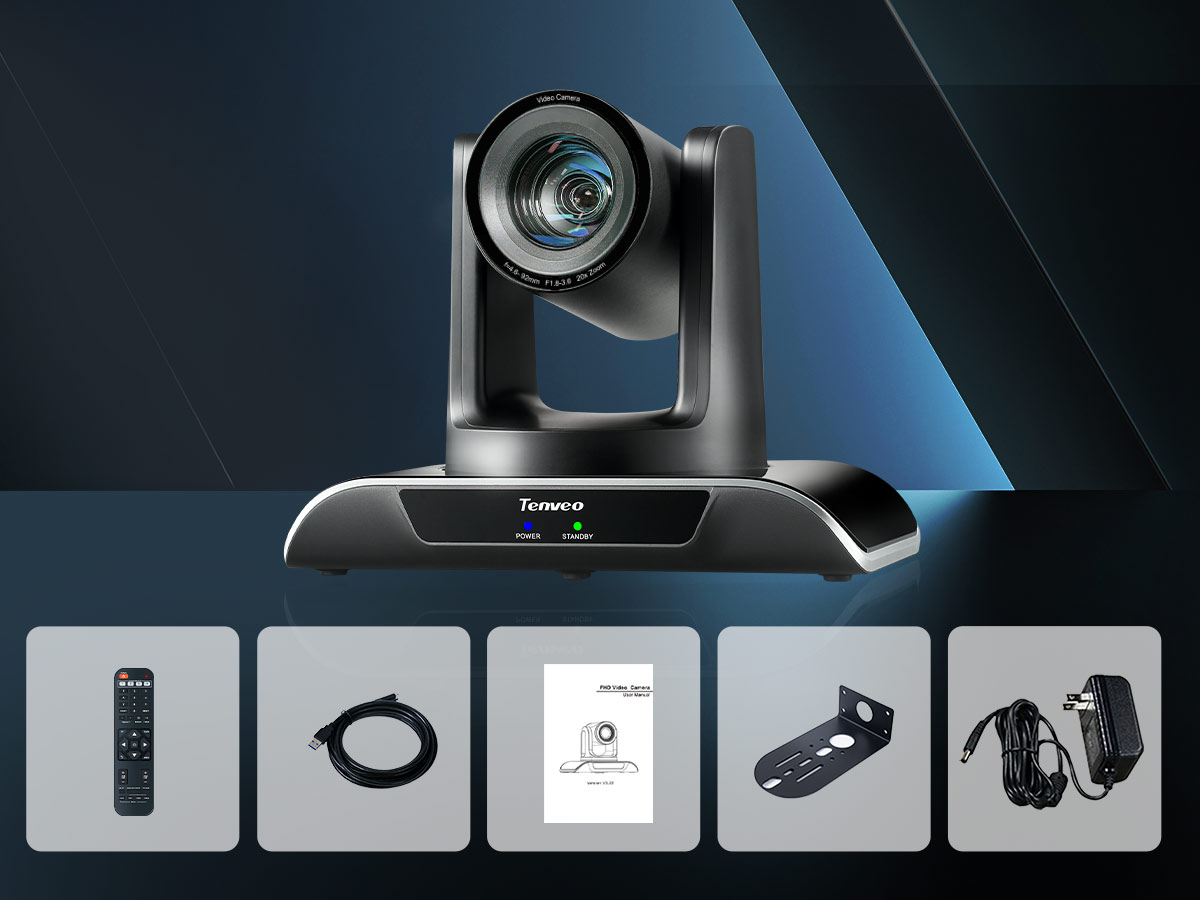

Package content
