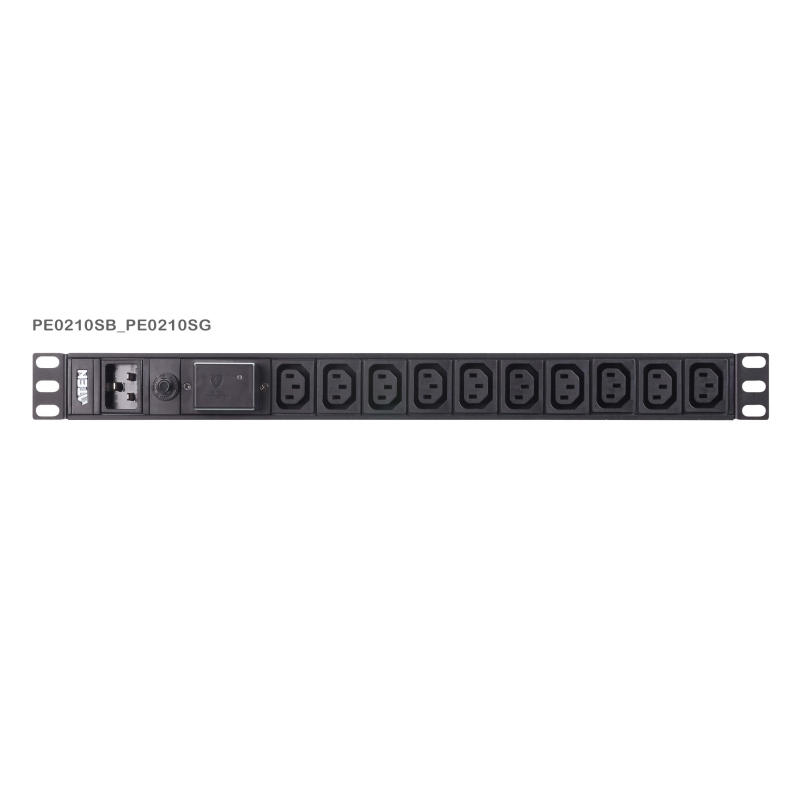

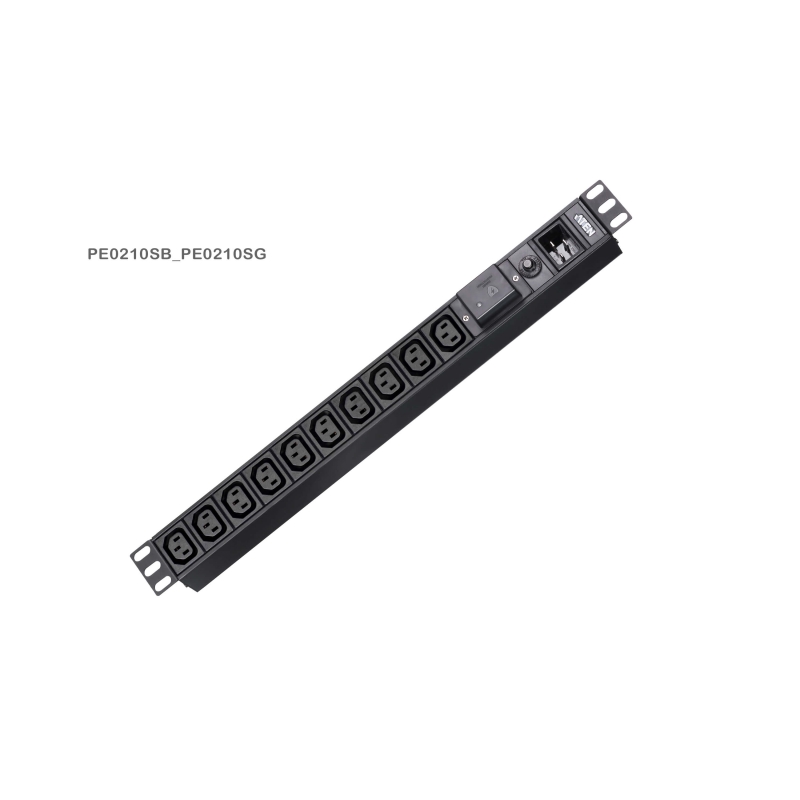

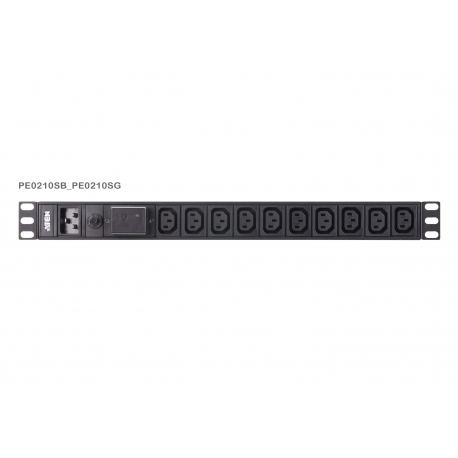

Basic 1U PDU with surge protection
PE0210SG
10-outlet, 1U rack mount power distribution unit (PDU), provides IEC output.
รับประกัน 3 ปีเต็ม
Spec SheetThe Aten’s PE0210SG, a 10-outlet, 1U rack mount power distribution unit (PDU), provides IEC output. It distributes power to 10 receptacles from a single plug with unfiltered electrical pass-through. The PE0210SG also provides surge protection, prevents damage to your equipment from power surges and spikes. The integrated surge protector includes a LED indicator, letting you know the status of your equipment.
Aluminum housing helps prolong the units life with rugged casing made of impact-resistant material for maximum durability. Basic 1U PDU can be easily mounted to wall, wooden furniture, or work bench.
Features
- Space saving -1U rack mount design
- IEC outlet models
- Surge Protection
- Over-current Protection
- Aluminum material
- Works with data centers, server rooms and telecom equipment
Specification
| Function | PE0210SG |
| Electrical | |
| Nominal Input Voltage | 100-240 VAC |
| Maximum Input Current | 16A (Max) |
| Input Frequency | 50-60 Hz |
| Input Connection | For G Plug: IEC-320 C20 For Z Plug: Chinese 16A |
| Input Power | 3840VA(Max) |
| Outlet Type | (10) IEC 320 C13 |
| Maximum Output Current (Outlet) | 10A (Max) |
| Maximum Output Current (Bank) | 16A (Max) |
| Maximum Output Current (Total) | 16A (Max) |
| OPD(Overcurrent Protection Device) | Yes |
| Physical Properties | |
| Dimensions (L x W x H) | 48.20 x 4.44 x 4.50 cm (18.98 x 1.75 x 1.77 in.) |
| Weight | 0.67 kg ( 1.48 lb ) |
| Power Cord Length | 10ft(3*2.5mm2) |
| Environmental | |
| Temperature (Operating / Storage) | 0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. |
| Elevation (Operating / Storage) | 3000m |
| Compliance | |
| EMC Verification | CE |
| Safety Verification | CE,LVD |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
