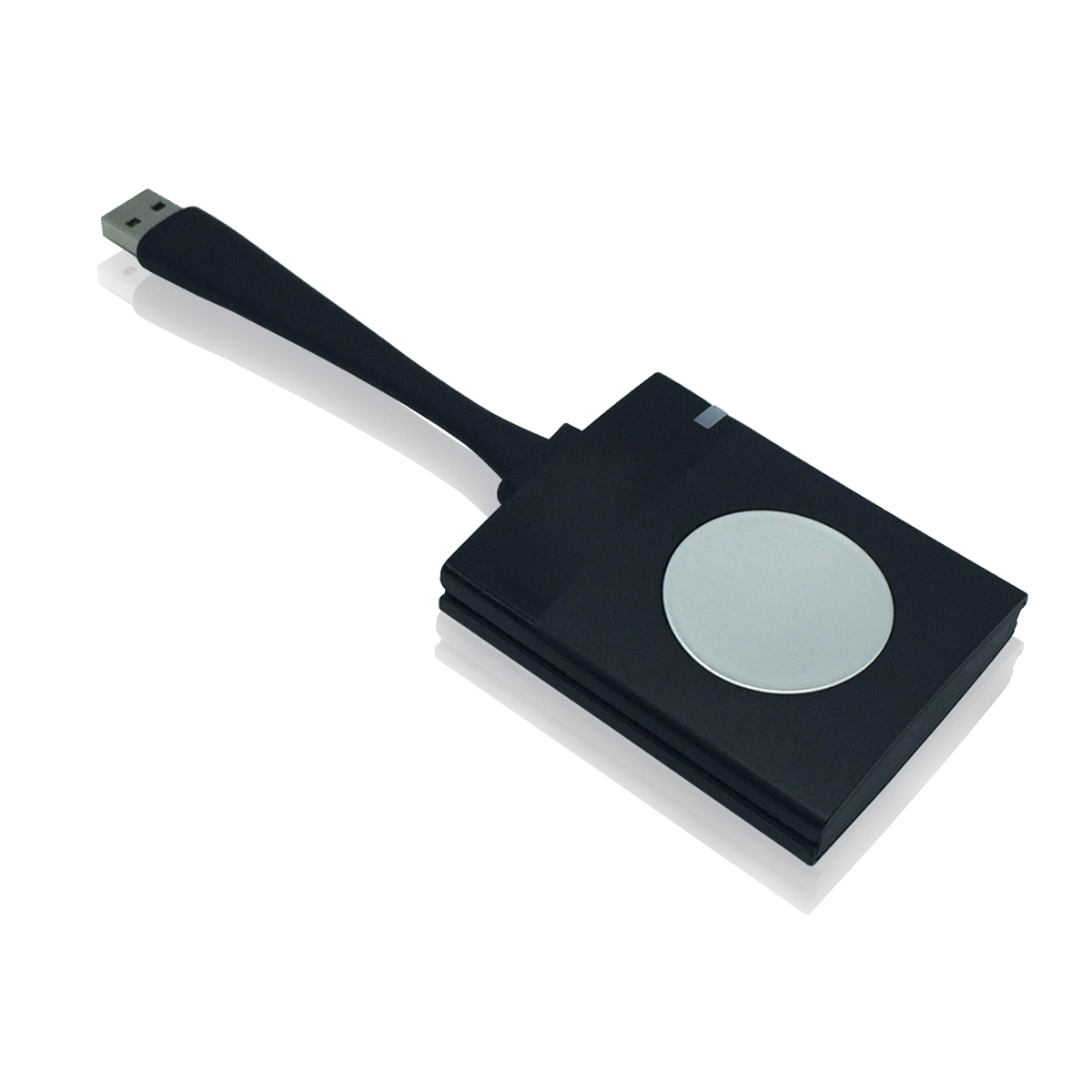

USB Button Sender for SnapShow
SWP-BT
- USB Button Sender สำหรับ SnapShow
- รองรับการส่งภาพ-เสียง ไปยัง SnapShow แบบไร้สาย เพียงกดปุ่ม
- ใช้ได้ทั้ง Windows 7/8.1/10 และ Mac OS 10.10 ขึ้นไป
รับประกัน 2 ปีเต็ม
Spec SheetSpecification
| Technical Specifictions | |
| inteface | TYPE A USB2.0 X 1 Power supply, audio and video transmission, pairing upgrade, and touch panel back control through |
| Supported operating systems | Windows 7/8.1/10 32 and 64-bit MAC OS X 10.10/10.11/10.12/10.13 and above |
| Supported wireless receivers | All SnapShow receivers can be paired and support through |
| Video input resolution | Up to 3840x2160 |
| Encoding resolution/frame rate | Up to 1920x1080 FPS30 |
| Encoding format | H.264 |
| audio | 44.1KHz/16bit PCM, stereo |
| Wireless transmissinon protocol | IEEE 802.11ac/802.11n |
| Wireless transmissinon distance | Up to 30 meters of line-of-sight (the actual distance is also related to the antenna at the receiving end). |
| Wireless transmissinon band | 5G & 2.4G |
| Wireless encryption protocol | WPA2-PSK |
| Wireless connection | Insert button to PC USB port for connecting automatically, run automatically, and share with click the button away. No softwere app installed required on PC, no need to connect throung computer Wi-Fi |
| Connection time | Plug in USB port to connecting successfully < 10 seconds |
| Transmission delay | Average delay < 150mS |
| Reverse control mode | Support WIN computer 10 figure touch points back control Support MAC computer 1 single figure point back control |
| Power/power consumption | 5V/500mA, average power consumption 1.5W. |
| size | 62mm x 62mm x 16mm |
| Temperature range | Operation: + 5 °C ~ + 40°C Storang: -20°C ~ + 60 °C |
| Humidity range | Opreration & Storage: 0 ~ 90% relative humidity, non-condensing |
