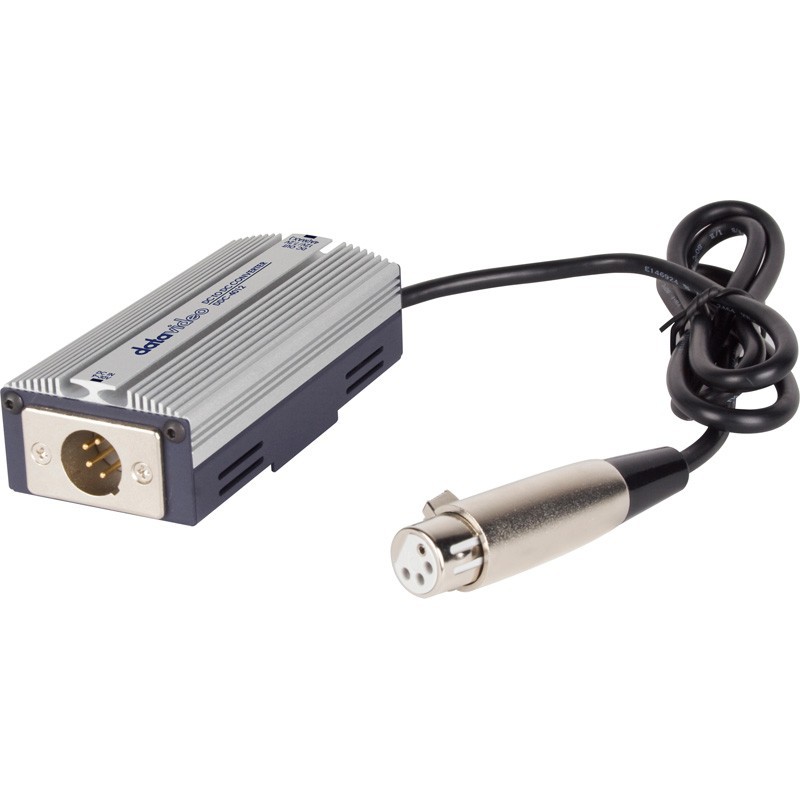

In-Line XLR DC to DC 9-12V Converter
DDC-4012H
The DDC-4012H is a proven way to supply power to third party cameras or AV equipment. The DDC-4012H is designed to be used with the Datavideo PD-6 Power Distribution unit and CB-22H/23H All-in-one cable.
The DDC-4012H is a proven way to supply power to third party cameras or AV equipment. The DDC-4012H is designed to be used with the Datavideo PD-6 Power Distribution unit and CB-22H/23H All-in-one cable.

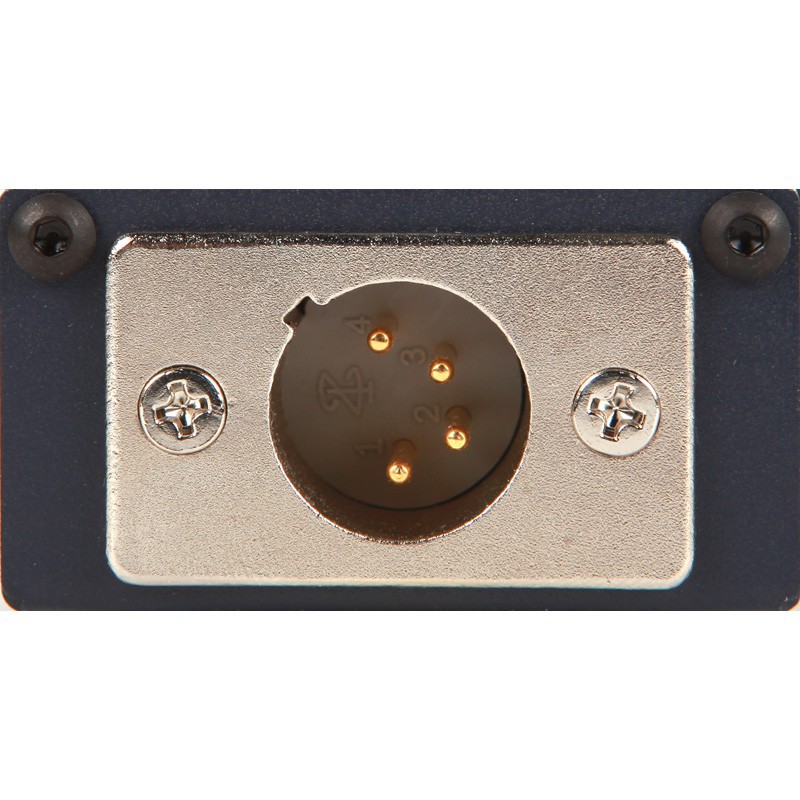

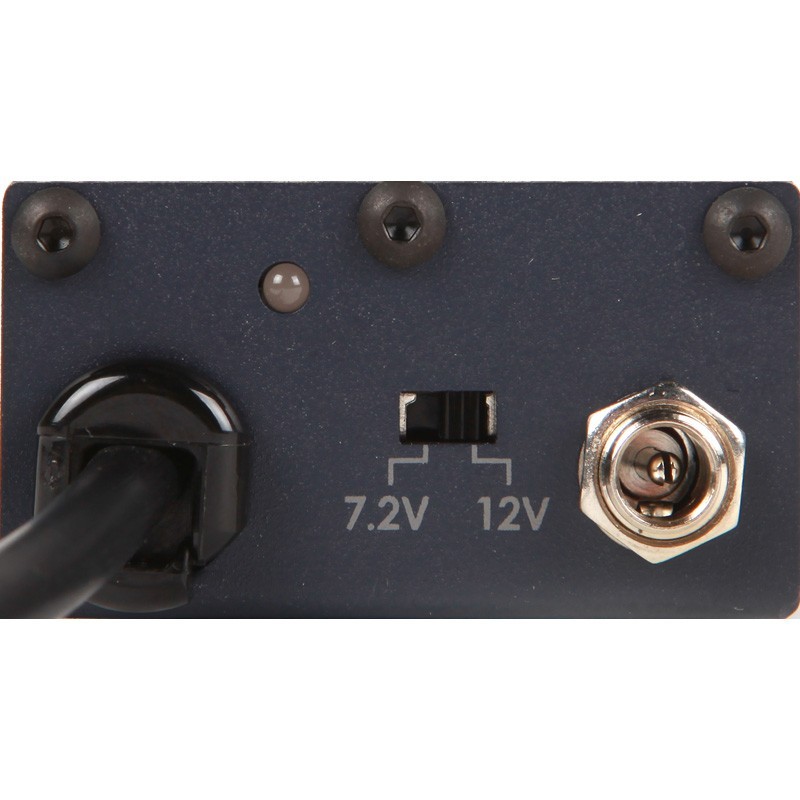

The DDC-4012H automatically accepts input voltages between 15 and 50V DC to provide regulated 7.2V or 12V DC output depending on its output switch setting. The unit can allow for 4pin XLR type input connections and has options for either 4pin XLR or 5.5mm PSU type output connections.
Features
- Supports 48V for use with PD-6
- 9-30V XLR Input connections
- 2.1mm Locking Collar DC Output
- Automatically accepts input voltages between 15 and 50V DC to provide regulated 7.2V or 12V DC output depending on its output switch setting
- Options for either 4pin XLR or 5.5mm PSU type output connections

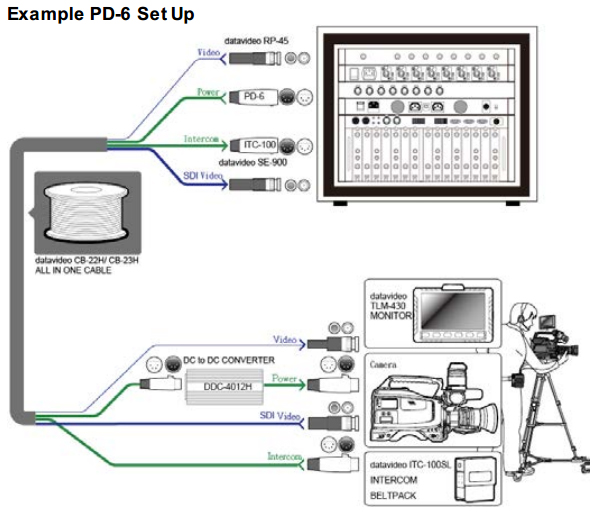

Diagram
