Low Skew Cat 5e Cable
2L-2801
Analog video presents a high quality image when the computer is directly connected to the monitor by short cables.
Spec SheetWhat is skew??

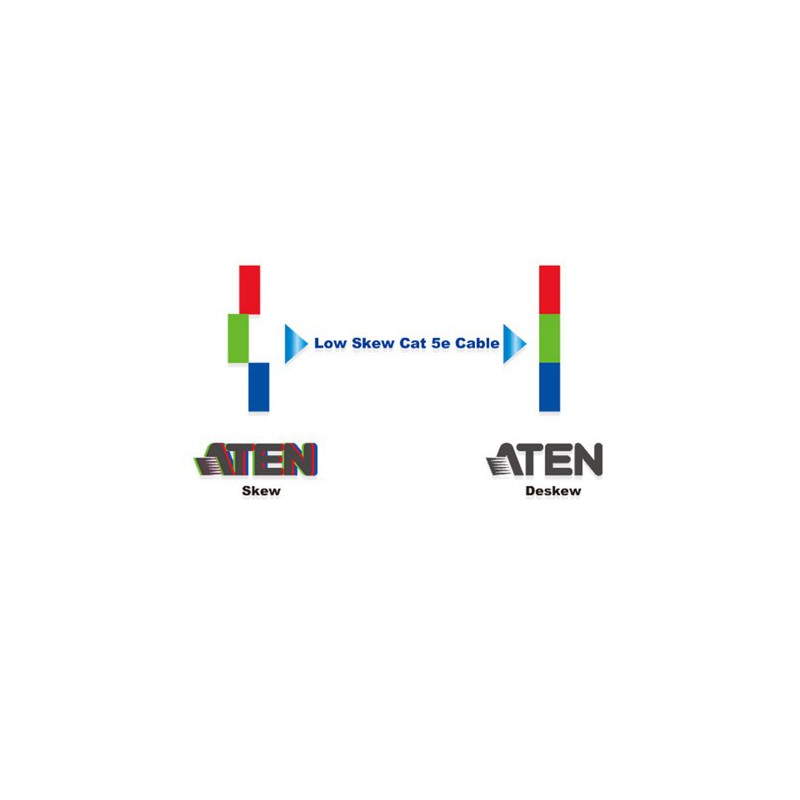

Analog video presents a high quality image when the computer is directly connected to the monitor by short cables. However, in today’s data centers, labs, stores, as well as in digital signage installalations, video cables may be long, bulky, and expensive. To overcome these practical video cable length limits, KVM switches—in addition to both KVM extenders and VGA-only extenders—are used that send video through Cat 5e cables. "Skew" is the color phase and time errors that occur when R/G/B video signals are sent long distance over Cat 5e cables, and this can result in smeared, unsharp, color-fringed images that become visibly worse the longer the cables.
Why you need Low Skew Cat 5e Cable ?

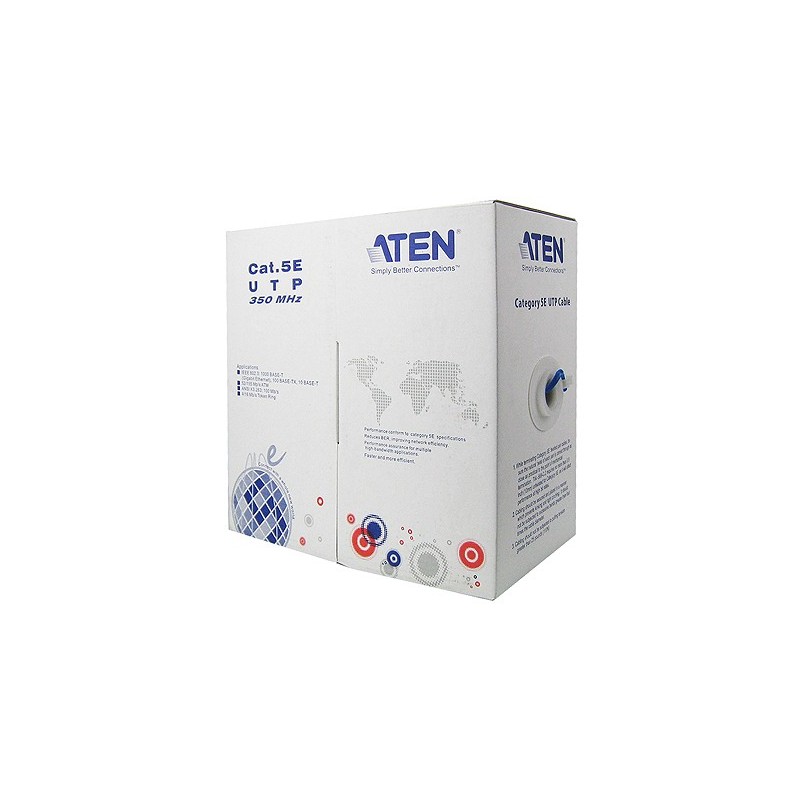

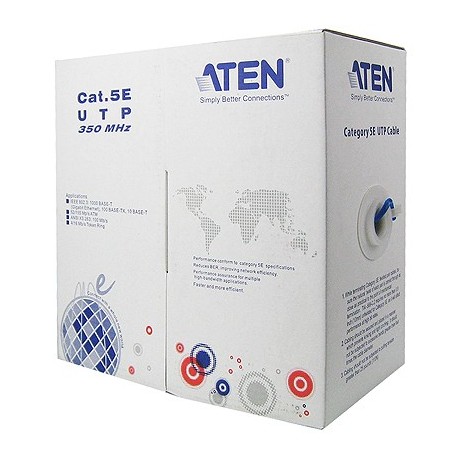

To remedy this skew distortion, ATEN has developed the Low skew Cat 5e cable 2L-2801. This 305 m/ 1000 ft, high performance Cat 5e cable is suitable for the audio and video transmission of a wide range of video and KVM Extenders. This low skew cable is specifi cally designed for RGB video applications such as digital signage, and supports video transmissions to longer distances than traditional twisted pair Cat 5e cable does. To eliminate blur and bleeding images and to ensure the clarity of your video transmissions in all video-related applications, use 2L-2801 Low Skew Cat 5e Cable.
Features
- Supports high quality RGB video transmission
- 350 MHz bandwidth
- Contains 305 m/1000 ft of low skew cable
- Delay Skew: 1 ~ 350 MHz 20nS/100m Max.
- Outer Jacket Material: FR PVC
- Outer Shield Material: Unshielded
- Conductor Material: 24 AWG solid bare copper
- Compatible with ATEN analog Cat 5 video extenders, KVM extenders, and Cat 5 KVM switches
- UL, ETL approved

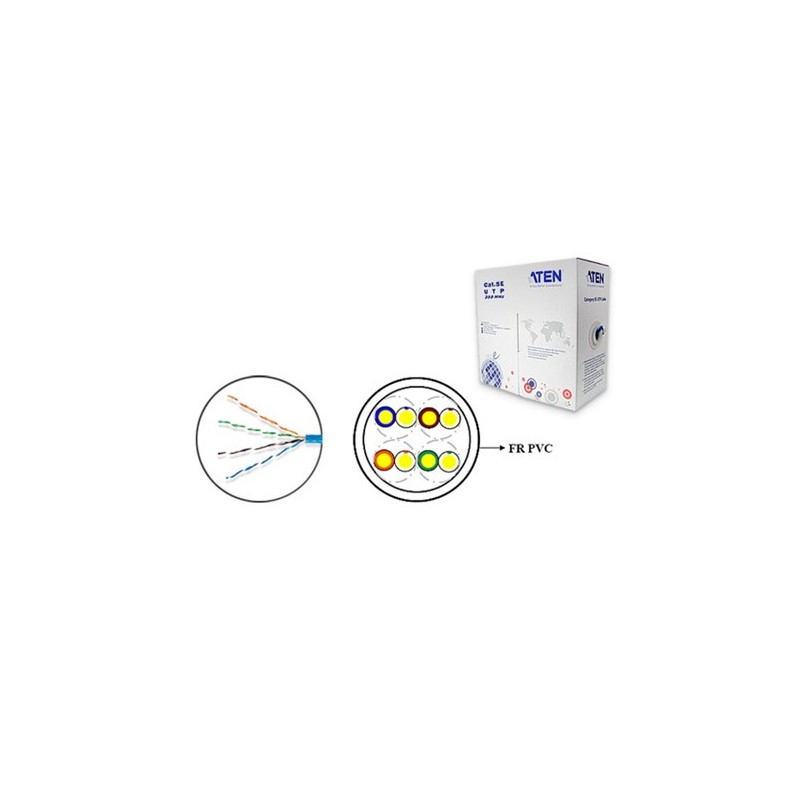

Diagram
Specification
| Construction | |||
| Connectors | Size | 24 AWG | |
| Construction | Solid bare copper | ||
| Cond. Diam. | 1 / 0.492 ± 0.02 mm. | ||
| Insulation | Avg. Thick. | 0.195 mm. | |
| Min. Thick. | 0.185 mm. | ||
| Diameter | 0.880 ± 0.02 mm. | ||
| Material | HDPE | ||
| Color codes | 1. Blue x White/Blue stripe 2. Orange x White/Orange stripe 3. Green x White/Green stripe 4. Brown x White/Brown stripe |
||
| Shielded | Pair stranded | 2 cores stranded | |
| Assembly stranded | 4 pair stranded | ||
| Jacketed | Avg. Thick. | 0.45 mm. | |
| Min. Thick. | 0.41 mm. | ||
| Diameter | 4.80 ± 0.20 mm. | ||
| Material | FR PVC | ||
| Color | Blue or other color | ||
| Electrical & Physical Properties | |||
| Item | 24 AWG x 4p | ||
| Cable Length | 305 m. / 1000 ft | ||
| Conductor Resistance | 9.38 Ohm / 100m / 20°C Max. | ||
| Mutual Capacitance | 56 Pf / M Max. | ||
| Dielectric Strength | AC 1.5 Kv / 2 Sec. | ||
| Spark Test | 2.5 Kv | ||
| Insulation | Unaged | Tensile Strength | 2400 Psi Min. (1.69 Kg / M (mxm)) |
| Elongation | 300% Min. | ||
| Aged | Tensile Strength | Unaged Min. 75% (100°C x 48 hrs) | |
| Elongation | Unaged Min. 75% (100°C x 48 hrs) | ||
| Jacketed | Unaged | Tensile Strength | 2000 Psi Min. (1.41 Kg / M (mxm)) |
| Elongation | 100% Min. | ||
| Aged | Tensile Strength | Unaged Min. 85% (100°C x 240 hrs) | |
| Elongation | Unaged Min. 50% (100°C x 240 hrs) | ||
| Insulation Shrinkback | 150m/M, 121°C ± 1°C x 1hr ≤ 9.5 m/M | ||
| Clod Bend Test | -20°C x 4 hrs No.Crack | ||
| Flame Retradant Test | CMR | ||
| Ac Leakage Current Trought Overall Jacket | Ac 1500v ≤ 10Ma | ||
| Dc Resistance Unbalance | 5& Max. | ||
| Pair-To-Ground Capacitance Unbalance | 330 Pf / 100m Max. | ||
| Characteristic Impedance | 1 - 350 Mhz 100 ± 15 Ohms | ||
| Structural Return Loss | 350 Mhz 10.6db Min. | ||
| Propagation Delay | 350 Mhx 536ns / 100m Max. | ||
| Delay Skew | 1- 350 Mhz 20ns / 100m Max. | ||
| Weight | 9.8 KG. | ||
