2L-2901
Shielded Digital Video Extension Cable is a twisted pair shielded with conductive metal film.The cable utilizes copper wires, which are widely used for data transmission
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:
Shielded Digital Video Extension Cable
Shielded Digital Video Extension Cable is a twisted pair shielded with conductive metal film.The cable utilizes copper wires, which are widely used for data transmission
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก

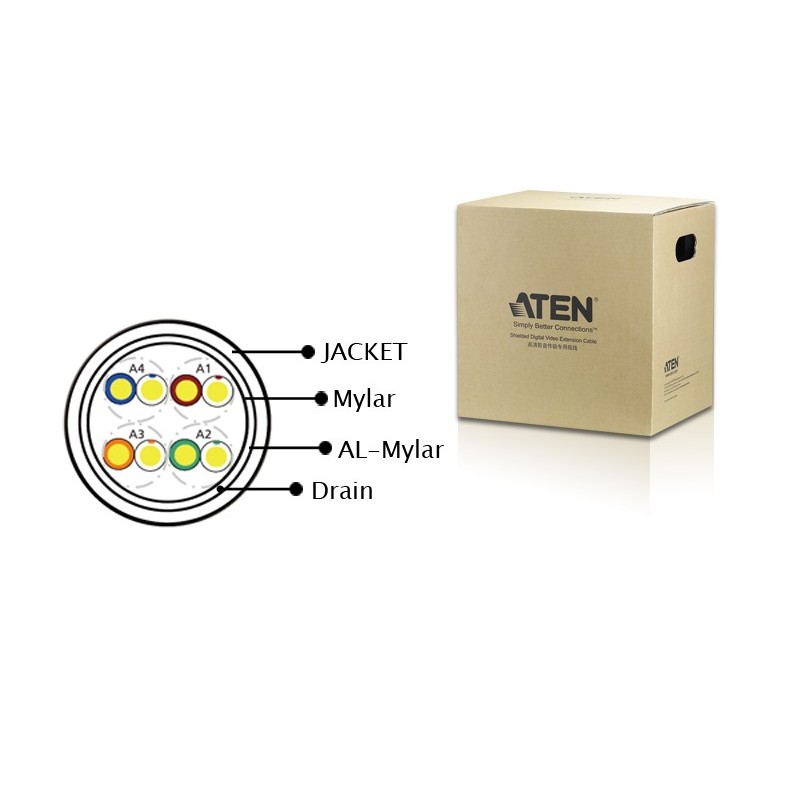

The 2L-2901 Shielded Digital Video Extension Cable is a twisted pair shielded with conductive metal film.The cable utilizes copper wires, which are widely used for data transmission.Its outer metal layer protects signal transmissions from electromagnetic interference and reduces the impact caused by electrical noise. The 2L-2901 can support long distance connections while safeguarding transmission quality.
Connectors | Size | 24 AWG |
Construction | Bare copper | |
Cond. Diam. | 1/0.5±0.008 mm | |
Insulation | Avg. Thick. | 0.20 mm |
Diameter | 0.99 ± 0.05 mm | |
Material | Polyolefin | |
Color codes | 1.Orange × White/Orange stripe | |
2.Blue × White/Blue stripe | ||
3.Brown × White/Brown stripe | ||
4.Green × White/Green stripe | ||
Shielded (1) | Material | Mylar |
Coverage | 100% Coverage with 25% Overlapping | |
Drain Wire | Size | 26 AWG |
Material | Tinned Copper | |
Construction | 7/0.16 ± 0.008 mm | |
Shielded (2) | Material | Aluminum Mylar (Aluminum inward) |
Coverage | 100% Coverage with 25% Overlapping | |
Jacketed | Avg. Thick. | 0.45 mm |
Diameter | 5.6 ± 0.20 mm | |
Material | PVC | |
Color | Black |
Analog video presents a high quality image when the computer is directly connected to the monitor by short cables.
