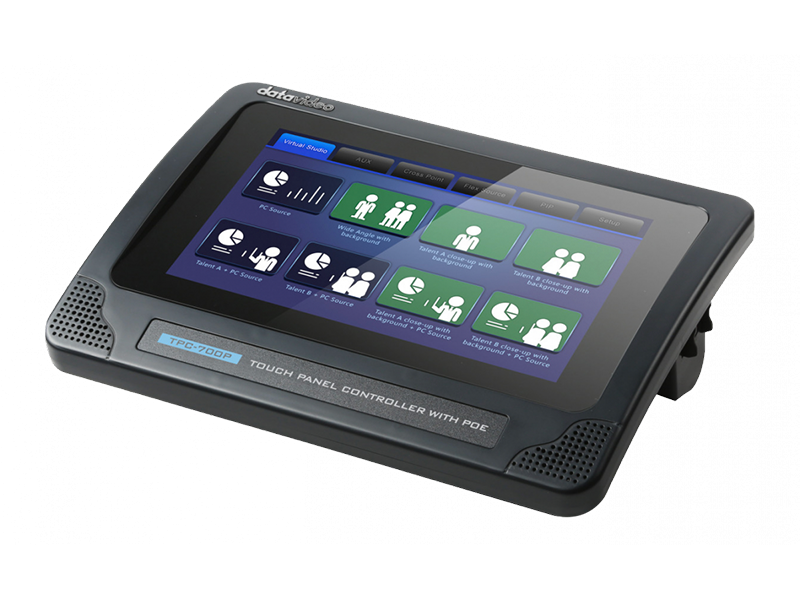

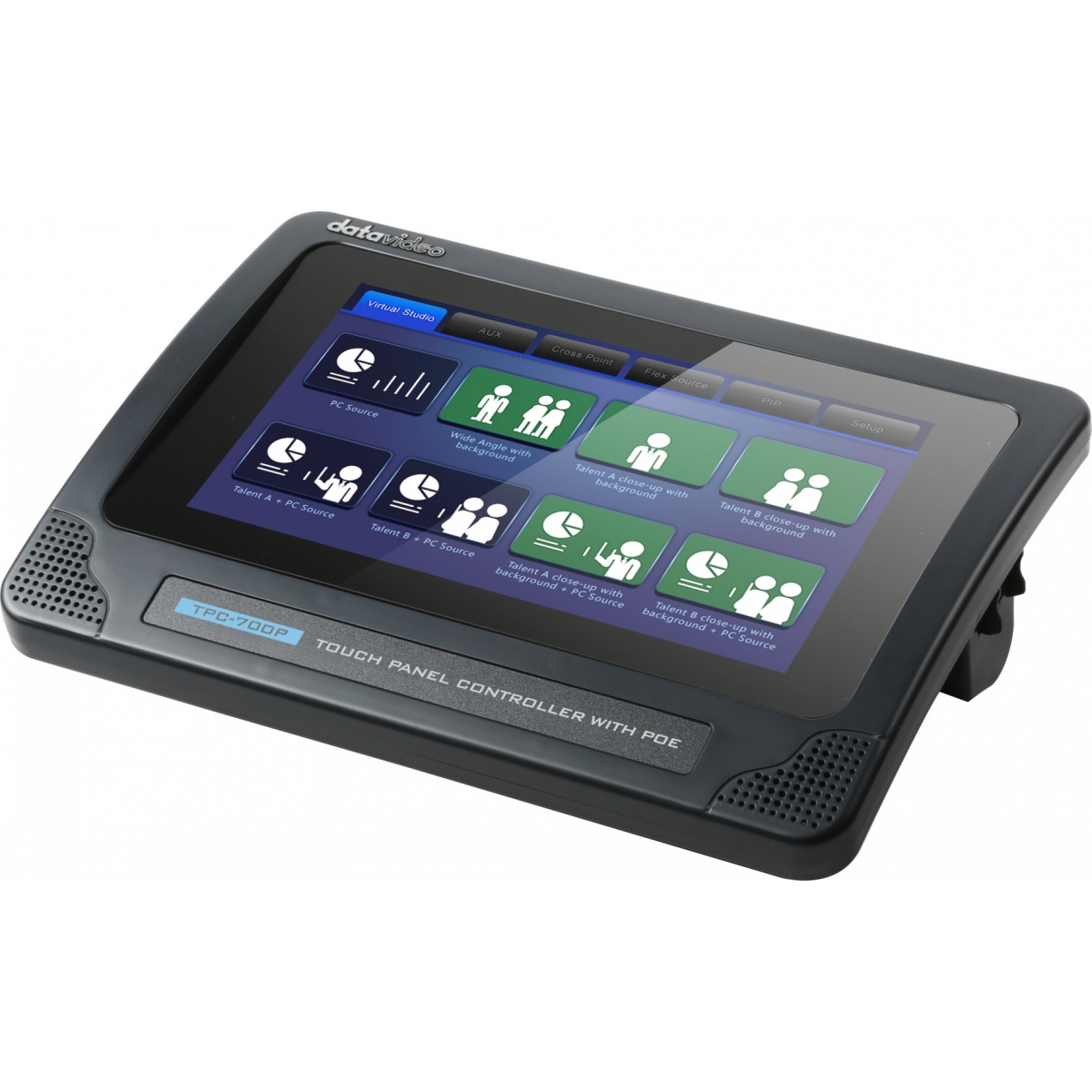

7-Inch Touch Panel Controller with PoE
TPC-700P
- จอ Touch panel สำหรับควบคุม SE-3200, VGB-2000 และ TVS-2000A
- รองรับ PoE
- ควบคุมการสลับภาพ, บันทึก, สตรีม, สลับ Virtual Scene
7-Inch Touch Panel Controller with PoE

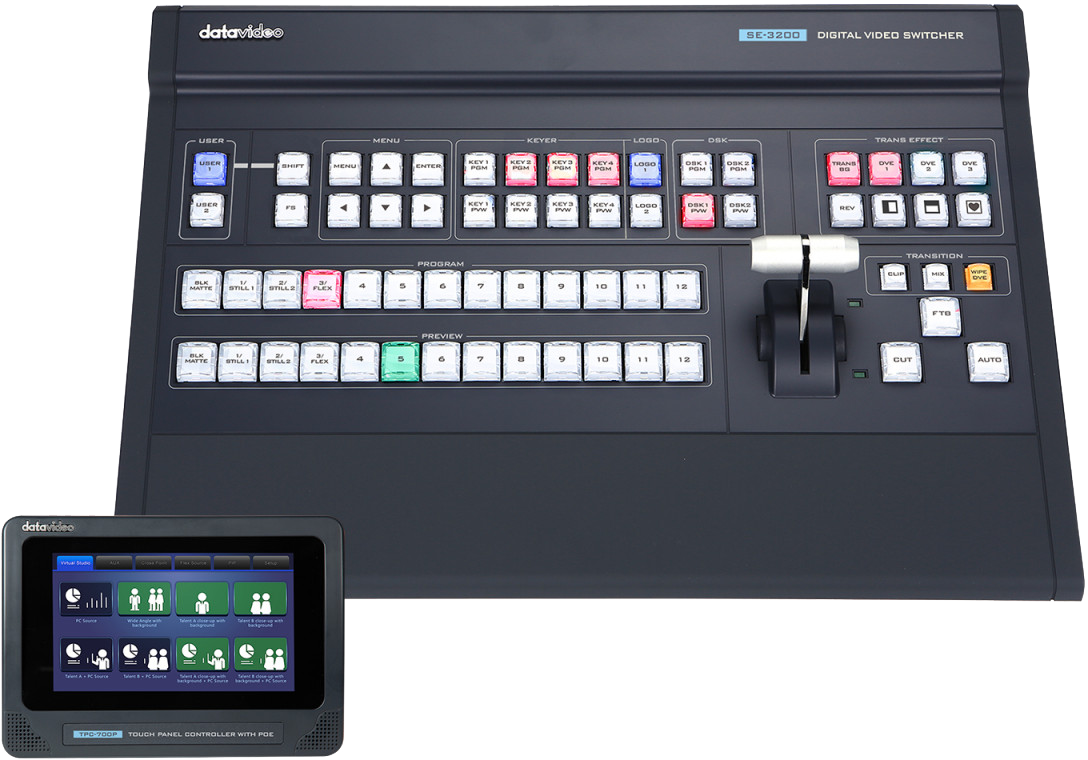

The best assistant for all 3200 switchers, VGB-2000 presentation system and TVS-2000A Virtual Studio System. The SE-3200, VGB-2000 and TVS-2000A Apps that are installed on the TPC-700P contain presets of common operation functions.
Power over Ethernet Function
The 7-inch touch panel controller is with power over ethernet function. The PoE function allows a single cable to provide both data connection and electric power to TPC-700P.

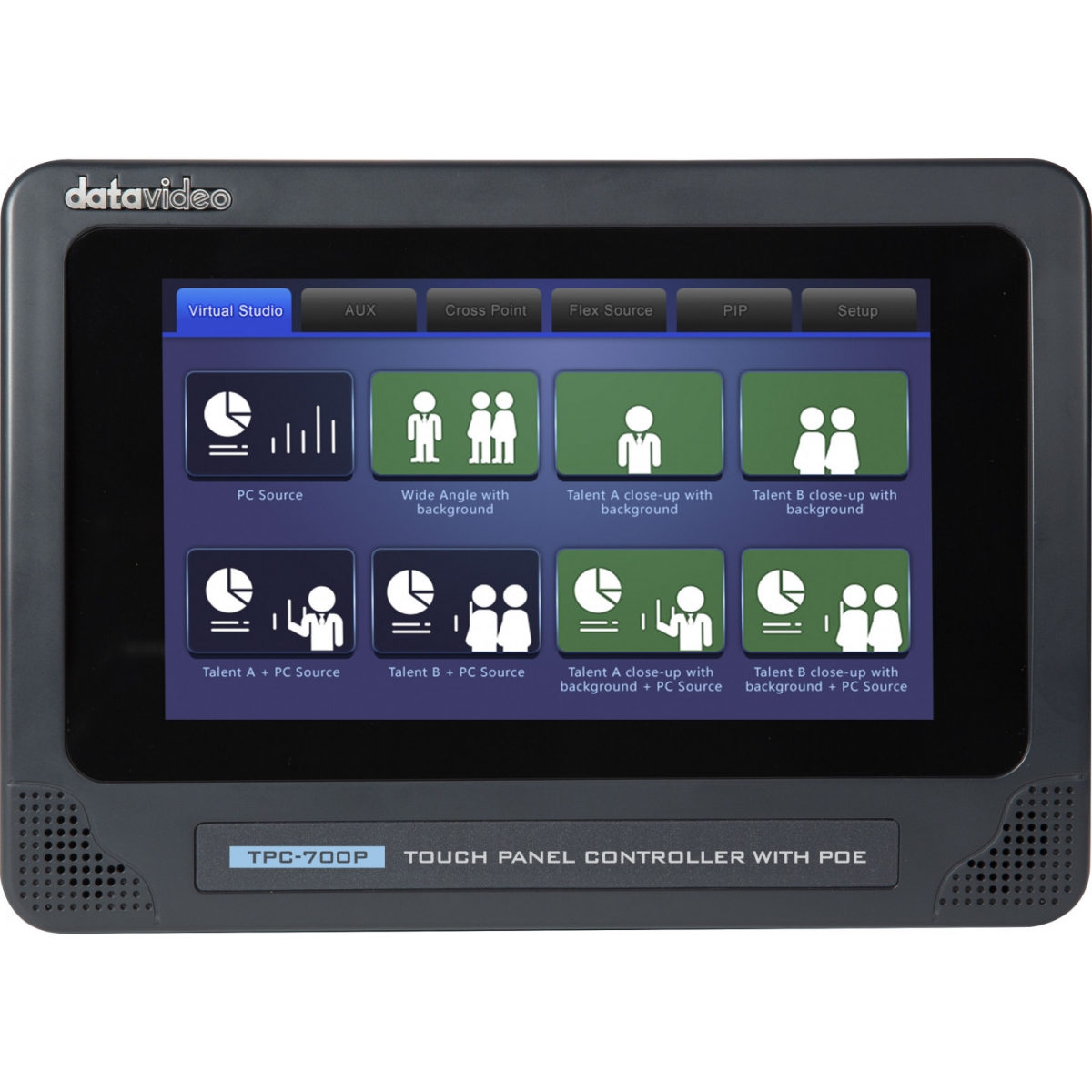

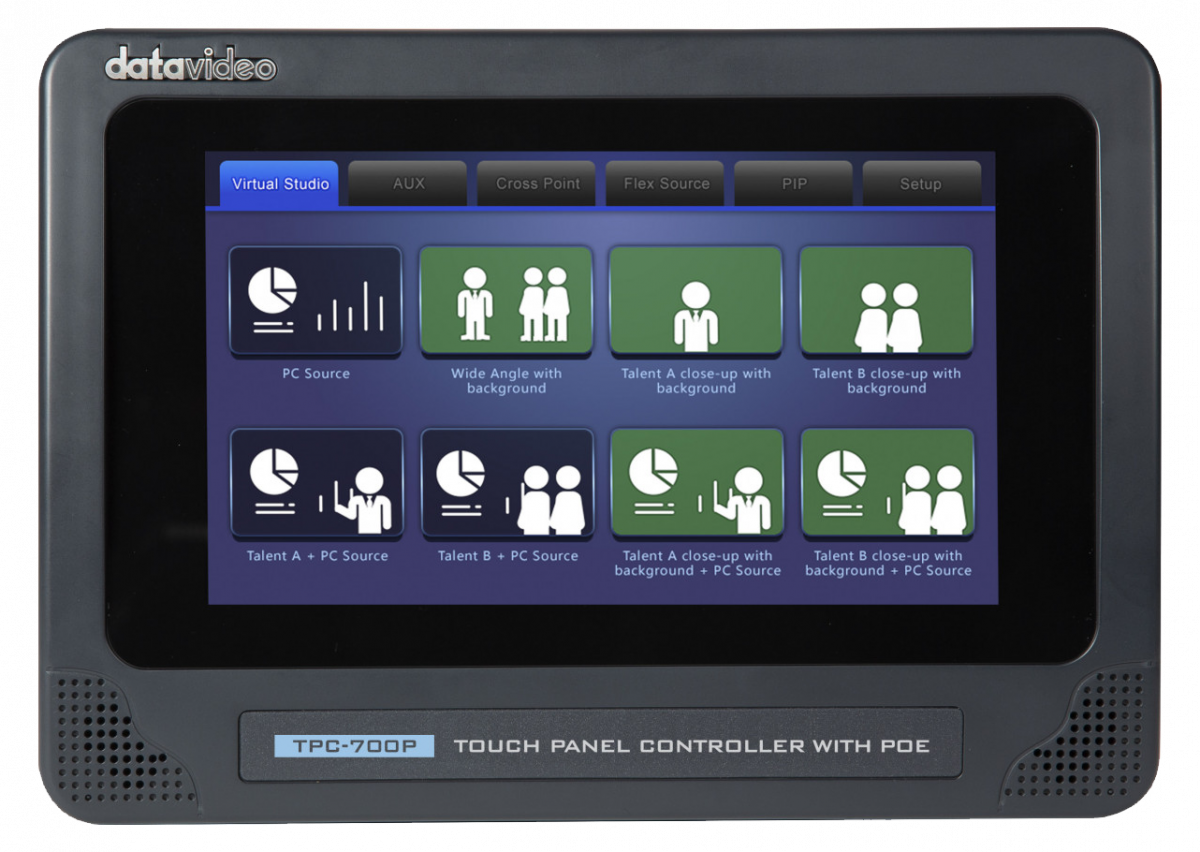

Touch Panel Design
Just tap on the screen to easily select different presets.
Customize Your Favorite Keys
Each button can be customized to your liking.
Compact Design
Easy to transport to your live production show on the go. Quick connection. Simple installation.
Easy Switch, Record and Live Stream

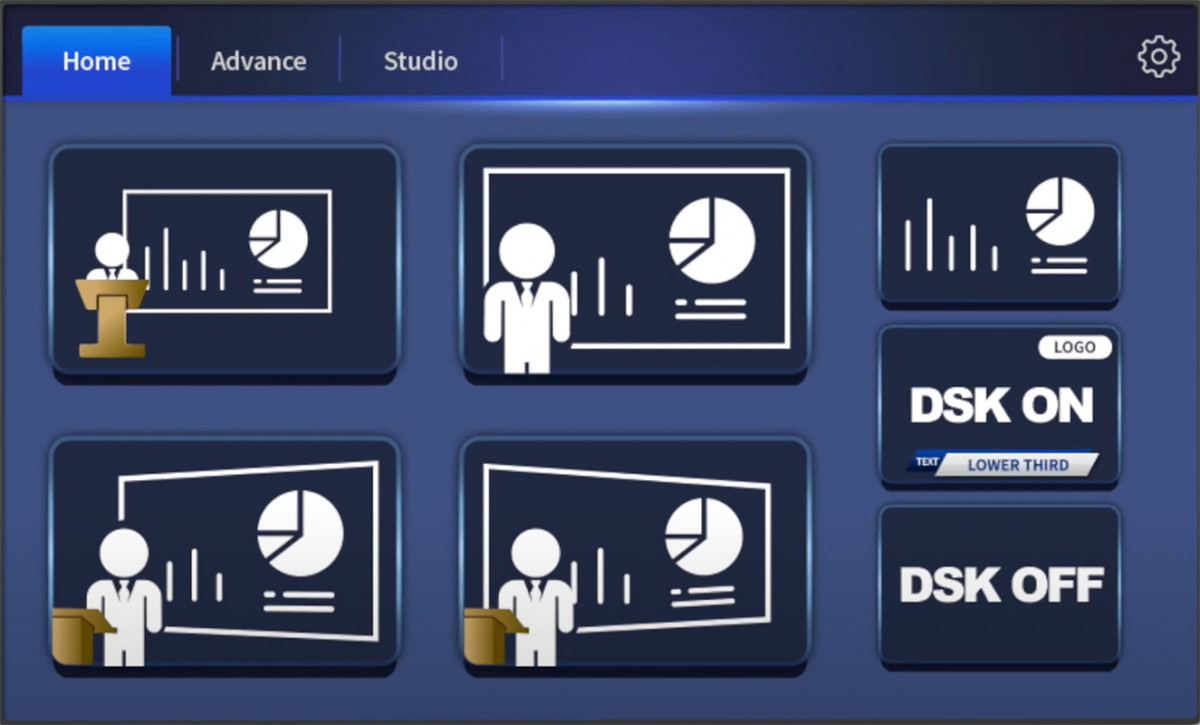

Datavideo TPC-700/TPC-700P is the best assistant for TVS-2000A Virtual Studio System. The TVS-2000A App that are installed on the TPC-700/TPC-700P contain presets of common operation functions. The interface is easy to use and can be controlled with a few finger taps on the 7-inch touchscreen to easily select different presets – multi- camera Virtual Studio switching, downstream key, and virtual studio presets. The Easy to live stream and record your virtual production show on the go.

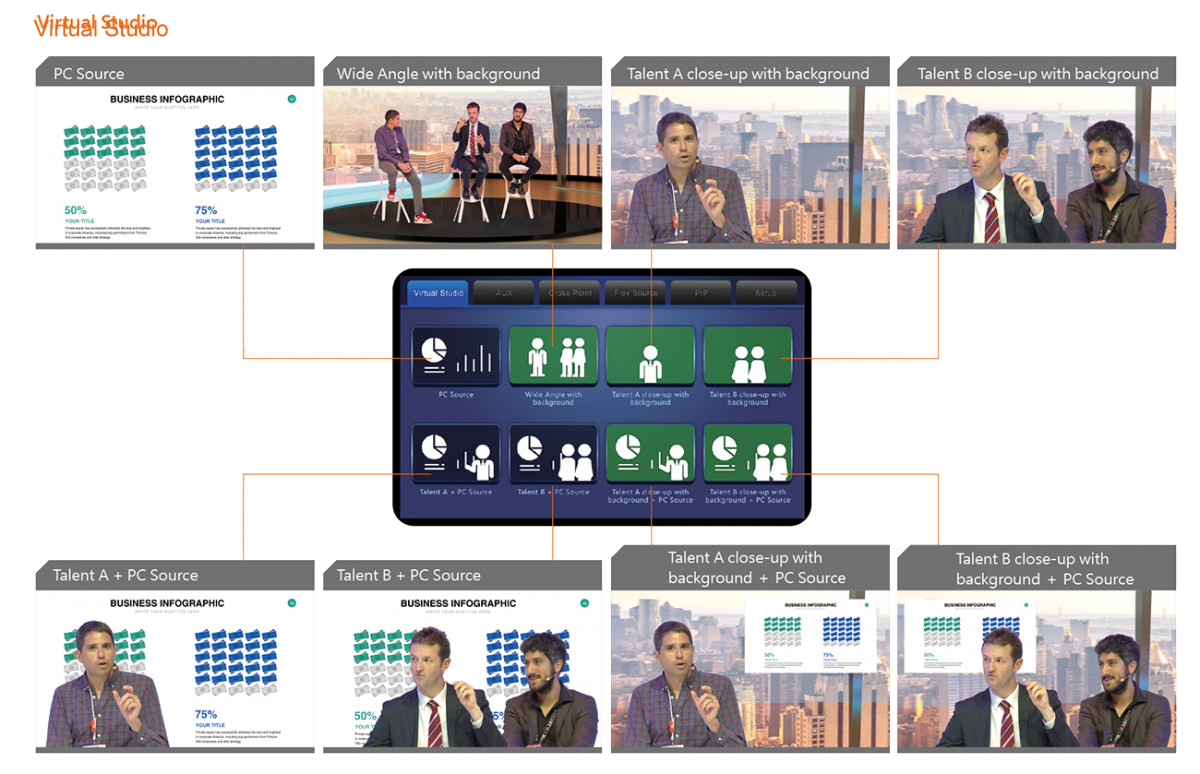

Easy Change Virtual Studio
Datavideo TPC-700/TPC-700P allow user to install 4 virtual studios in the App. Just tap your desired virtual scene mode directly from the TPC-700/TPC- 700P for recalling the corresponding virtual scene.

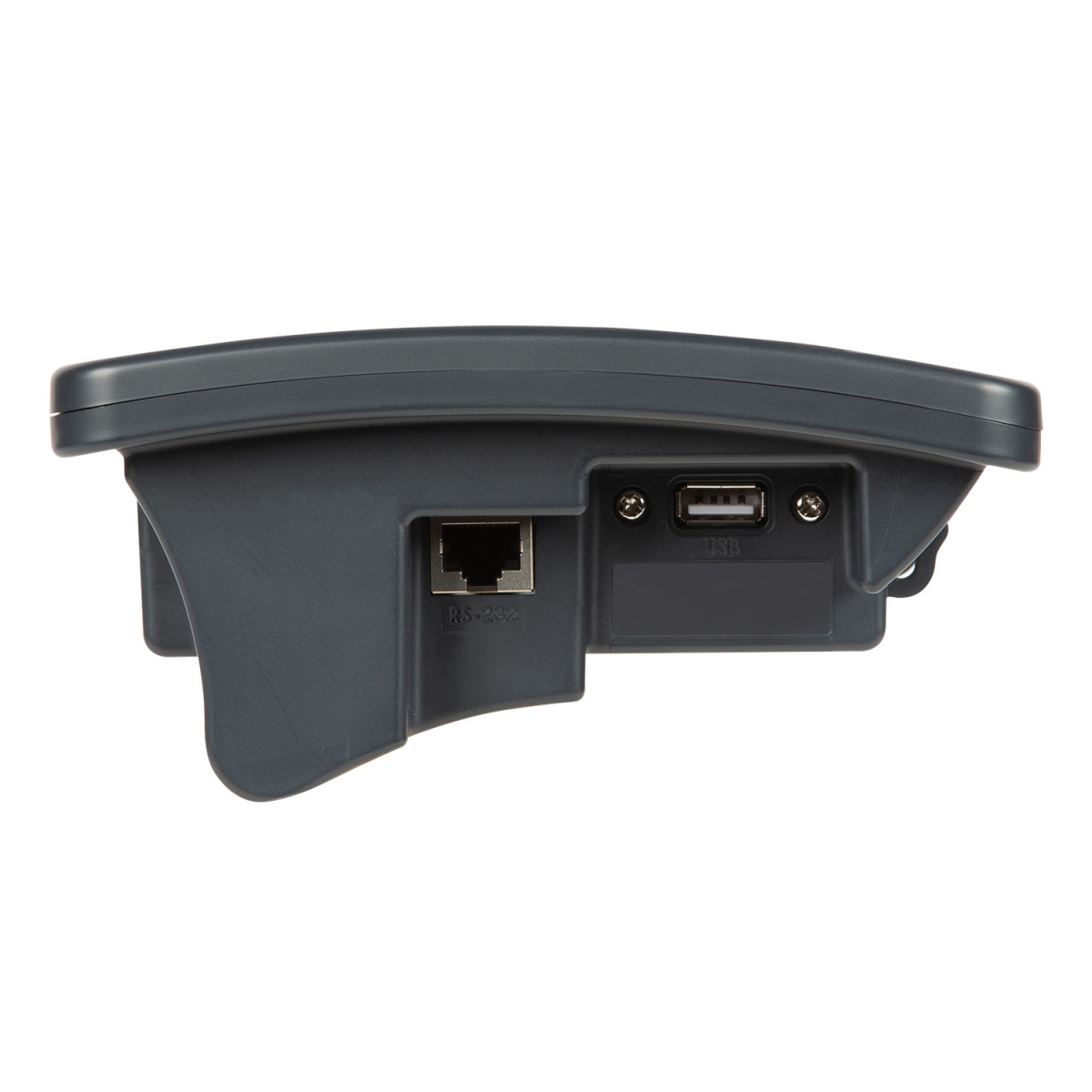

Compact and Easy Installation

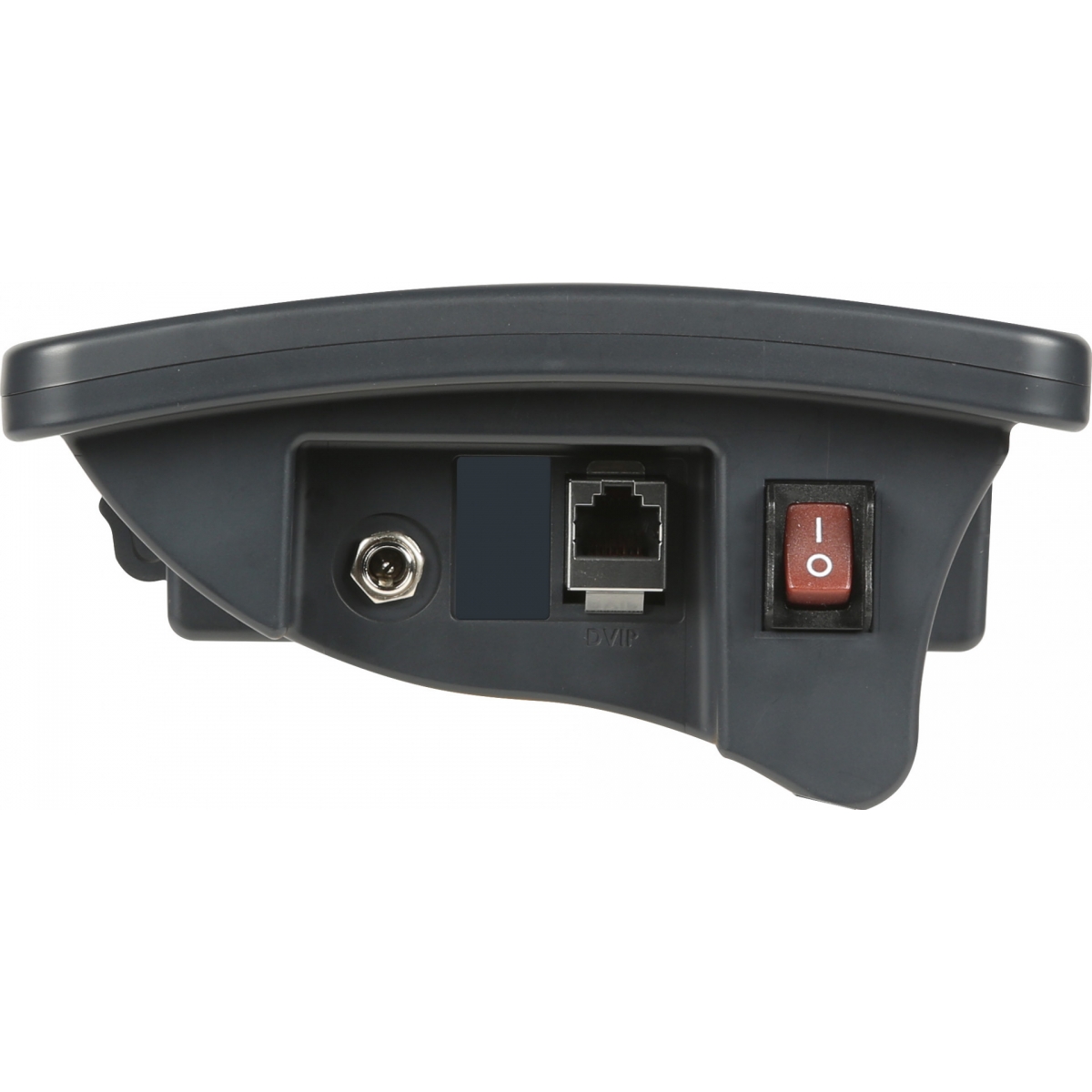

The TPC-700/ TPC-700P are compact designed. User can apply a D-sub 9 pin to RJ-45 cable and a 9-pin female/female RS422 cable to connect TPC-700 and TVS-2000A system. Quick connection. Simple installation. The TPC-700P supports PoE power supply feature.

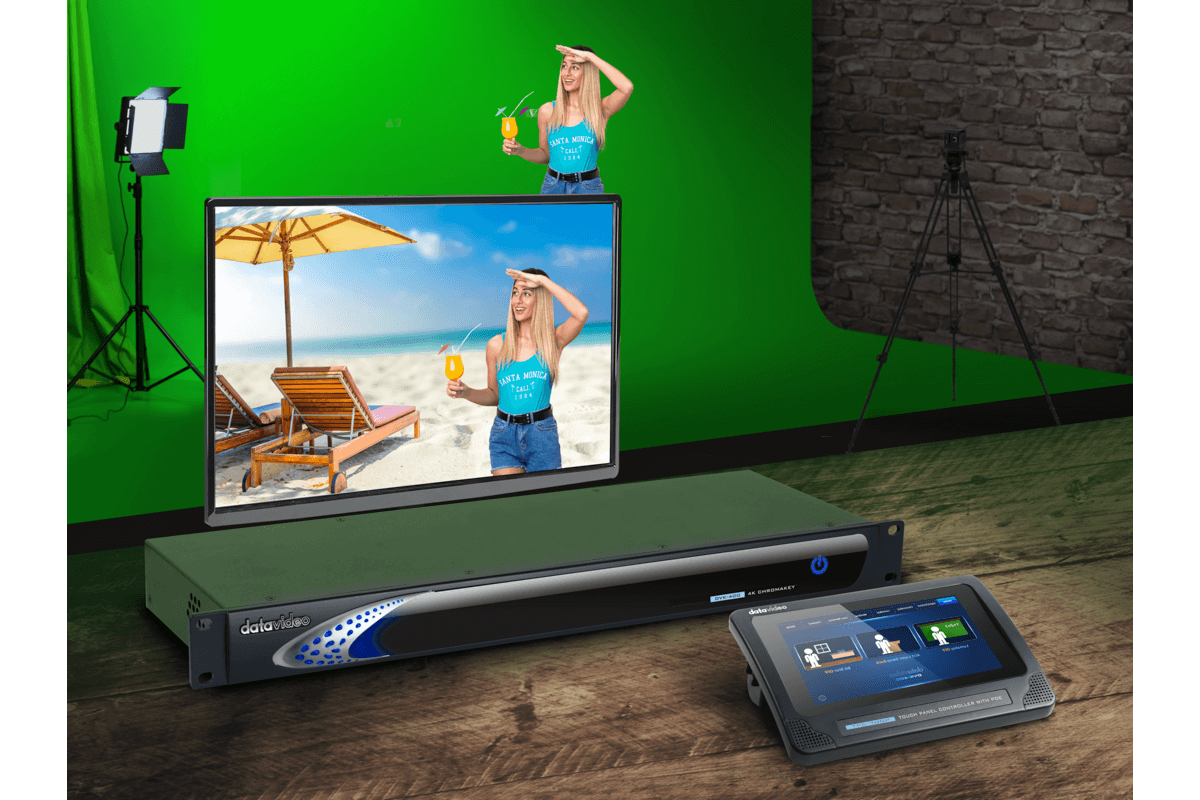

Switch Virtual Background Just One-Touch Needed
Using the professional intelligent touch interactive control panel TPC-700P in the DVK-400 together, it can be triggered by button to display AR objects. One operator can complete various mode by one TPC-700P.
Independent and fast touch operation panel, you can preset the presentation effect of the button, without the need for complex professional technology. It's efficient and professional for chromakey video production.
Specifications
| Touch Screen | 7” capacitive touch screen |
| Touch Screen Resolution | 800 x 480 |
| Firmware Upgrade | Via USB 2.0 |
| Control | RS-232 (RJ-45) |
| Power | DC 12V |
| Power over Ethernet (PoE) | 802.3a |
| Power Consumption | 10W |
| Dimension | 220x152x79mm |
| Weight | 0.85KG |
| Operating Temp. Range | 0~40 °C |
| What's in the box | 1 x TPC-700 Main Unit 1 x DC 12V Power Adaptor 1 x D-Sub 9Pin to RJ-45 Cable |
