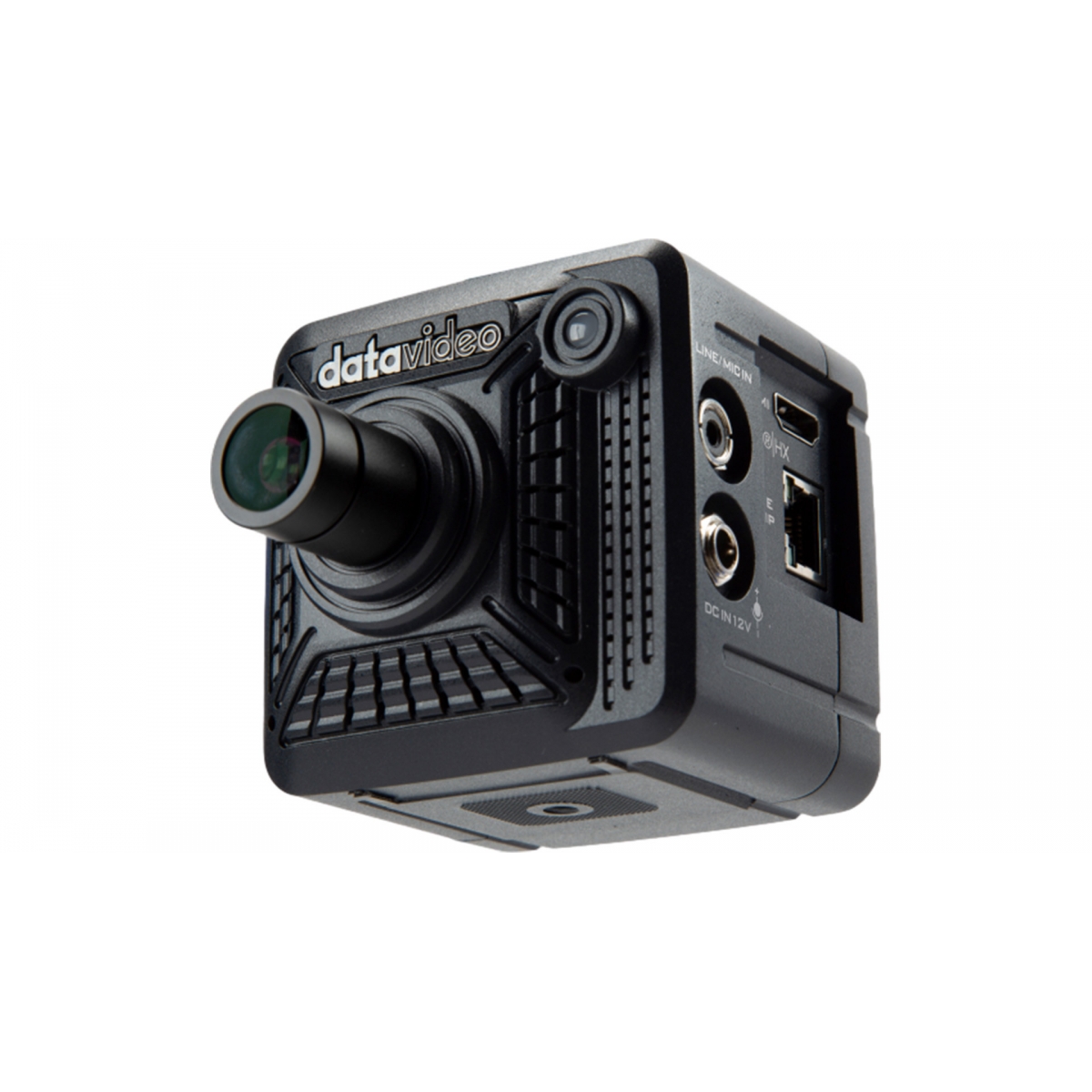

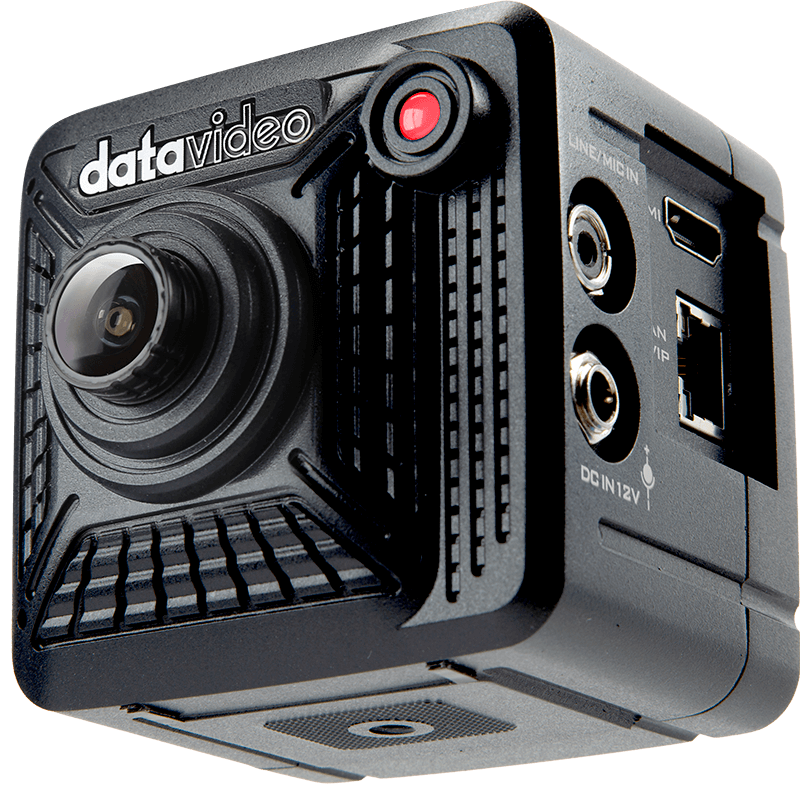

BC-15PN: Compact Versatility with 4K Quality and NDI Connectivity

The small box design of the BC-15PN makes it incredibly flexible for mounting anywhere. Despite its compact size, this device does not compromise on quality. Equipped with a 1/2.3” 4K CMOS sensor, it captures high-quality images, showcasing incredible details of the subject. Additionally, it supports NDI connection, enhancing its versatility for seamless video streaming and integration into various network-based workflows.

Built-in Fixed Lens

Built-in swappable fixed lens. No need to purchase lenses additionally, which can be costly.

1/2.3” CMOS Sensor with 4K 50/60p Output

Equipped with a 1/2.3” CMOS sensor, the BC-15PN delivers stunning 4K 50/60p output, ideal for eSports and versatile in various settings. The specialized eSports lens captures dynamic scenes with clarity, while the standard lens adapts to a wide range of applications.

Elevate Your Content with Seamless 4K Streaming

During video production, you can stream your program to different platforms such as YouTube and Facebook. If using Datavideo dvCloud, you can even stream your program to 25 different platforms at the same time while backing up your program on the cloud server.

Low-Latency SRT Streaming Engine Allowing Online Switching to dvCloud with Nearly Zero Latency

Many viewers may have encountered streaming issues, such as video stuttering or frame loss, often attributable to fluctuating bandwidth and network instability. dvCloud incorporates the SRT protocol, effectively reducing frame loss even when your network is unstable. If you are still encountering problems with RTMP streaming, dvCloud stands out as the optimal solution for a smoother and more enjoyable viewing experience.

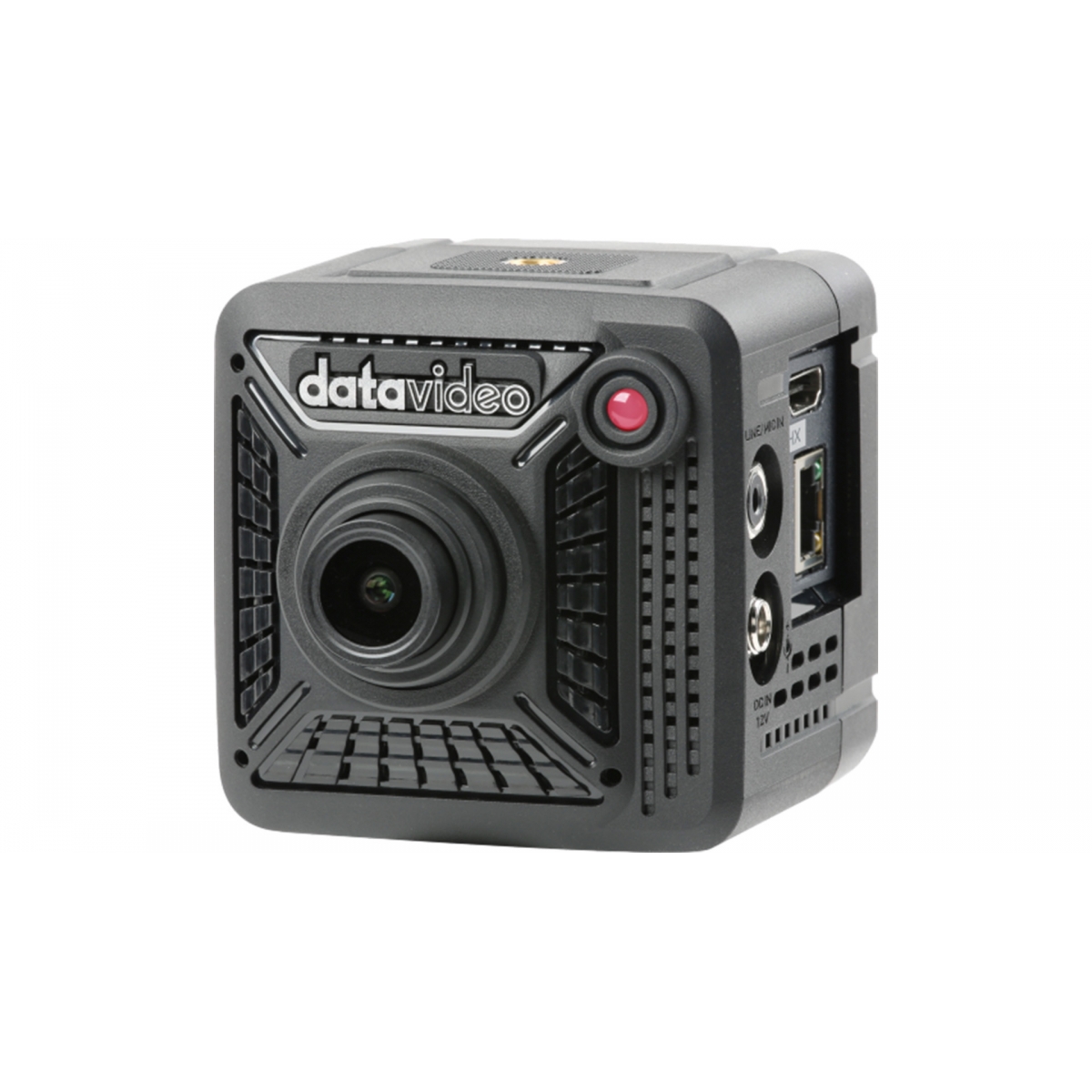

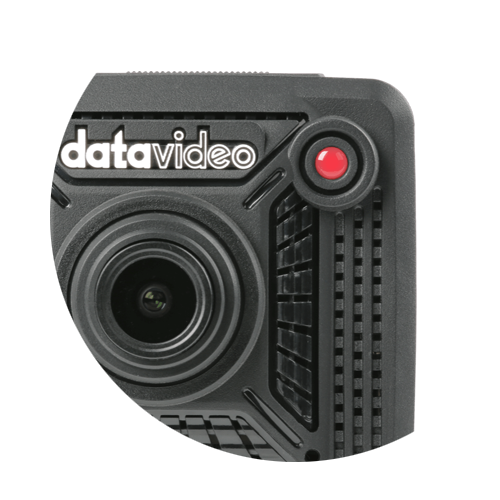

Built-in Tally light

Built-in tally light make it easier for the talent to know which camera is live during a multi-camera live production.

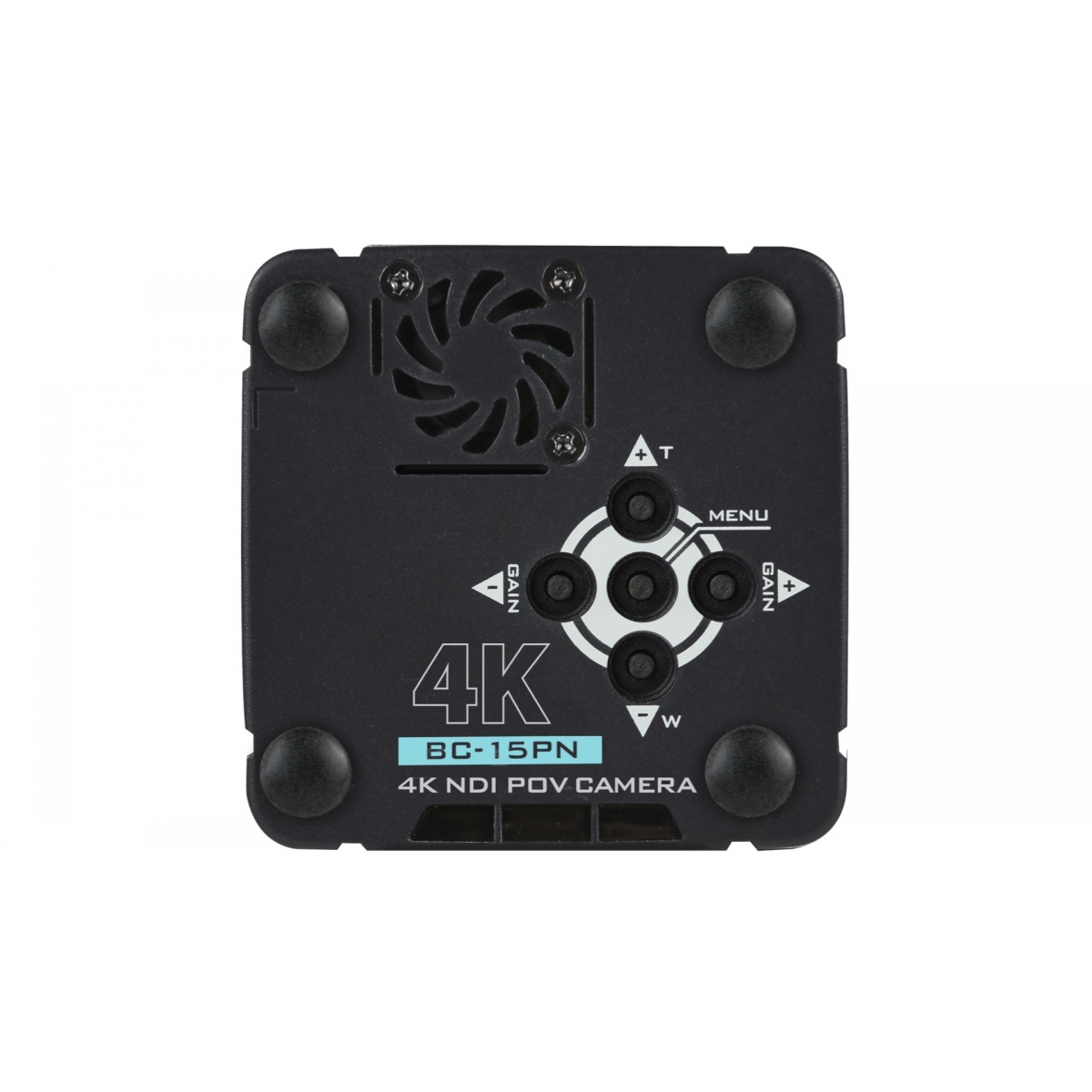

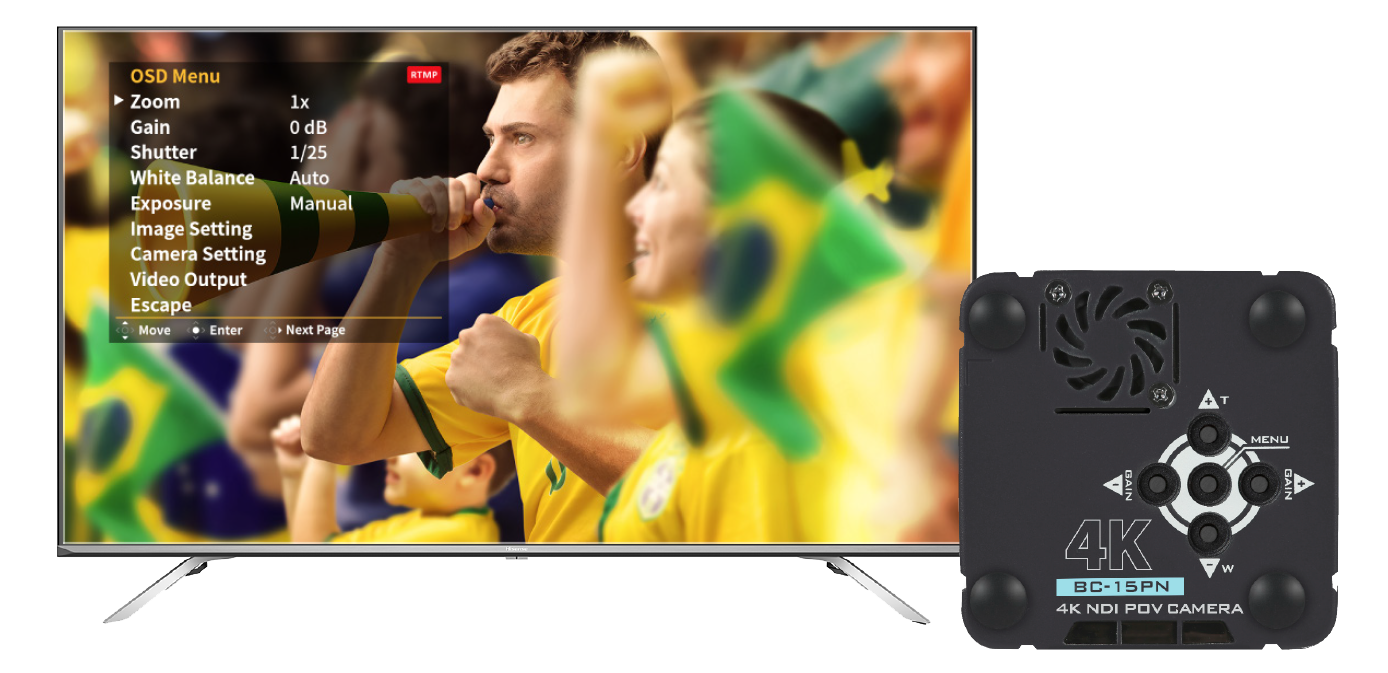

Physical Buttons Make Camera Setup Very Easy

When the camera is set up, there is no need to use an additional remote controller. The physical buttons on the rear panel of the BC-15 make it very easy to adjust settings.

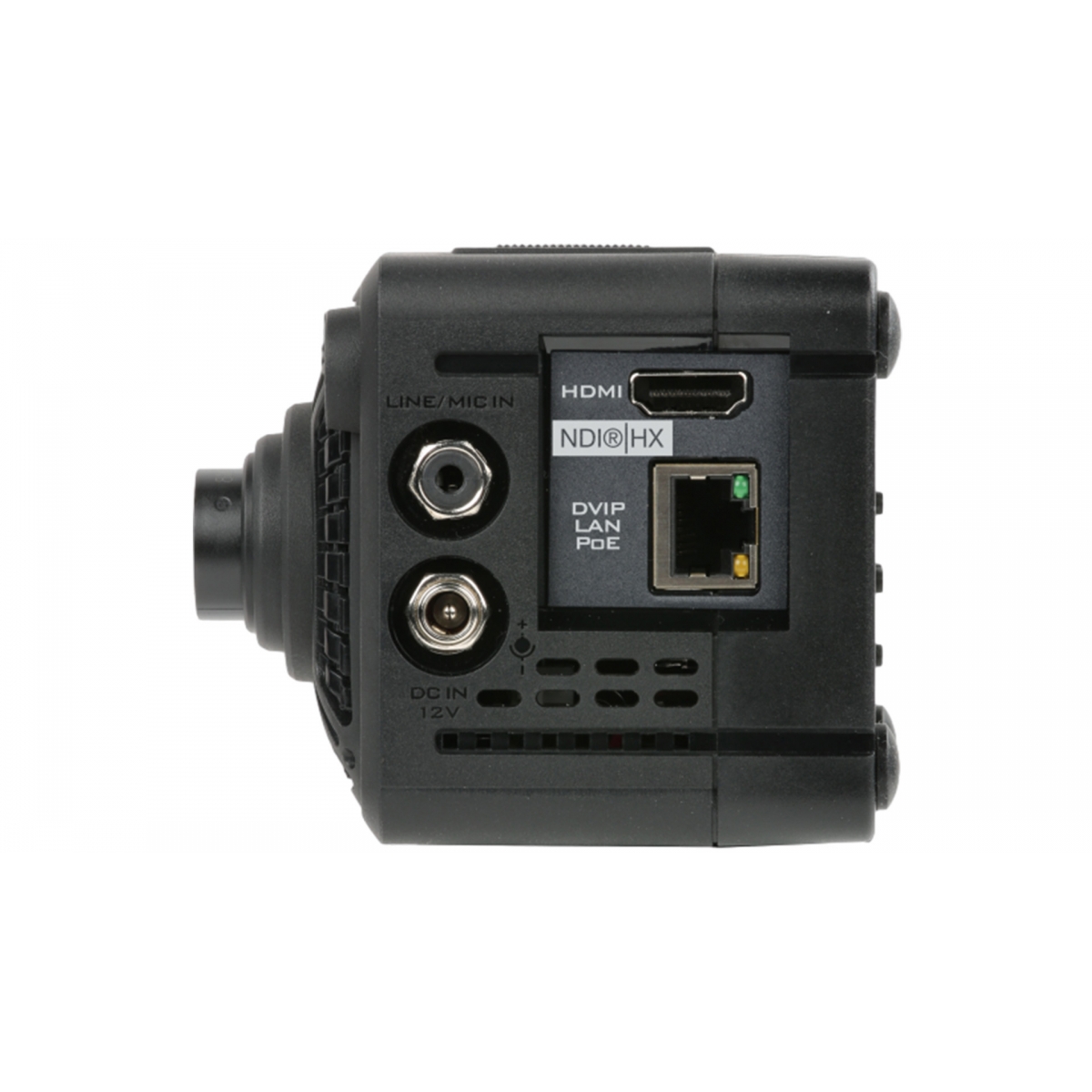

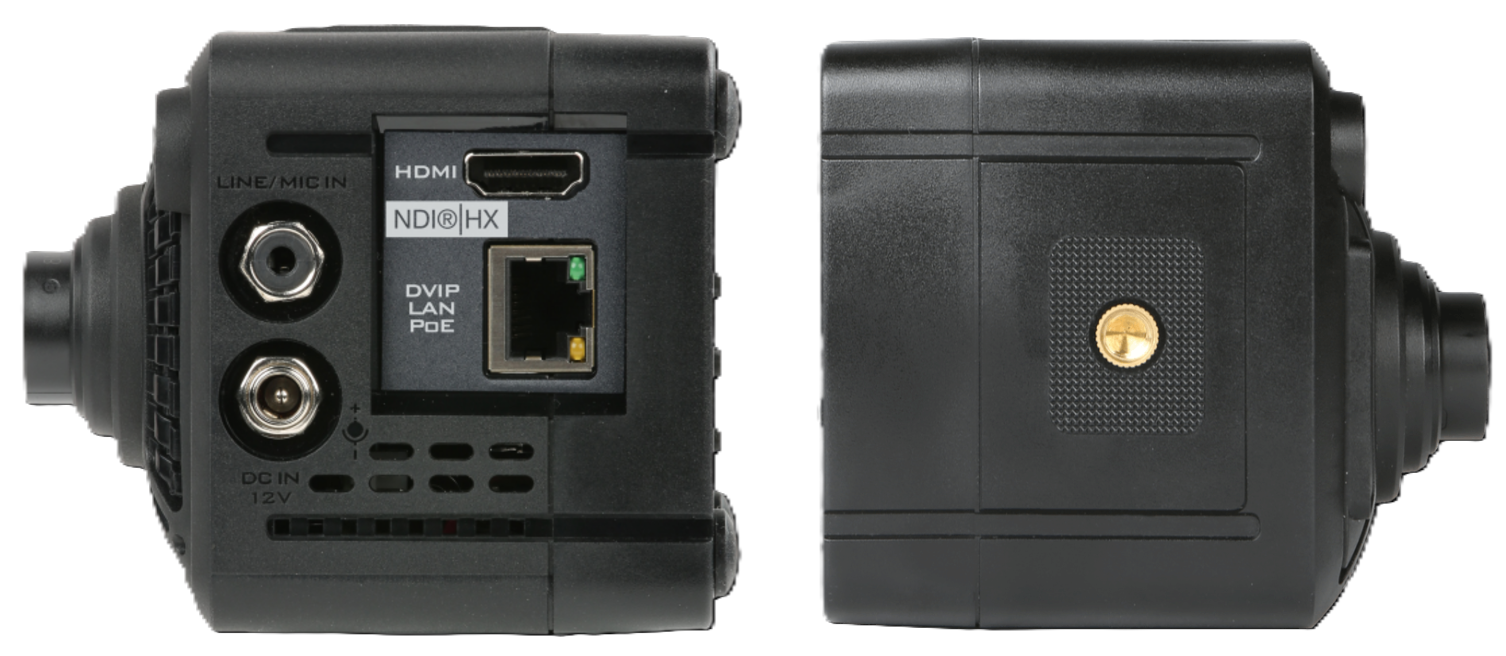

Power over Ethernet

The BC-15PN supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your BC-15PN.

1/4” Screw Hole for Mounting

Changing the camera angle is easy with the three 1/4” screw holes on the BC-15. It gives you the flexibility of mounting it anywhere.

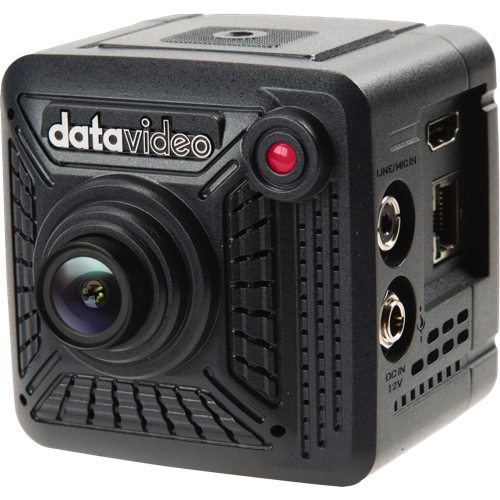

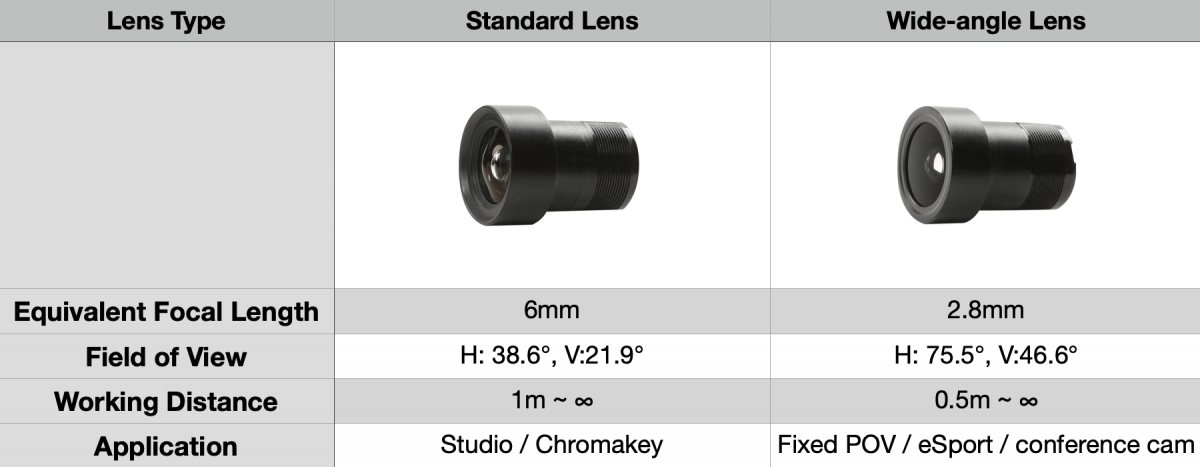

Standard and Wide-Angle Lenses

Standard lens gives a nice clear quality of a close up POV shot, while the wide-angle lens captures a wide shot of your subject in great detail.

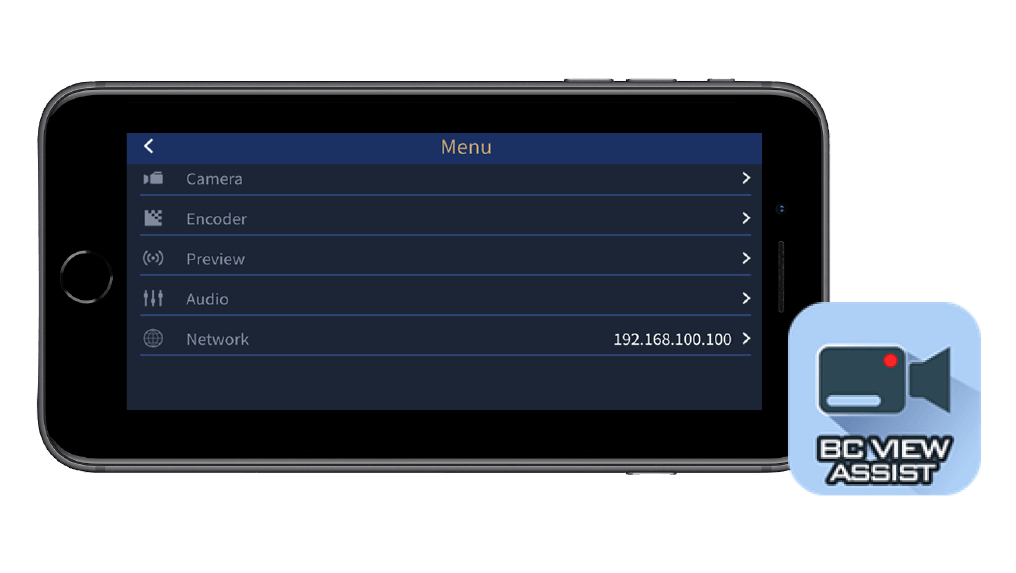

Datavideo BC View Assist App

BC View Assist App is the ultimate companion for BC-15 devices, simplifying control and enhancing streaming. Automatically detecting connected devices, it enables effortless DVIP management.

With support for major video coding standards and innovative streaming protocols, it delivers precision. Accessible directly from mobile, it redefines convenience in configuring remote settings, ensuring a seamless streaming experience.

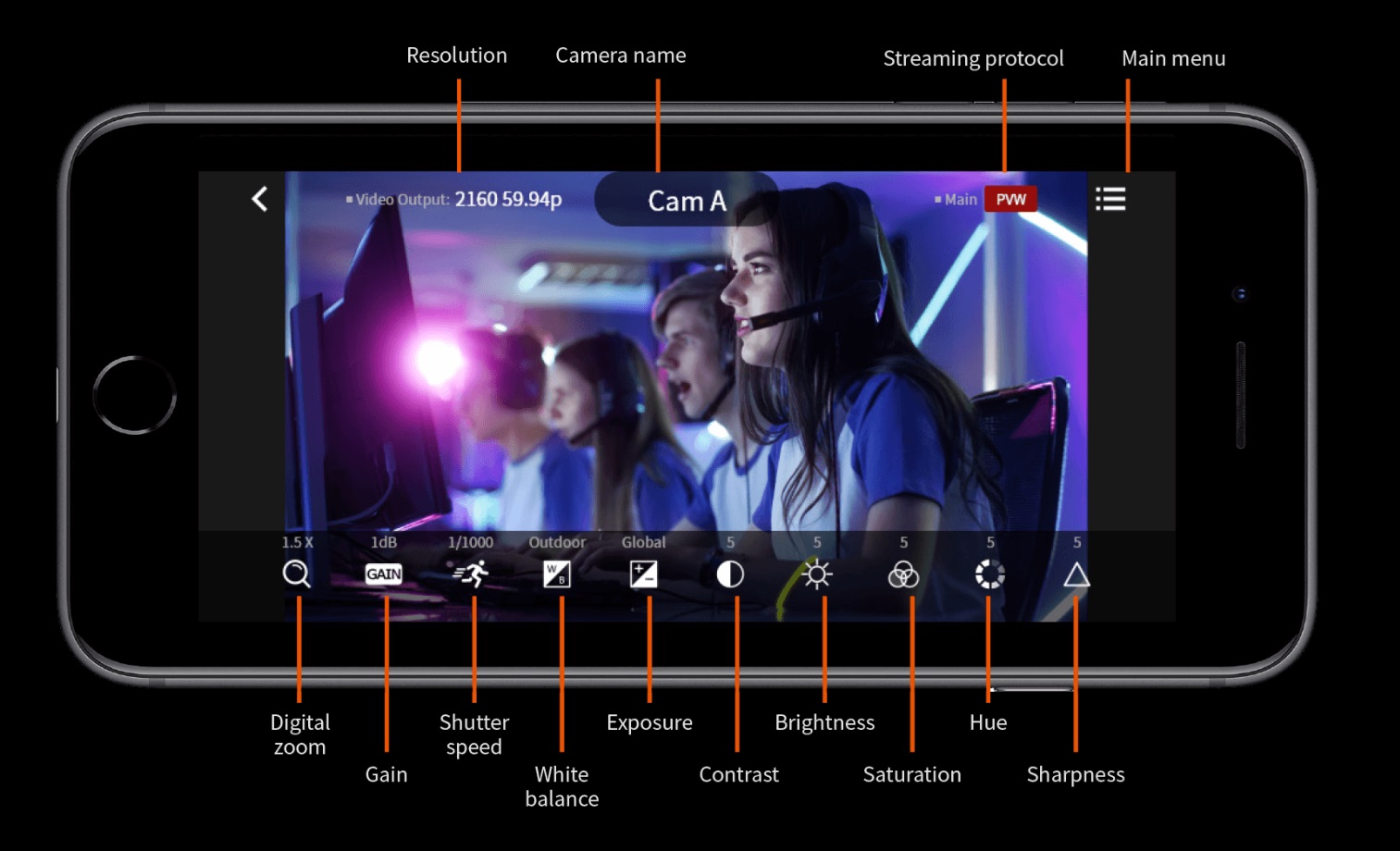

Configuring Live Video on the Mobile Phone

You can adjust the video settings on the mobile phone and preview the video as you make changes to the settings. You can also monitor major camera settings such as HDMI output resolution,camera name, and stream status.

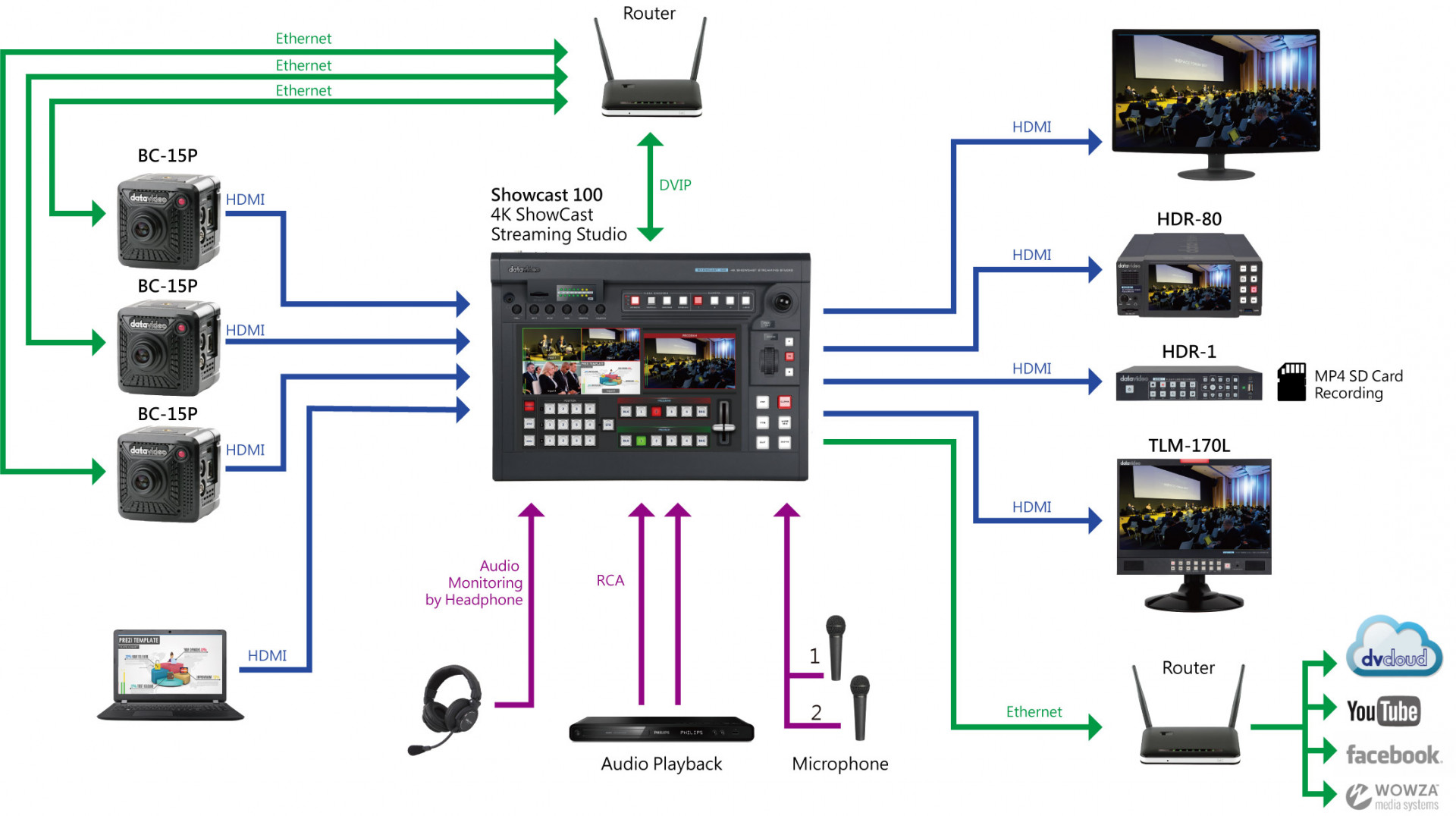

Diagram

Specifications

Video format/Resolution	2160p 60/59.94/50/30/29.97/25 1080p 60/59.94/50/30/29.97/25
Image Sensor	1/2.3" CMOS
Effective Pixels (approx.)	12.3Mega Pixels
S/N Ratio	50 dB
Min. Illumination	0.5Lux (F1.0, AGC ON)
Electronic Shutter	1/25(1/30), 1/50(1/60), 1/75(1/90), 1/100(1/120), 1/125(1/150), 1/150(1/180), 1/200(1/210), 1/500(1/600), 1/1000(1/1200), 1/2000(1/2400), 1/4000(1/4800), 1/8000(1/9000) sec
Zoom Ratio	2x Digital Zoom
Gamma Control	Standard / Mode1 / Mode2 / Mode3
Iris Control	Fixed IRIS (F1.0)
Digital Noise Reductions	2D/3D
On-Screen Display (OSD)	English/Simplified Chinese/Traditional Chinese
White Balance	Auto, Indoor, Outdoor, OnePush, Color Temp., R/B Gain, Lock
AGC / Gain Control	Auto(AGC) / Manual / Lock (Follow Exposure Mode)
HDR/WDR	WDR
Mirror / Flip Image	Yes
Focus Mode	Full Manual
Panning / Tilting Range	----
Panning / Tilting Speed	----
Preset	----
Focal Length	Standard Lens: 6mm Wide Lens: 2.8mm
Field of View (Horizontal, Wide)	Standard Lens: H: 38.6, V:21.9, D: 44.1 Wide Lens: H: 75.5, V:46.6, D:82.7
Image Compensation	Auto
Video Output	HDMI 2.0 x1
Audio Input	3.5mm Line in/Mic in (Stereo)
Tally LED	Dual color (Red, Green)
Lens Filter	IR cut built-in
Control Protocol	DVIP
Remote Control Interface	RJ-45: for IP control (DVIP)
Video Compression Format	H.265, H.264
Audio Compression Format	AAC

Audio Bitrate	128Kbps
HD IP Interface	10/100/1000M
Streaming Protocols	RTMP(S), SRT, NDI
First Stream Supported Resolution	1920x1080 1280x720 1024x576 960x540 640x480 640x360
Second Stream Supported Resolution	----
Video Bitrate	1Mbps ~ 7Mbps
Video Bitrate Mode	VBR, CBR
Encoding Frame rate	50Hz: 1-50fps 60Hz: 1-60fps
POE	IEEE 802.3af
F/W Update	Ethernet
IR Control	----
Camera Control Unit	RMC-300 series/BC View Assist APP
Tripod Mount	1/4-20 UNC
Optional Accessories	----
Color	Black
Dimension (LxWxH)	77mm (W) x 82mm (D) x 78mm (H)
Weight	200g
Operating Temp. Range	0~40 °C
Power	DC 12V 9W PoE
What's in the Box	1 x BC-15PN Main Unit 1 x Standard Lens (attached on camera with lens cap) 1 x Wide-angle Lens (attached with lens caps) 1 x DC 12V power adaptor 1 x Carry Case
