Portable HD/SD CG Solution
TC-200

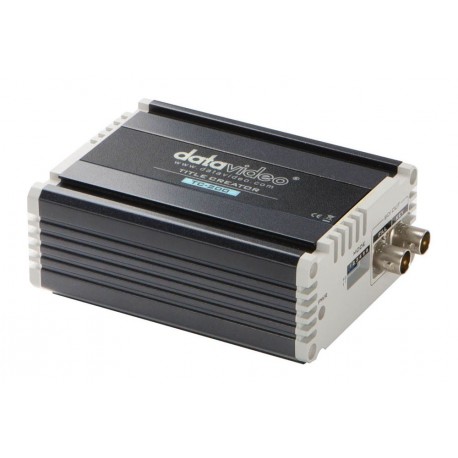

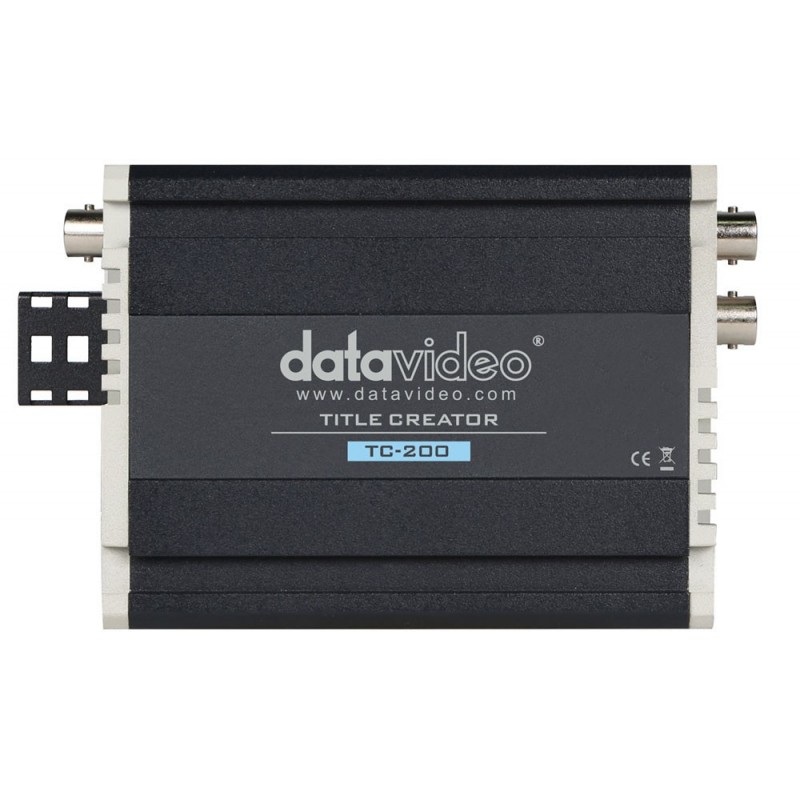

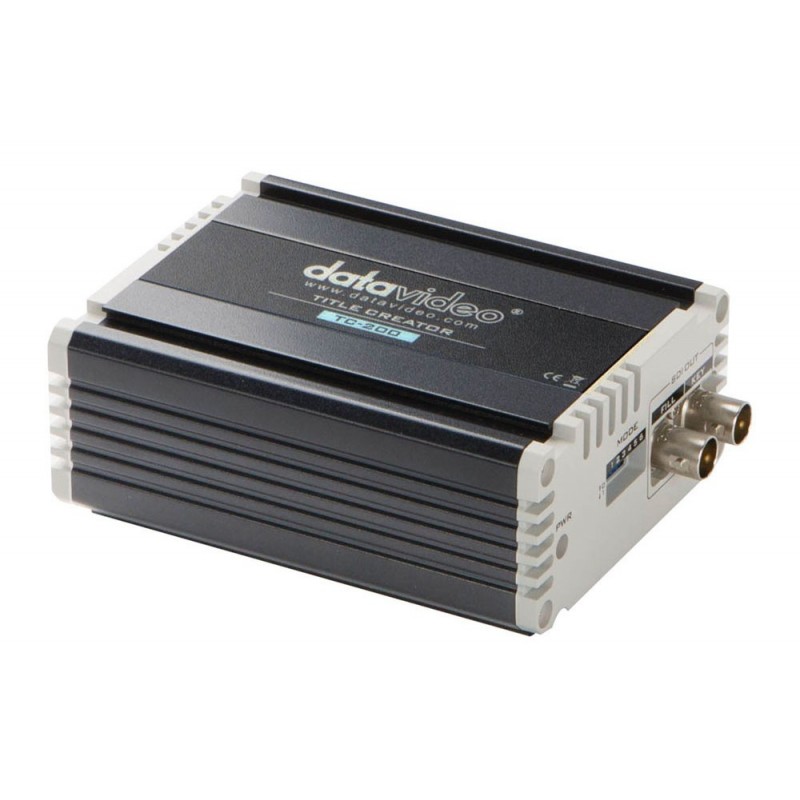

TC-200 Portable HD/SD CG Solution ช่วยให้คุณทำ CG จากโน๊ตบุ๊คที่มี HDMI out ออกทาง SDI ไปยัง Video Switcher ได้ทั้งความละเอียด HD/SD มาพร้อมซอฟต์แวร์ทำ CG บน Windows 7/8
CG Software v180725 for windows
TC-200 Portable HD/SD CG Solution ช่วยให้คุณทำ CG จากโน๊ตบุ๊คที่มี HDMI out ออกทาง SDI ไปยัง Video Switcher ได้ทั้งความละเอียด HD/SD มาพร้อมซอฟต์แวร์ทำ CG บน Windows 7/8

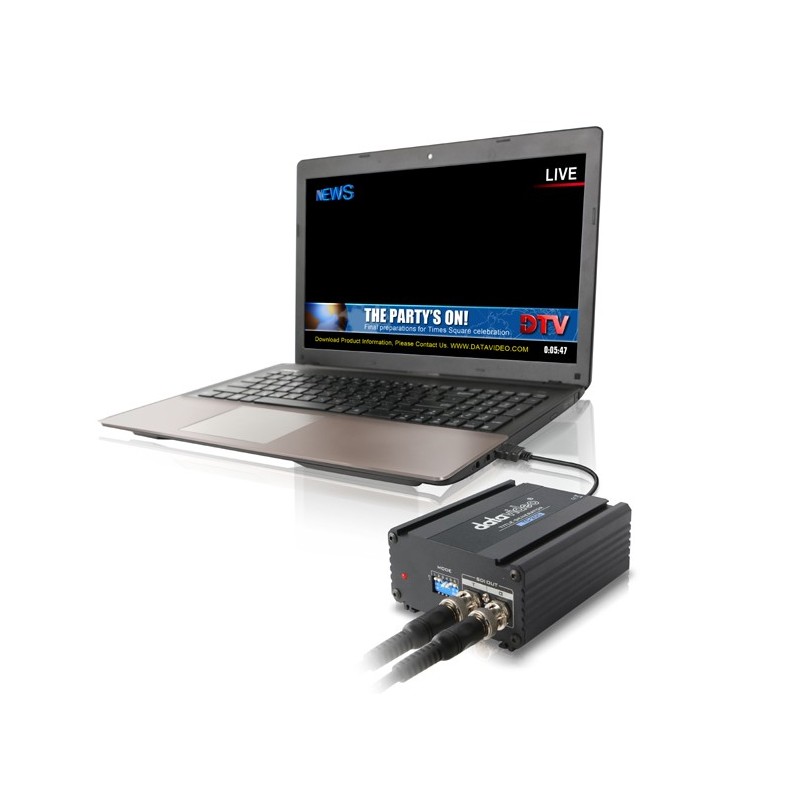

Datavideo's CG-200 and TC-200: an innovative HD CG system for mobile broadcasting, live conferences and dynamic video presentations. Using a standard laptop, it enables users to create and deliver attractive on-screen graphics and titles in real-time. It is easy to operate, designed to be intuitive and responsive under the pressure of a live event. CG-200 and TC-200 works with standard Windows laptops with an HDMI interface and supports vision mixers with and without a DSK. Until now, real-time PC titling software has required an additional SDI adapter card to be fitted into a desktop PC. For live programming on location, a computer-based character generator can be problematic, in terms of the physical bulk of the PC, the need for an additional screen and the power requirement. CG-200 and TC-200 makes professional CG on the run a reality.
DSK mode
As software only, CG-200 and TC-200 can work with a vision mixer equipped with a DSK. In this mode, CG-200 and TC-200 can be set up as the key source or fill source. It can work with any vision mixer (such as the Datavideo SE-2800 and SE-3000) that has a downstream keyer (DSK).
Overlay mode
The Title Overlay mode overcomes the lack of a DSK in the vision mixer. Using the small external TC-200 hardware unit, The HDMI output from the laptop is embedded with the SDI output from a camcorder, VTR or vision mixer.
Features
- Includes TC-200 (Overlay box) & CG-200 (Character Generator Software)
- Live Title Generator
- No additional PCI card required
- Supports DSK function (via HDMI) or SDI overlay function
- Support HD/SD SDI input and output in Overlay mode
- Supports HD video with 1080i 50/59.94/60; 720p 50/59.94/60
- Supports SD video: 576i/480i
- Title editing on laptop
- Compatible with Windows 7/8
- Supports all Windows fonts
- Multi-language support
- Supports animation including JPG, TAG, GIF, BMP, PNG
- Supports scrolling
- Title editing patterns include Slide, Reveal, etc.
- Easy logo set up
- TC-200 working voltage is 7-15V . It can be used with 7.2 V & 14.4 V batteries

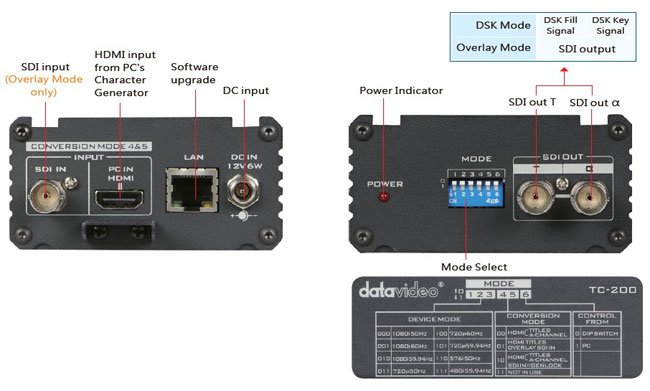

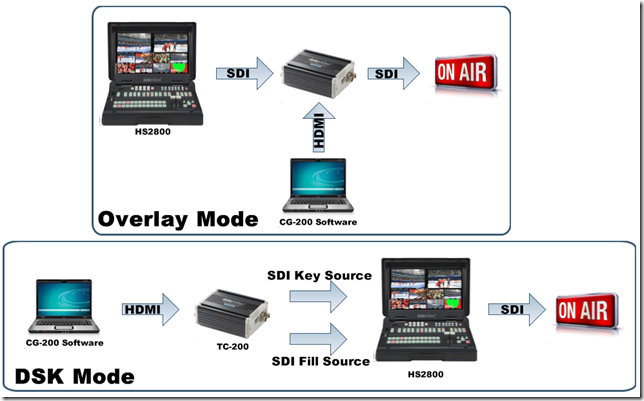

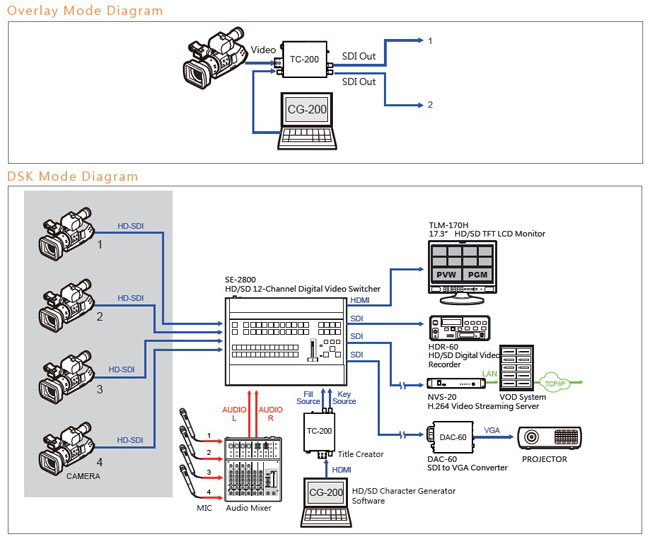

Diagram
Specification
Text Sources
- Frame text
- clock
- text file
- CSV file
File Format
- JPG/ PNG/ BMP/ TGA/ GIF/ GIF
Animation Formats
- GIF

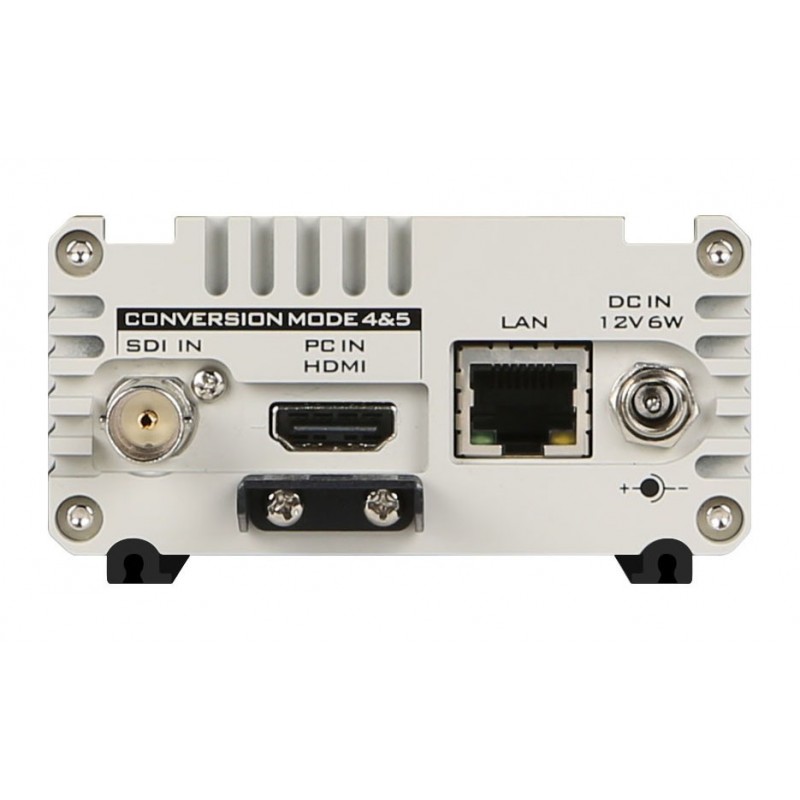

Input and Output Interface
- HDMI input x 1
- HD-SDI input x 1
- HD-SDI output x 2
- LAN port x 1

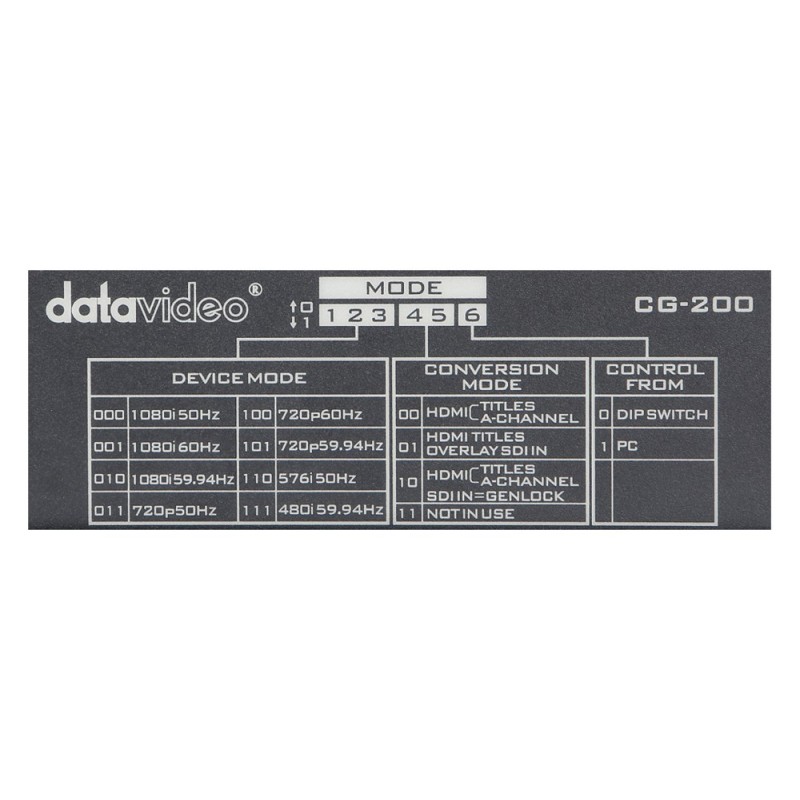

Mode
- CG overlay : HDMI input is CG; SDI in is live video
- Genlock mode : HDMI input is C G; SDI in is reference signal
- reference with internal signal : HDMI input is CG; SDI in isn’t in in use
Input Formats
- 1920x1080i/50Hz | 1920x1080i/50Hz
- 1920x1080i/60Hz | 1920x1080i/60Hz
- 1920x1080i/59Hz | 1920x1080i/60Hz
(instead 1920x1080i/59Hz) - 1280x720p/50Hz | 1280x720p/50Hz
- 1280x720p/60Hz | 1280x720p/60Hz
- 1280x720p/59Hz | 1280x720p/60Hz
(instead 1280x720p/59Hz) - 720x576i/50Hz | 1920x1080i/50Hz
(crop to 720x576i/50Hz) - 720x480i/59Hz | 1920x1080i/60Hz
(crop to 720x480i/60Hz)
Conversion Mode
- HDMI signal is split into titles and alpha channel.
- HDMI signal is split into titles and alpha channel with Genlock
- HDMI titles overlay over the input SDI signal

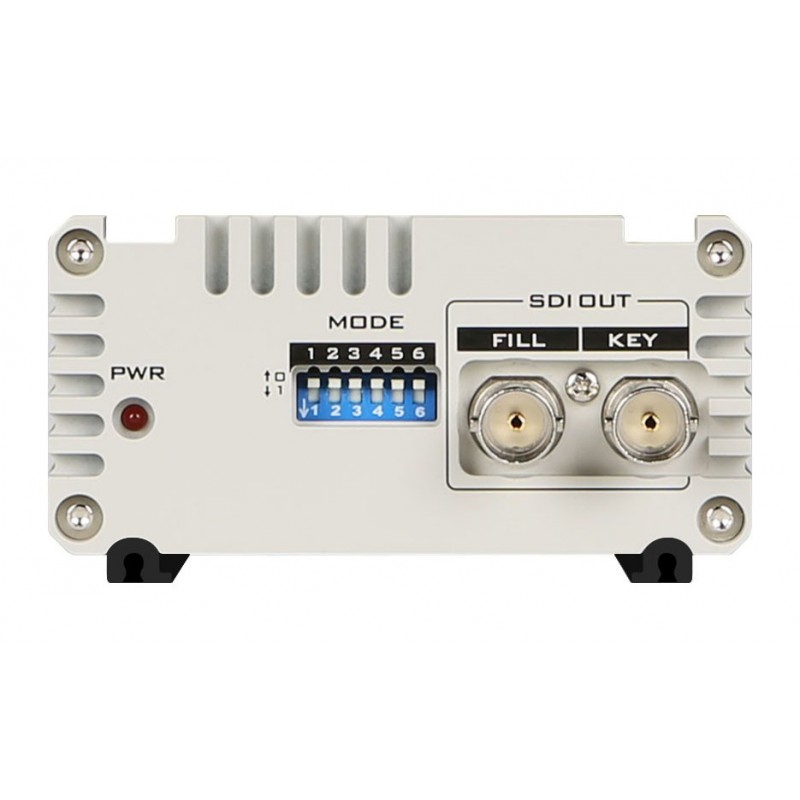

Control
- by dip switch
- by PC
Voltage Range
- 7-15V DC (most of battery is 7.2V, 12V & 14.4V so will need to cover it)
Firmware Update
- Ethernet
System Requirements
- windows 7, 8
- 3GHz Processor
- 2Gb RAM
