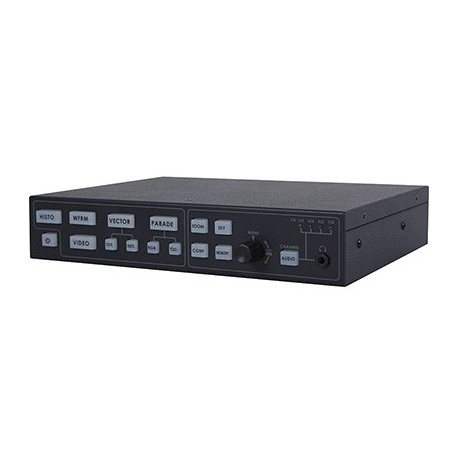

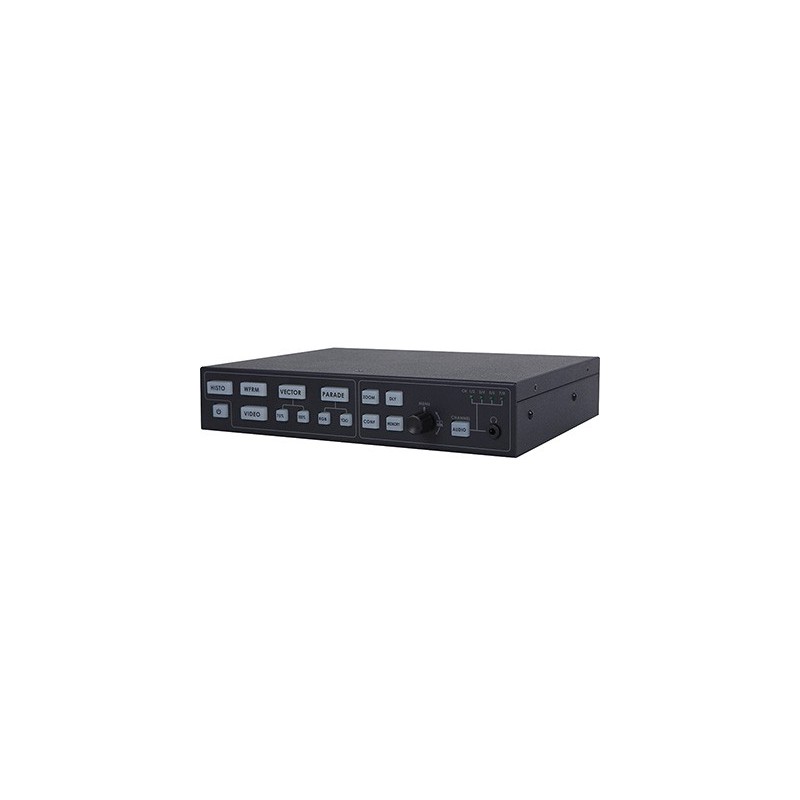

Vectorscope and Waveform monitoring unit
VS-150

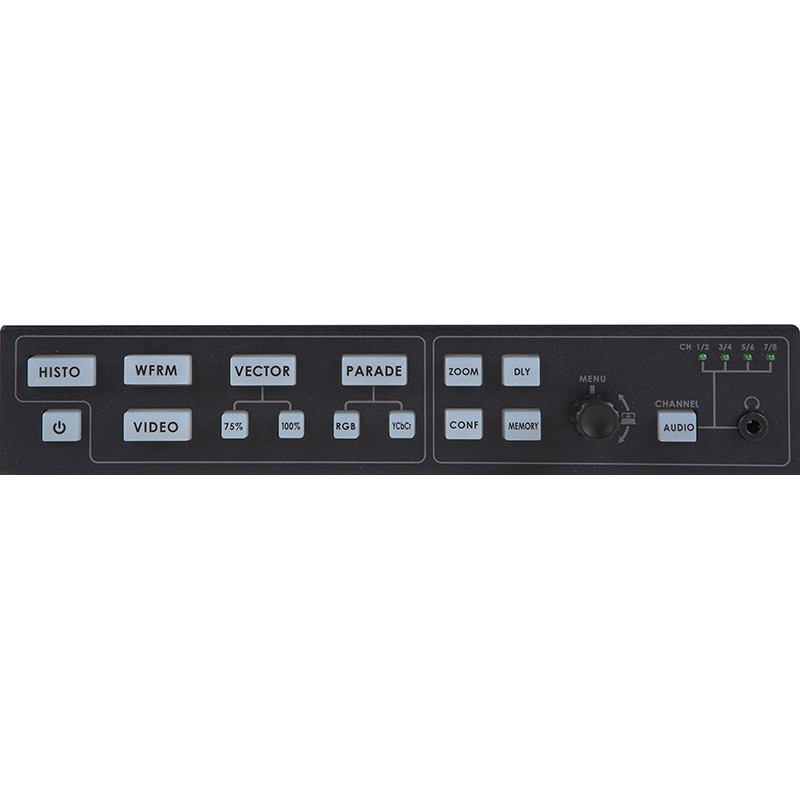

Desktop version of Vectorscope with traditional button access to the different modes (unlike rotary dial on the pocket size VS-100).
Clearance Sale
ราคา 24,900 บาท ประกัน 6 เดือน
"จำนวนจำกัด"
Spec SheetDesktop version of Vectorscope with traditional button access to the different modes (unlike rotary dial on the pocket size VS-100).
With HD/SD SDI inputs, it can test feeds in a large number of formats, from 576i and 720 50p to 1080i and 1080 25p.

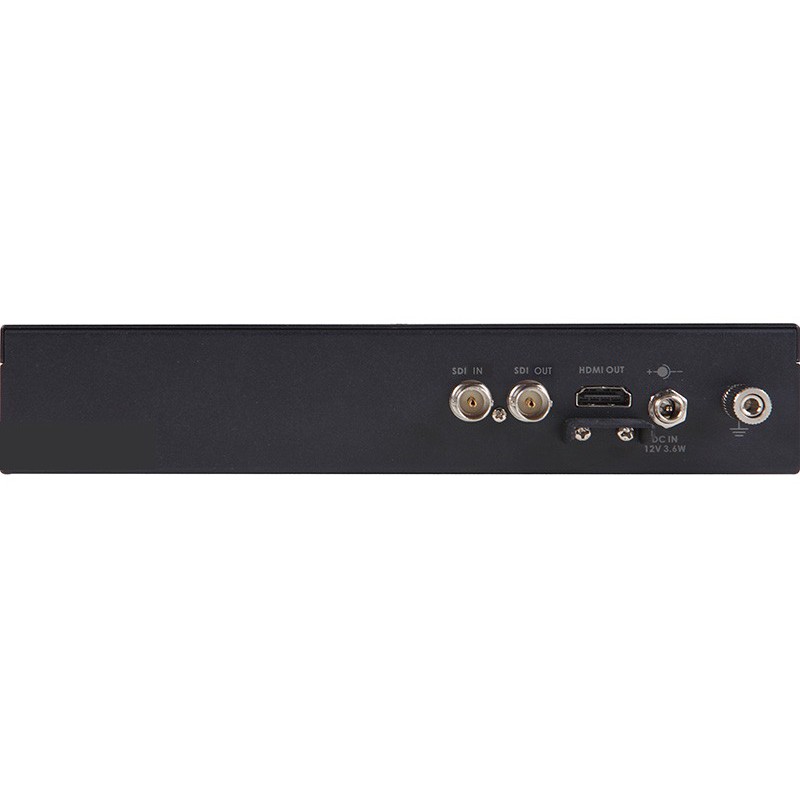

With HDMI outputs, it can be used with cost-effective HD monitors while its SDI ports can be set up as a loop-through as part of the production technology chain.
The unit is 1RU high and ½ rack wide.
Features:
Input Formats
- HD-SDI
o 1080i: 50 / 59.97 / 60
o 1080p: 24 / 25 / 30
o 720p: 25 / 29.97 / 30 / 50 / 59.97 / 60 - SD-SDI
o 576i
o 480i
Modes
- Waveform Monitor
- Vectorscope
- Parade
- Histogram
- Video Input Display
