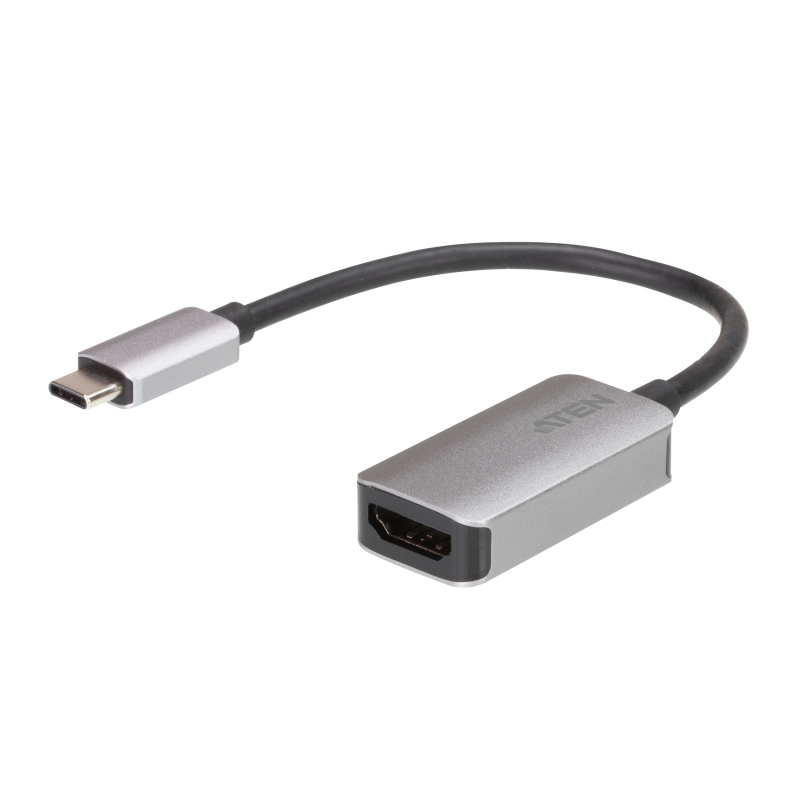

USB-C to HDMI 4K Adapter
UC3008A1
หมายเหตุ ช่อง USB-C ของ Laptop / PC ต้องรองรับ DP Alt mode จึงจะสามารถแสดงผลออกจอภาพได้ กรุณาตรวจสอบจากสัญลักษณ์ DP หรือ Thunderbolt ข้างพอร์ต USB-C หรือดูได้จากคู่มือของ Laptop นั้น ๆ
รับประกัน 3 ปีเต็ม
Spec SheetThe UC3008A1 is a USB-C to HDMI 4K adapter that allows you to transfer the video of your USB-C equipped laptop, tablet or smartphones to a monitor, TV or projector. The UC3008A1 supports high video resolutions up to 4096 x 2160@60Hz so that you can conveniently scale your display output to a bigger monitor or do presentations from a projector. In addition, it’s does not require external drivers or additional power. It works with USB-C port computers and smartphones with DP Alt mode, compatible with iPad Pro, Android, Mac OS X and Windows operating systems, and is convenient to use and carry around.
Features
- Transfers high-quality video from a USB-C enabled laptop or smartphone to a HDMI 4K@60Hz (4096 x 2160@60Hz) display, TV or projector*
- Premium casing can resists signal interference during video transmission and heat insulation
- Compact and lightweight design
- Works with all major operating systems: Windows®, OS X®, iPad Pro and Android
- Plug and Play – no software required
* With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode

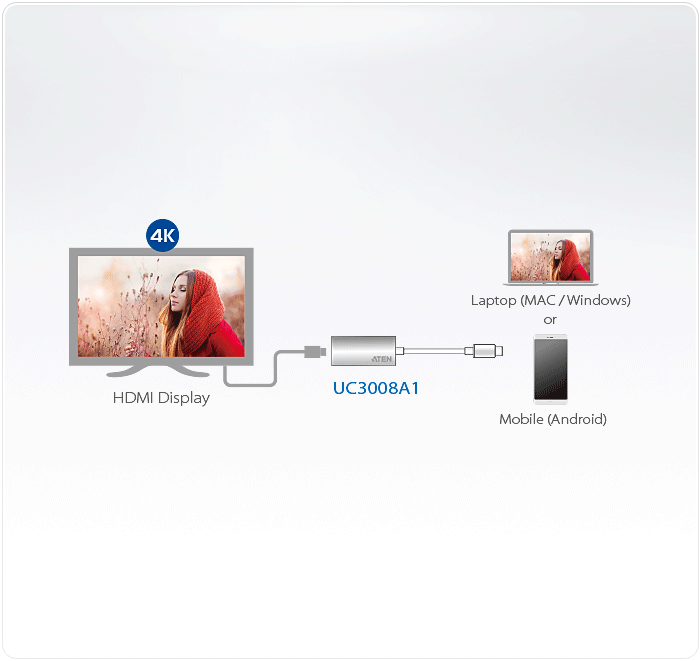

Diagram
Specification
| Video Input | |
| Interfaces | 15.4 cm USB 3.2 Gen1 Type-C Cable |
| Video Output | |
| Interfaces | 1 x HDMI Female |
| Video | |
| Max. Pixel Clock | 594MHZ |
| Max. Resolution | 4096 x 2160@60Hz |
| Compliance | USB 3.2 Gen 1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible) |
| HDMI 2.0 | |
| HDCP 2.2 | |
| USB Billboard Device Class | |
| Audio | |
| Output | 1 x HDMI Female |
| Power Consumption | 5V:1WBTU |
| System Requirements | Windows 10 and above, USB-C enabled computer with DP Alt Mode* |
| * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html | |
| Mac OS X 10.12 and above, USB-C enabled computer | |
| Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode | |
| iOS 12.1 and above, iPad Pro 3rd generation (2018) | |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Aluminum |
| Weight | 0.02 kg ( 0.04 lb ) |
| Dimensions (L x W x H) | 4.32 x 1.10 x 2.20 cm |
| (1.7 x 0.43 x 0.87 in.) | |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
1x UC3008A1 USB-C to 4K HDMI Adapter
