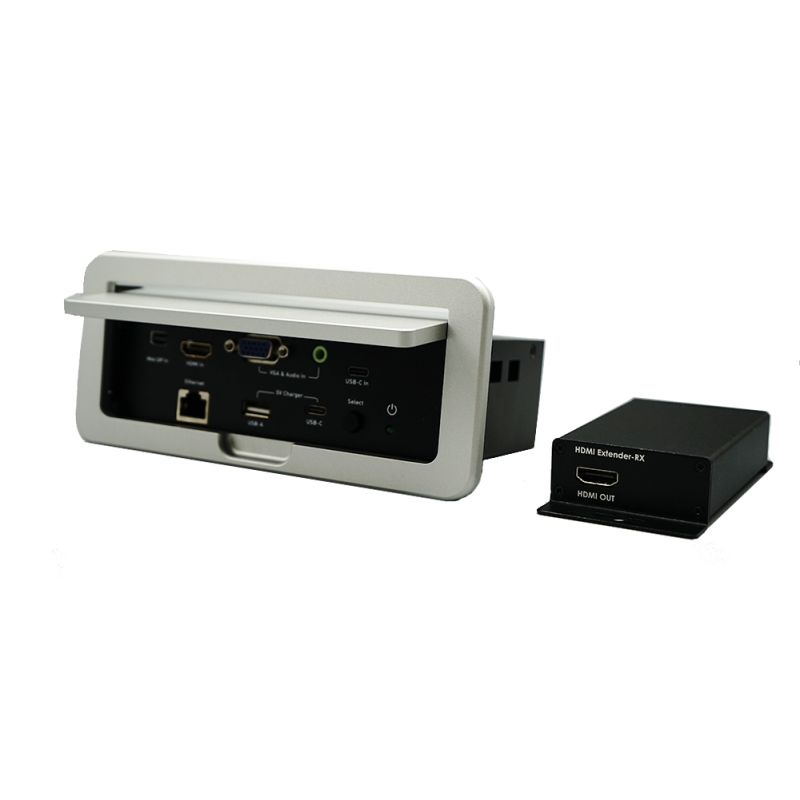

4 x 1 HDMI Converter Box Up to 30m extension over cat6
EW841
The 4 Inputs to 1 HDMI Converter Box allows 4 different sources, Analog Video & Audio, VGA+3.5mm Audio, mini Displayport & HDMI signal & USB-C input convert to RJ45 and link to Receiver unit. This Converter Box is very convenient for user to have different Audio/Video devices to connect their TV/Monitor with HDMI port and support distance up to 30M.
This model support source auto detect function, so user is able to switch the Input sources without press button. And it supports HDMI Output resolution up to 4K2K@60. It also support Ethernet pass through function.
Features

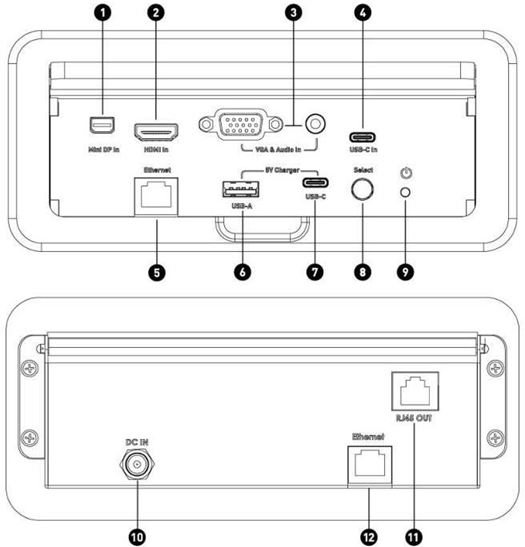

- Allow 4 different sources, Analog Audio & Video, VGA+3.5mm Audio, mini Displayport, HDMI Input and USB-C convert to HDMI via Cat6 cable connect to Receiver
- Support transmission distance up to 30m
- User is able to charge their devices through USB port and USB type C
- Support Ethernet by-pass function
- Source Auto detect function
- The Output HDMI resolution is up to 4K2K@60

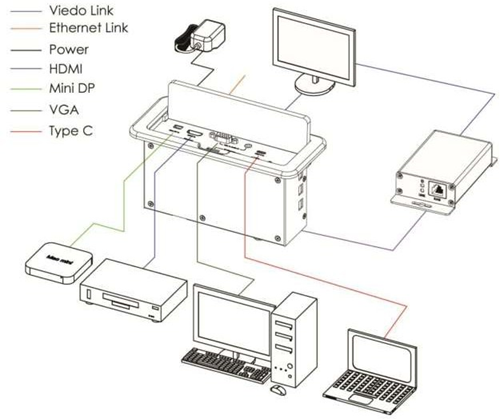

Connection and Operation
- Connect 24V DC power supply to the power port of the converter box.
- Connect one HDMI Cable between the HDMI input port of converter box and source device.
- Connect one VGA+3.5mm Cable between the VGA+3.5mm input port of converter box and source device.
- Connect one Type C Cable between the Type C input port of converter box and source device.
- Connect one Mini Display port cable between the Mini Display port input port of converter box and source device.
- All Sources can be auto detected, or you can press the switch button.
- Connect Cat6 cable between V4 RJ45 out port and the RJ45 port of Receiver to extend the distance to 30m.
- Connect one HDMI cable between output port of Receiver and Display device.
VideoResolutions
|
HDMI input / TPYE-C input / Mini DP input |
VGA input |
|
3840 x 2160 |
1920 x 1080 |
|
2560 x 1600 |
1600 x 1200 |
|
2560 x 1440 |
1600 x 900 |
|
1920 x 1200 |
1280 x 720 |
|
1920 x 1080 |
1024 x 768 |
|
1600 x 1200 |
800 x 600 |
|
1600 x 900 |
|
|
1280 x 720 |
|
|
1024 x 768 |
|
|
800 x 600 |
|
Specifications
|
Model No. |
EW841 |
|
Model name |
4 Inputs to HDMI Output Converter Box-V4E |
|
V4 Input |
HDMI,M/DP,VGA+3.5mmTYPE-C |
|
V4 output |
RJ45 |
|
Receiver-Video Input |
RJ45 |
|
Receiver-Video Output |
HDMI |
|
HDMI resolution |
480P/720P/1080P@24Hz/30Hz/50Hz/60Hz, up to4K@60Hz Supports1080P@120Hz,/3D etc. |
|
HDMI Audio format |
Dolby True HD/DTS HD/Dolby Atoms/ Dolby Digital 5.1 / Dolby Digital Plus/ DTS 5.1/LPCM |
|
HDMI Max bandwidth HDMI Max baud rate |
297MHz 6Gbps |
|
HDR Support |
NO |
|
Transmission delay |
<3ms |
|
Output cable length |
4K/AWG 30 ≤2m |
|
Transmission distance |
4K /Cat-6@30M |
|
Power adapter Specification |
AC 100~240V / DC24V 1.5A |
|
Max operation current |
V4 ≤570mA / Receiver ≤350mA |
|
Operation temperature range |
-5 ~ +40℃ |
|
Operation humidity range |
5 to 85%RH（No Condensation） |
|
Storage temperature |
-15 to 55℃ |
|
Storage humidity |
5 ~95%RH(No Condensation) |
|
Size |
184 x 80 x 90.4mm |
|
Weight |
V4≈1100g / Receiver≈220g |
|
Accessories |
Power Adaptor x1, |
Package Contents
- 4 inputs to 1 HDMI output Converter Box x 1
- Power Adapter x 1
- White Box x 1
- 30m Receiver x 1
