ATEN USB-C to VGA Adapter
UC3002A
The UC3002A is a USB-C to VGA adapter that allows you to transfer the video of your USB-C equipped laptop, tablet, computer or smartphone to a VGA display or projector. Transfer high-quality videos from a USB-C enabled laptop or smarphone to a 1920 x 1200@60Hz.
หมายเหตุ ช่อง USB-C ของ Laptop / PC ต้องรองรับ DP Alt mode จึงจะสามารถแสดงผลออกจอภาพได้ กรุณาตรวจสอบจากสัญลักษณ์ DP หรือ Thunderbolt ข้างพอร์ต USB-C หรือดูได้จากคู่มือของ Laptop นั้น ๆ
รับประกัน 3 ปีเต็ม
Spec Sheet
The UC3002A is a USB-C to VGA adapter that allows you to transfer the video of your USB-C equipped laptop, tablet, computer or smartphone to a VGA display or projector. The UC3002A supports high video resolutions up to 1920 x 1200 @ 60 Hz so that you can conveniently scale your display output to a bigger monitor or do presentations from a projector.
Features
- Transfer high-quality videos from a USB-C enabled laptop or smarphone to a 1920 x 1200@60Hz VGA display, or projector*
- Premium casing can resists signal interference during video transmission and heat insulation
- Compact and lightweight design
- Works with all major operating systems: Windows®, OS X®, iPad Pro 3rd gen and Android
- Plug-and-Play – no software required
*With Intel 7th- Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.

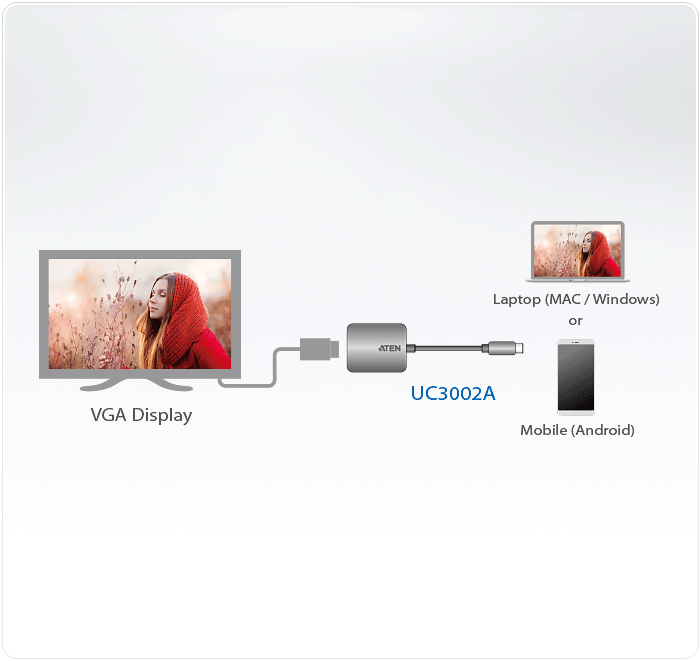

Diagram
Specification
| Video Input | |
| Interfaces | 1 x USB-C Male (Black) |
| Video Output | |
| Interfaces | 1 x HDB-15 Female (Black) |
| Video | |
| Max. Pixel Clock | 148.5 MHZ |
| Max. Resolution | 1920 x 1200@60Hz |
| Compliance | USB3.1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible) |
| USB Billboard Device Class | |
| HDCP 1.3 | |
| System Requirements | Windows 10 and above, USB-C enabled computer with DP Alt Mode* |
| * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html | |
| Mac OS X 10.12 and above, USB-C enabled computer | |
| Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode | |
| iOS 12.1 and above, iPad Pro 3rd generation (2018) | |
| Environmental | |
| Operating Temperature | 0 - 40 ºC |
| Storage Temperature | -20 - 60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Aluminum |
| Weight | 0.02 kg ( 0.06 lb ) |
| Dimensions (L x W x H) | 3.95 x 1.40 x 9.60 cm |
| (1.56 x 0.55 x 3.78 in.) | |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
- 1x UC3002A USB-C to VGA Adapter
