VC486
Converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. SDI signal re-clocked for high signal quality. Supports analog stereo audio output with RCA (R/L) connector.
กรุณาสอบถามทาง Line @macrocare
สินค้ามีจำนวนจำกัด
Availability date:

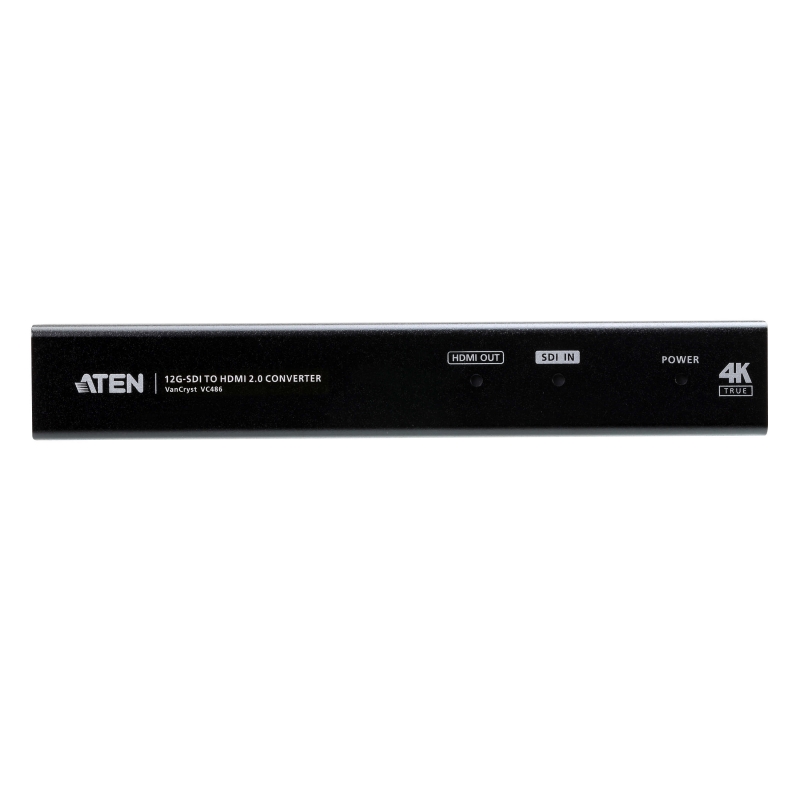

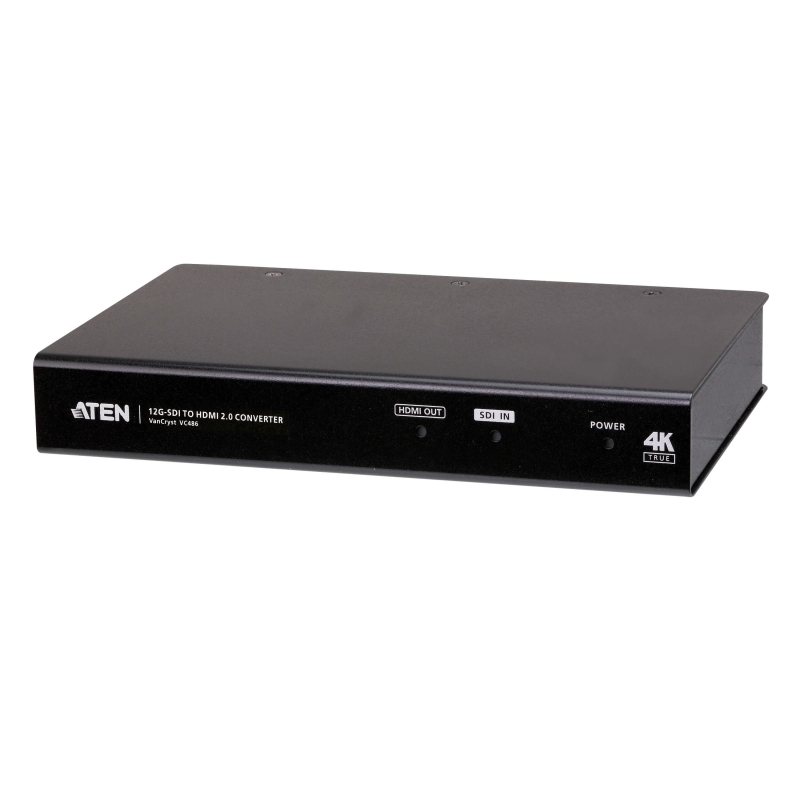

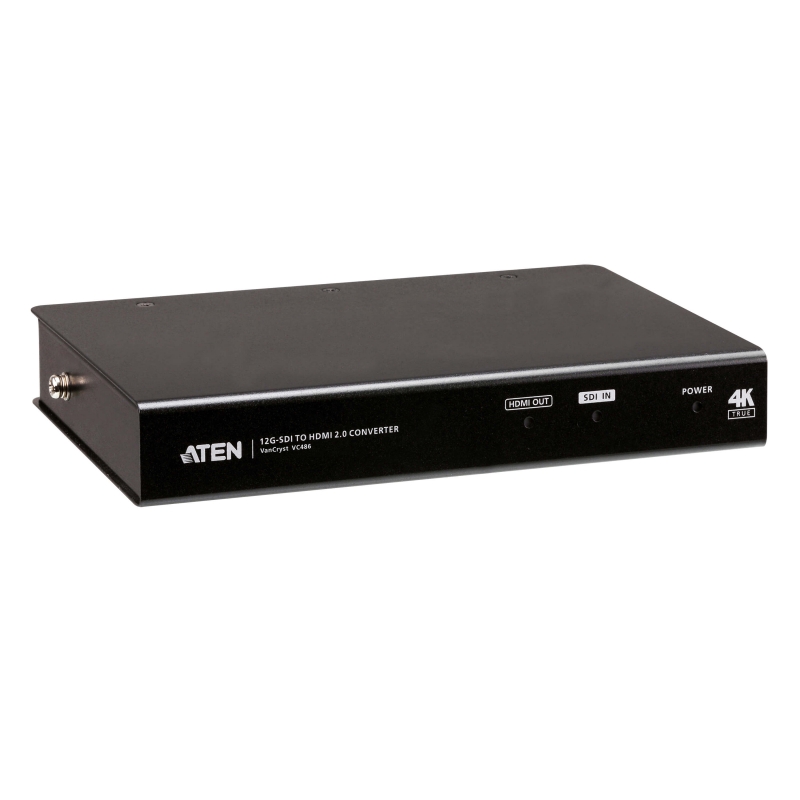

ATEN 12G-SDI to HDMI 2.0 Converter
Converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. SDI signal re-clocked for high signal quality. Supports analog stereo audio output with RCA (R/L) connector.
ผู้รับ: :
* ฟิลด์ที่จำเป็น
หรือ ยกเลิก

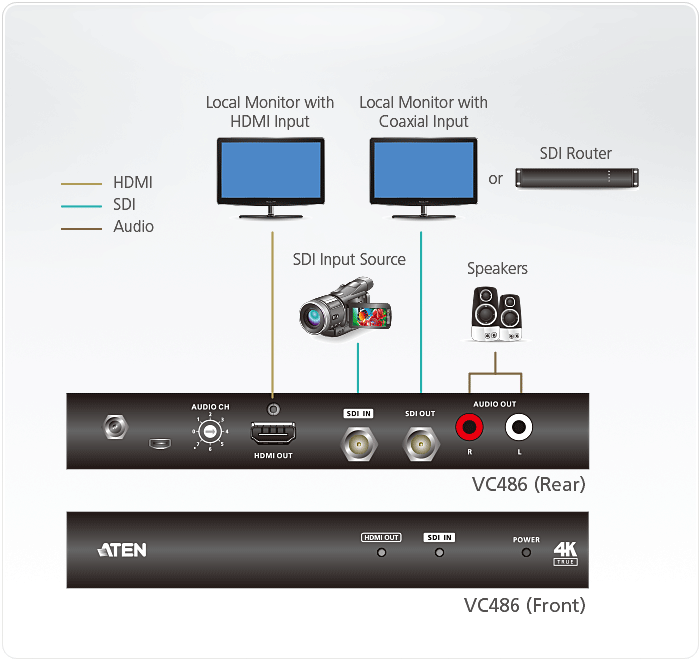

The VC486 is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. The VC486 is a perfect choice for applications such as using HDMI televisions as SDI broadcast monitors, and connecting to video projectors.
Switches | |
Audio EDID Selection | 1 x rotary switch (8-steps) |
Control | |
USB | 1 x Micro USB (FW upgrade) |
Video Input | |

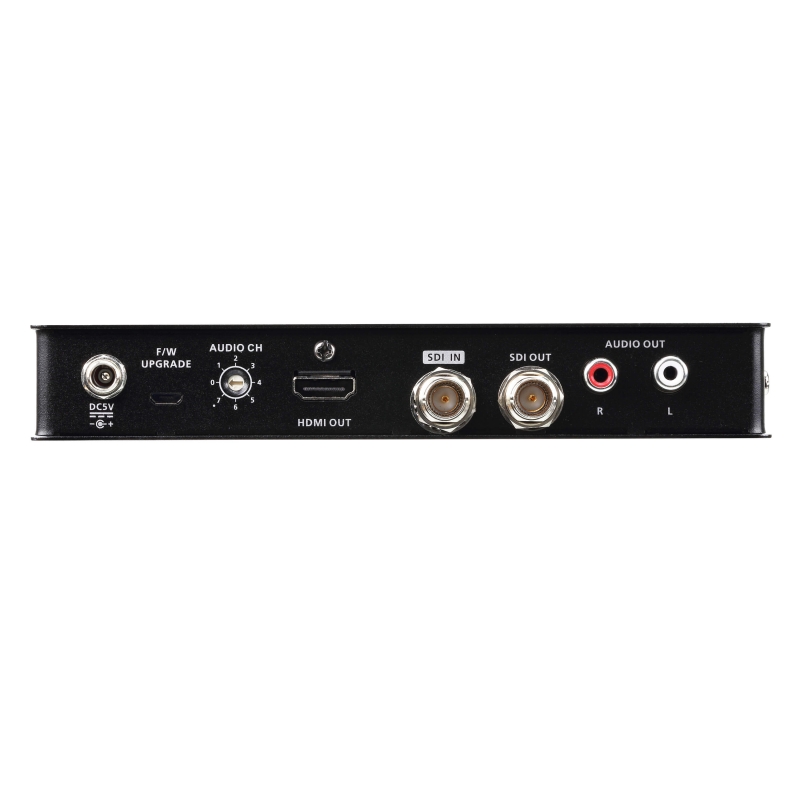

Interfaces | 1 x SDI (BNC connector, inter-locked socket) |
Impedance | 75 Ώ |
Video Output | |
Interfaces | 1 x HDMI (Type-A) Female |
1 x SDI (BNC connector, inter-locked socket) | |
Impedance | HDMI 100 Ώ / SDI 75 Ώ |
Video | |
Max. Data Rate | 12 Gbps |
Supported Resolutions | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 , 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 25PsF | |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 | |
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p | |
Max. Distance | [12G-SDI] up to 45m |
[6G-SDI] up to 60m | |
[3G-SDI] up to 90m | |
[HD-SDI] up to 150m | |
HDMI up to 3m (3840 X 2160@60Hz) | |
Audio | |
Output | 1 x HDMI (Type-A) Female |
2 x RCA connector Female (R/L, analog audio) | |
Format | Compliance with HDMI 2.0 with 2 CH Audio |
SDI Formats | HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps) |
3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps) | |
6G-SDI (SMPTE 2081-1, SMPTE 2081-10, up to 6 Gbps) | |
12G-SDI (SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, up to 12Gbps) | |
Connectors | |
Power | 1 x DC 5V 3A, Lockable |
Power Consumption | DC5V:5.69W:27BTU |
Environmental | |
Operating Temperature | 0 - 40 ºC |
Storage Temperature | -20 - 60 ºC |
Humidity | 20 - 90% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | 0.65 kg ( 1.43 lb ) |
Dimensions (L x W x H) | 18.20 x 12.96 x 2.87 cm |
(7.17 x 5.1 x 1.13 in.) | |
Carton Lot | 5 pcs |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
