DAC-9P 4K

อุปกรณ์แปลง HDMI to SDI Converter HD-SDI (16:9) และ SD-SDI (4:3) สำหรับกล้องรุ่นใหม่ๆและเครื่องเล่น hi-def ที่เป็น HDMI เพื่อแปลงสัญญาณเป็น SDI โดยไม่มีการสูญเสีย คุณภาพสัญญาณ รองรับความละเอียดสูงสุด 4K60Hz

รายละเอียดเพิ่มเติม


 Manual

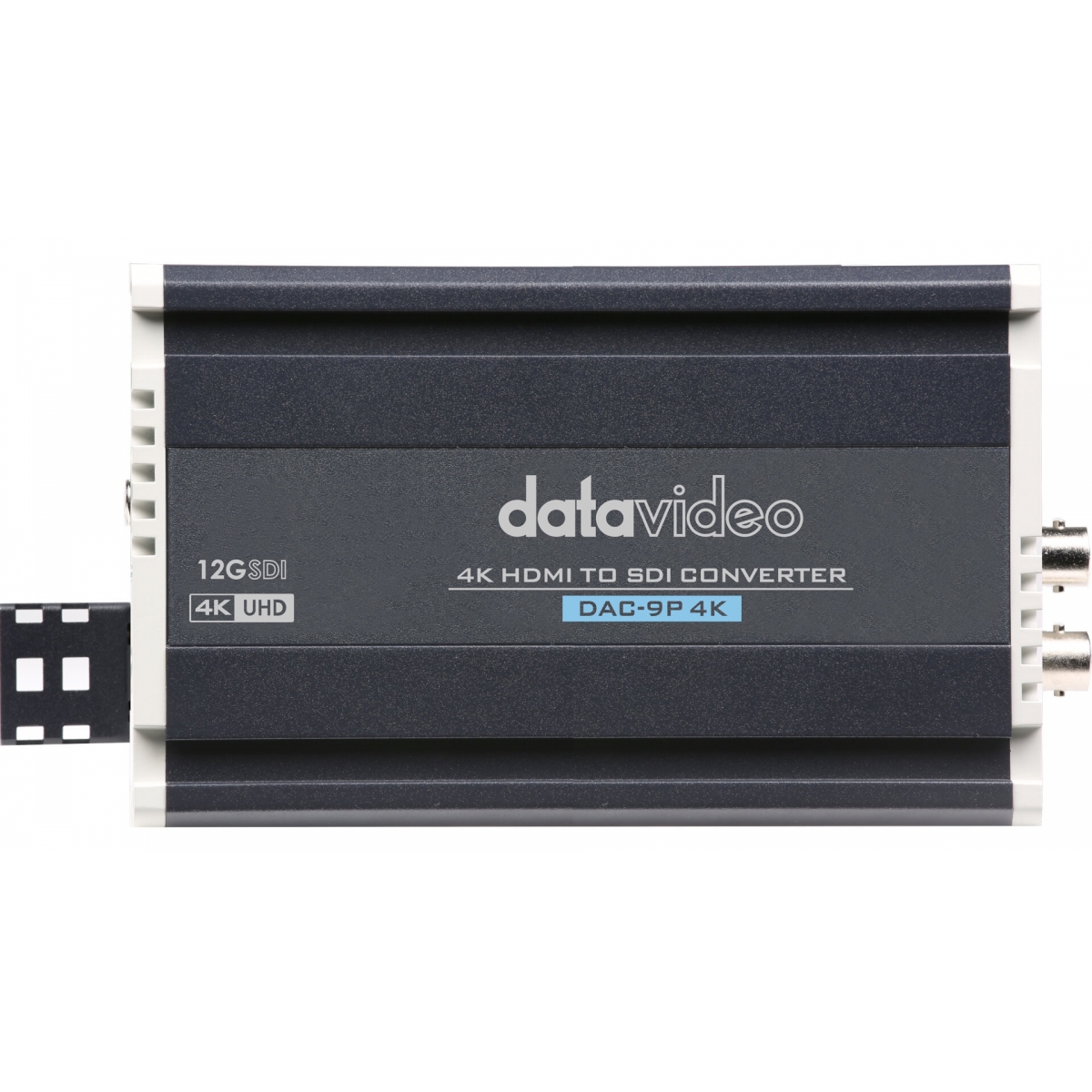

Broadcast Quality 4K HDMI to SDI Converter

The DAC-9P 4K Converter converts 4K HDMI in resolutions up to 4K50/60 to 12G-SDI, it is easy to connect the 4K HDMI signal devices and professional 12G-SDI video equipment.

Featuring HDMI input to SDI output, and with HDMI loop output, audio is selectable from the HDMI input or RCA analog input.

The DAC-9P 4K Converter is useful for a variety of broadcast and professional AV applications.


Supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)

The DAC-9P 4K is broadcast quality converter, and it supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160).

The DAC-9P 4K is also very easy to use. It is a plug and play converter, so there is no need to use a laptop for adjusting any settings.

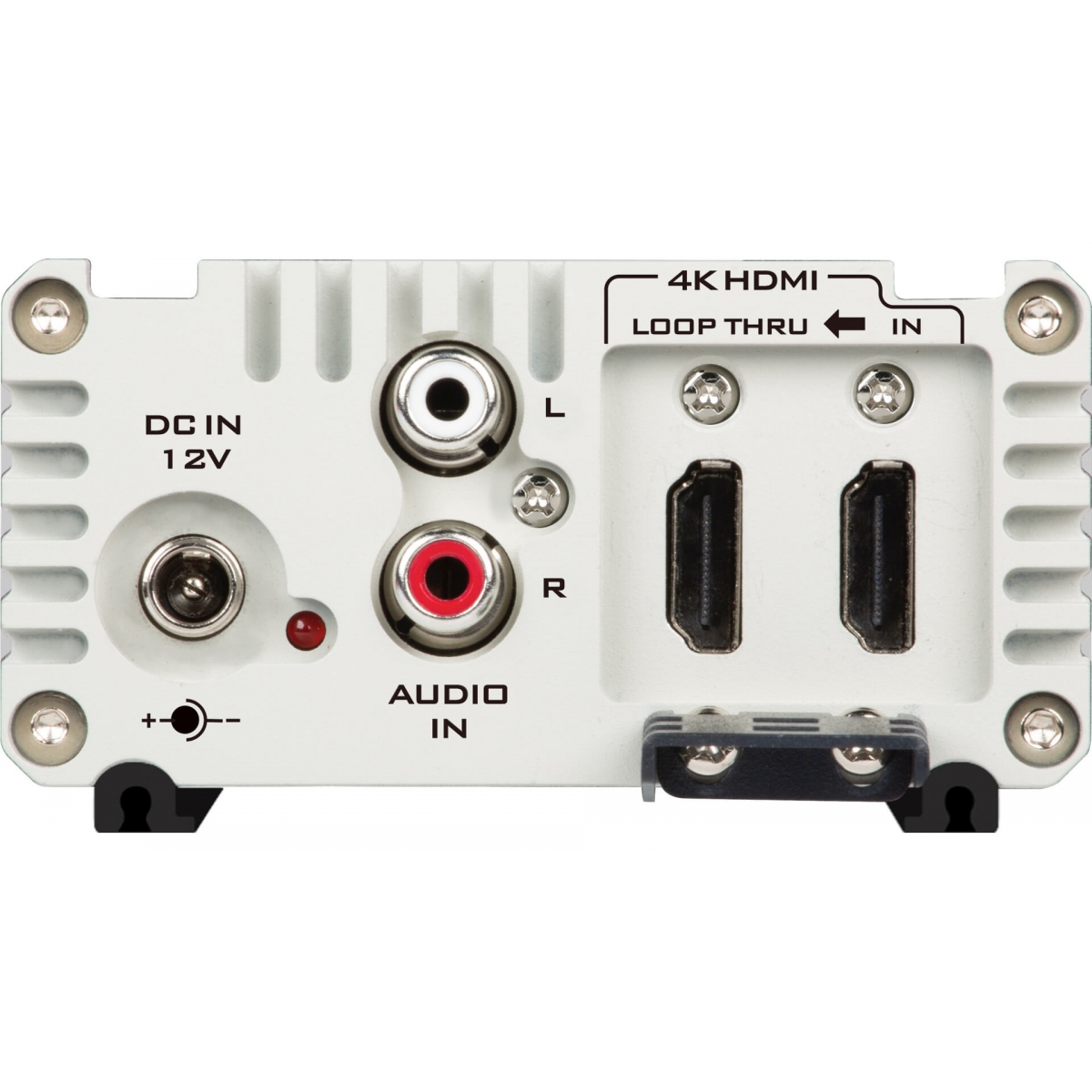

4K HDMI 2.0 input and Loop-Thru Output

In addition to the converted 12G-SDI output, there is a HDMI loop thru for sending a signal to other devices in your workflow.


Supports Re-Clocking

DAC-9P 4K will regenerate the video signal, and provide less jitter to improve output signal quality. DAC-9P 4K allows for a long distance transmission.




Not just a Video Converter, but also an Audio Embedder

DAC-9P 4K provides a video converter from HDMI to SDI, and it also provides you an additional audio embedded selectable from 2-channel RCA analog audio or input from HDMI video to your live production.


Plug-and-Play

No Dip switch or laptop adjustment needed, Just plug and play you will receive the perfect SDI video signal for your video production





.

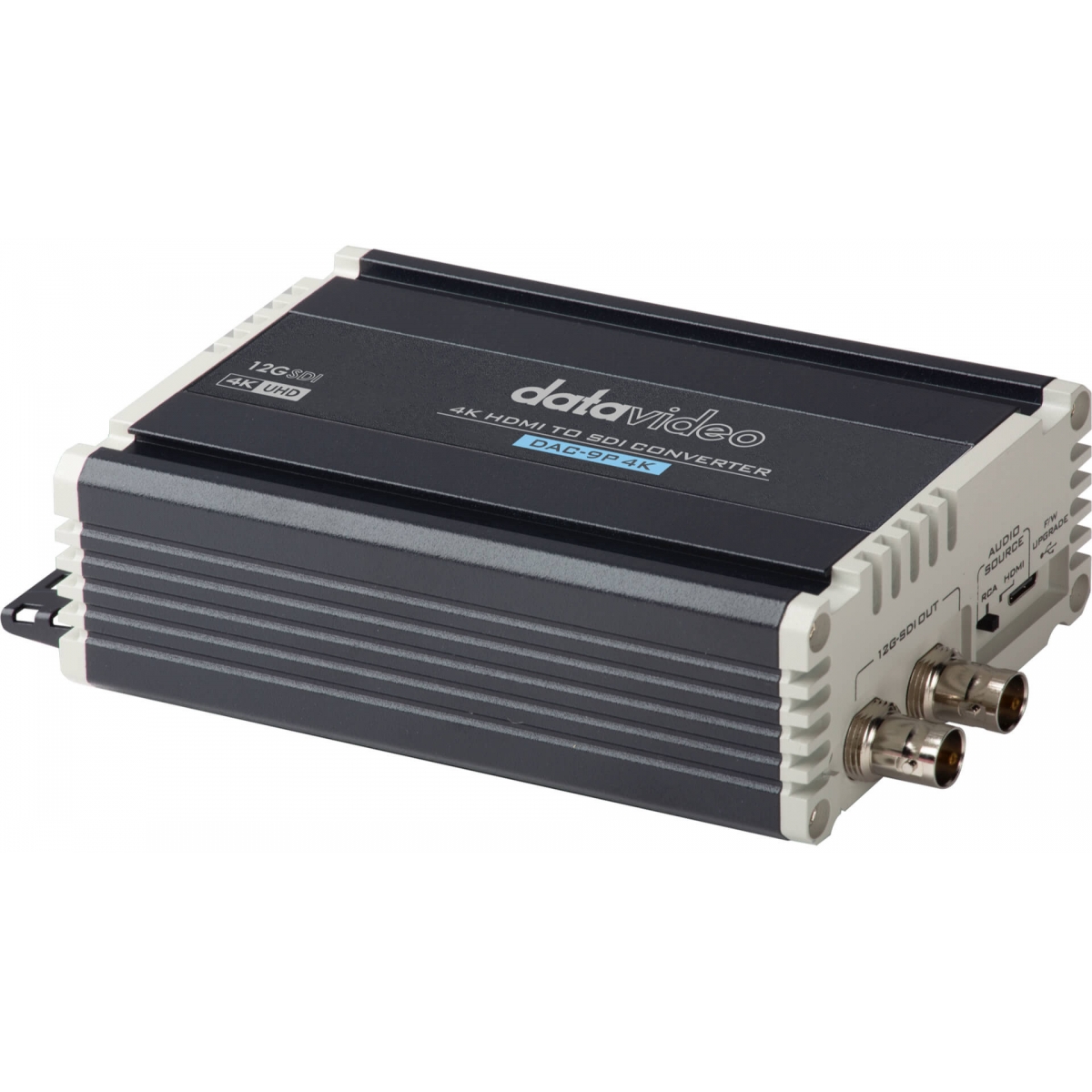

Aluminum Appearance Design, Rugged and Durable

Super sturdy and durable. The DAC series products have a rugged metal housing for use in the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.


Specifications

Conversion

4K HDMI to 12G/3G/HD/SD-SDI

Video Inputs

1x HDMI 2.0 Type A

Loop Through

1 x HDMI 2.0 Type A

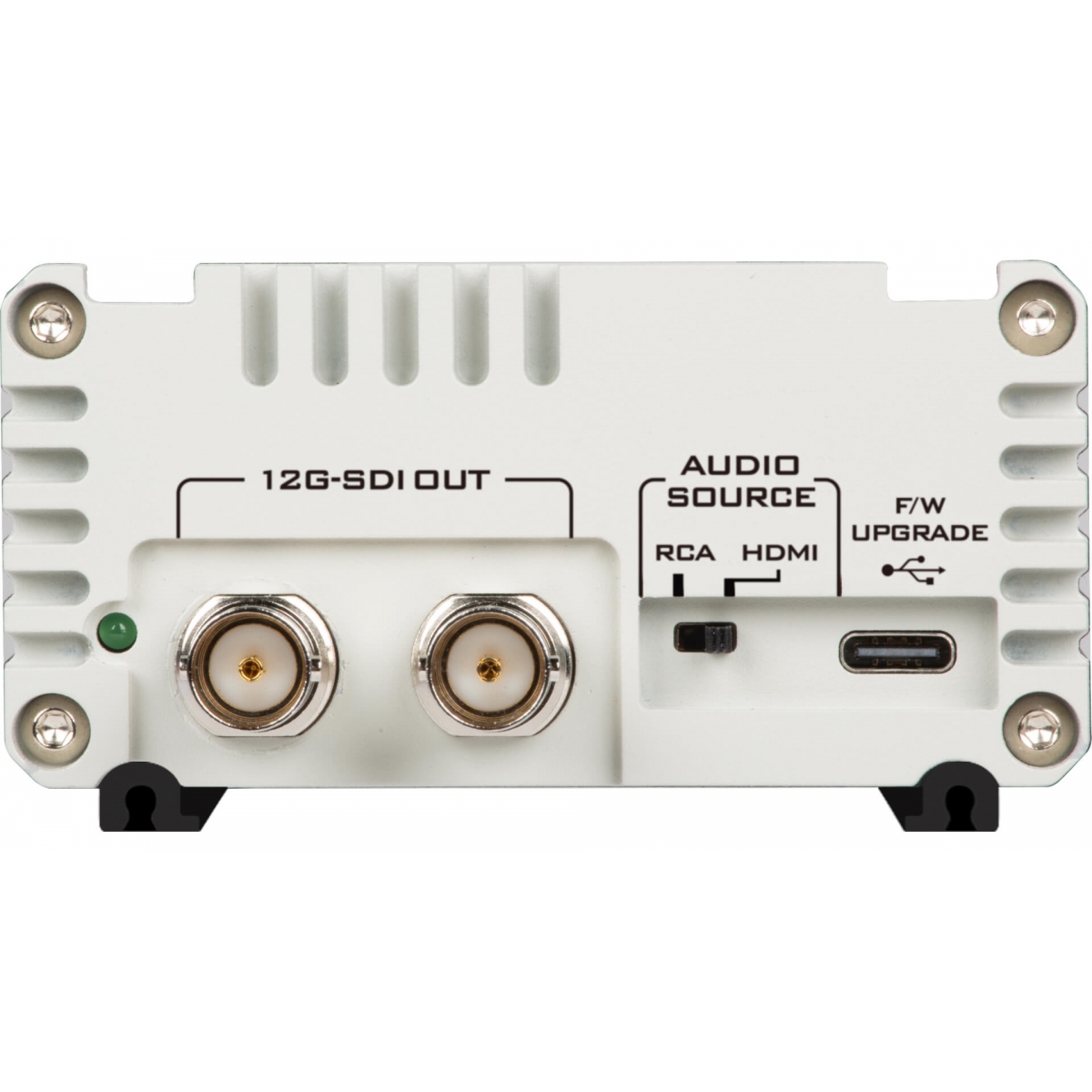

Video Outputs

2 x 12G-SDI (3G-SDI Level A)

Audio Inputs

2 x RCA (Unbalanced Audio L/R)

HDMI embedded audio, 24-bit, 8-channel

Audio Outputs

SDI embedded audio, 24-bit, 8-channel

Audio Format Selection

N/A

Audio Gain

N/A

 Supported Video Input Formats

4096x2160p: 60/50/30/25/24

3840x2160p: 60/50/30/25/24

1080p: 60/50/30/25/24

1080i: 60/50, 720p: 60/50

Output Resolutions

Automatically matches the SD, HD and 4K HDMI video input

Equalizer

N/A

Reclock

Yes

SDI Cable Drive

Yes

Updates and Configuration

USB Type C

Dimension (LxWxH)

136.5 x 85 x 45 mm

Weight

0.39 kg

Operating Temp. Range

0~40 °C

Power

DC 12V, 9.4W

What's in the Box

1 x DAC-9P 4K

1 x AD Switch DC 12V
