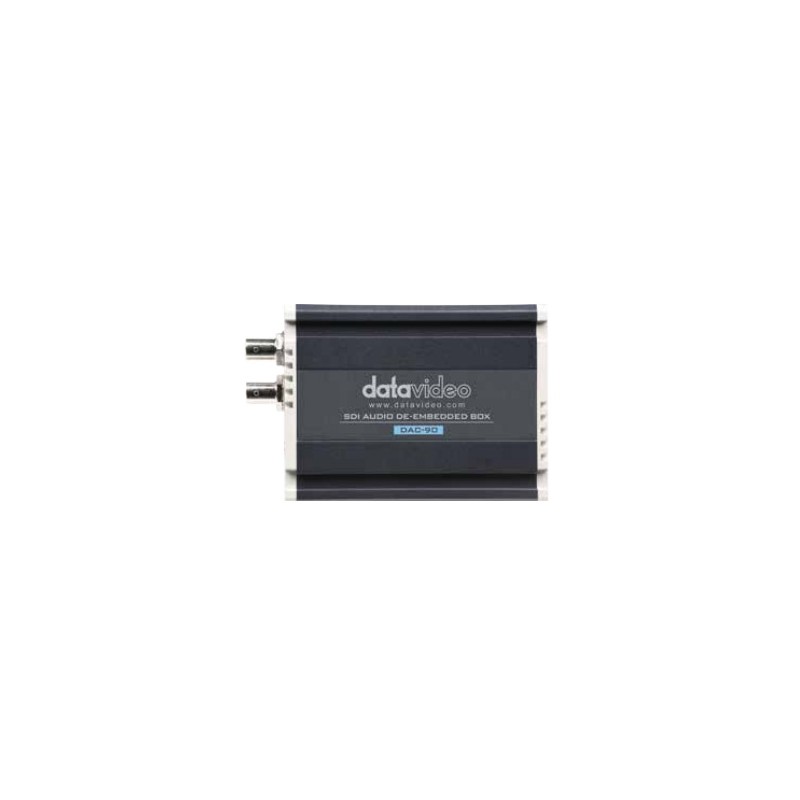

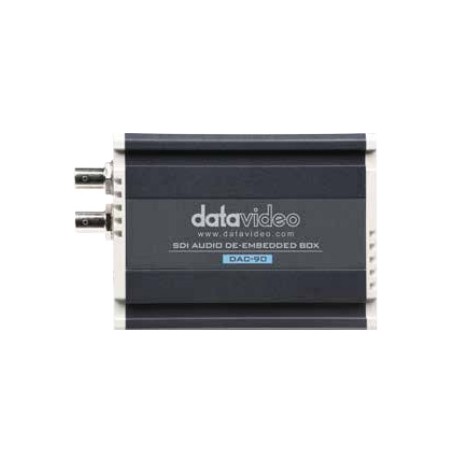

HD/SD-SDI Audio De-embedded Box
DAC-90
DAC-90 is an audio de-embedder box that allows users to de-embed 16 analog audio signals (4 at a time) from SDI video signal
DAC-90 is an audio de-embedder box that allows users to de-embed 16 analog audio signals (4 at a time) from SDI video signal. It features 3G/HD/SD-SDI to support up to 1080p/60 video, automatically detecting and switching between different formats, and provides 4 mini XLR audio
connectors for outputting analog audio to audio devices such as, recorders, switchers, and audio mixers. The Audio box also has SMPTE and EBU settings
Specification
- SDI Video Input : 3G/HD/SD-SDI x 1
- SDI Video Output : 3G/HD/SD SDI x 1 (Re-clocked Loop through)
- Analog Audio Input : Mini XLR (Balanced) x 4
- Indicator : Power LED x 1 Audio Level LED : 4 rows
- Updates and Configuration : Mini USB x 1
- Audio Format Selection : SMPTE, EBU
