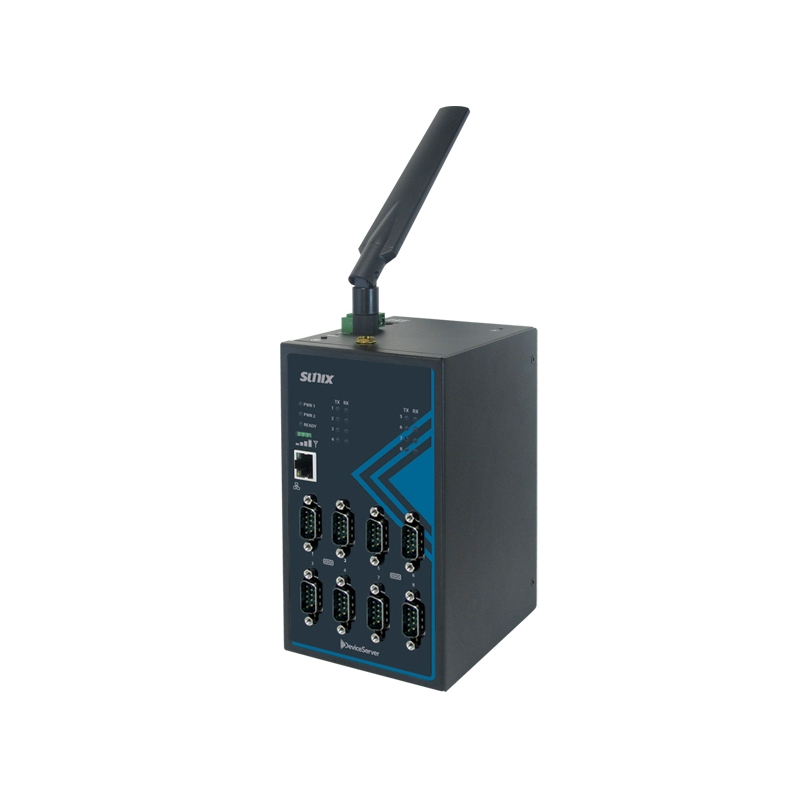

8-port RS-232 Industrial Serial Device Server
IDSX08DW0
IDSX08DW0 allows users to expand 8 RS-232 ports over Ethernet connection, With SUNIX DPL2000Q High-Performance Ethernet-UART controller, allowing you to network your existing serial devices with only basic configuration.
รับประกัน 3 ปีเต็ม
Spec sheetIDSX08DW0 allows users to expand 8 RS-232 ports over Ethernet connection, With SUNIX DPL2000Q High-Performance Ethernet-UART controller, allowing you to network your existing serial devices with only basic configuration. SUNIX Device Server improves solution deployment efficiency to achieve greater reliability in industrial automation applications.
SUNIX Device Server series in order to keep system stable, it supports 2 ways 12~48VDC redundant power input. In addition, software enabled terminators, RS-232 interface selection are the best user experience, and as well built with many of SUNIX advanced features and technologies, making it the best solution for industrial and harsh automation applications.
Features
- Multi-serial ports supporting RS-232.
- Optional 10/100M Ethernet and 802.11 b/g/n WiFi.
- Support Real COM, TCP, and UDP socket mode.
- Configure via Telnet/Web/Windows utility.
- 15KV ESD protection for all serial signal lines meeting IEC-61000-4-2 standard.
- Support two ways 12~48VDC redundant power input.
- Support Wall Mounting & DIN-rail Mounting Installation.
- Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.
Specifications
Serial Communication
| Interface | RS-232 | Baud rate | 50bps ~921.6Kbps |
| Controller | SUNIX DPL2000Q | Stop bit | 1, 1.5, 2 |
| BUS | Ethernet | Parity | even, odd, none, mark, space |
| No. of Port | 8-port | Flow Control | Xon/Xoff (software) |
| FIFO | 1Kbyte Hardware / per port | Connector | DB9 Male |
| Signal |
RS-232: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
|
||
| Protection | ±15KV ESD IEC-61000-4-2 Air Discharge ±8KV ESD IEC61000-4-2 Contact Discharge ±4KV ESD IEC61000-4-2 Level2 Line-to-Line |
||
Software
| Network Protocols | ICMP, IPv4, TCP, UDP, Telnet, ARP/RARP, HTTP, DHCP |
| Configuration Options | Web Console、Windows Utility、Telnet Console |
| Windows COM Drivers | Microsoft Client: Windows Vista / 7 / 8.1 / 10 (x86/x64) Microsoft Server: Windows Server 2008 / 2012R2 (X64) |
Ethernet Communication
| Number of Ports | 1-port, Ethernet Switch Port |
| Speed | 10/100 Mbps, auto MDI/MDIX |
| Connector | RJ45 |
| Magnetic Isolation Protection | 1.0K Built-in |
Wireless Communication
| Standard Compliance | 802.11 b/g/n |
| ISM Band | 2.4GHz |
| Network Modes | Infrastructure, Ad-Hoc |
| Transmit Power | 802.11n: 13.5dBm ± 1.5dBm |
| Receive Sensitivity | 150M：-68dBm@10% PER; 130M：-68dBm@10% PER 108M：-68dBm@10% PER; 54M：-72dBm@10% PER 11M：-85dBm@10% PER; 6M：-88dBm@10% PER |
| Wireless Security | • OpenWEP、SharedWEP • WEPAuto、WPA、 WPA2、 WPA2-PSK • WPAPSKWPA2PSK • WPA1WPA2 ( WPA and WPA2 hybrid mode ) • 802.1x |
| Antenna Connector | RP SMA Jack |
| Antenna | Frequency：2.4G ~ 2.5GMHz Peak gain： 4 dBi Impedance：50 Ω Connector ：RP SMA PLUG Length ：163 (mm) |
Power Requirements
| Input Voltage | 12V ~ 48VDC |
| Power Consumption | 12W @ 12VDC |
| Connector |
T3-pin Terminal Block
ψ2.0mm DC-Jack
|
Regulatory Approvals
| Hardware EMC | CE, FCC, VCCI, BSMI |
Environment
| Operation Temperature | 0 to 80°C (32 to 176°F) |
| Operation Humidity | 5 to 95% RH (non-condensing) |
| Storage Temperature | -10 to 85°C (-14 to 185°F) |
Physical Characteristics
| Housing | Metal IP30 Standard |
| Weight | 1130 g |
| Installation | Wall Mounting & DIN-rail Mounting Kit |
| Dimensions | 92 x168 x112(mm), 3.6 x 6.6 x 4.4 (inch) |
Download Driver
| Driver | DeviceServer Driver V1.0.15.0 |  |
| Version | Ver 1.0.15.0 | |
| Update | 2018-11-06 15:41:41 | |
| Size | 4.8MB | |
| OS |
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
|
