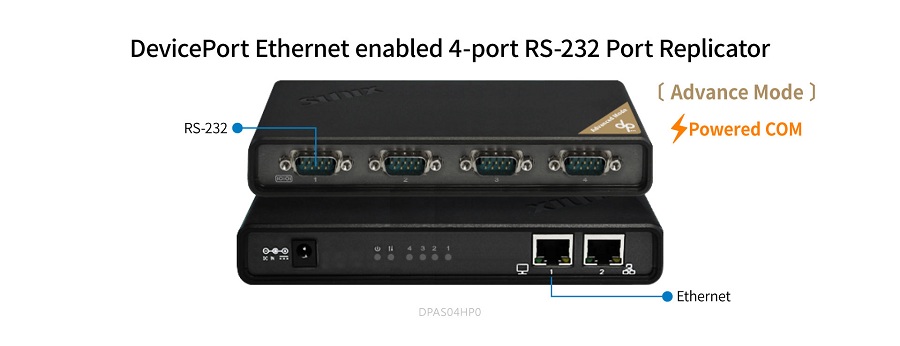

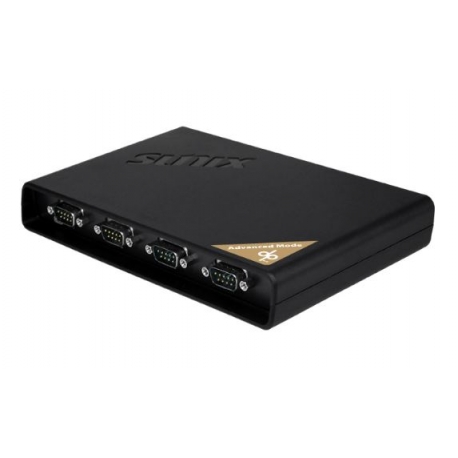

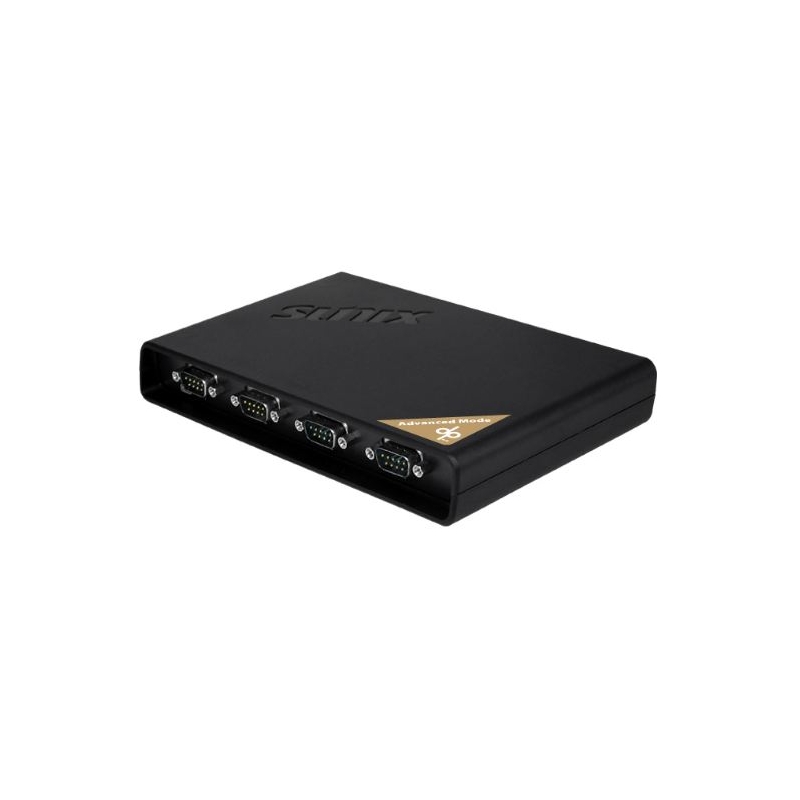

DevicePort Advanced Mode Powered COM Ethernet enabled 4-port RS-232 Port Replicator
DPAS04HP0
DPAS04HP0 allows users to expand four RS-232 Powered COM ports over Ethernet connection, and it works on any windows based desktop, thin client, laptop, All-in-one, and tablet PC computers.
รับประกัน 3 ปีเต็ม
Spec sheetDPAS04HP0 allows users to expand four RS-232 Powered COM ports over Ethernet connection, and it works on any windows based desktop, thin client, laptop, All-in-one, and tablet PC computers. With SUNIX DPL2000Q High-Performance Ethernet-UART controller and exclusive I/O Redirection Technology, DevicePort® creates physical COM ports that support real time data communication, Smart COM on/off-line deployment, and Ethernet-COM port hot-plug capability; user can expand RS-232 COM port easily without complex software configuration. SUNIX DevicePort® improves solution deployment efficiency to achieve greater reliability in commercial and industrial automation applications.
Features

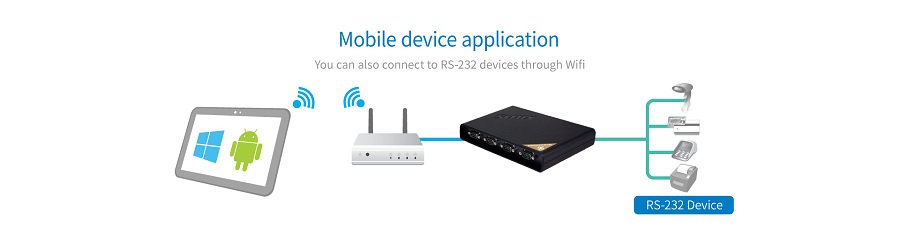

- Expands 4 RS-232 serial ports over Ethernet or WiFi.

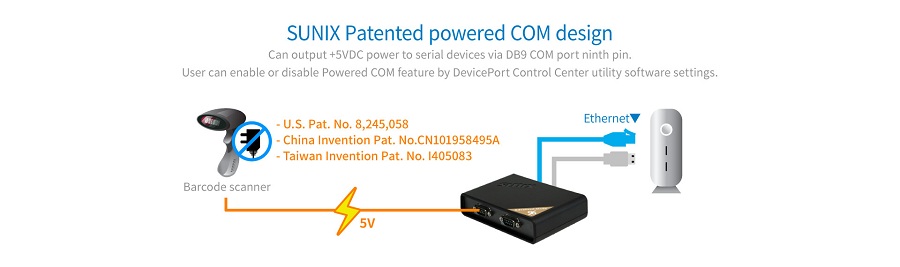

- Provides RS-232 serial ports with +5VDC power output via COM 9th pin.
- Communication speeds up to 115.2Kbps.
- Real-Time data transmitting (Real COM) without complicated IP setup.

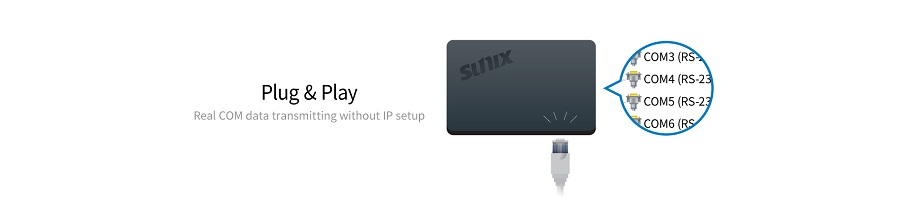

- COM Port Auto-Detect and Port-Mapping supports Plug-N-Play.
- Built-in with SUNIX DPL2000Q High-Performance Ethernet-UART controller.
- Built-in dual 10/100 Ethernet ports for Ethernet cascading capability.
- Compatible with existing software and AP.

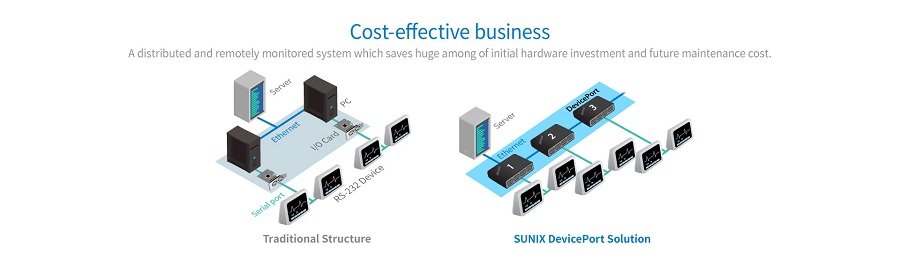

- To make wiring simple, fast, and more space efficient.

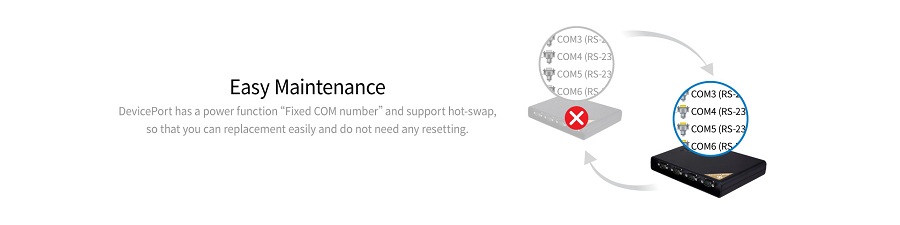

- Easy maintenance with Fixed COM number and Hot-Swap.

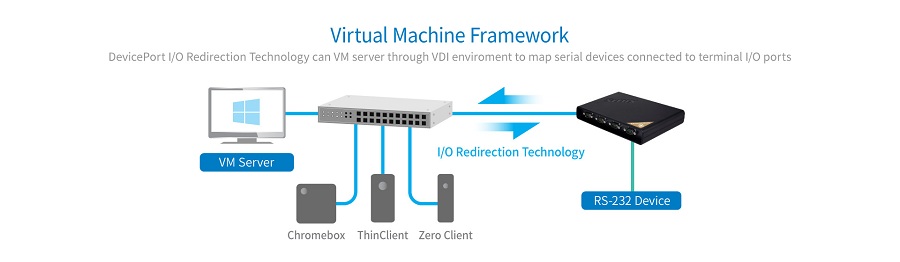

- SUNIX DevicePort proprietary Ethernet I/O Redirection Technology.

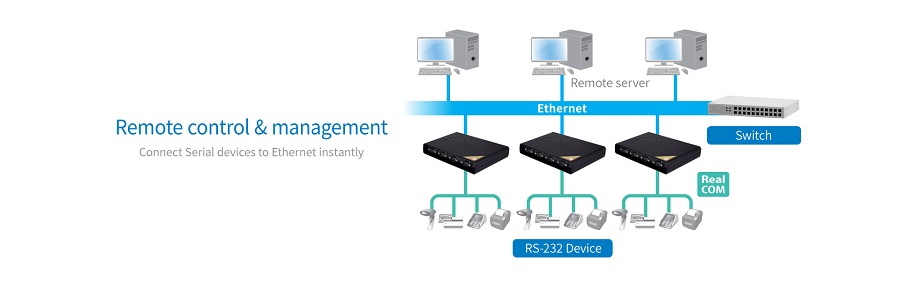

- Supports Daisy Chain Topology and up to 255 COM ports expansion.

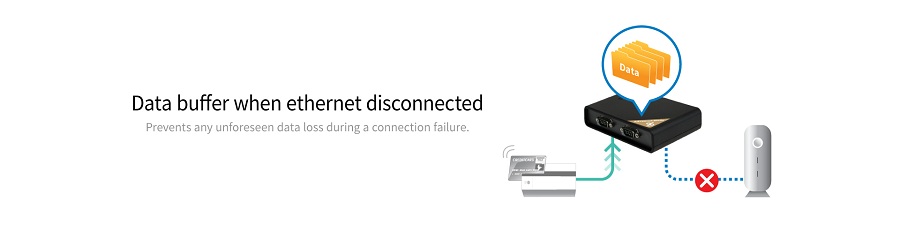

- Data buffer prevents any unforeseen data loss during a connection failure.
- Flexible port configuration with DevicePort on/off-line smart COM deployment.(Note 2)
- 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
- Low power consumption design of 2.5W for meeting Green Environmental movement.
- Certified by CE, FCC, VCCI, BSMI, RoHS and Microsoft WHQL approval.
Specification
| Serial Communication | |||
| Interface | RS-232 | Baud rate | 50bps ~115.2Kbps |
| Controller | SUNIX DPL2000Q | Stop bit | 1, 1.5, 2 |
| BUS | Ethernet | Parity | even, odd, none, mark, space |
| No. of Port | 2-port | Flow Control | Xon/Xoff (software) |
| FIFO | 1Kbyte Hardware / per port | Connector | DB9 Male |
| Signal | DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI | ||
| Protection | ±15KV ESD IEC-61000-4-2 Air Discharge | ||
| ±8KV ESD IEC61000-4-2 Contact Discharge | |||
| ±4KV ESD IEC61000-4-2 Level2 Line-to-Line | |||
| Ethernet Communication | |||
| Number of Ports | 4-port, Ethernet Switch Port | ||
| Speed | 10/100 Mbps, auto MDI/MDIX | ||
| Connector | RJ45 | ||
| Magnetic Isolation Protection | 1.0K Built-in | ||
| Power Requirements | |||
| Input Power Voltage | +5VDC | ||
| Output Powered COM Capacity | +5VDC / Maximum 750mA / each port | ||
| Note: Total power output capacity will be limited by connected power source. | |||
| Over Current Protection | 1.1A PTC fuse for each power signal | ||
| Power Consumption | 2.5W @ 5VDC (board only without power output to serial device) | ||
| Connector | DC-Jack | ||
| Driver Support | |||
| Windows Client | XP (X86) / 7 / 8 / 8.1 / 10 (X86/X64) | ||
| Windows Server | 2003 / 2008 / 2012R2 (X64) | ||
| Regulatory Approvals | |||
| Hardware | • EUR: CE EN55022 Class B, EN55024 | ||
| • US: FCC Part 15 Class B | |||
| • TAIWAN: BSMI: CNS13438 | |||
| • JAPAN: VCCI | |||
| Software | Microsoft WHQL Windows | ||
| • Microsoft Client: XP (X86) / 7 / 8 / 8.1 (X86/X64) | |||
| • Microsoft Server: 2003/2008/2012R2 (X64) | |||
| Environment | |||
| Operation Temperature | 0 to 45°C (32 to 113°F) | ||
| Operation Humidity | 5 to 95% RH (non-condensing) | ||
| Storage Temperature | -20 to 85°C (-4 to 185°F) | ||
| Physical Characteristics | |||
| Housing | ABS, PC, Metal | ||
| Weight | 283g | ||
| Dimensions | 190x119.58x27(mm), 7.5x4.8x1.0(inch) | ||
| Note: 1.DevicePort Advance Mode limits specific Ethernet port connection, and it does not works on router operation. 2.DevicePort on/off-line smart COM deployment. - Auto connection and mapping with MAC address bound. - Keeps physical COM port in system when DevicePort under off-line mode. - Serial signal staging until DevicePort recovery back to on-line mode. |
|||
Download Driver
| Driver | DevicePortAdvanced V3.0.8.0 |  |
| Version | Ver 3.0.8.0 | |
| Update | 2020-01-21 14:34:24 | |
| Size | 7.3MB | |
| OS |
Windows 10 32/64 bit
Windows 8.1 32/64 bit
Windows 8.0 32/64 bit
Windows 7 SP1 32/64 bit
Windows Server 2012 R2 64-bit
Windows Server 2012 64Bit
Windows Server 2008 R2 SP1 64bit
|
