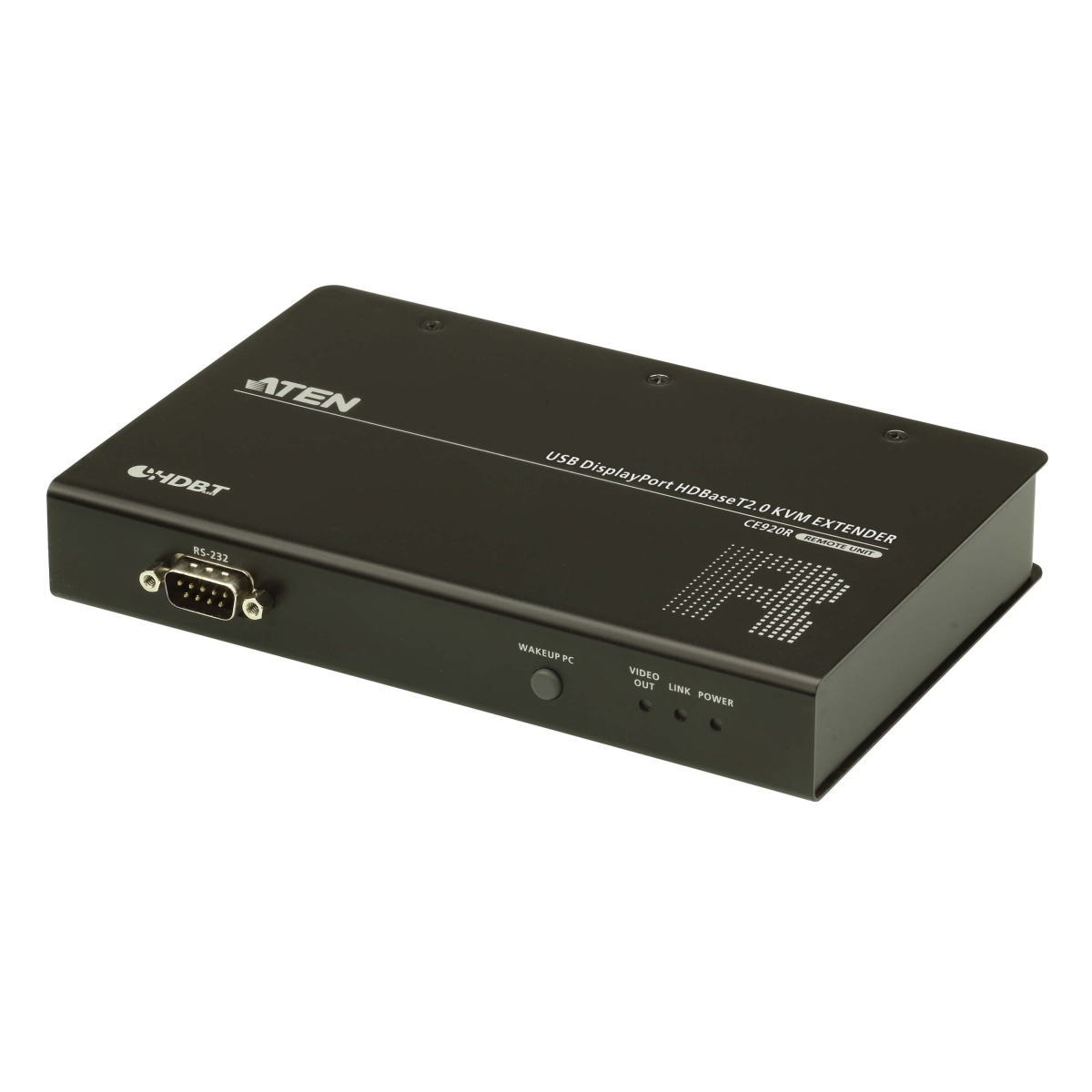

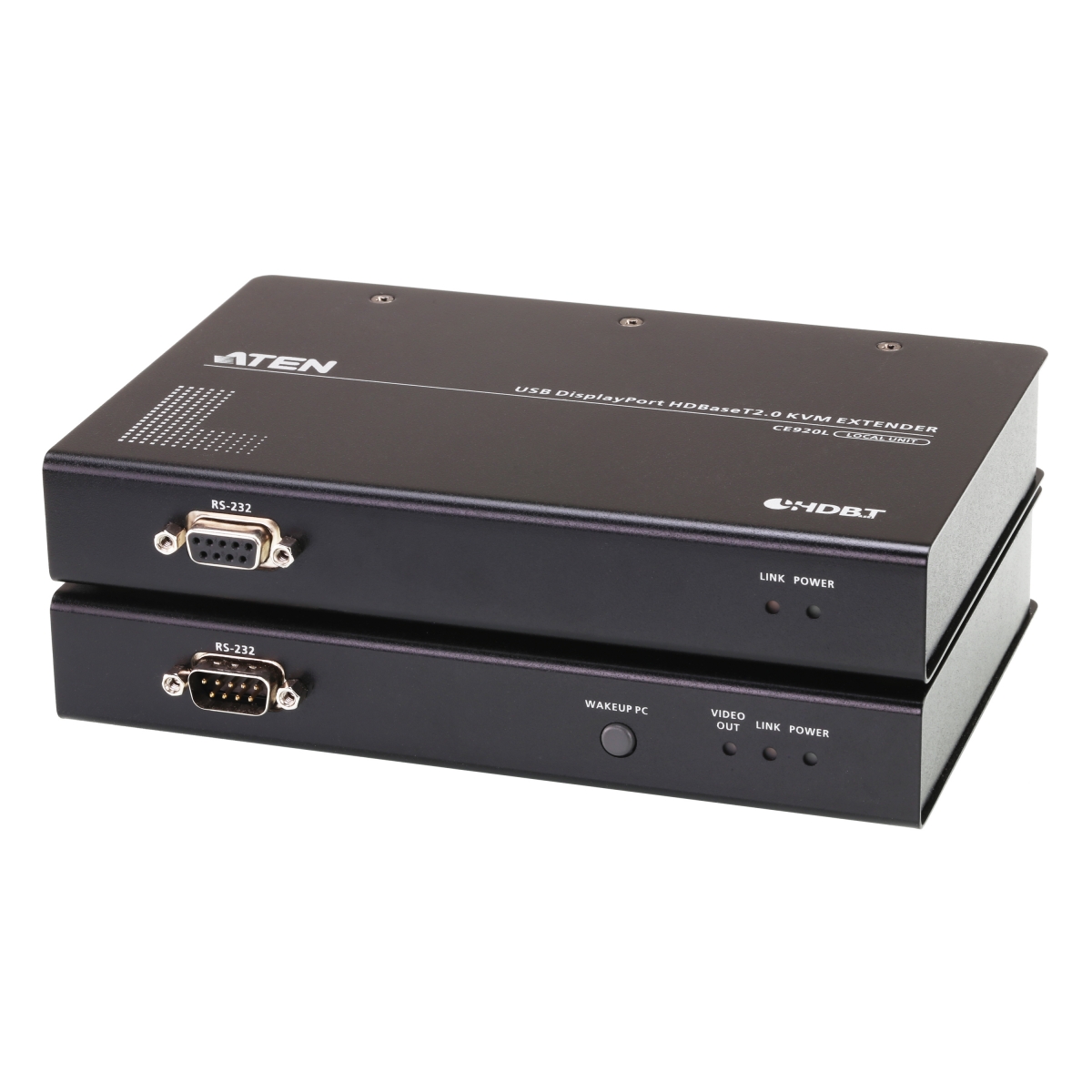

USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100m)
CE920
The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB and RS-232 signals up to 100 meters using a single Cat6.
รับประกัน 3 ปีเต็ม
ManualThe ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Features
- Supports HDBaseT™ 2.0 technology
- Extends video, audio, USB, RS-232 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Status detection and LED indication for HDBaseT™ signal transmission on remote unit - EDID Buffer for smooth power-up and the highest quality display
- Long distance with superior video quality
- HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)
- HDBaseT™ Long-Reach mode up to 1080P @ 150m - Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
- USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
- HDCP Compatible
- Supports individual 2-channel stereo audio for high-quality audio applications
- Supports PC wakeup function via single pushbutton
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

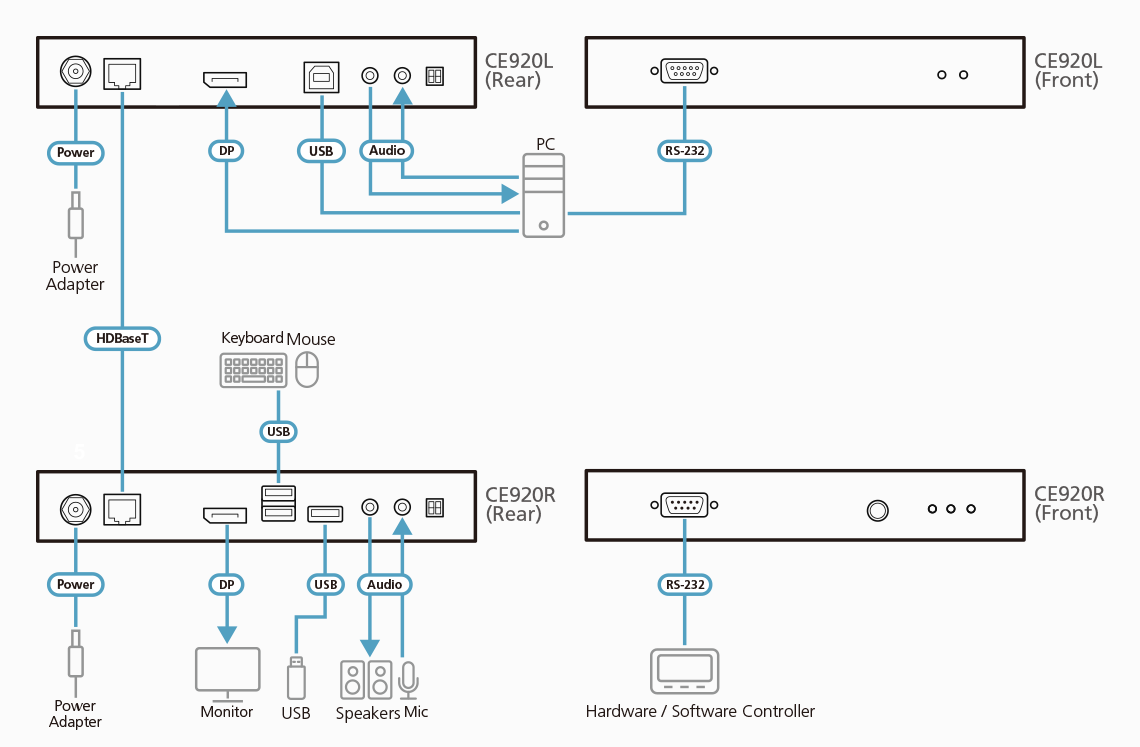

Diagram

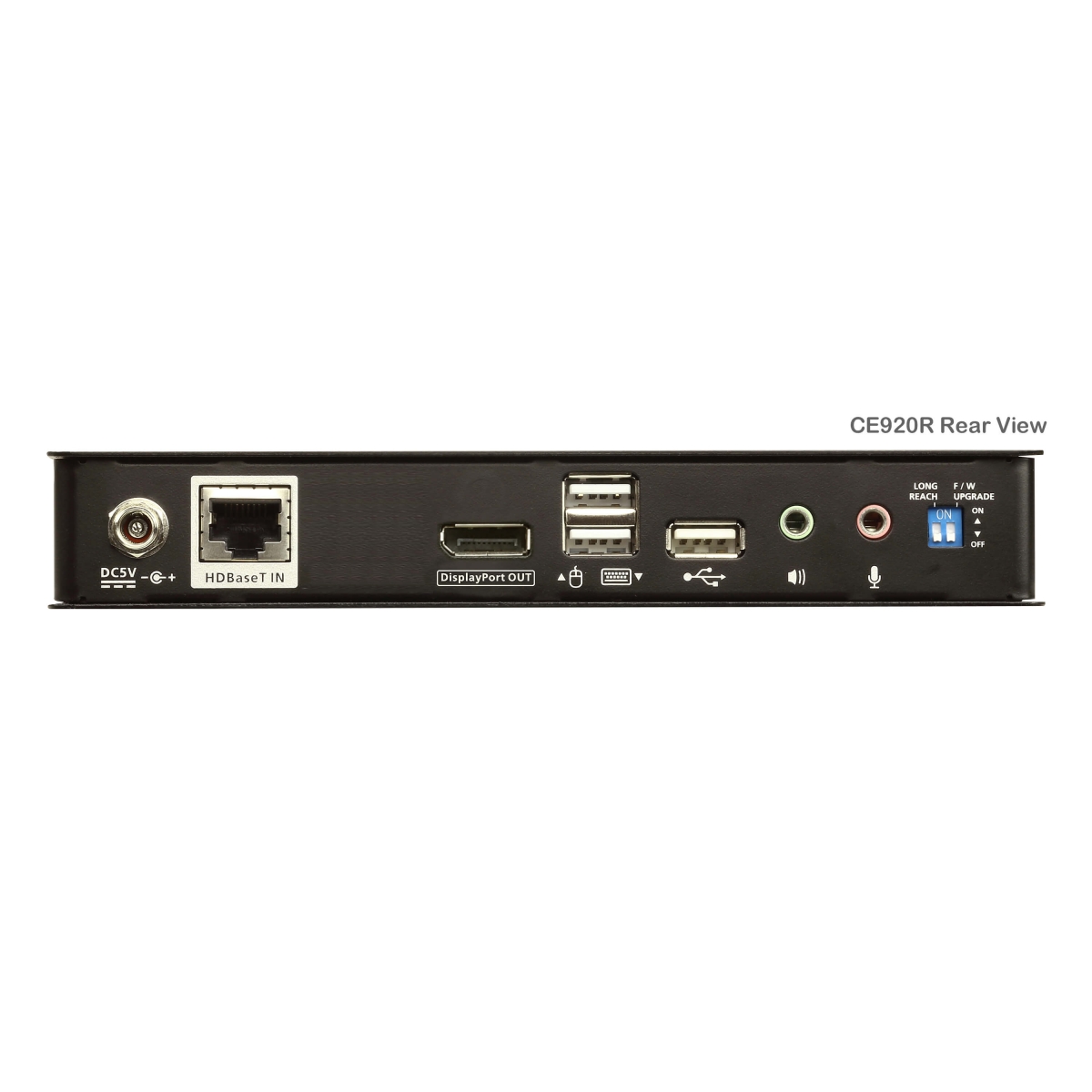

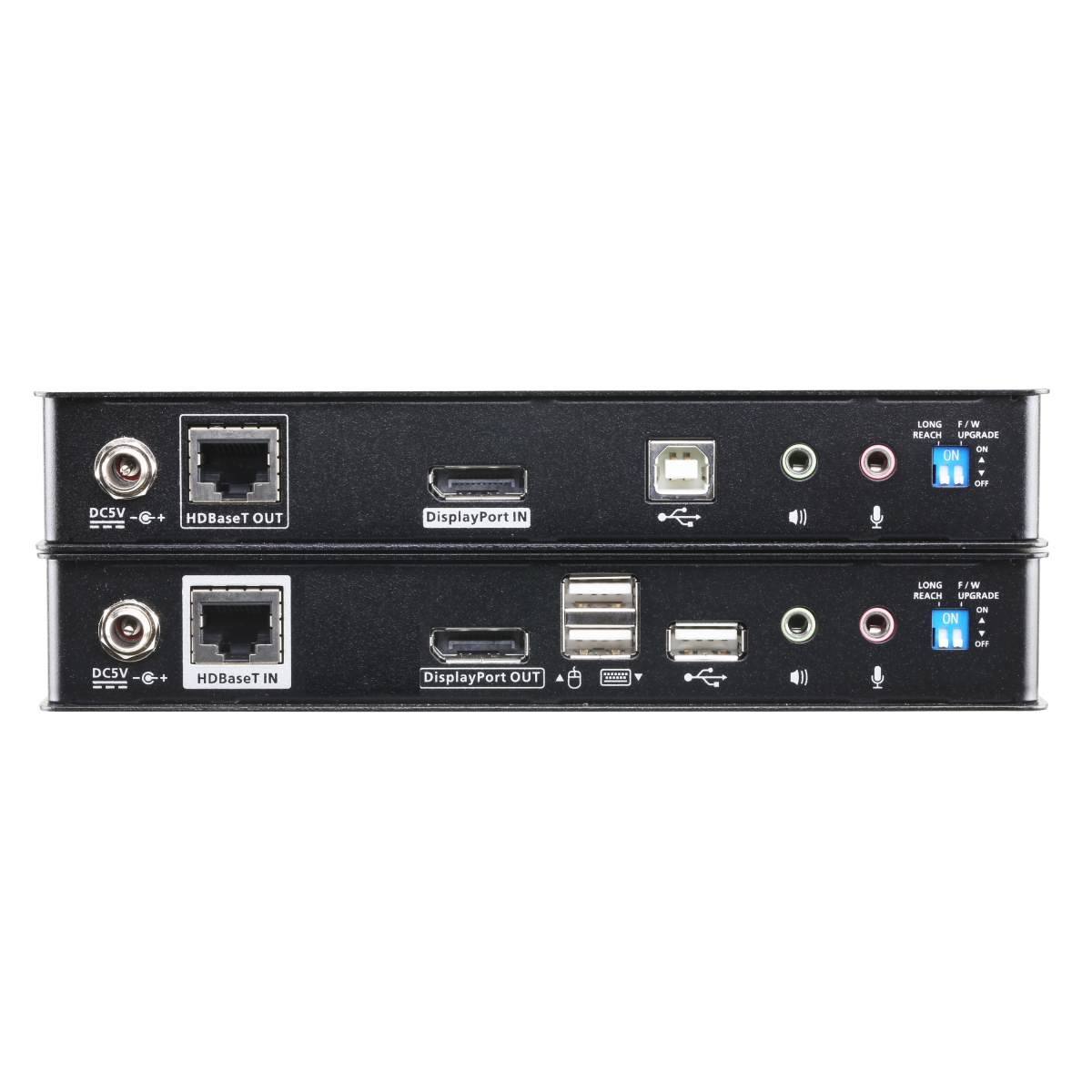

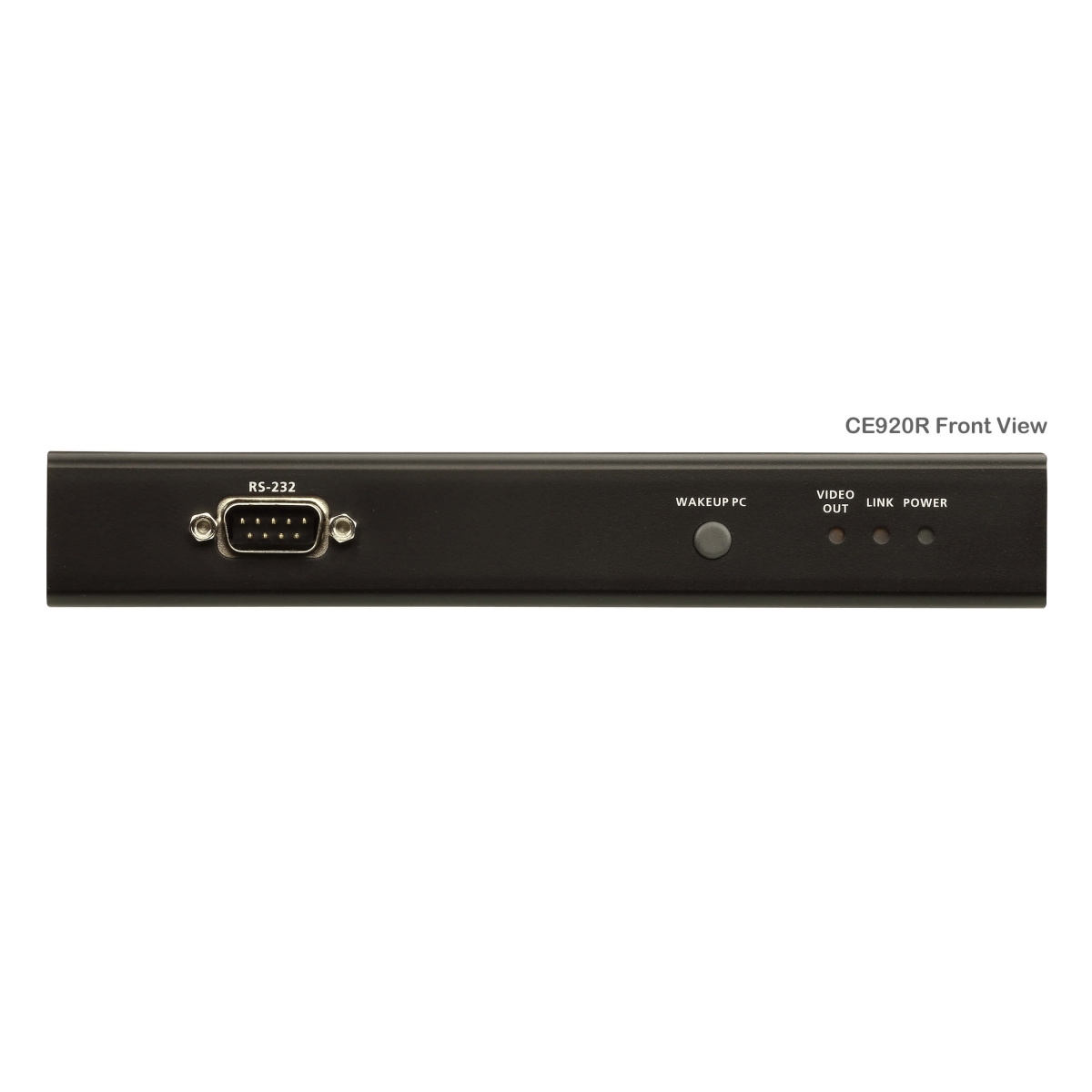

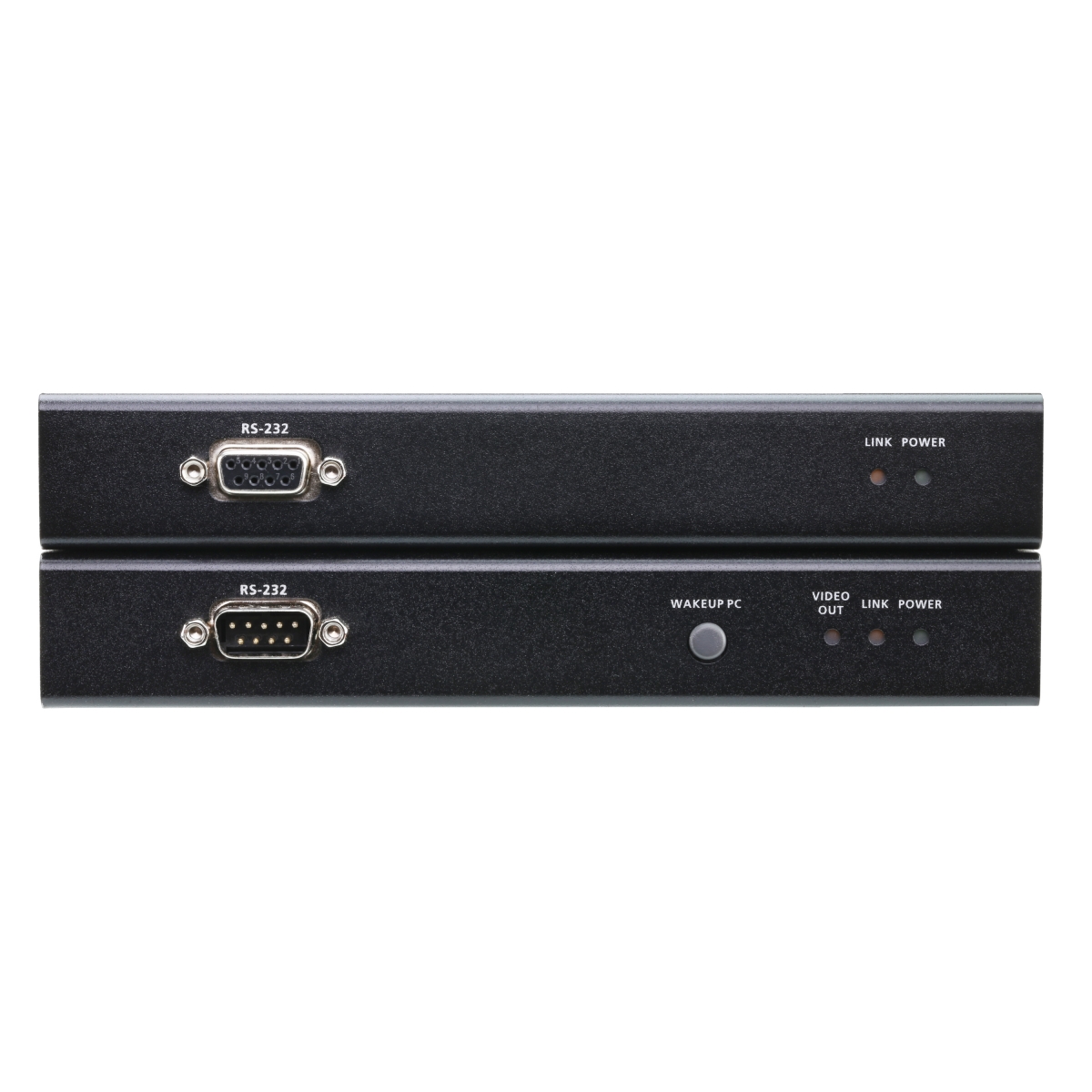

Specification
| Model | CE920L | CE920R |
| Connectors | ||
| Console Ports | N/A | 1 x DisplayPort Female (Black) |
| 3 x USB Type A Female | ||
| 1 x Mini Stereo Jack Female (Green) | ||
| 1 x Mini Stereo Jack Female (Pink) | ||
| 1 x RJ-45 Female (Black) | ||
| KVM Ports | 1 x DisplayPort Female (Black) | N/A |
| 1 x USB Type B Female (White) | ||
| 1 x Mini Stereo Jack Female (Green) | ||
| 1 x Mini Stereo Jack Female (Pink) | ||
| 1 x RJ-45 Female (Black) | ||
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack with locking | 1 x DC Jack with locking |
| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| LEDs | ||
| Power | 1 (Green) | 1 (Green) |
| Link | 1 (Orange) | 1 (Orange) |
| Video Output | N/A | 1 (Orange) |
| Switches | ||
| Long Reach Mode Switch | 1 x Slide Switch | 1 x Slide Switch |
| Firmware Upgrade | 1 x Slide Switch | 1 x Slide Switch |
| Pushbuttons | ||
| Wakeup button | N/A | 1 x Push button |
| Video | Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) | Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) |
| 1080P@100m (Cat 5e/6/6a) | 1080P@100m (Cat 5e/6/6a) | |
| *4K supported: | *4K supported: | |
| 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) | 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) | |
| Power Consumption | DC5V:3.99W:19BTU | DC5V:6.74W:47BTU |
| Environmental | ||
| Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.63 kg ( 1.39 lb ) | 0.64 kg ( 1.41 lb ) |
| Dimensions (L x W x H) | 18.20 x 12.19 x 2.87 cm | 18.20 x 12.19 x 2.87 cm |
| (7.17 x 4.8 x 1.13 in.) | (7.17 x 4.8 x 1.13 in.) | |
| Note | DisplayPort v1.1 supports up to 4Kx2K @ 30Hz. | DisplayPort v1.1 supports up to 4Kx2K @ 30Hz. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
