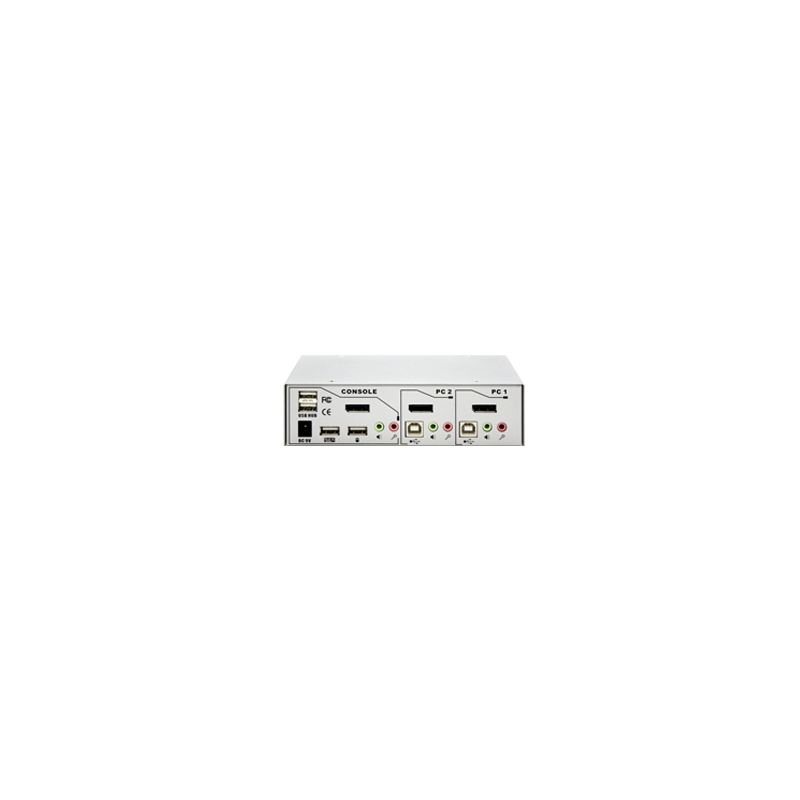

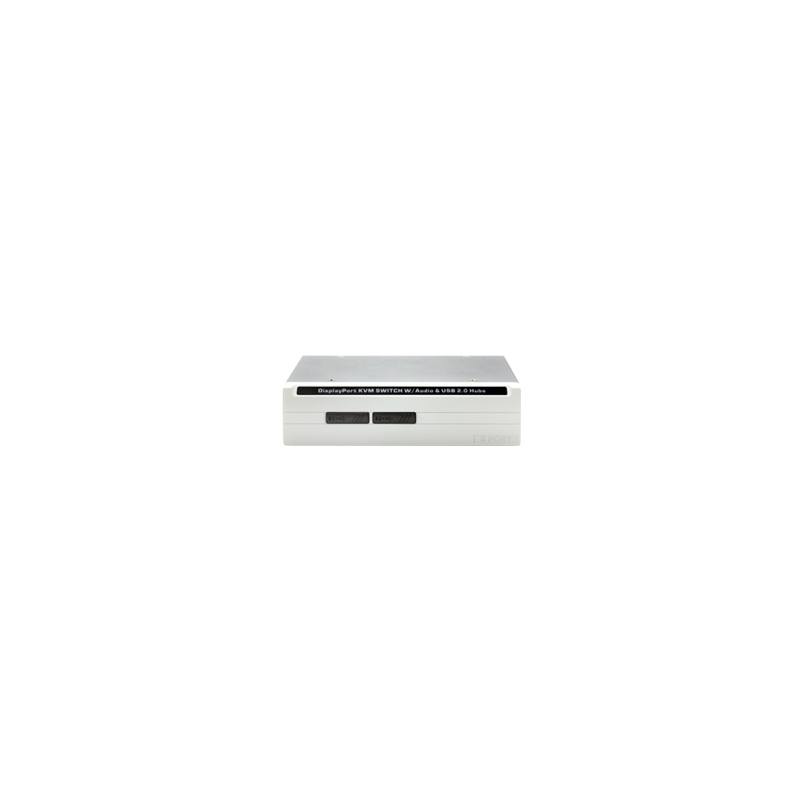

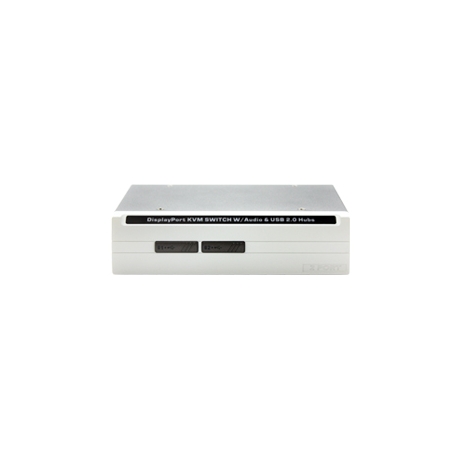

2-Port DisplayPort USB KVM Switch w/ Audio, Mic & Hub
KP912U
KP912U is a 2-port DisplayPort USB KVM Switch with Audio and Microphone switching function. It allows you to control 2 USB-enabled multimedia computers with DisplayPort video interfaces, using only one USB keyboard, mouse, monitor and a set of 7.1 channel surround-sound speakers as well as stereo speakers and microphone.
KP912U is a 2-port DisplayPort USB KVM Switch with Audio and Microphone switching function. It allows you to control 2 USB-enabled multimedia computers with DisplayPort video interfaces, using only one USB keyboard, mouse, monitor and a set of 7.1 channel surround-sound speakers as well as stereo speakers and microphone. You can select the computers, USB device hub port control and audio/mic channels either simultaneously or independently, using either front-panel buttons or keyboard hotkeys. This DisplayPort USB KVM Switch adopts the DisplayPort interface technology that implements the latest display technology in bringing forth a High Quality digital picture that addresses the ever increasing demands of the video display.
Features
- 2-port DisplayPort USB KVM switch with audio and microphone switching and 2 x USB 2.0 hub ports
- USB Keyboard and mouse support
- USB 2.0 Specification compliant
- DisplayPort interface technology supports High Quality / High Definition digital video signal
- Built-in multi-channel audio support within the DisplayPort interface (switching is bound with PC channel switching)
- Additional stereo audio and microphone channels available as alternative (audio/mic switching can be independent from PC channel switching)
- Independent/simultaneous USB hub port, audio&mic channels and PC port selection
- Support for Windows 98/SE/ME/2000/XP/2003 Server/Windows 7 and Linux and Mac OS.
- Built-in 2-port USB 2.0 device hub for sharing high-speed USB devices
- Multi-platform support for PCs and Macintosh G3/G4/G5 MACs, iMACs, Mac Mini, PowerBook
- Channel selection/Hub port control by front-panel push buttons and keyboard hotkeys
- Digital video resolution support up to 2560 x 1600
Specification
| Model No. | KP912U |
| Product Description | 2-Port DisplayPort USB KVM Switch w/ Audio, Mic & Hub |
| Number of Ports | 2 |
| Number of Console | 1 |
| Console Keyboard Connector | USB Type A Female |
| Console Mouse Connector | USB Type A Female |
| Console Video Connector | DisplayPort Female |
| Console Audio/Mic Connector | 2 x 3.5mm Audio/Mic Jack Female |
| Console USB Hub Ports | 2 x USB 2.0 Type A Female |
| PC Keyboard Connector | 2 x USB Type B Female |
| PC Mouse Connector | Via PC Keyboard Connector |
| PC Video Connector | 2 x DisplayPort Female |
| PC Audio/Mic Connector | 4 x 3.5mm Audio/Mic Jack Male |
| PC selection | Push Button / Hotkeys |
| PC port LED | 2 (Green) |
| Hub port LED | 2 (Red) |
| Digital Display Resolution | 2560 x 1600 |
| Keyboard & Mouse Emulation | Yes |
| Auto Scan Delay Time | 5~100 sec |
| Operation Temperature | 0 ~ 40°C |
| Storage Temperature | -20 ~ 60°C |
| Humidity | 0~90% RH, Non-Condensing |
| Power type | 2.1mm Power Jack |
| Power Adapter | DC 9V/0.8A |
| Weight | 510g |
| Dimension(L×W×H) | 165 x 103.5 x 45mm |
| Safety / Emission | FCC, CE |
