4-Port Smart DisplayPort VGA USB KVM Switch w/ USB 3.0 Hubs
KP914U3

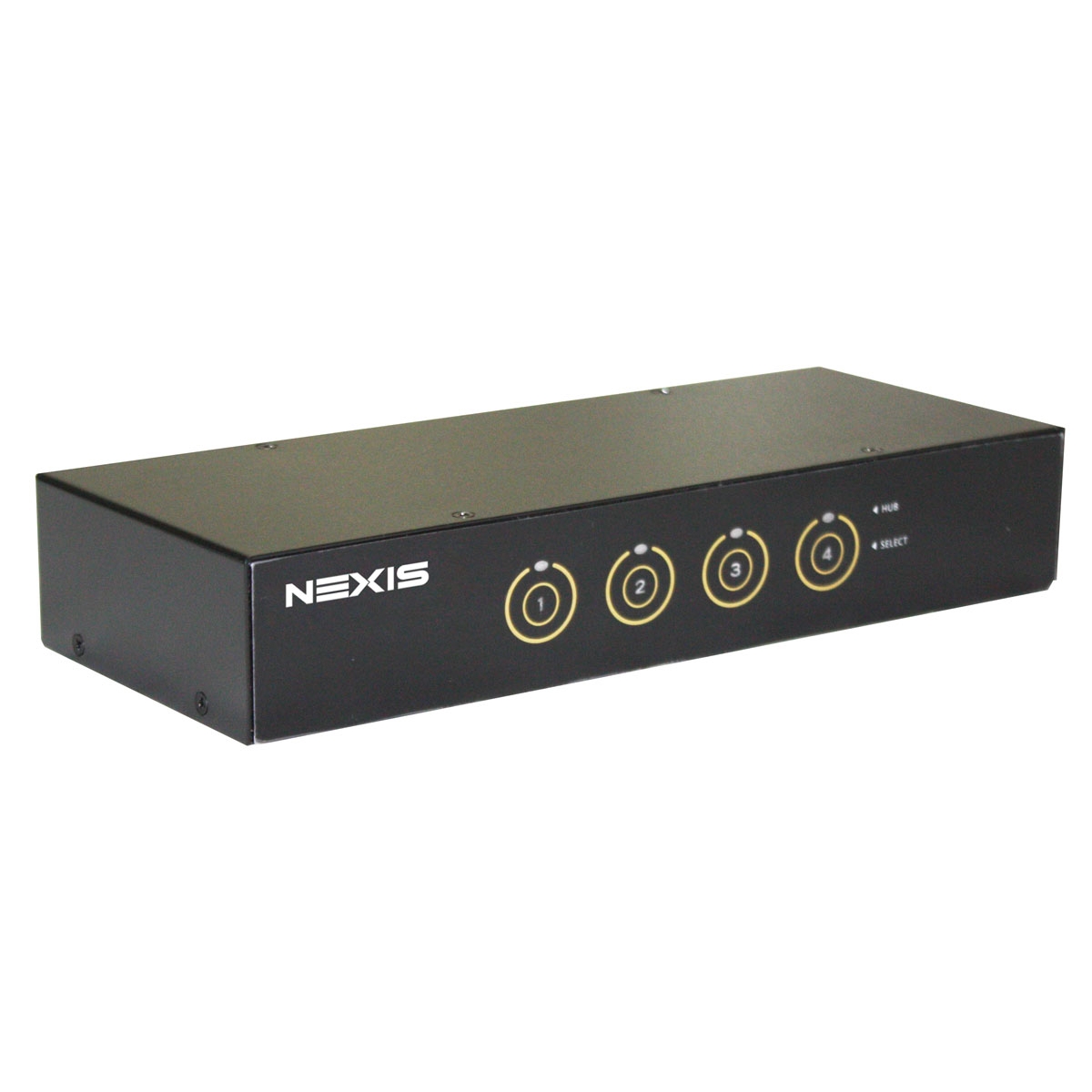

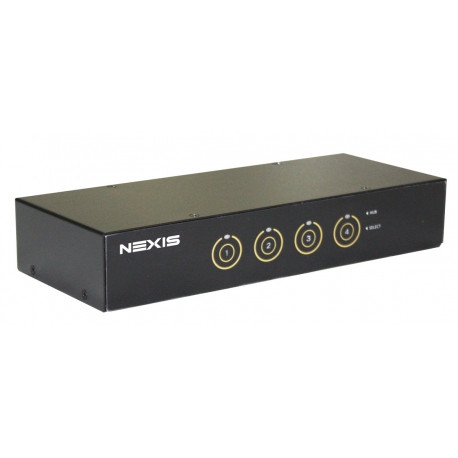

KP914U3 is a 4-Port USB KVM Switch that users can access, control, boot, and reboot their computers with a single set of keyboard, mouse, and DisplayPort monitor display.
KP914U3 is a 4-Port USB KVM Switch that users can access, control, boot, and reboot their computers with a single set of keyboard, mouse, and DisplayPort monitor display. It features the latest Smart Touch button for quick switch and two USB 3.0 device ports for fast data transfer between KVM and USB devices. Compare with USB 2.0, USB 3.0 is 10 times faster in transfer rate, which can satisfy modern data transfer with rich media and large digital files. Besides, it supports TTU (True Transparent USB) Emulation Technology which is capable of a complete versatility in dealing with the functional requirements of all types of advanced keyboards and mice.
Features
- Support large 30” DisplayPort monitor and above
- Resolution support for Digital Display: 2560 x 1600
- 2 x USB 3.0 device hub ports for high-speed USB device sharing
- Two channel stereo sound for theater audio experience
- True Transparent USB emulation technology for all types of keyboards and mice
- Smart-touch for quick switch
Specifications
| Model No. | KP914U3 |
| Product Description | 4-Port Smart Touch DisplayPort USB KVM Switch w/ USB 3.0 Hubs |
| Number of Ports | 2 |
| Number of Console | 1 |

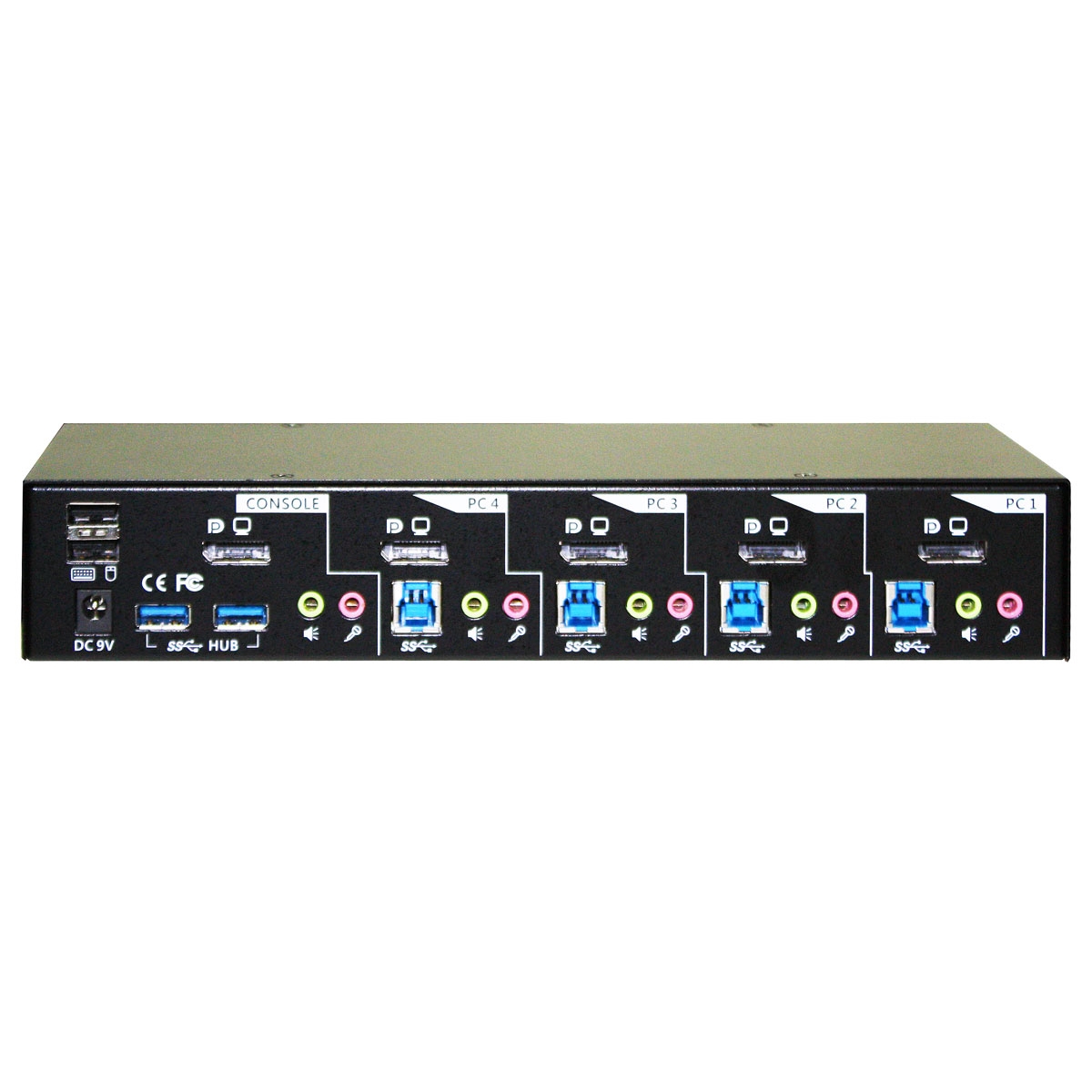

| Console Keyboard Connector | USB Type A Female |
| Console Mouse Connector | USB Type A Female |
| Console Video Connector | DisplayPort Female |
| Console Audio/Mic Connector | 2 x 3.5 mm Audio / Mic Jack Female |
| Console USB Hub Ports | 2 x USB 3.0 Type A Female |
| PC Keyboard Connector | USB Type B Female |
| PC Mouse Connector | Via PC Keyboard Connector |
| PC Video Connector | DisplayPort Female |
| PC Audio/Mic Connector | 3.5 mm Audio / Mic Jack Female |
| PC selection | Smart Touch / Hotkeys |
| Digital Display Resolution | 2560 x 1600 |
| Keyboard & Mouse Emulation | Yes (TTU) |
| Auto Scan Delay Time | 5 ~ 100 sec |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | - 20 ~ 60 °C |
| Humidity | 0 ~ 90 % RH, Non-Condensing |
| Power type | 2.1 mm Power Jack |
| Power Adapter | DC 9 V, 1 A |
| Safety / Emission | FCC, CE |
