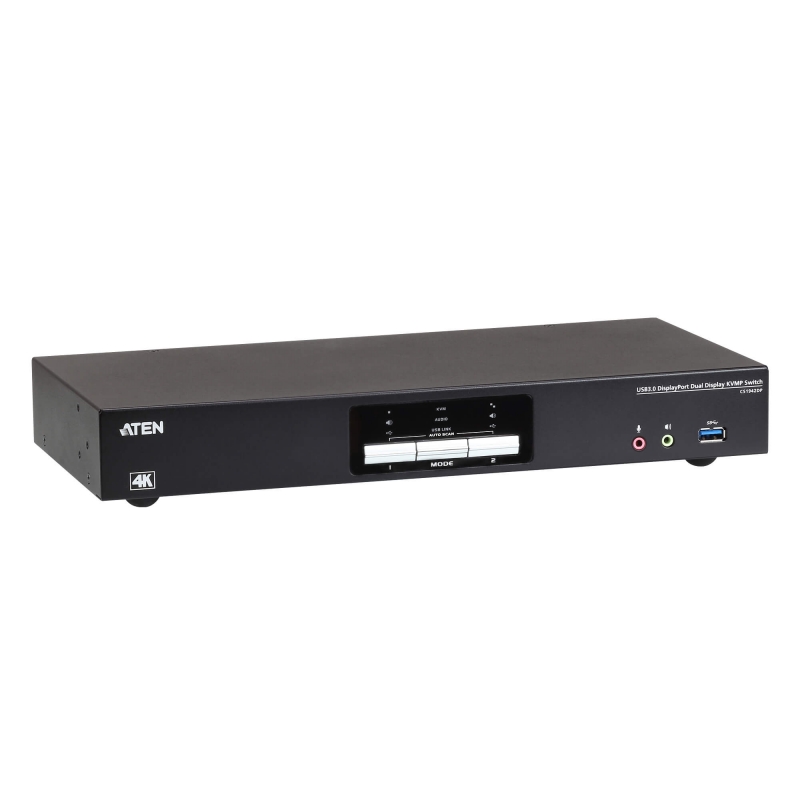

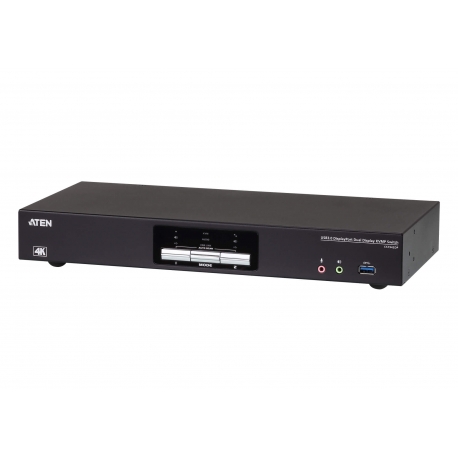

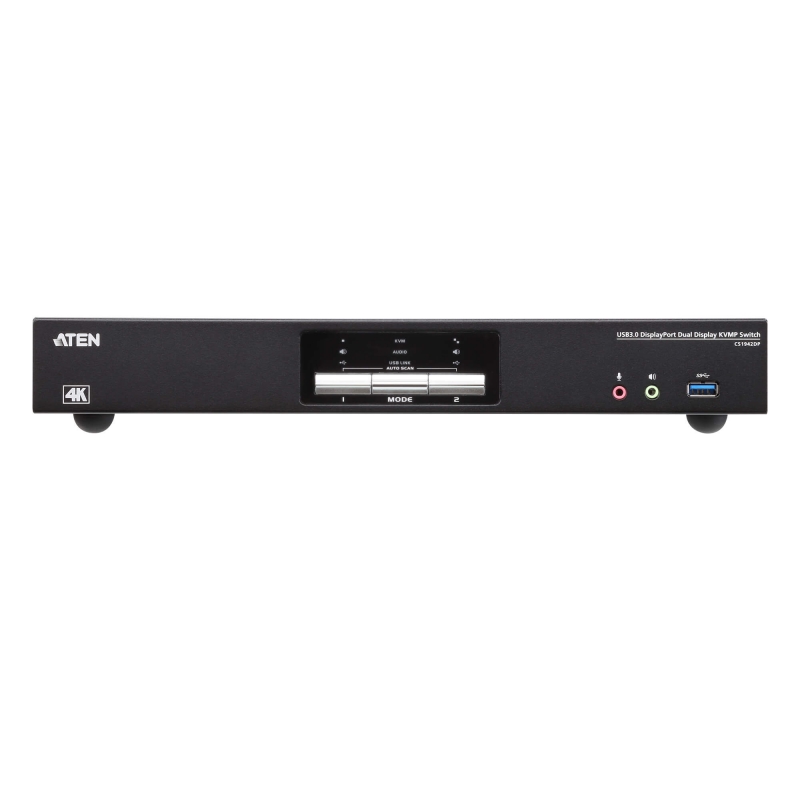

2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
CS1942DP
- KVM Switch สลับใช้งาน PC 2 เครื่อง ที่มี 2 DisplayPort output
- สลับใช้ 2 จอแบบ Extend monitor และ USB Keyboard/Mouse, ลำโพง, ไมค์ ชุดเดียวกัน
- รองรับความละเอียดสูงสุดถึง 4096x2160@60Hz, 3840x2160@60Hz และ 1920x1080@144Hz, 2560x1440@144Hz
- มี USB 3.1 Gen 1 Hub ในตัว สลับใช้อุปกรณ์ USB ได้
- DisplayPort Dual-Mode technology (DP++) รองรับการใช้ตัวแปลงเป็น HDMI, DVI
รับประกัน 3 ปีเต็ม
ManualThe ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
Features
- One USB keyboard and mouse controls two DisplayPort computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
- Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
- 2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports DisplayPort Dual-Mode technology (DP++)*
- Supports MST (Multi-Stream Transport)
- Supports Console keyboard emulation / bypass feature
- Supports Console mouse emulation / bypass feature
- Independent switching of KVM, USB, and Audio
- Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
- HDCP Compliant
- Supports HD audio**
- Power on detection
- Firmware upgradable
Note:
*DisplayPort Dual–Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
**HD audio through DisplayPort cannot be switched independently

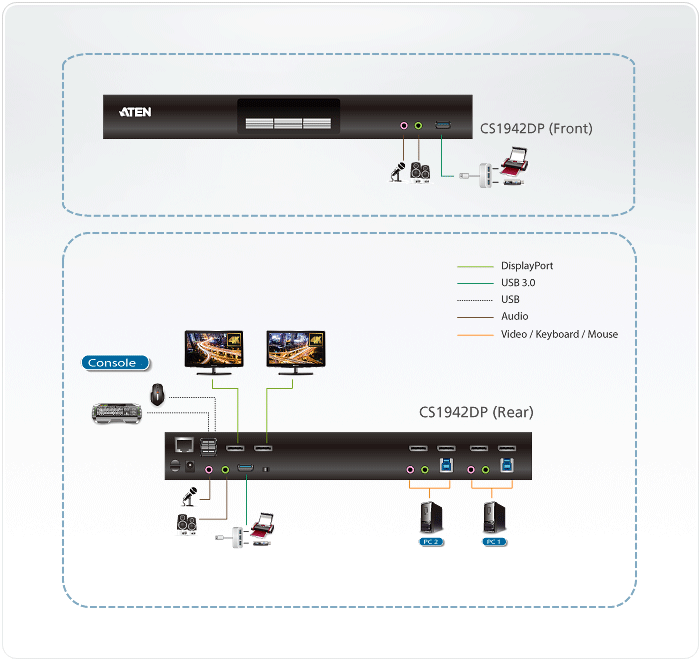

Diagram
Specification
| Computer Connections | 2 |
| Port Selection | Hotkey, Pushbutton, Mouse, RS-232 Commands |
| Video | 4096 x 2160 @ 60Hz |
| Connectors | |
| Console Ports | 2 x USB Type A Female |
| 2 x DisplayPort Female (Black) | |
| 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) | |
| 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) | |

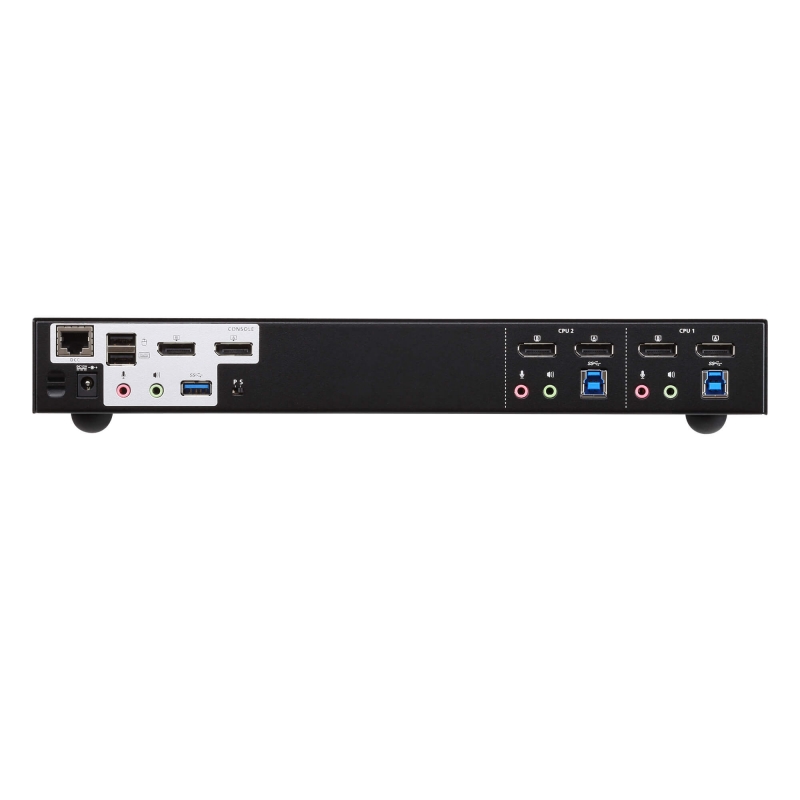

| KVM (Computer) Ports | 2 x USB3.1 Gen1 Type B Female (Blue) |
| 4 x DisplayPort Female (Black) | |
| 2 x 3.5mm Audio Jack Female (Green) | |
| 2 x 3.5mm Audio Jack Female (Pink) | |
| Daisy Chain Ports | 1 x RJ-45 Female |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear) |
| Switches | |
| Selected | 3 x Pushbutton |
| Station Selection | 1 x Slide Switch |
| Emulation | |
| Keyboard / Mouse | USB |
| Scan Interval | 1-99 seconds (default: 5 seconds) |
| Power Consumption | DC12V:3.48W:73BTU |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 1.54 kg ( 3.39 lb ) |
| Dimensions (L x W x H) | 33.50 x 15.66 x 4.40 cm |
| (13.19 x 6.17 x 1.73 in.) | |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
