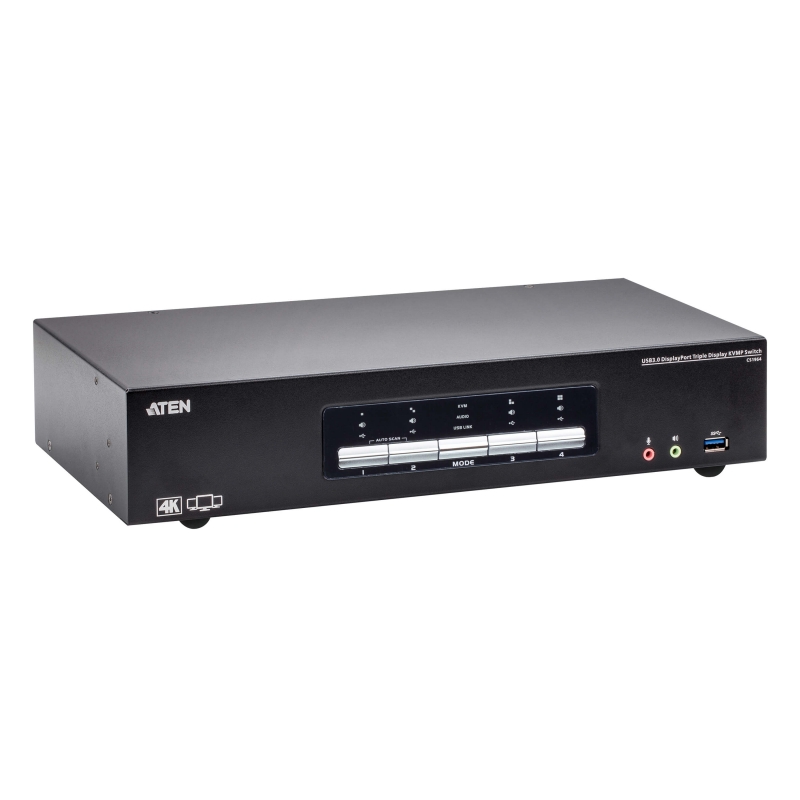

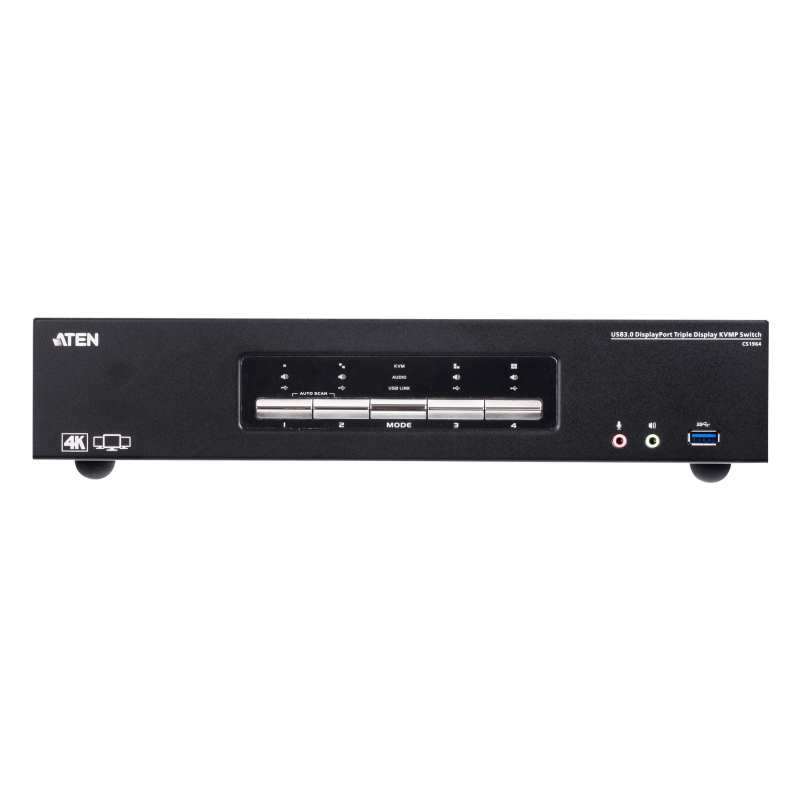

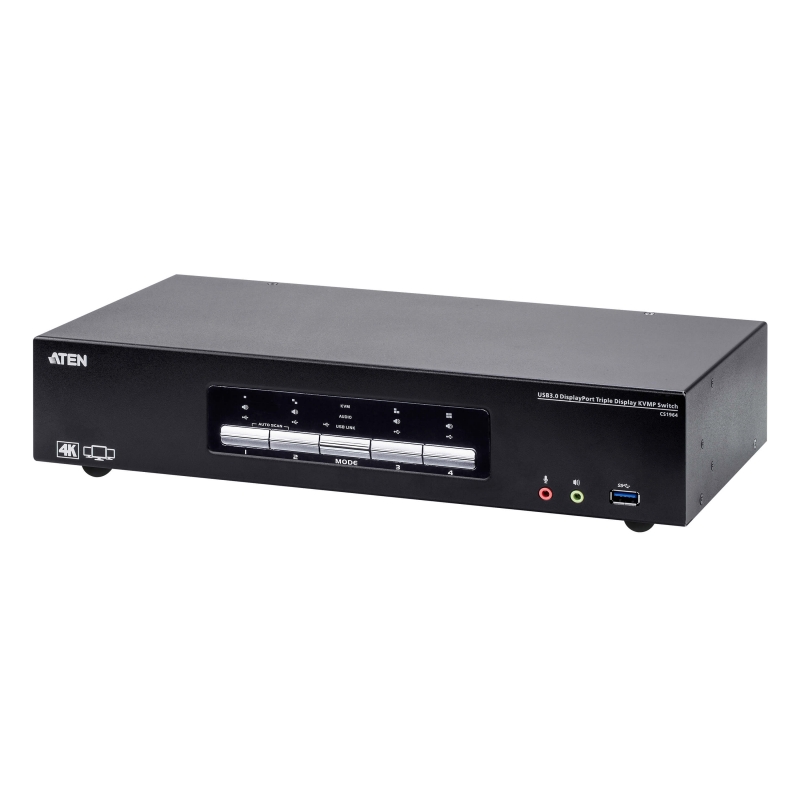

4-Port USB3.0 4K DisplayPort Triple Display KVMP™ Switch
CS1964
- KVM Switch สลับใช้งาน PC 4 เครื่อง ที่มี 3 DisplayPort output
- สลับใช้ 3 จอแบบ Extend monitor และ USB Keyboard/Mouse, ลำโพง, ไมค์ ชุดเดียวกัน
- รองรับความละเอียดสูงสุดถึง 4096x2160@60Hz, 3840x2160@60Hz และ 1920x1080@144Hz, 2560x1440@144Hz
- มี USB 3.1 Gen 1 Hub ในตัว สลับใช้อุปกรณ์ USB ได้
- สลับ PC ด้วย ปุ่มกด, คีย์ลัด, เมาส์, RS-232
รับประกัน 3 ปีเต็ม
The ATEN CS1964 optimizes your desktop so you can effortlessly manage a triple-display multimedia workstation with instant, user-friendly access to four computers via a single USB keyboard, USB mouse and three HDMI monitors supporting resolutions up to 4K DCI (4096 x 2160 @ 60Hz). The CS1964 is equipped with ATEN’s patented Video DynaSync™ technology – which optimizes display resolution and speeds up switching between systems – as well as built-in USB 3.1 GEN hub for data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations with ease. It also features N-key Rollover, offering support for up to 15 simultaneous keystrokes without ghosting or jamming.
Financial Trading
Increased digitization has transformed financial services and has had a profound effect on trading infrastructure. Workers in the financial services industry often hold the fiscal well-being of an individual or entire company at their fingertips. This makes multi-display setups essential to effectively manage and evaluate critical financial data. Or, in the breakneck pace of an environment like a trading room, information such as share prices and global commodity pricing needs to be rigorously monitored in real time, a task that a single screen setup now renders nearly impossible. Another vital challenge technology this industry faces is the maintaining of data security in an age where financial data is constantly under risk of external attacks.
CAD/CAM
Desktop KVM solutions are a highly effective way to optimize workflow in post-production and graphic design environments. In fact, CAD/CAM design was among the first work environments in which a multiple-screen display was implemented, due to the large amount of complex content that needed to be viewed at once to be manipulated effectively. In addition, work in these areas requires precise video clarity and large data transfer rates. In order to effectively manipulate a variety of content at one time, CAD/CAM and post production engineers require KVM switches that are compatible with the most up-to-date display standards as well, offer seamless control of multiple computers, and allow high-speed access to a wide range of peripherals.
Control Room/Call Center
Desktop KVM switches are used in fast-paced control room and call center scenarios where distances from information sources aren’t long enough to require KVM extenders but multiple systems still need to be accessed from one console, allowing operators to efficiently and effectively monitor multiple information streams in order to make accurate mission-critical decisions. In these situations, such as air traffic control or emergency dispatch call centers, where detailed overviews of visual data from synchronized recording and replay systems are required so that reaction times are as fast as possible, it is also important that solutions offer maximum operator comfort while decreasing desktop clutter so that workflow remains smooth and unhindered.
Features
- One USB keyboard/mouse and three HDMI monitors control four DisplayPort computers
- Supports superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz); HDCP compliant
- Computer selection via pushbuttons, hotkeys, mouse*, and RS-232 Commands**
- Supports N-key Rollover*** (NKRO) – permits collision-free keying
- Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Supports six displays by connecting two triple display KVM switches
- Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports Console keyboard emulation/bypass feature
- Supports Console mouse emulation/bypass feature
- Independent switching of KVM, USB peripheral, and audio focus****
- Supports HD Audio****
- Firmware upgradable
Note:
* Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
** Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB9 cable. Please refer to the CS1964 RS-232 Commands document.
*** N-key Rollover supports up to 15 simultaneous keystrokes.
**** HD audio through DisplayPort-HDMI cannot be switched independently.

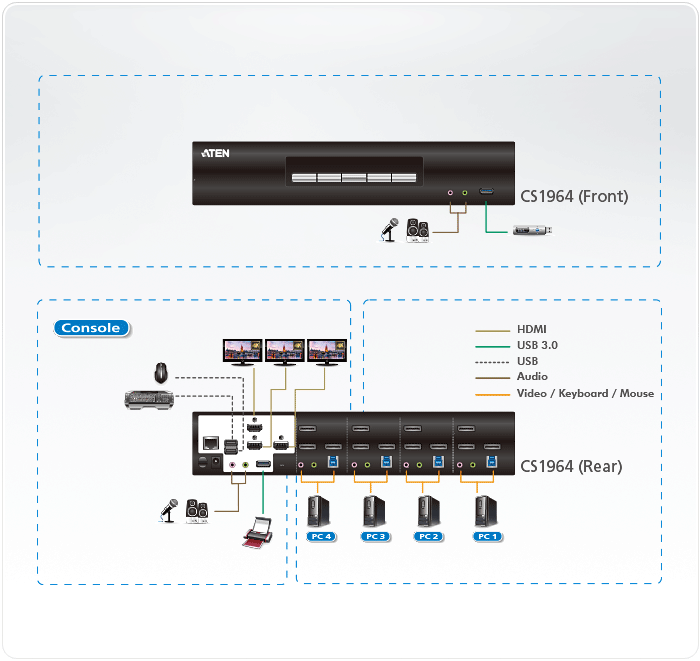

Diagram
Specification
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, Mouse, RS-232 Commands |
| Connectors | |
| Console Ports | 2 x USB Type A Female 3 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) |

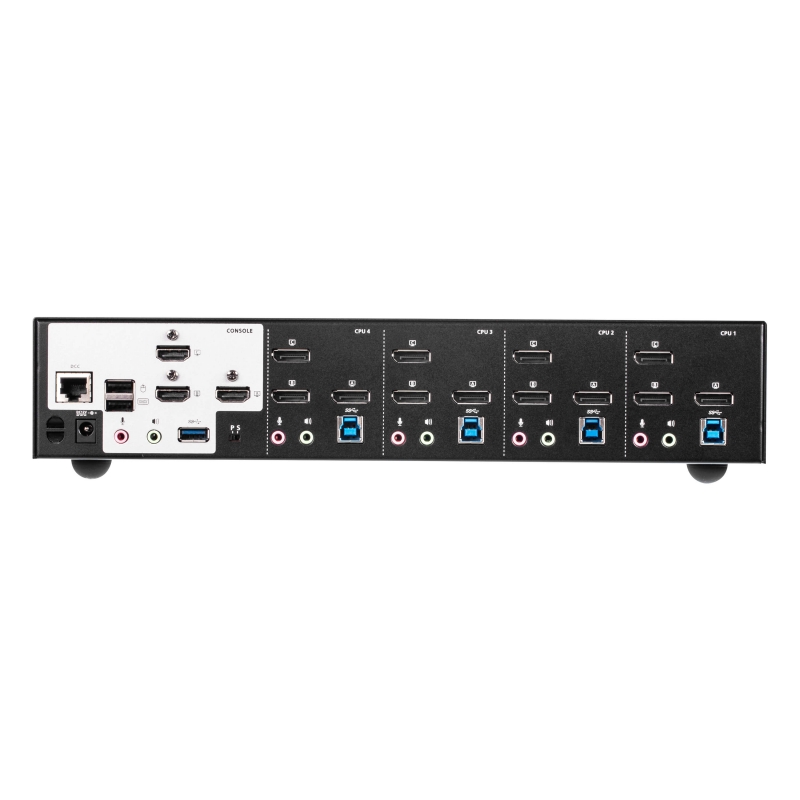

| KVM (Computer) Ports | 4 x USB3.1 Gen1 Type B Female (Blue) 12 x DisplayPort Female (Black) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink) |
| Daisy Chain Ports | 1 x RJ-45 Female |
| USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear) |
| Power | 1 x DC Jack |
| Switches | |
| Selected | 5 x Pushbutton |
| Station Selection | 1 x Slide Switch |
| Video | 4096 x 2160 @ 60Hz |
| Emulation | |
| Keyboard / Mouse | USB |
| Scan Interval | 1-99 seconds (default: 5 seconds) |
| Power Consumption | DC12V:15.49W:115BTU |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 1.93 kg ( 4.25 lb ) |
| Dimensions (L x W x H) | 33.50 x 15.60 x 6.55 cm (13.19 x 6.14 x 2.58 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
1x 4-Port USB3.0 4K DisplayPort Triple Display KVMP™ Switch
6x DisplayPort 1.2 Cables
2x USB 3.0 Cables
4x Audio Cables
1x Power Adapter
1x User Instructions
