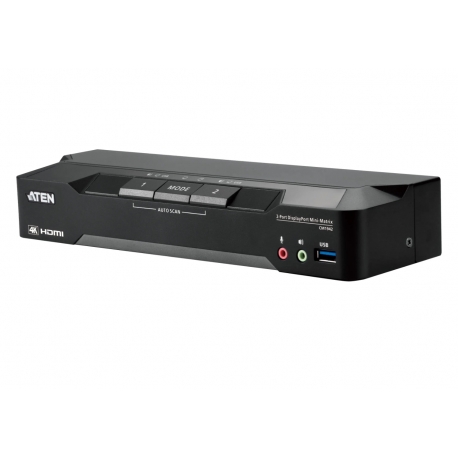

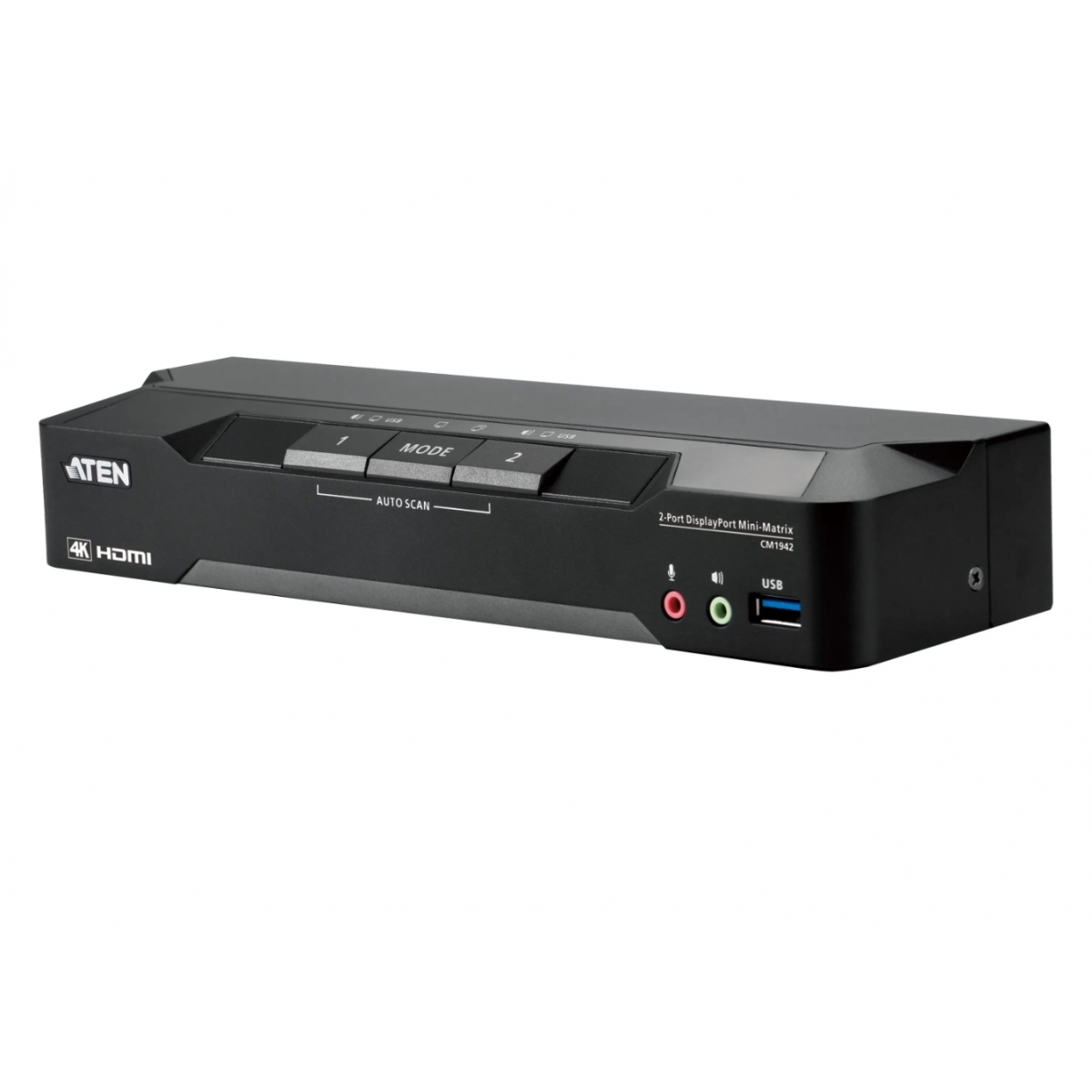

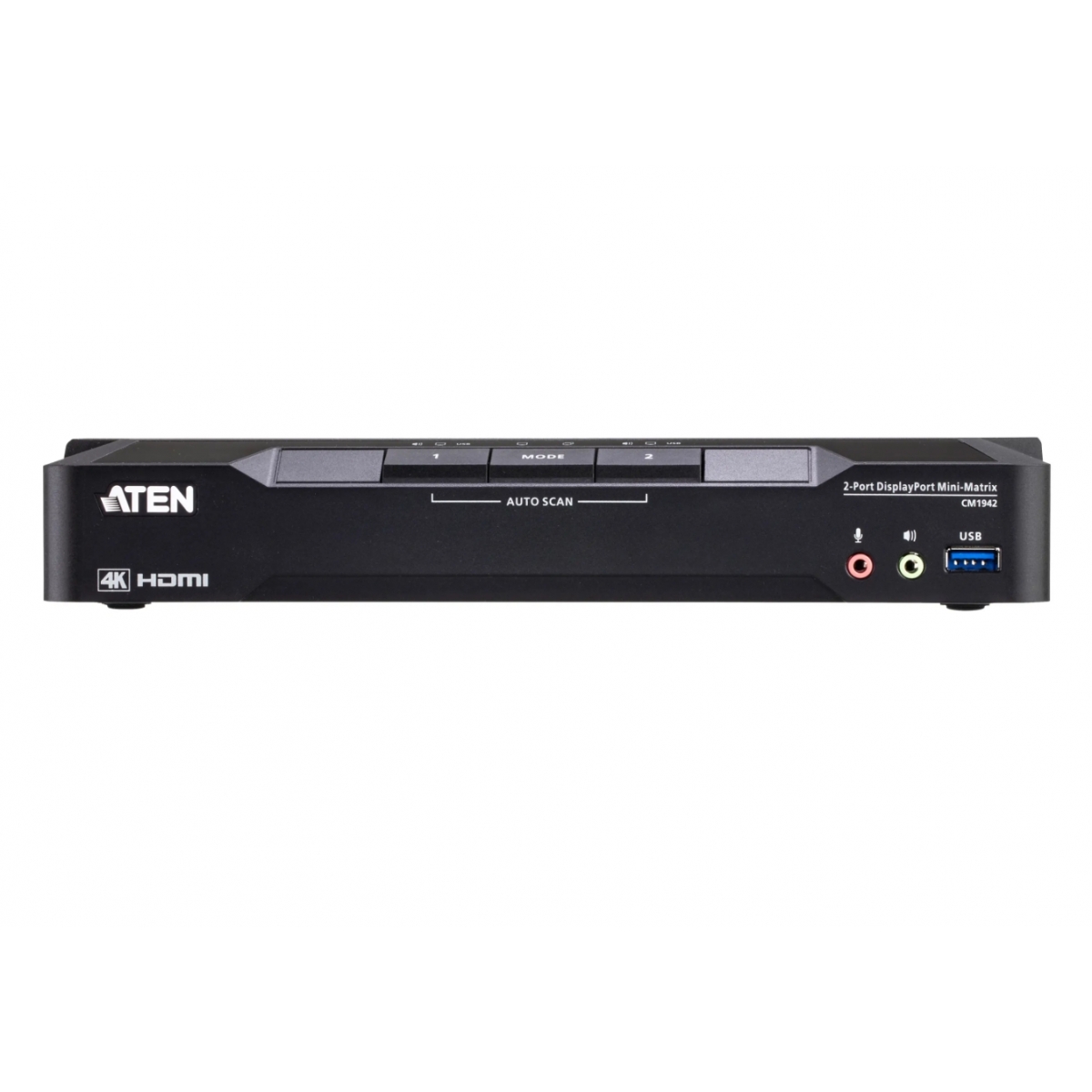

2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch
CM1942
- KVM สลับใช้งาน 2 PC DisplayPort แบบ Dual Display ออก 2 จอ HDMI โดยใช้คีย์บอร์ดเมาส์ชุดเดียว
- มี 2 โหมดใช้งาน คือ 1) สลับใช้ Dual Display PC ทีละเครื่อง และ 2) ใช้ PC แบบ หน้าจอเดียว 2 เครื่องพร้อมกัน
- รองรับการลากเมาส์ข้ามจอเพื่อสลับใช้งานพีซี โดยไม่ต้องกดปุ่ม (single display mode เท่านั้น)
- รองรับ 4K DCI
รับประกัน 3 ปีเต็ม
Spec sheet
With hybrid working evolving to become the standard in the new normal, the key to tackling challenges is to elevate multitasking abilities. When it comes to performing multiple tasks simultaneously, ergonomics is what assures productivity. And when communicating with dispersed remote teams, effective collaboration tools are crucial. Re-imagine your workspace with the CM1942 – a future-proof mini matrix KVM switch featuring flexible and boundless KVM switching between two computers/displays to maximize workstation efficiency. Incorporating speedy peripheral data sharing, audio mixer, multi-screen efficiency and hotdesking agility, the CM1942 promotes a productive yet better normal with streamlined desktop workflows for both desktop tasks and collaborative work
Exceptional 4K Audiovisual Performance

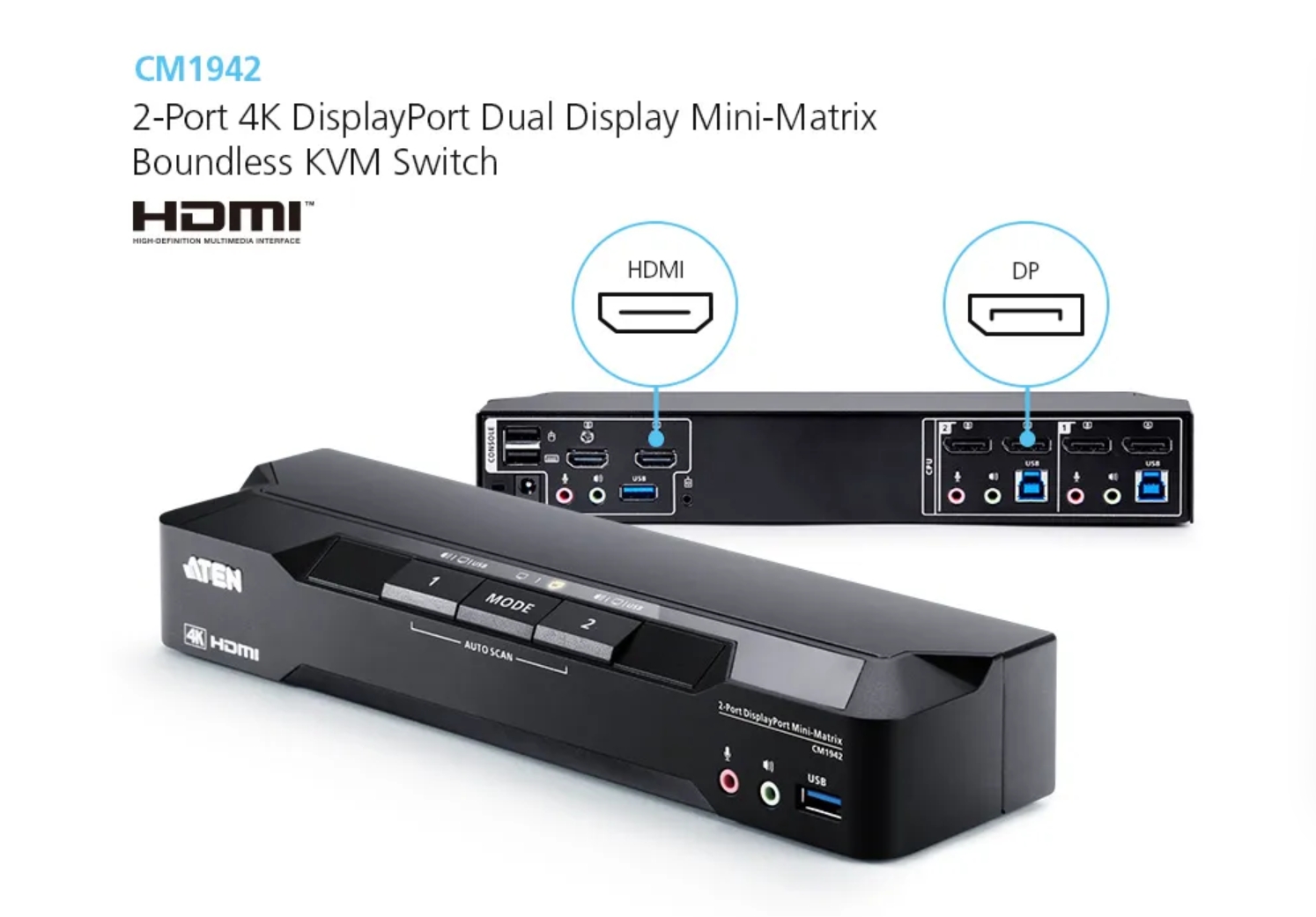

The CM1942 empowers your desktop operations with connectivity to two DisplayPort computers and two HDMI displays, providing a remarkable user experience with exceptional 4K audiovisual enhancement.

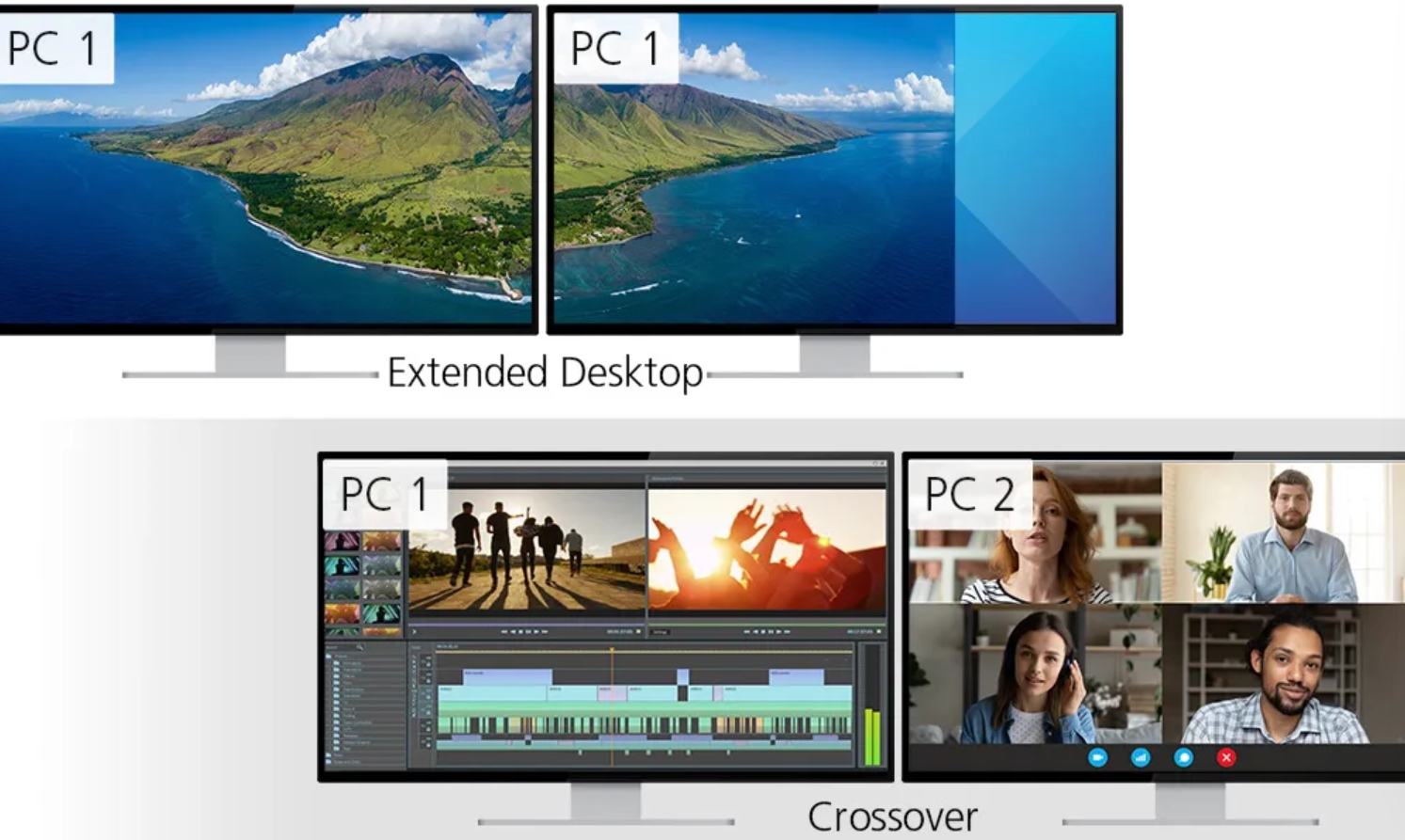

Dual-Display Setting to Facilitate Matrix KVM Switching
The CM1942's dual-display setting simplifies KVM switching in a 2x2 computer/monitor matrix. The main and extended desktops of either computer with the current KVM focus can be displayed over two monitors. Likewise, each computer’s content can be displayed on either monitor separately in a crossover configuration as well, regardless of the KVM focus.

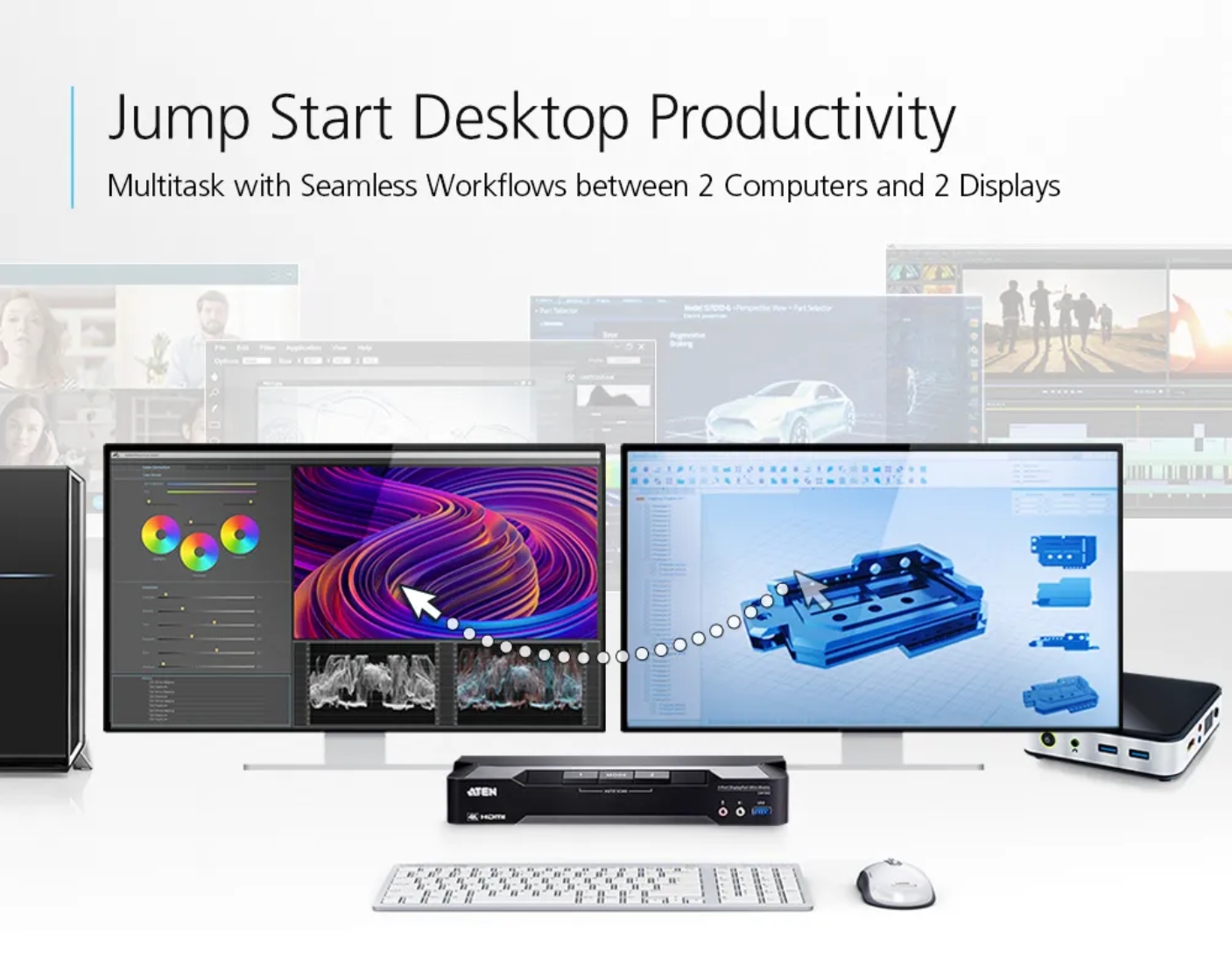

Intuitive Boundless Switching to Expedite Desktop Operations
The CM1942 enables quick switching between two computers by allowing the mouse cursor to move across the screen borders onto another screen instantaneously, for easy and straightforward switching between sources.
Audio Mixer Mode to Enhance Situational Awareness
Sound can serve as a helpful alert for better situational awareness while multitasking. With the Audio Mixer mode in place, the audio and sound coming from both computers can be mixed up in one output during all desktop operation, regardless whichever computer you’re working on at the moment.

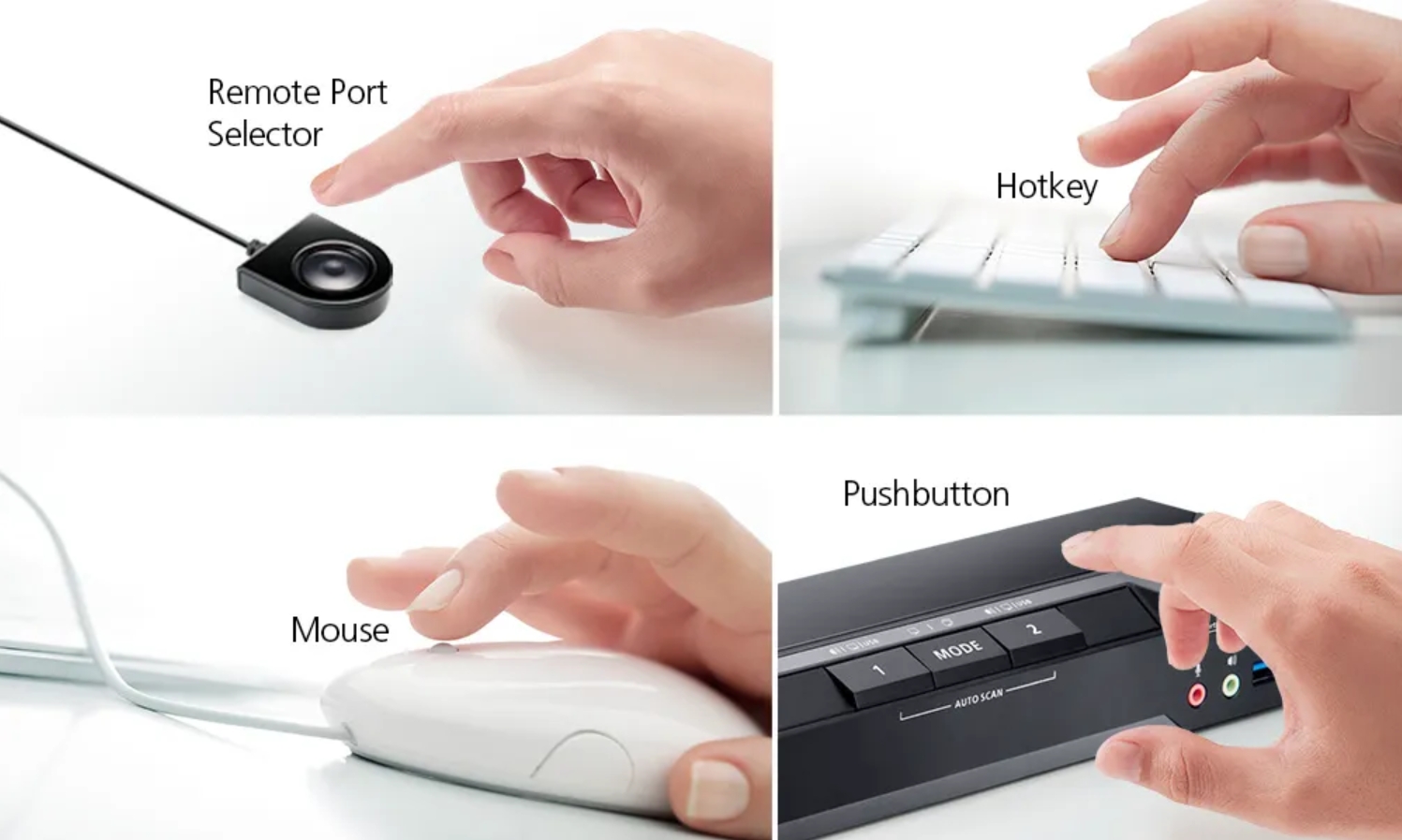

Flexible Port Selection
Port switching with the CM1942 is flexible and you can choose from pushbuttons, hotkeys, mouse and the remote port selector, whichever works best for you and your workflows.
Peripheral Sharing
Media and data sharing between computers is fast and effortless via plug-n-play connection (e.g. hard drive, flash drive, printer, etc) to the USB hub on the KVM switch.
Applications
The compact CM1942 is best suited to multitasking operations in any desktop workspace setting where streamlined workflows and collaborations are pursued.
Features
- One dual-view USB / HDMI console controls two DisplayPort computers and two USB 3.1 Gen 1 peripherals
- Two PC Operation Modes:
- Single PC Mode – allows content of the PC with current KVM focus to be displayed over both monitors
- Dual PC Mode – allows content of two PCs to be displayed separately on two monitors regardless of the KVM focus - Supports superior video quality – resolutions up to 4K DCI (4096 x 2160 @ 60 Hz)
- Computer selection via pushbuttons, hotkeys, mouse wheel, mouse cursor, and remote port selector
- Boundless Switching – allows the mouse cursor to move across screen borders for quick switching between video sources
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports
- Audio Mixer Mode – mixes up to two audio sources as one audio output
- DisplayPort 1.2 , HDMI, and HDCP compliant
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Power on detection
- Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
- Console keyboard emulation / bypass feature supports most multimedia keyboards
- Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards

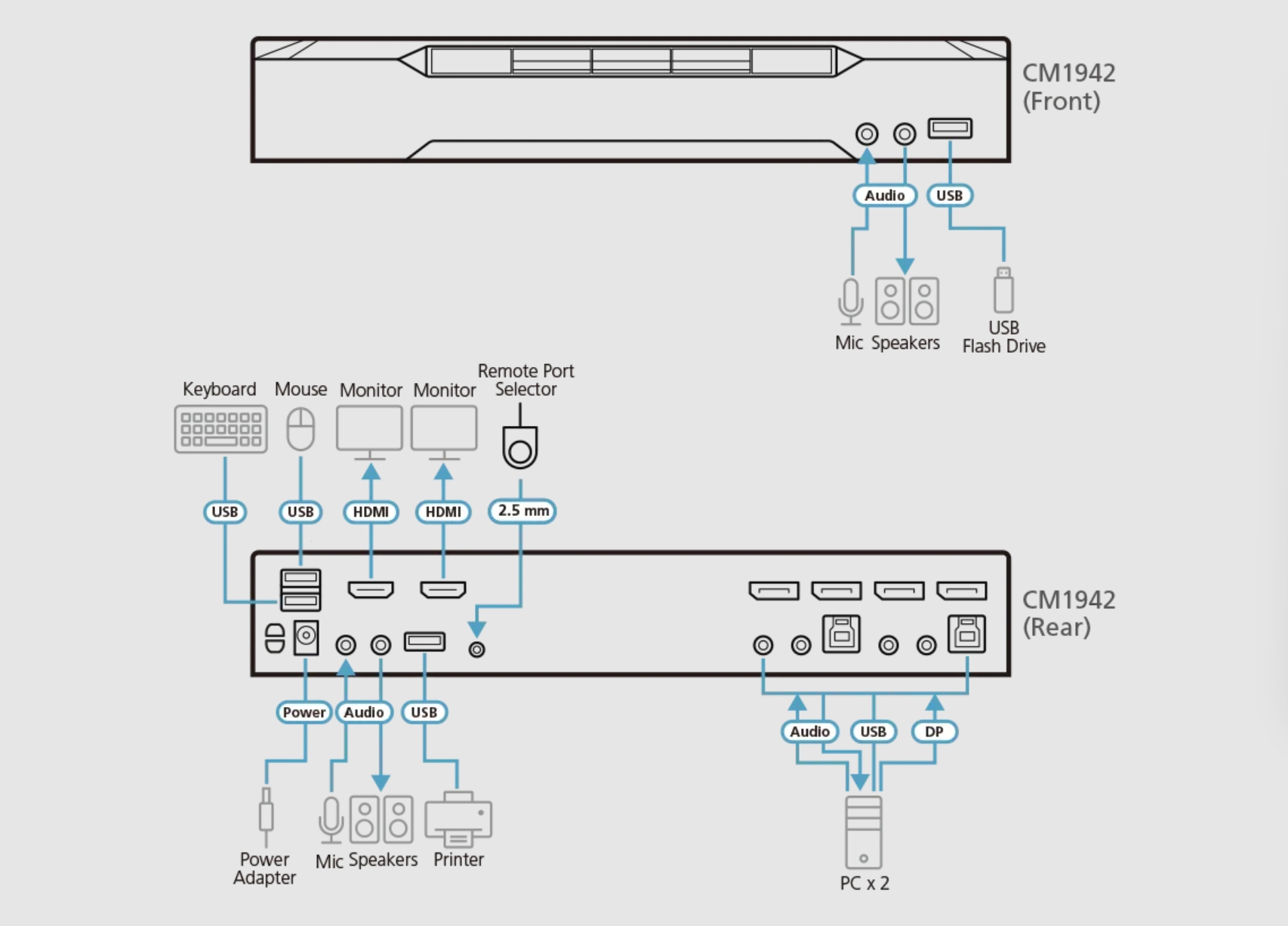

Diagram
Specifications
| Computer Connections | 2 |
| Port Selection | Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, Remote Port Selector |
| Connectors | |

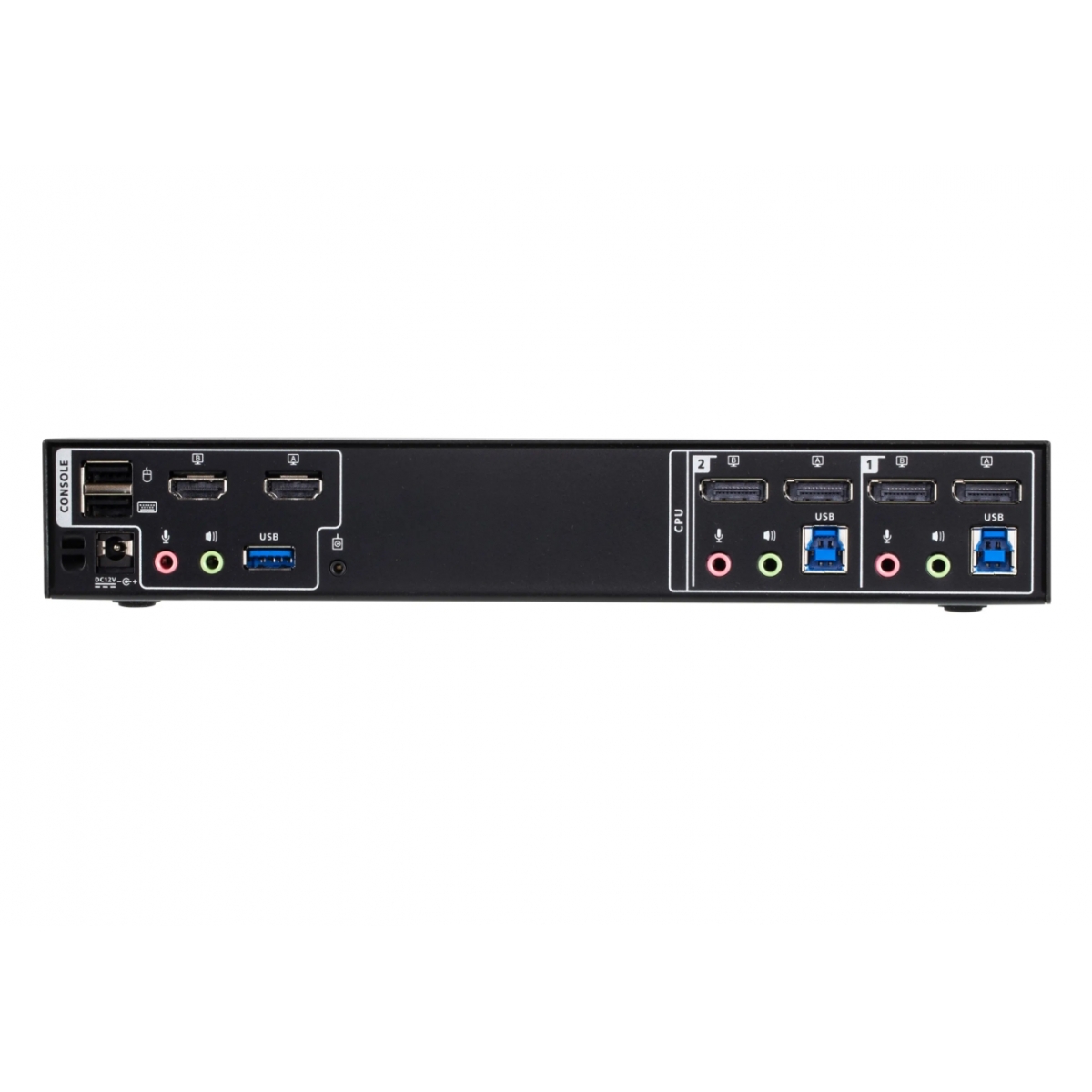

| Console Ports | 2 x USB Type A Female 2 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) |
| KVM (Computer) Ports | 2 x USB3.1 Gen1 Type B Female (Blue) 4 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) |
| Remote Port Selector | 1 x 2.5mm Audio Jack Female |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear) |
| Switches | |
| Selected | 3 x Pushbutton |
| LEDs | |
| Audio | 2 (Green) |
| KVM | 2 (Orange) |
| USB | 2 (Green) |
| Mode of Operation | 2 (Orange) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 4096 x 2160 @ 60Hz |
| Scan Interval | 1-99 Seconds (Default: 5 sec.) |
| Power Consumption | DC12V:11.58W:97BTU |
| Environmental | |
| Operating Temperature | 0-40°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.64 kg ( 1.41 lb ) |
| Dimensions (L x W x H) | 26.00 x 7.18 x 4.25 cm (10.24 x 2.83 x 1.67 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package Contents
- 1x CM1942 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch
- 4x DisplayPort cables
- 2x microphone cables
- 2x speaker cables
- 2x USB 3.0 Type-A to Type-B cables
- 1x remote port selector
- 1x power adapter
- 1x user instructions
