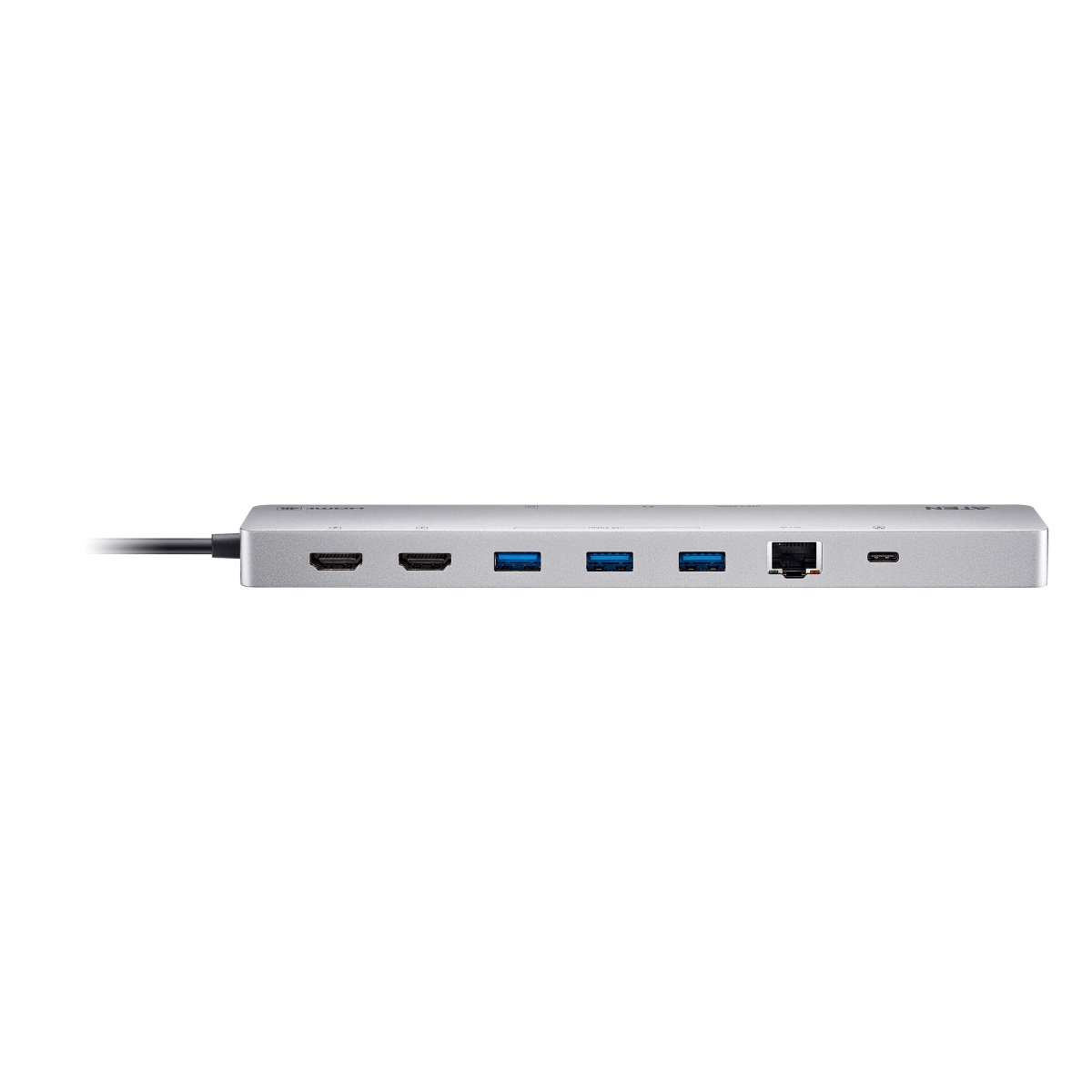

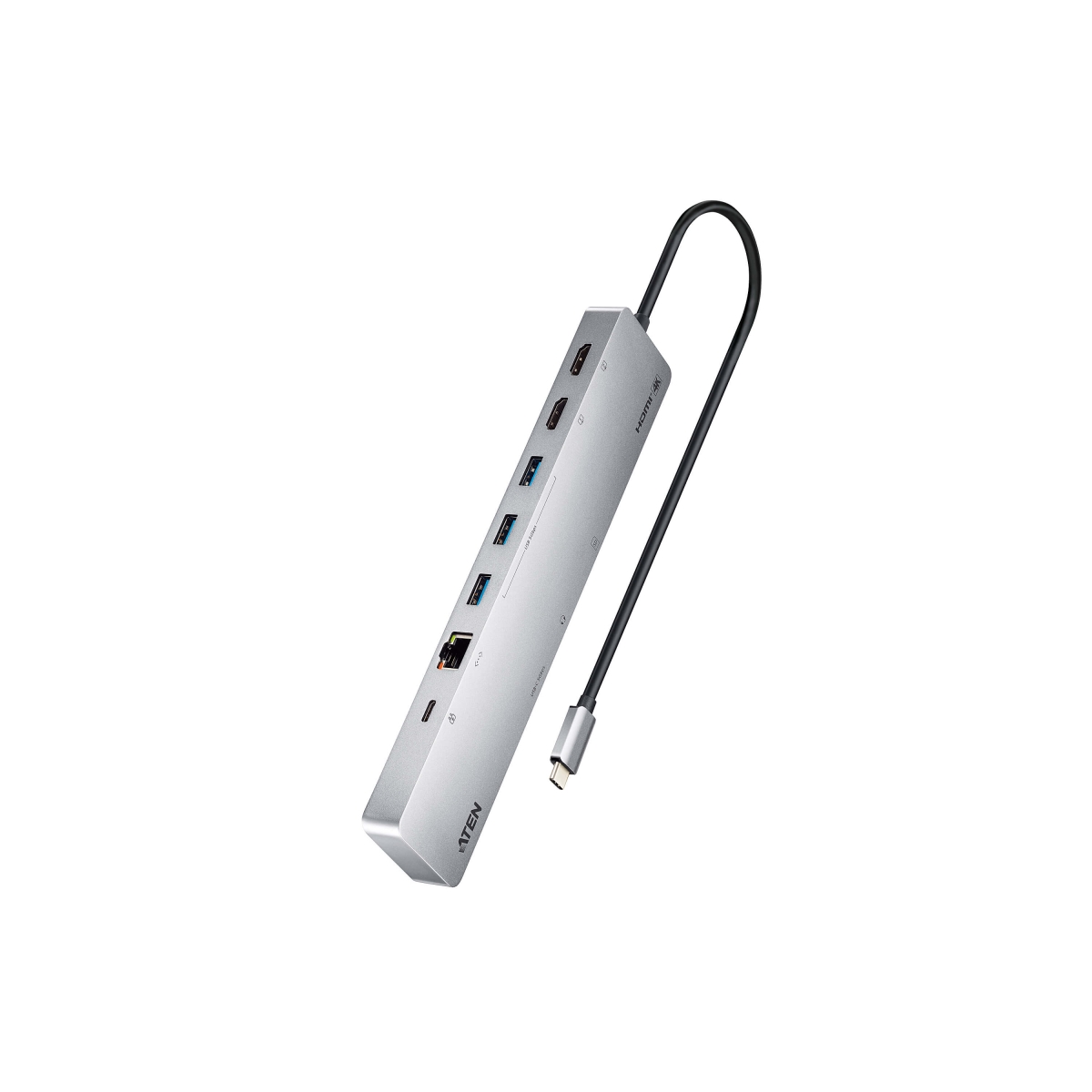

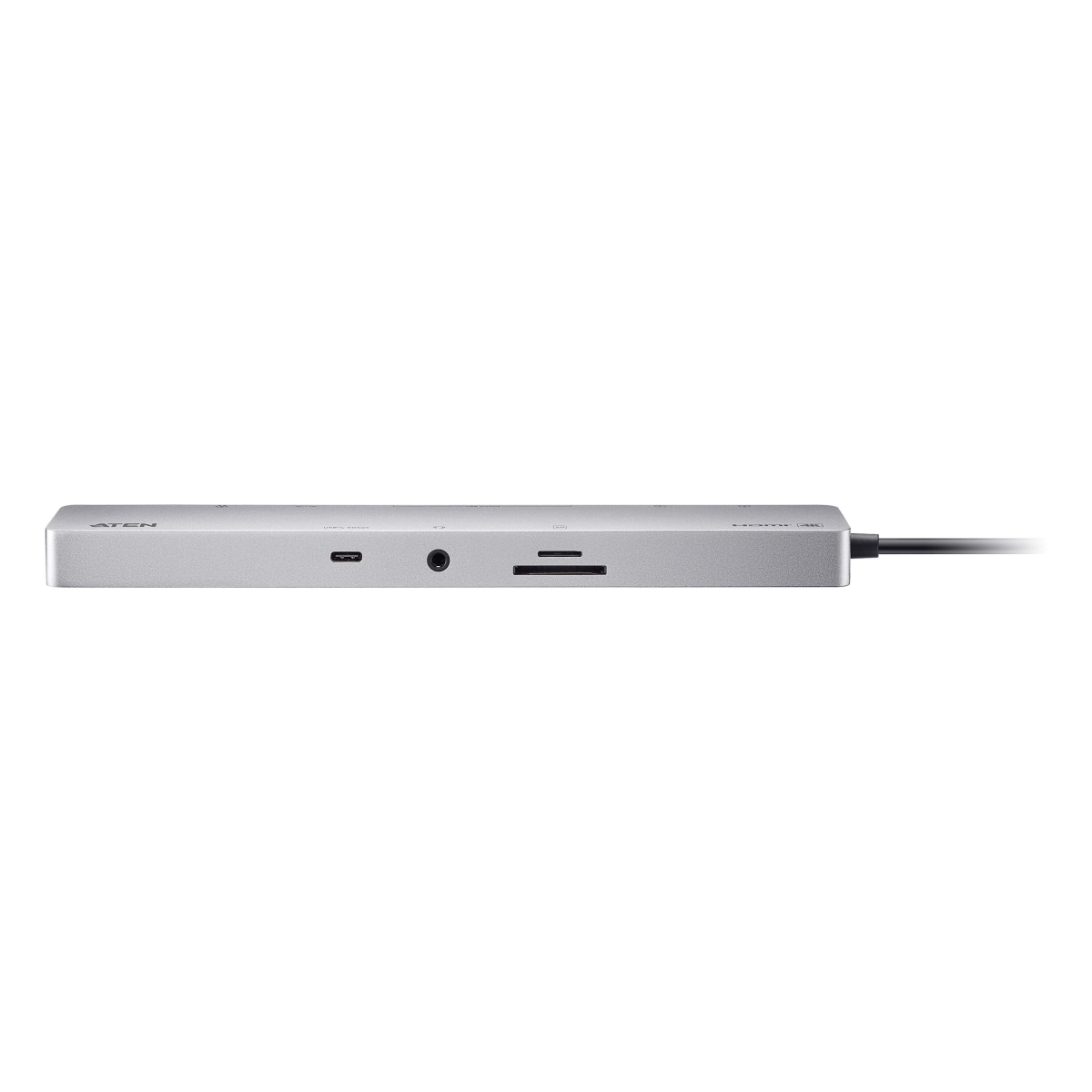

11-in-1 USB-C Multiport Dock with Power Pass-Through
UH3240
- A multiport dock with 11 essential ports – 2x HDMI, 2x USB-C , 3x USB Type-A, 1x SD, 1x Micro SD,1x Ethernet, and 1x audio jack
- Supports up to 8K 7680 x 4320, 4K 3840 x 2160@120Hz for single video output or 4K for dual video outputs
- Supports USB PD 3.0 for charging up to 100W via USB-C PD power adapter
- USB 3.2 Gen 1 compliant with data transfer rates up to 5 Gbps
รับประกัน 3 ปีเต็ม
Spec sheet
Transform your laptop into the ultimate workstation with unparalleled productivity.
The UH3240 is a multiport dock that can expand up to 11 devices via a single USB-C cable. The myriad functions are packed into one light, compact dock, as you can charge your device, up to 100W, while transferring data at 5 Gbps.
Dual 4K Display
Expand your professional versatility
Enjoy Impeccable Visual Quality
Optimize your screen resolution to befit the task at hand
Vivid & Sharp 8K Display
Enthralling visual indulgence of entertainment apex

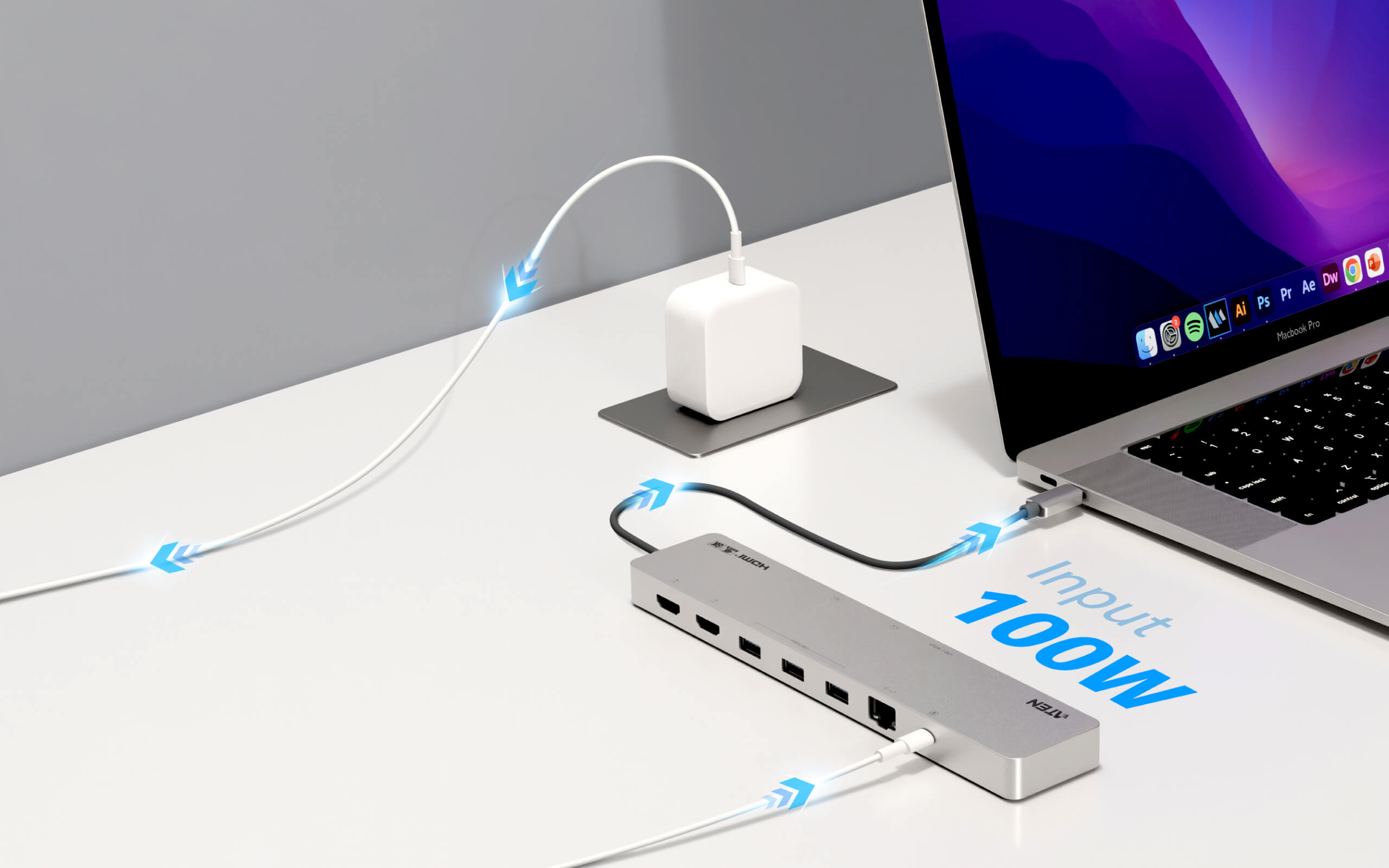

100W Power Delivery with PD 3.0
Power on your devices for your multitasking needs

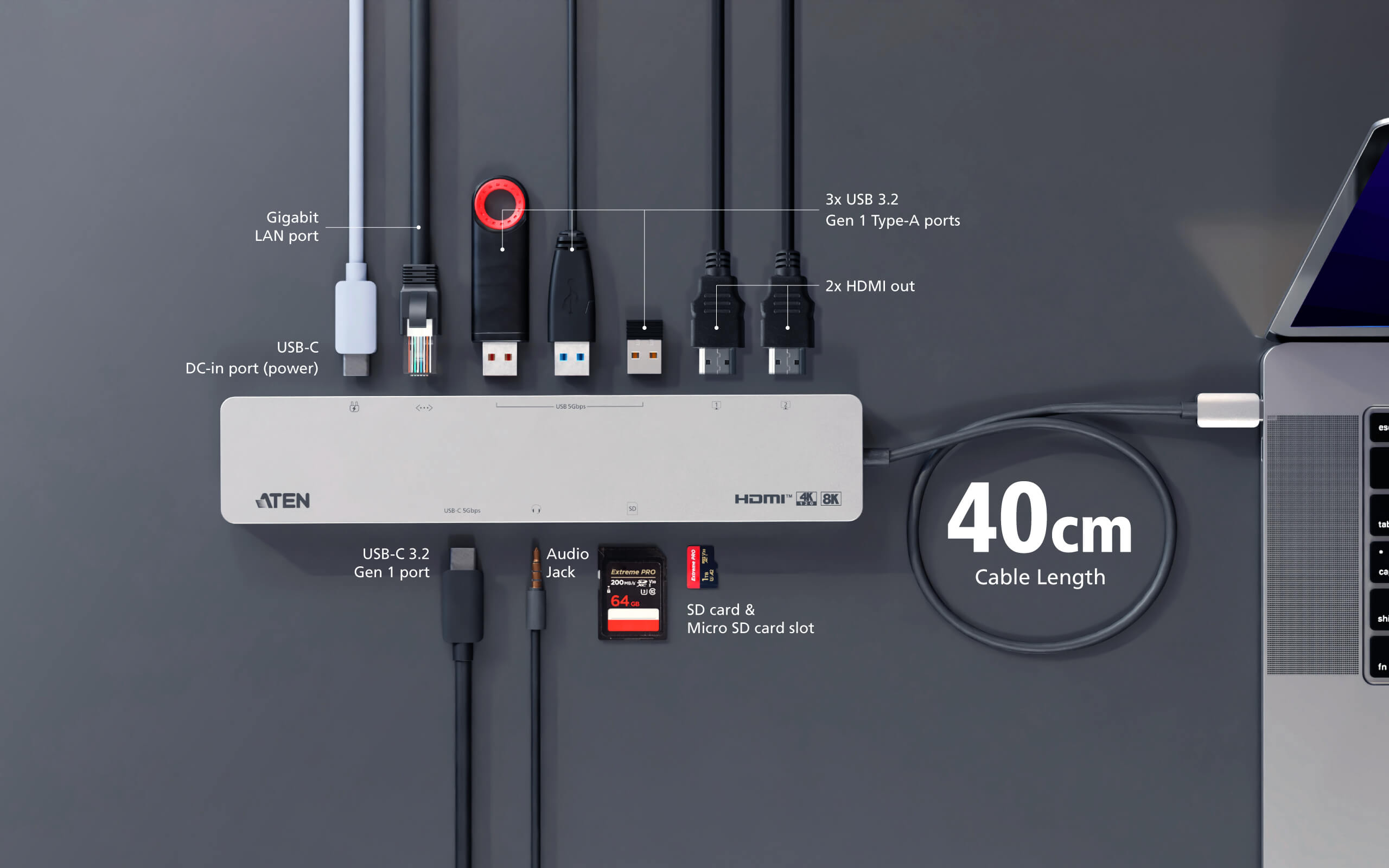

11-in-1 USB-C Dock with Power Pass-through
Multiplatform Support
*Relevant compatible devices must be USB-C enabled
Features
- A multiport dock with 10 essential ports – 2x HDMI, 1x USB-C, 3x USB Type-A, 1x SD, 1x Micro SD, 1x Ethernet, and 1x audio jack
- Supports up to 4K @ 120 Hz for single1, 2 video output or 4K @ 60 Hz for dual video outputs3
- Supports USB PD 3.0 for charging up to 100W via USB-C PD power adapter – supports PD profile specifications of 5V, 9V, 12V, 15V, and 20V
- USB 3.2 Gen 1 compliant with data transfer rates up to 5 Gbps
- Supports DP 1.4 Alt mode
- Plug-and-play
- Works with all major operating systems – Windows, macOS X, iOS, iPadOS, and Android
- Compatible with Thunderbolt™ 3 (USB-C)
- Apple M1 chip compatible
- Compact enclosure for space-constrained workspaces
- Drives dual-monitor workstation performance for graphically intense applications such as photo editing and video editing
Note:
1. The max. resolution supported for HDMI output 2 is 4K @ 120 Hz, and for HDMI output 1 is 4K @ 60Hz.
2. To get max. bandwidth, the upstream should support standard DP1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP1.2 Alt mode supported upstream, the max. resolution of HDMI is 4K @ 30 Hz due to bandwidth limitation.
3. For Dual-View to work, a computer's graphics card must support MST technology. Mac computers only support a single view output.
Diagram
Specification
| Computer Connections | 1 |
| Cable Length | 40cm |
| Connectors | |
| Computer | 1 x USB-C 3.2 Gen 1 Male Cable |
| Device | 3 x USB 3.2 Gen 1 Type-A Female (Max. output 5V, 5W for each)* 1 x USB 3.2 Gen 1 Type-C Female (Max. output 5V, 5W)* * 3 x USB Type-A and 1 x USB-C ports share total of 5V, 15W when UH3240 powered by external USB-C PD power adapter. * 3 x USB Type-A and 1 x USB-C ports share total of 5V, 12W power output when the UH3240 is powered by PC via USB-C (@ 5V, 3A bus-powered). |
| Video Output | 2 x HDMI Female |
| LAN Ports | 1 x Gigabit Ethernet Female |
| Audio | 1 x 3.5mm stereo 4-pole microphone and headphone jack |
| Power | 1 x USB Type-C Female* * Supports USB Power Delivery 3.0 for charging up to 100W, power profiles includes 5V, 9V, 12V, 15V, and 20V. * The minimum system power requirement for basic USB functions and video output should be at least 5V, 6W. |
| Performance | |
| Flash Memory | 1 x SD Card Slot (SD/SDHC/SDXC up to 2TB) 1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 2TB) |
| Video Resolution | Single View: 3840 x 2160 @ 120Hz* ** Dual View***: 3840 x 2160 @ 60Hz* ** Note: *The max. resolution supported for only HDMI 2 is 4K @ 120 Hz. **To get max. bandwidth, the host should support standard DP1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP1.2 Alt mode supported device, the max. resolution of HDMI is 4K @ 30 Hz due to bandwidth limitation. ***For extend mode to work, a computer's graphics card must support MST technology. Mac computers only support single-extended display with identical content on the two connected monitors. |
| Power Consumption | DC5V:18WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| System Requirements | Windows 10 or above, USB-C enabled computer with DP Alt Mode* * With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html macOS 10.12 or later, USB-C enabled computer Android 8.0 or later, USB-C enabled Smartphone with DP Alt Mode iPadOS 13.1 or later, iPad (USB-C)* *iPad only supports single view in mirror mode. iOS 17.0 or later, iPhone (USB-C)* *iPhone only supports single view in mirror mode. |
| Environmental | |
| Operating Temperature | 0 – 40°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Aluminum |
| Weight | 0.18 kg ( 0.41 lb ) |
| Dimensions (L x W x H) | 22.00 x 4.30 x 1.60 cm (8.66 x 1.69 x 0.63 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Package content
- 1x UH3240 USB-C Multiport Dock with Power Pass-Through
- 1x user instructions
