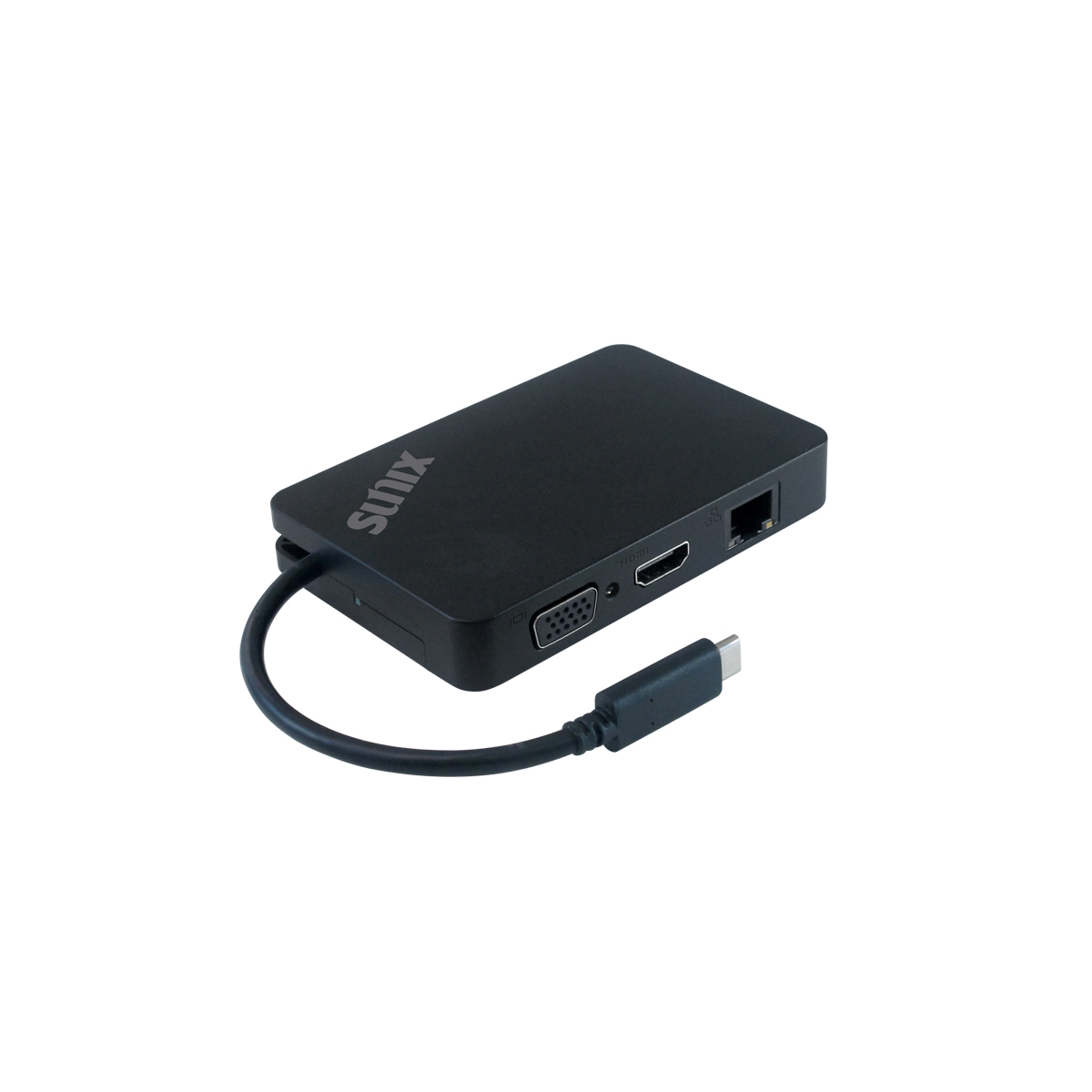

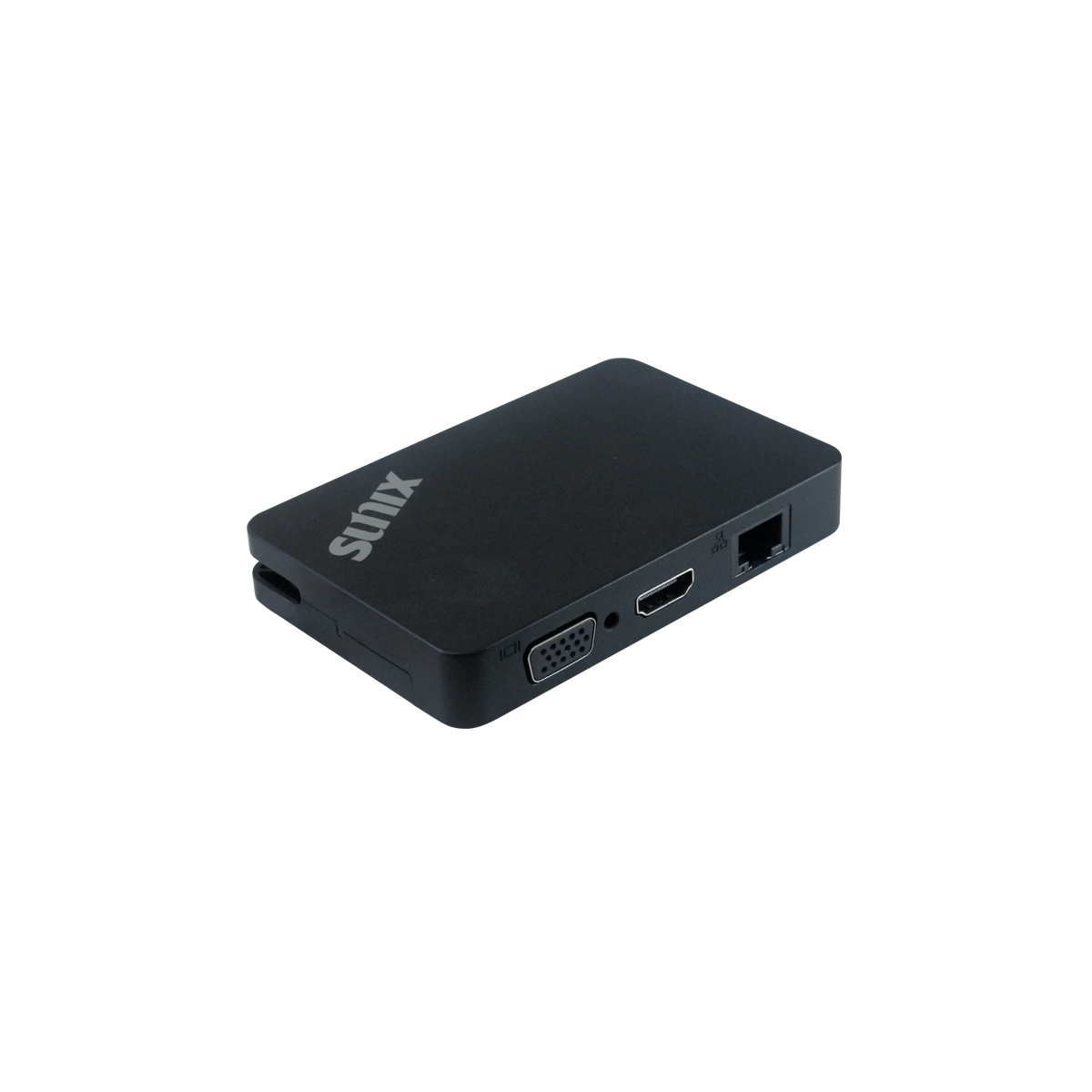

USB-C Portable Mini Dock with USB 3.0 / Gigabit Ethernet / VGA / HDMI
C0V50PB
SUNIX portable Mini Dock (C0V50PB) offers the combined functionality of a 4in1 USB 3.0 device docking station, converting a single USBC port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity.
รับประกัน 3 ปีเต็ม
Spec sheetSUNIX portable Mini Dock (C0V50PB) offers the combined functionality of a 4in1 USB 3.0 device docking station, converting a single USBC port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB TypeC equipped laptop to a complete workstation.
HDMI/VGA/Ethernet/USB 3.0 connects your USBC equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. This small, multipleinterfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It’s compatible with major Windows®based PC, Apple® MAC®OS, and Google® Chrome operation system.

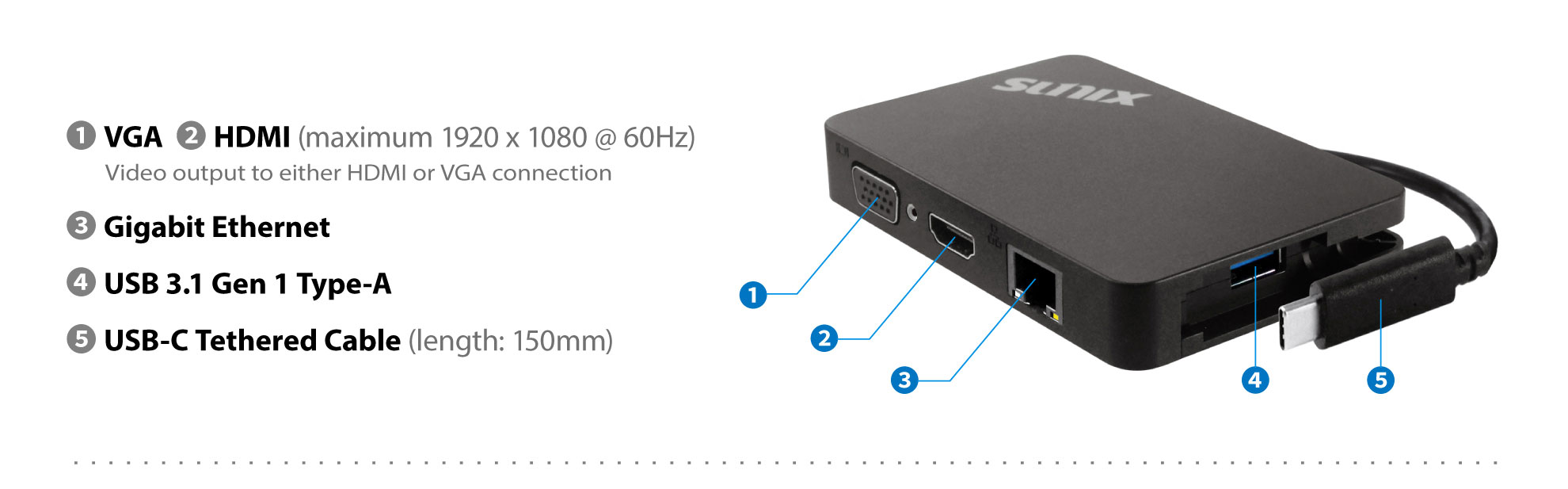

Interfaces

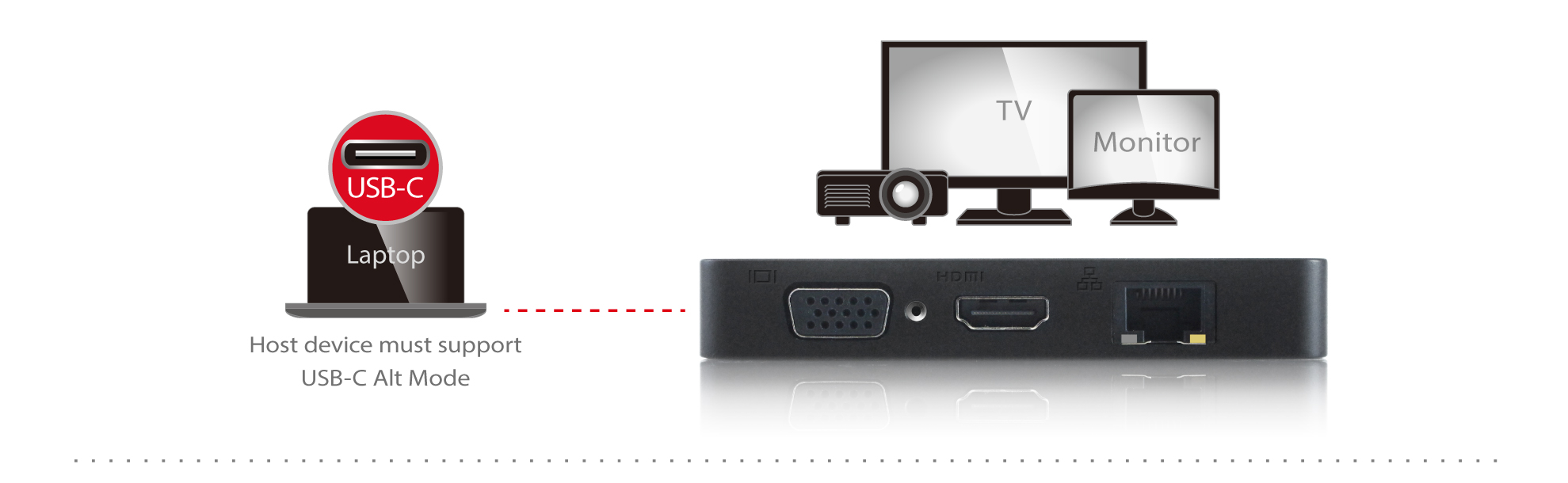

HDMI or VGA Video Output
Use either the HDMI port or VGA port for video output & office presentation.

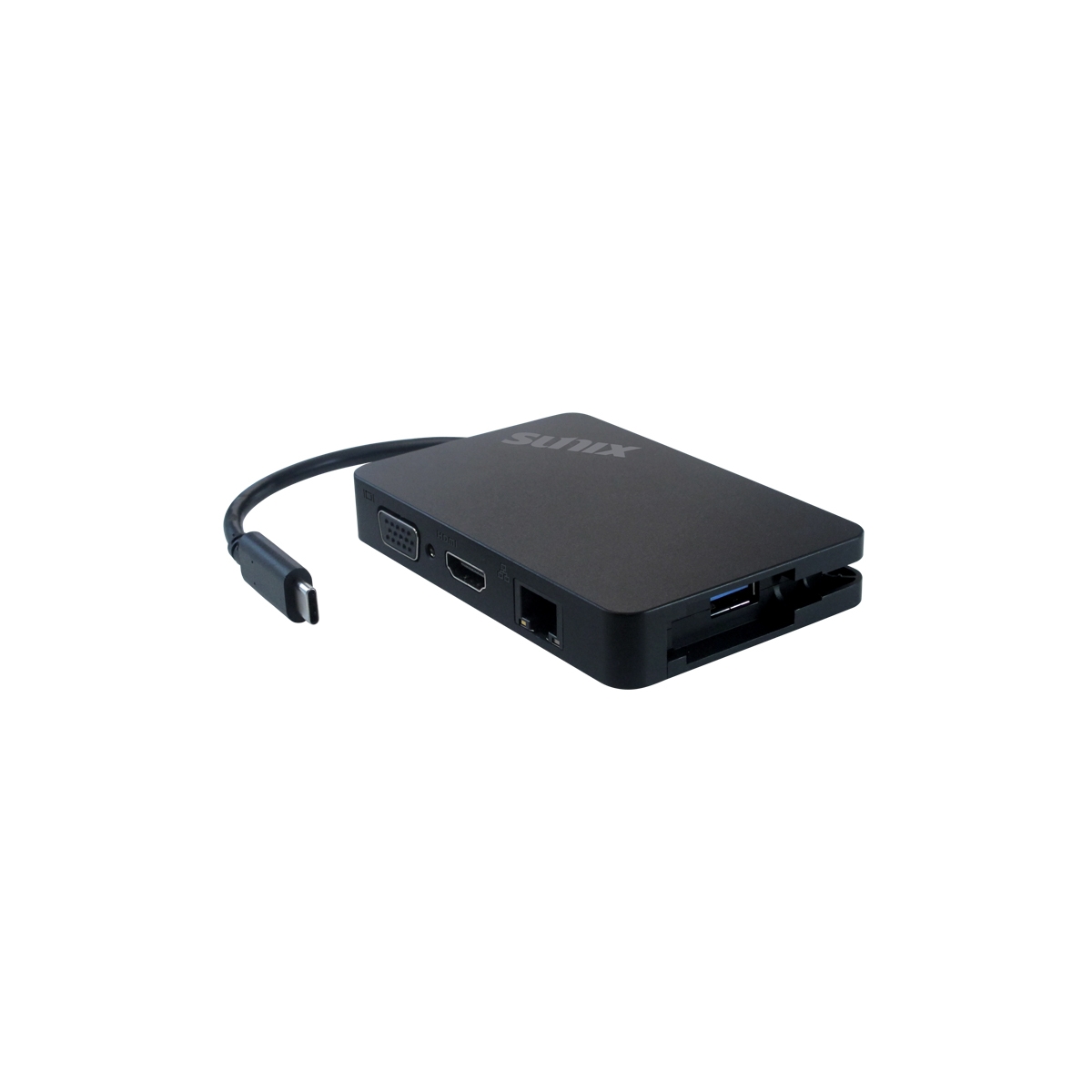

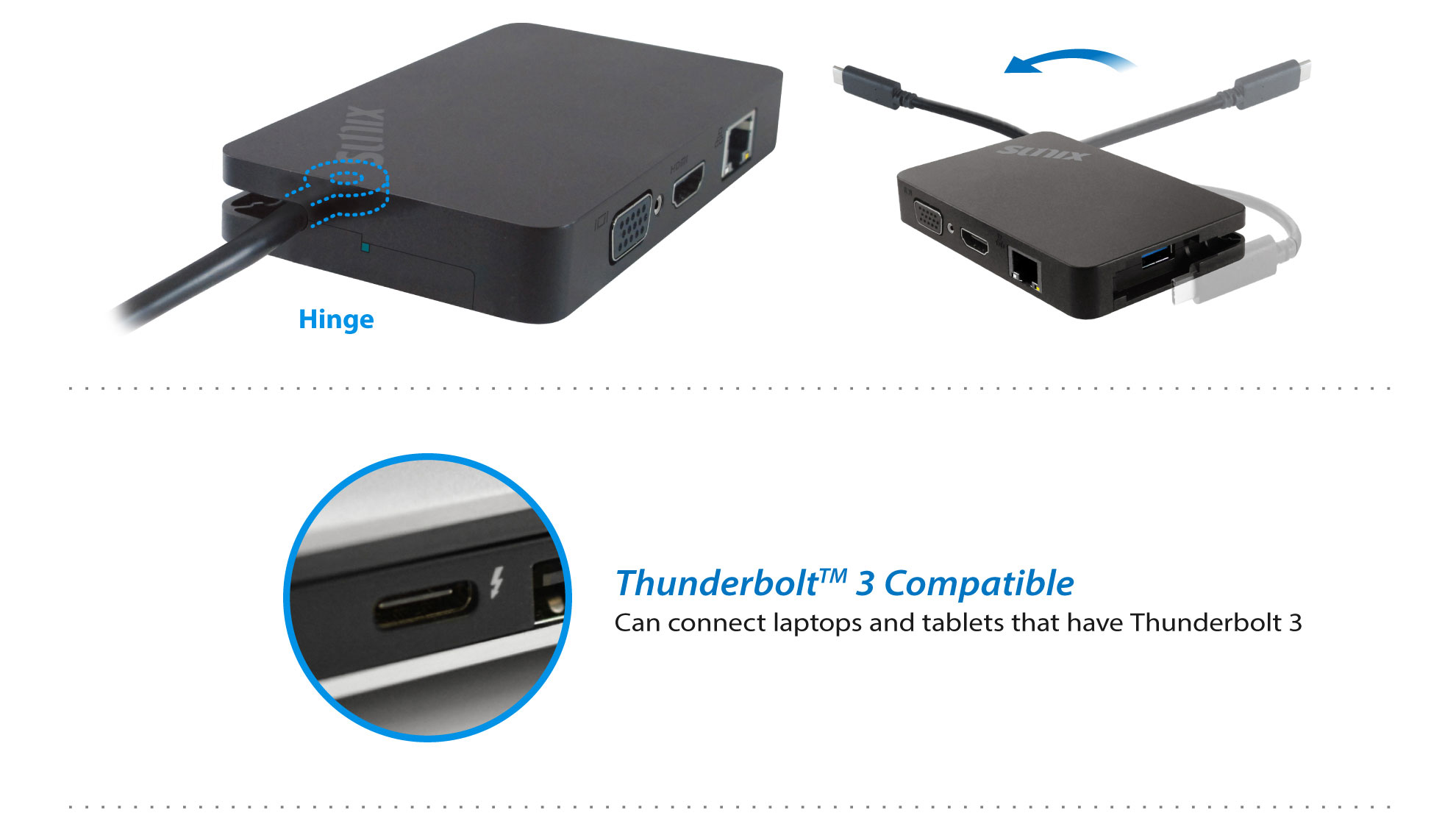

Hideaway USB-C Cable with Patented 180° Hinge Design

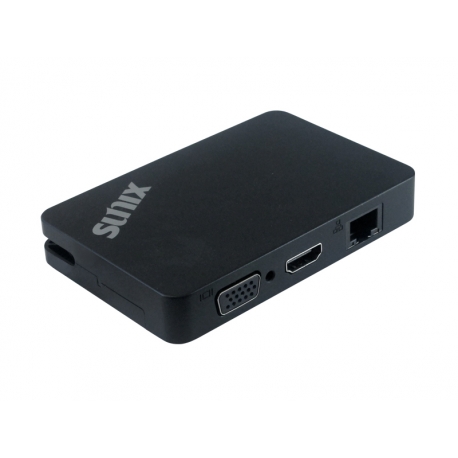

Compact size and light weight
Features
- One USB TypeC connection to extend video and Ethernet from your Notebook PC accessories.
- Compliant with VESA DisplayPort Alternate Mode for USB TypeC Standard Rev1.0.
- Supports VGA or HDMI output resolution 1080P(1920x1200@60Hz).
- Downstream USB 3.0 port data transfer speed up to 5G for SuperSpeed devices connection.
- Standard USB port support downstream USB Battery Charging Spec. v1.2.
- Compatible with Gigabit Ethernet networks and powered via USB.
- Drivers free under Apple MAC, Google Chromebook, and Windows.
- Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.

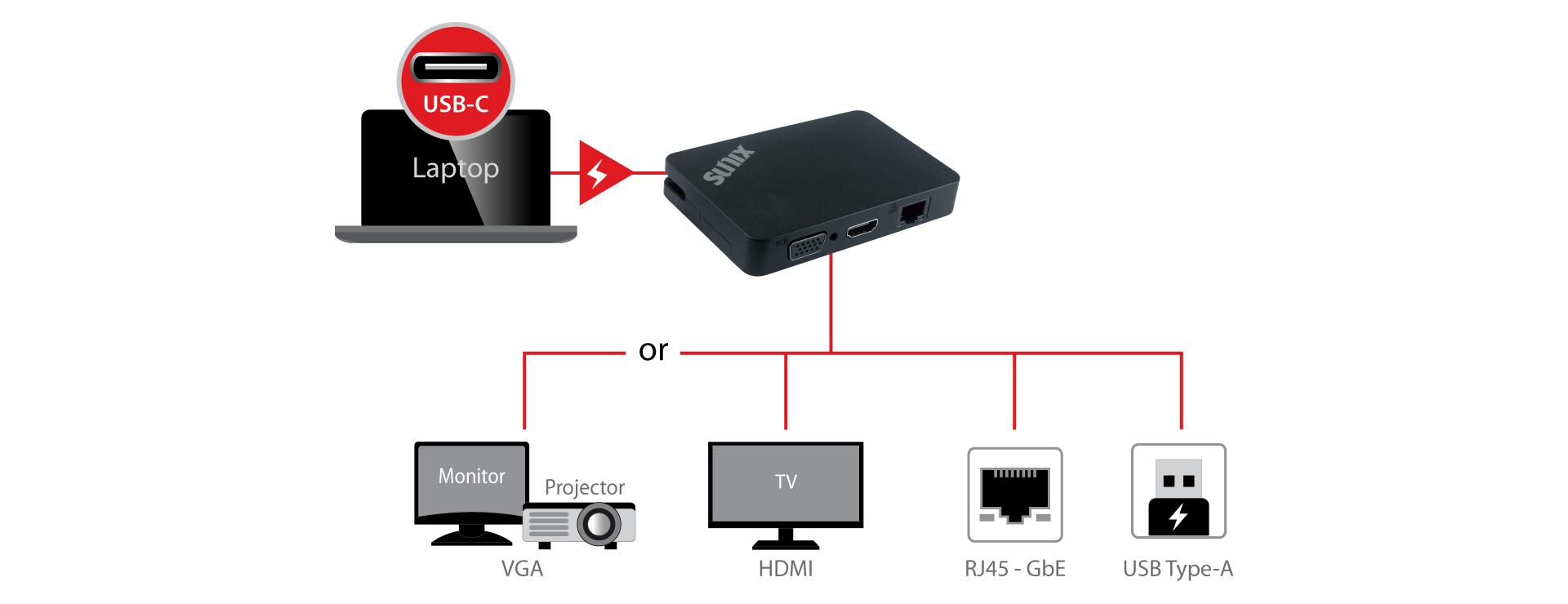

Application
Specifications
Hardware
| Model | C0V50PB |
| Description | USB-C Portable Mini Dock with USB 3.0 / Ethernet / VGA / HDMI |
| USB Standard | USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1 |
| Input Interface |
USB TypeC
USB TypeC Alternate Mode
|
| Output Interface |
USB 3.0 TypeA x 1port
Gigabit Ethernet x 1port VGA(RGB) x 1port HDMI Ver1.4 x 1port |
| LED indicator | Green for USB Link Ready |
| Power Consumption | USB Bus Power 2W @ 5VDC (board only without power output to device) |
USB Communication
| Interface | USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1 |
| Output USB Port | USB TypeA Female Receptacle USB 3.0(5Gbps), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps) |
| No. of Port | 1port |
| Power source | USB Bus-Power 5V@1.5A from USB Type-C |
| Power output | USB port supports BC charging v1.2 +5VDC / Maximum 1.5A |
| Over Current Protection | USB TypeA Port: +5VDC |
Note: Total power output capacity will be limited by system power supply.
Ethernet Communication
| Standard | IEEE 802.3/ 802.3u/ 802.3ab |
| Interface | Gigabit Ethernet 10/100/1000 Mbps with Auto MDIX |
| No. of Port | 1port |
| PCB Connector | RJ45 with LED Indication |
Video and Audio Communication
| Mode | Extend mode, Mirror mode, Screen Rotation mode | |||||||||||||||||||||||||||||||||||||||||||||
| Standard | HDMI Ver1.4b VGA RGB |
|||||||||||||||||||||||||||||||||||||||||||||
| Video | HDMI: Max resolution up to 1920x1200 @ 60Hz VGA: Max resolution up to 1920x1200 @ 60Hz Note: HDMI and VGA video output will NOT work synchronously. |
|||||||||||||||||||||||||||||||||||||||||||||
| Resolution Support |
|
|||||||||||||||||||||||||||||||||||||||||||||
| Audio | Digital Audio output over HDMI connectivity Note: VGA does not support audio output |
|||||||||||||||||||||||||||||||||||||||||||||
| PCB Connector | Standard HDMI Female x 1port VGA DSub 15pin Female x 1port |
Driver Support (Driver Free)
| Windows | Windows 10 (32/64bit) or above |
| APPLE MAC | MAC OS X 10.10 (Yosemite) or above |
| Google Chrome | Chrome OS Version 42.x or above |
Environment
| Operation temp. | 0 °C ～ 60 °C (32140°F) |
| Operation humidity | 5 to 95% RH |
| Storage temp | 20 °C ～ 70 °C (4~158°F) |
Standards and Certifications
| EMC | CE, FCC, VCCI, BSMI |
| Green | RoHS, CRoHS, WEEE |
Physical Characteristics
| Weight | 50g (1.8oz) |
| Case Material | ABS (plastic) |

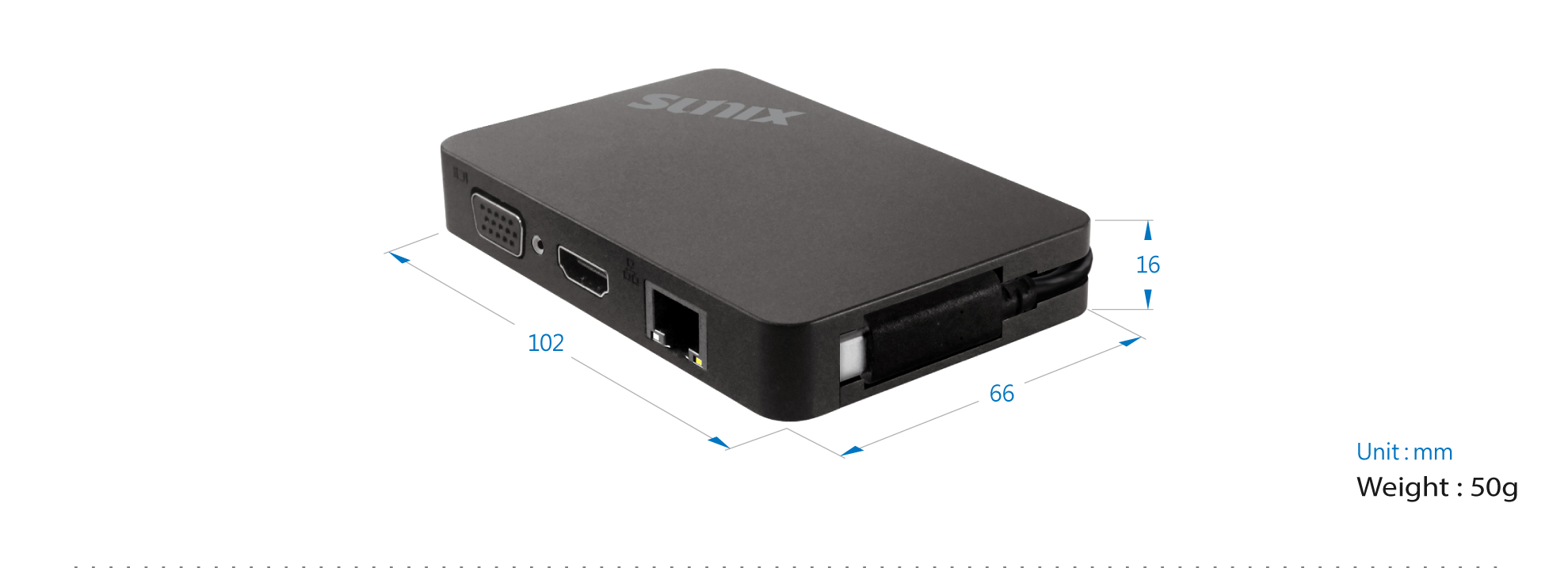

Dimension |
102(L)x66(W)x16(H) mm Tethered Cable length: 150mm |
