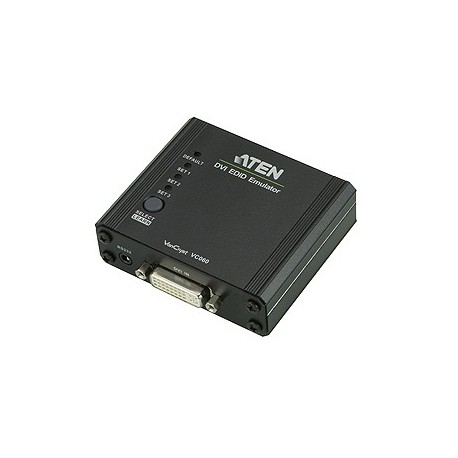

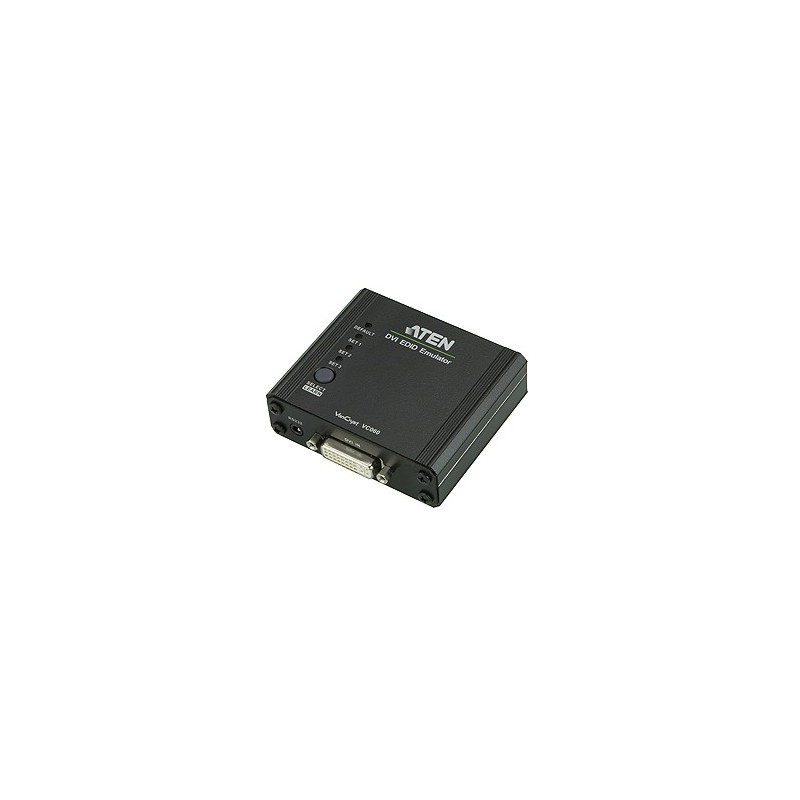

DVI EDID Emulator
VC060
The ATEN DVI EDID Emulator is a convenient tool that ensures smooth viewing experience for anyvideo installation.
รับประกัน 3 ปีเต็ม
Spec SheetThe ATEN VC060 is a DVI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a DVI source device to efficiently optimize video resolution.
The ATEN DVI EDID Emulator is a convenient tool that ensures smooth viewing experience for anyvideo installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard thatallows users to quickly view, store and manage EDID settings.
Features
- Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA,XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- EDID Wizard – allows a user an easy way to manage EDID settings
- EDID mode selection – Default, Learning , Programming
- Automatically manages EDID communication between connected devices
- Signaling rates up to 2.25 Gbits in support of 1080p display
- LED indication of video source devices
- Supports wide screen
- Supports hot-plugging
- Non-Powered*
*If the video source is not receiving enough power an external power cord should be connected.
Highlights
| Intelligent DDC ChannelSwitch | The previous Emulator only supports EDID signal bi-directional communication – it cannot transmit HDCP over a single channel. With the Intelligent DDC Channel Switch feature, the HDCP bypass or EDID mode can be selected automatically (VC080). |
| EDID Wizard | The EDID Wizard application can be downloaded from the ATEN website. The user-friendly GUI can be used to view, configure and store EDID settings. |

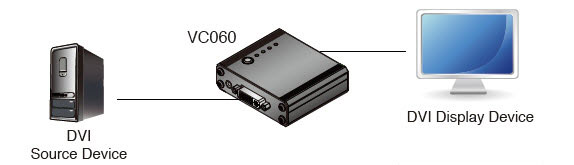

Diagram
Specification
| Function | VC060 | |

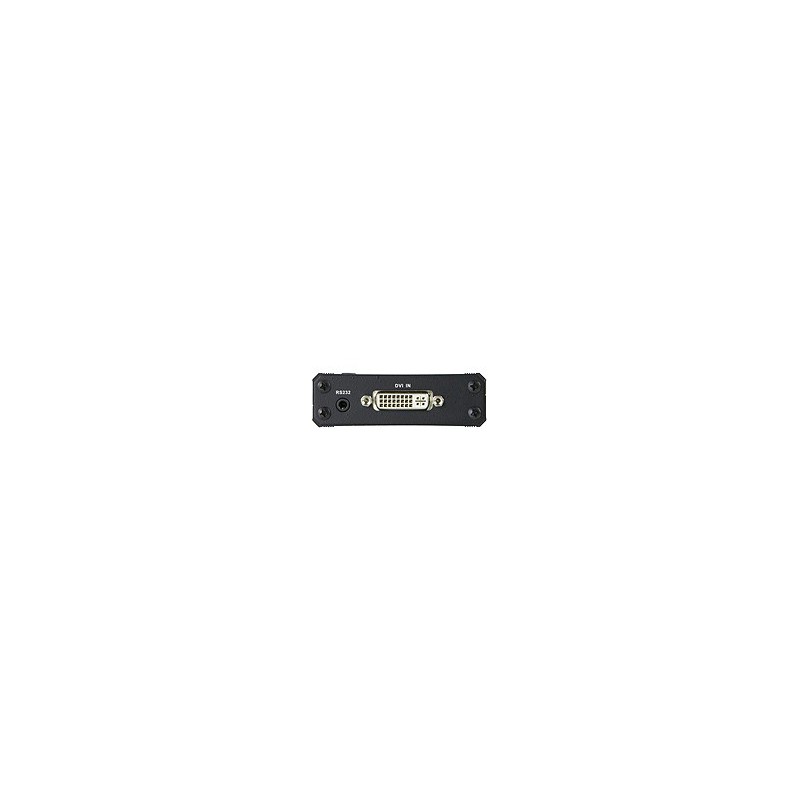

| Connectors | Video In | 1 x DVI-I Female (White) |

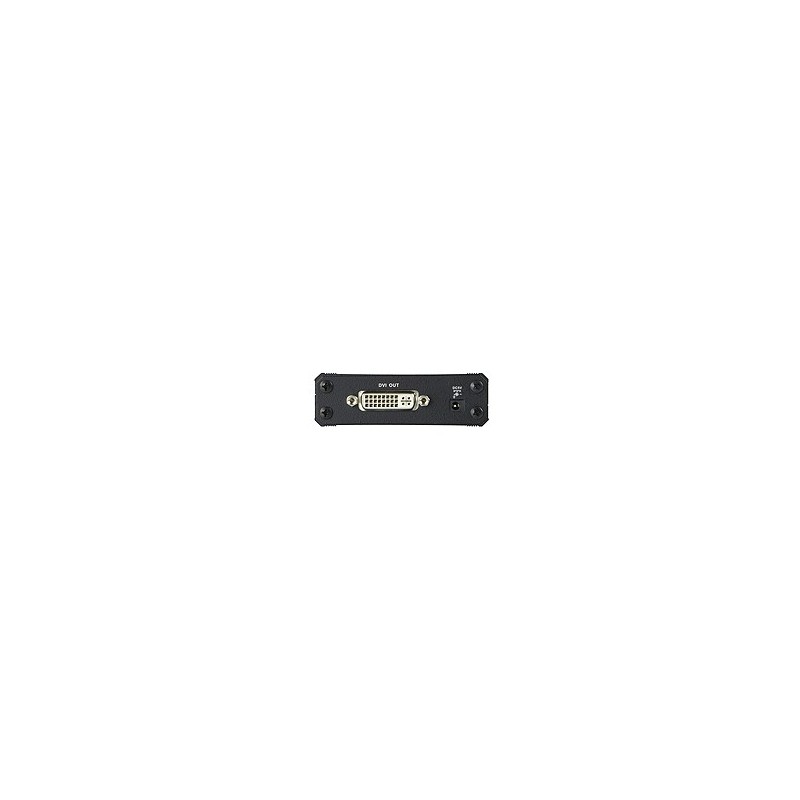

| Video Out | 1 x DVI-I Female (White) | |
| RS-232 Port | 1 x mini jack (Black) | |
| Power | 1 x DC Jack | |
| Switches | Leam/Select | 1 x Pushbutton |
| LED | EDID Set | 4 (Green) |
| Video | 1920 x 1200; 1080p | |
| Power Consumption | DC5V, 0.15W | |
| Environment | Operating Temp. | 0°C - 50°C |
| Storage Temp | -20°C - 60°C | |
| Humidity | 0 – 80% RH, Non-condensing | |
| Physical Propertie | Housing | Metal |
| Weight | 0.15 kg | |
| Dimensions (L x W x H) | 7.90 x 7.86 x 2.55 cm | |
Package Contents
- 1x VC060 HDMI Emulator
- 1x RS-232 Configuration Cable
- 1x USB to DC Power Cord
- 1x User Instructions
