Spec Sheet

KVM Over IP Matrix System Implementation Guide



The KE6922R is a high performance IP-based extender consisting of a receiver (KE6922R). The transmitter connects to a computer to deliver the computer’s data to the receiver to collectively provide console access from a remote or separate location. The KE6922R allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users’ workstation.

The KE6922R supports one DVI display at each end, providing video resolutions up to 2560 x 2048 @ 50Hz and flawless and lossless video compression quality with extremely low latency. The KE6922R supports network connections via the RJ-45 port or the two SFP slots. The transmitter and receiver can be connected either directly to each other, or via a high-speed network over a copper-based or fiber-based LAN. By connecting via the SFP slots with 1Gbps SFP fiber module* expansions on fiber optic network, you can extend transmission distances up to 10km.

The KE6922R also features dual power supplies for redundancy to ensure dependable services. Meanwhile, the KE6922R features Power over Ethernet (PoE) function where power can be supplied through a PoE Network Switch. This eliminates the need for a power adapter and opens up the opportunity to reduce power configuration cost.

Features

Exclusive Features for ATC Industry*

• Supports 2K x 2K video resolution (2048 x 2048 @ 60Hz)
• Adaptive Fast Switching – switches automatically and immediately between different Tx video resolutions on a Rx display (within 0.3 seconds)
• Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
• “Push”and“Pull”– shares content instantly to/from a single Rx or video wall by just one click
• Authentication Lock – automatically logs in when the power of the system is resumed after power off
• Connection Redundancy – automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers
• Disconnection Alert – Pop-up warning message and looping alarm beeping notify users the disconnection status
• Supports power/network failover – KE6922 has 2 DC jacks for power redundancy while 1 RJ45 & 2 SFP fiber ports for network failover to ensure constant availability for mission-critical applications

Advanced Features*

• Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
• Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
• Virtual Transmitter – independently streams video, audio, USB, and serial sources from different Tx
• Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
• Advanced User Authorization Settings – administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
• Configurable user and group permissions for access and control of KE devices
• Tx grouping of up to 4 sets of KE transmitters to support multi-display applications
• Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button**

หมายเหตุ

* advance functions เหล่านี้ จะใช้งานได้เมื่อใช้งานร่วมกับ KE Matrix Management software (CCKM) และ ต้องซื้อ USB Key License เมื่อใช้ TX และ RX รวมกันเกิน 8 units ในระบบ
** KVM over IP Access Control Box (2XRT-0015G) เป็นอุปกรณ์เสริม ไม่รวมใน package

Hardware

• Supports DVI-D Dual Link video resolutions up to 2560 x 1600 @60Hz and 2560 x 2048 @50Hz
• Supports stereo speakers and stereo microphone
• Supports Virtual Media or vUSB
• Auto-MDIX – automatically detects cable type
• Built-in 8KV/15KV ESD protection and 2KV surge protection
• Fanless design for silent operations that are energy efficient
• Supports connection via Gigabit Ethernet port (RJ-45) or 1Gbps SFP fiber module expansions*** for failover
• Supports 1Gbps SFP fiber module expansions*** up to 10 km
• Power Redundancy – KE6922 has 2 DC jacks for power redundancy
• Supports Power over Ethernet (PoE) function – compliant with the IEEE 802.3at standard
• Rack Mountable – Mounting options:

  • 2X-021G Dual Rack Mount Kit
  • 2X-031G Single Rack Mount Kit

  ***The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.

Management

• Centralized KE Series management software – KE Matrix Management Software (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUI
• Dual console operation – controls your system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
• Local console for emergency operation
• OSD (On Screen Display) on the receiver configures both Tx / Rx devices
• EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
• On-screen Preview – allows users to view the video of up to 36 displays on one screen
• Video Compression Level – allows you to increase/decrease the video quality to adjust for appropriate network bandwidth
• CLI – administrators can control all KE devices via RS-232 or Telnet by issuing commands
• RS-232 serial ports – allow you to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
• Compatible with all KE devices

Security

• Dedicated LAN port for KE direct connections – can be isolated from the corporate network
• Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
• Supports industry standard Transport Layer Security (TLS) protocol

Virtual Media

• Virtual Media mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
• Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
• Supports Smart Card/CAC Reader

Diagram

Specification

Package Contents

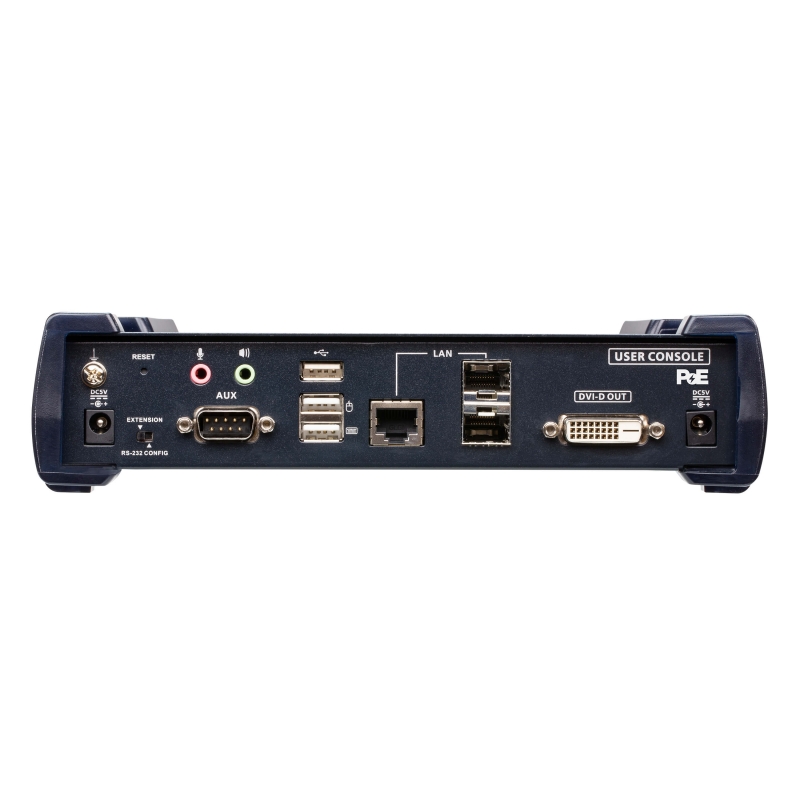

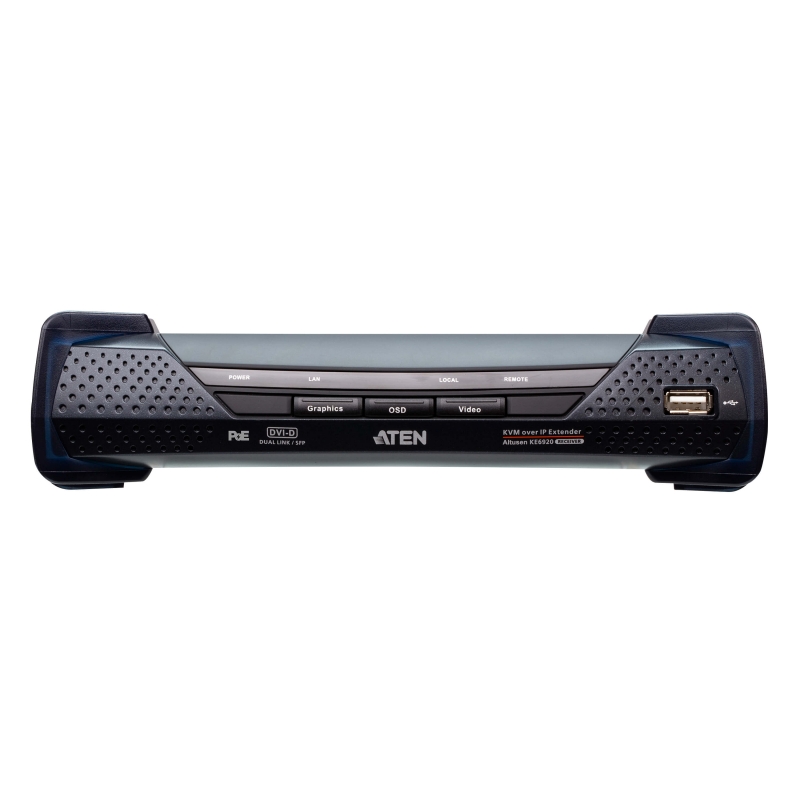

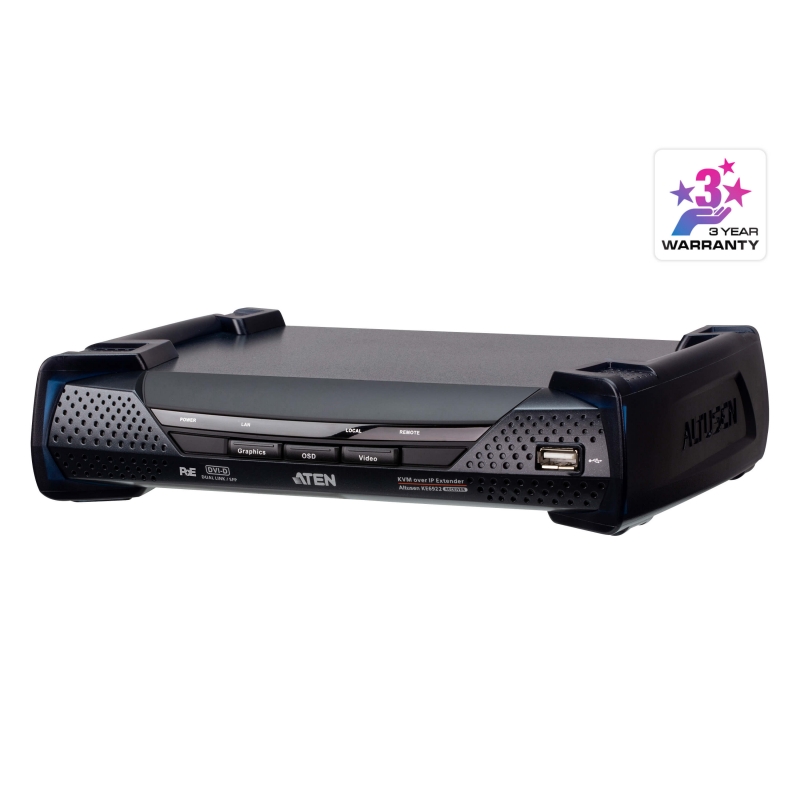

1x KE6922R 2K DVI-D Dual-Link KVM over IP Receiver with Dual SFP & PoE
1x User Instructions
